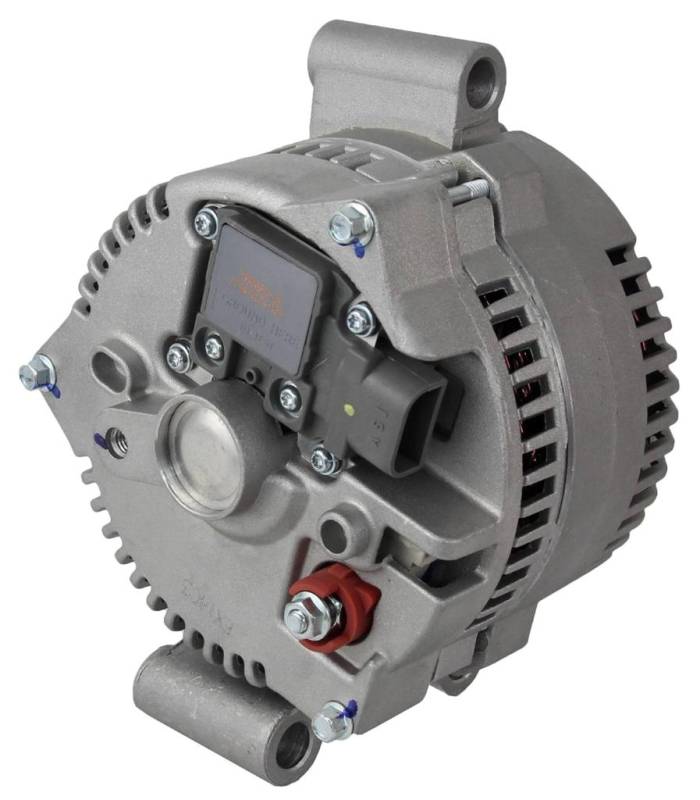

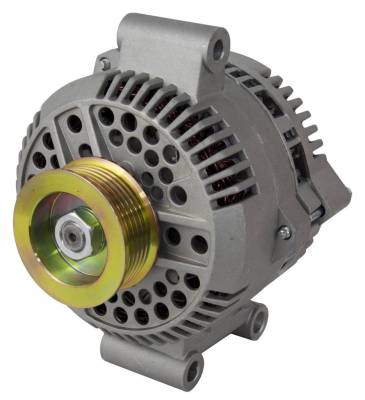

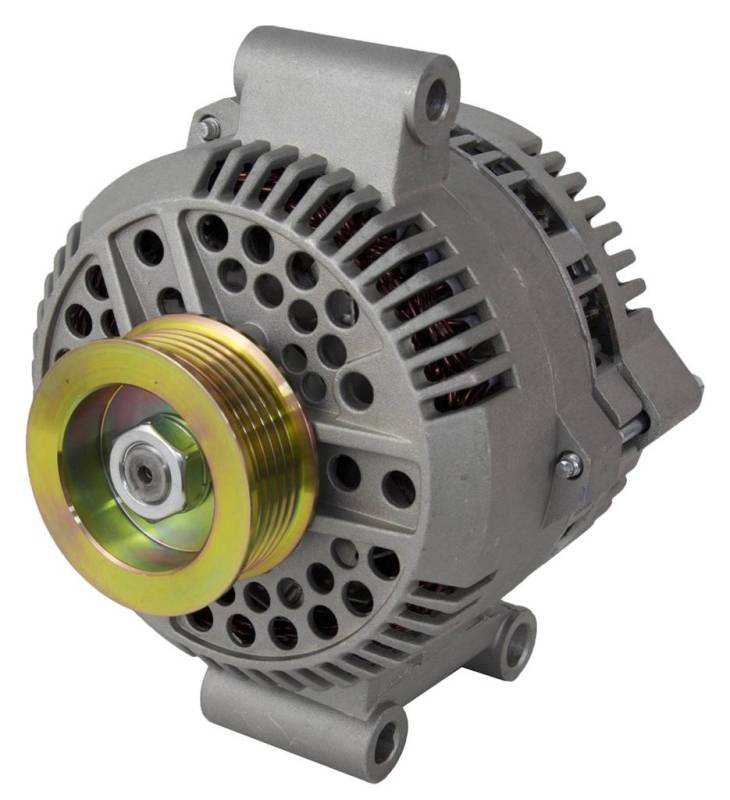

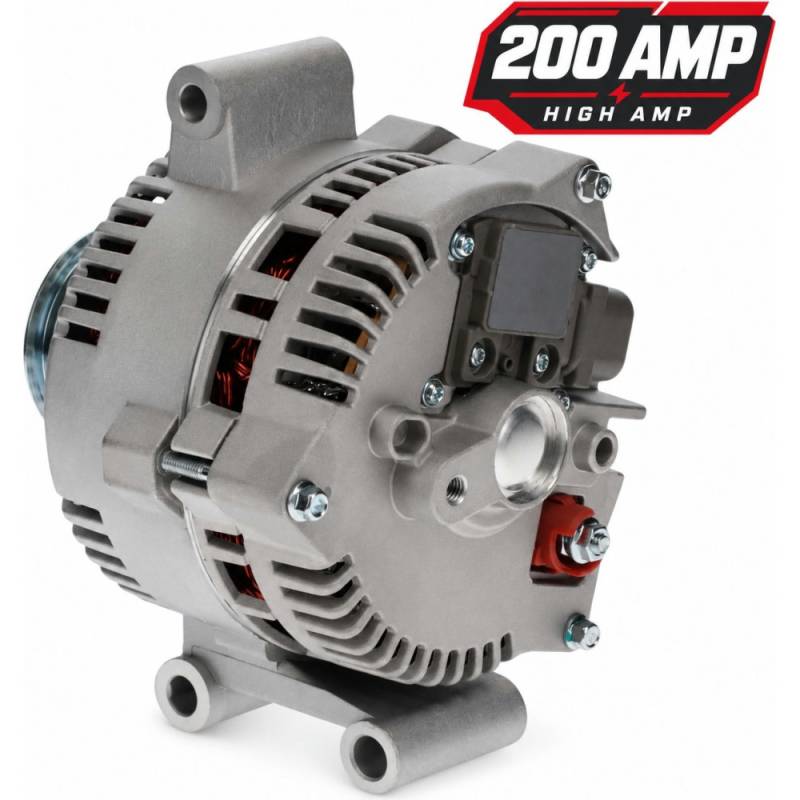

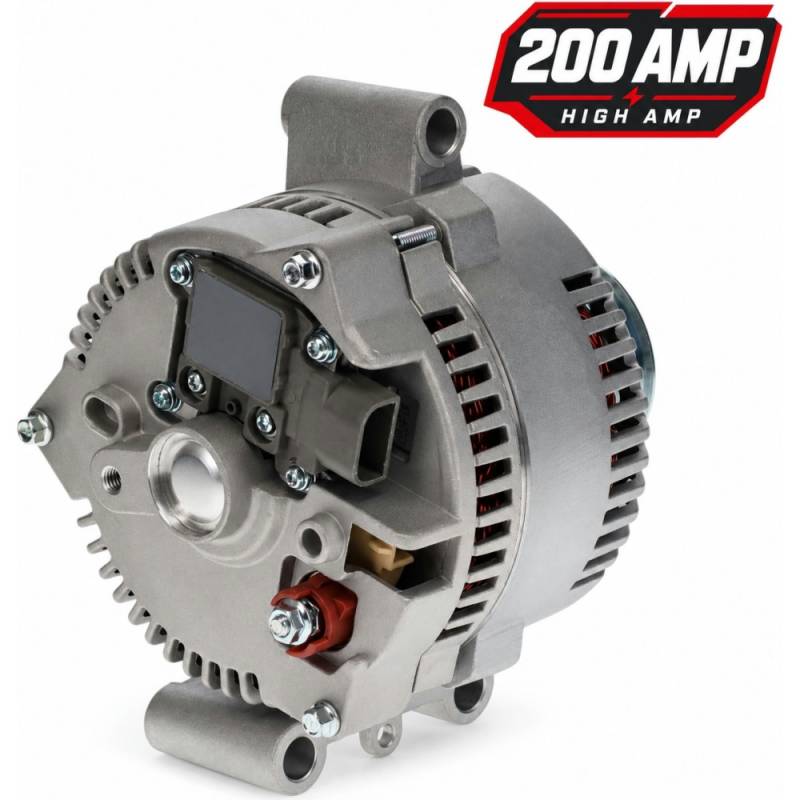

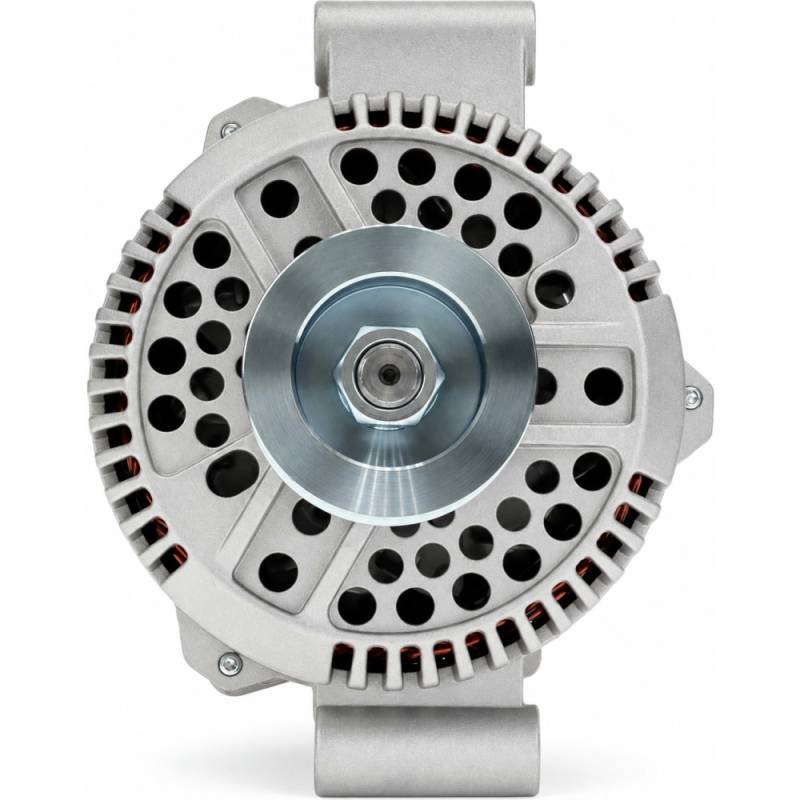

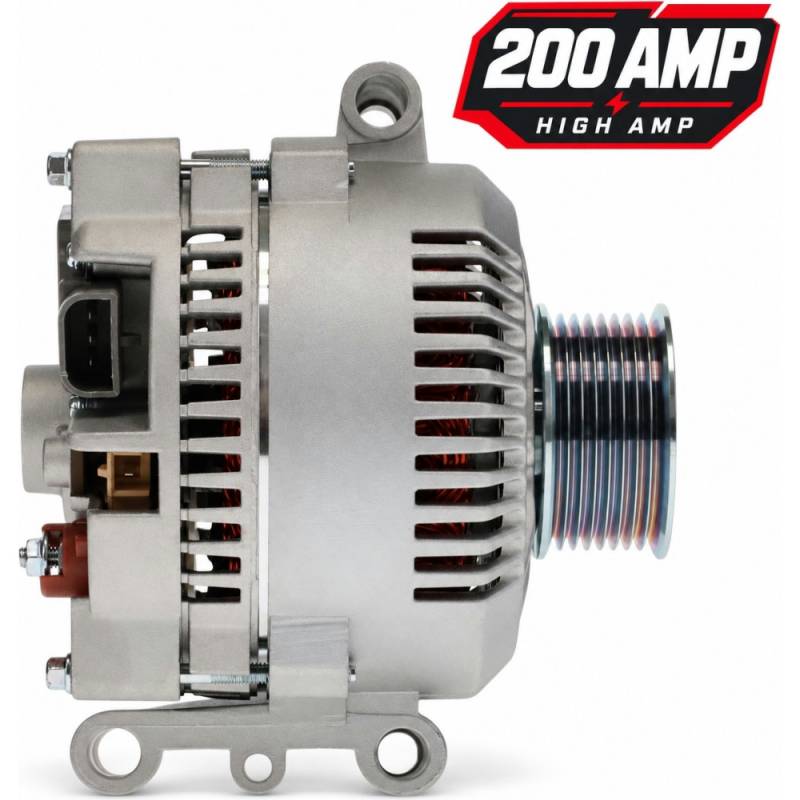

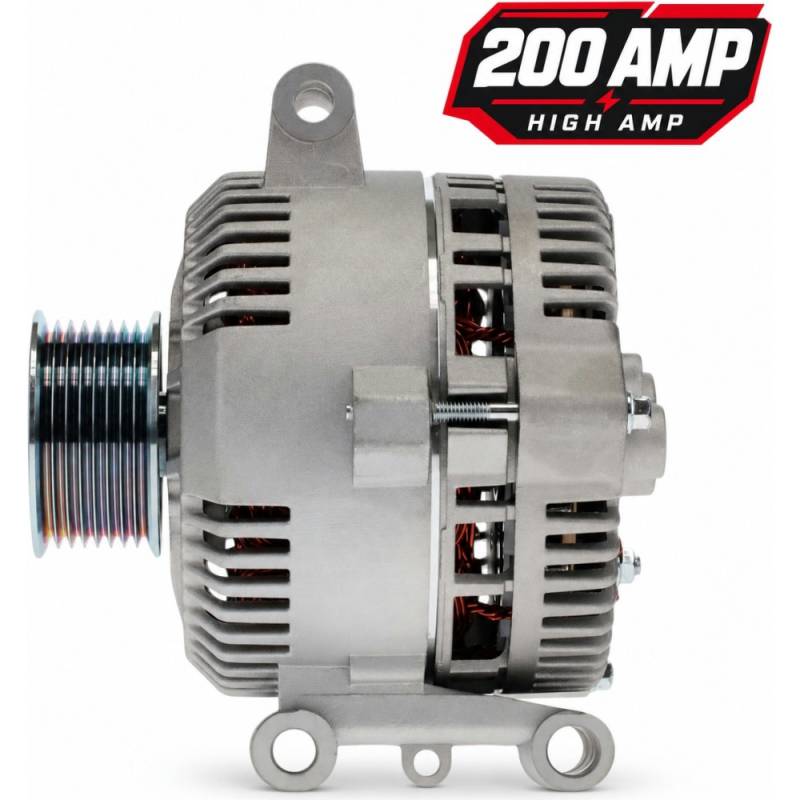

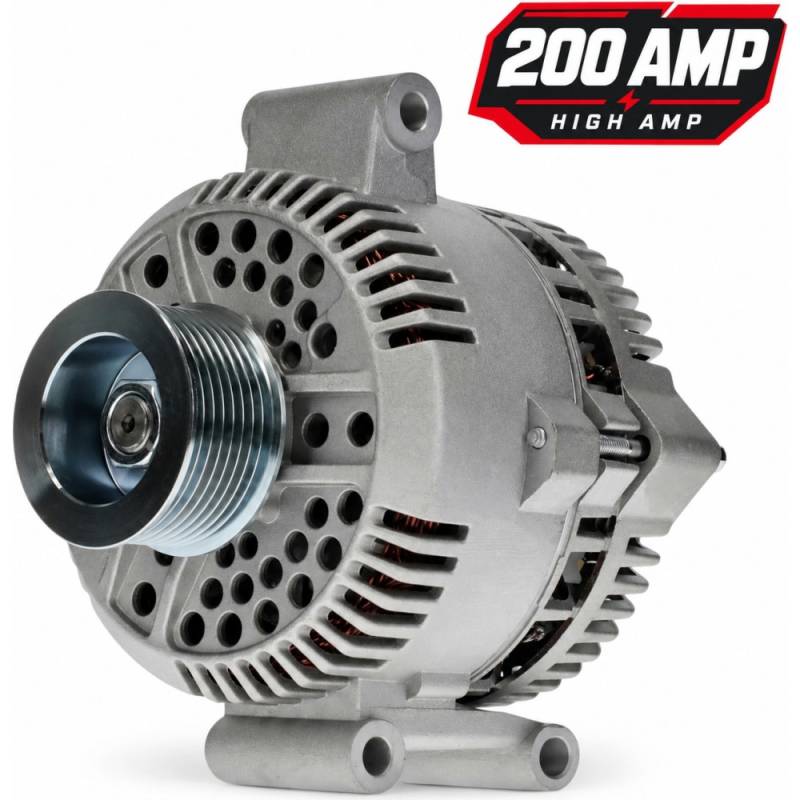

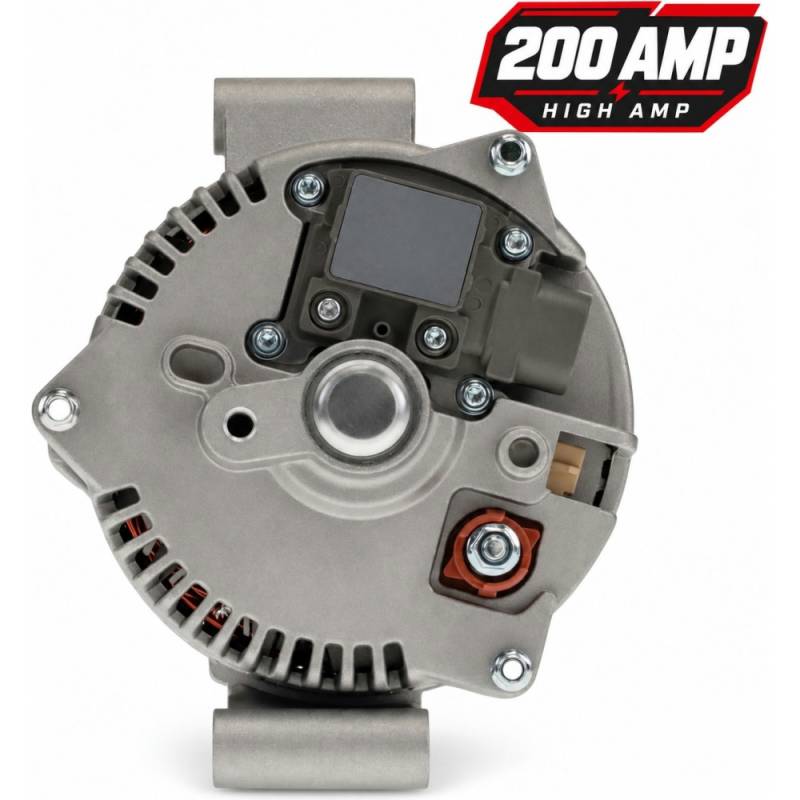

New Alternator High Amp 200 Amp Compatible With 96 01 Ford Ranger 4.0 V6 F2pu-10346-Af Gl-381

7768HA*5
MOTORCRAFT PART NUMBERS:
• GL-331, GL331
• GL-381, GL381
• GL-500, GL500
• GL-500-RM, GL500RM
• GL-501, GL501
• GL-501-RM, GL501RM
• GL-504, GL504
• GL-504-RM, GL504RM
• GL-8720, GL8720
• GL-8727, GL8727
• GL-8779, GL8779

FORD PART NUMBERS:
• F5UU-10300-BA, F5UU10300BA
• F6UU-10300-EA, F6UU10300EA
• F6UU-10300-EB, F6UU10300EB
• F2PU-10346-AF, F2PU10346AF
• F37U-10300-AA, F37U10300AA
• F3UU-10300-AE, F3UU10300AE
• F3UU-10300-AF, F3UU10300AF
• F3UZ-10346-A, F3UZ10346A
• F3UZ-10346-ARM1, F3UZ10346ARM1
• F3UZ-10346-ARM2, F3UZ10346ARM2
• F6UU-10300-CA, F6UU10300CA
• F2TU-10300-AF, F2TU10300AF
• F6UU-10300-FA, F6UU10300FA
• F6UZ-10346-VA, F6UZ10346VA
• F6UZ-10346-VARM1, F6UZ10346VARM1
• F6UZ-10346-VARM2, F6UZ10346VARM2
• F6UZ-10346-VARM3, F6UZ10346VARM3
• F6PU-10346-VA, F6PU10346VA
• F85U-10300-AA, F85U10300AA
• F85U-10300-AB, F85U10300AB
• XL3U-10300-CA, XL3U10300CA
• XL3U-10300-CB, XL3U10300CB
• F5UU-10300-AA, F5UU10300AA
• F5UZ-10346-A, F5UZ10346A

ACDELCO PART NUMBERS:
• 334-2253, 3342253
• 334-2253A, 3342253A
• 334-2254, 3342254
• 334-2255, 3342255

MAZDA PART NUMBERS:
• ZZM2-18-300, ZZM218300

VISTEON PART NUMBERS:
• AK
• AE
• AV

OTHER PART NUMBERS:
• Remy 20198
• Bosch AL7526X, AL7566X
• Lucas LRA01487
• Wilson 90-02-5065HON, 90025065HON (200 amp)
• Wilson 90-02-5221HON, 90025221HON (200 amp)
• Wilson 90-02-5065, 90025065
• Wilson 90-02-5221, 90025221
• Wilson 90-02-5199, 90025199
• Wilson 90-02-5200, 90025200

SPECIFICATIONS:
• Type: alternator, 3G type, high output, internal regulator, internal fan
• Voltage: 12 volt
• Output: 200 amp, upgrade for the 95 amp and 130 amp original alternators listed
• Case: 3G large case (200 amp 3G units use the 146 mm large case stator)
• Mounting: 3G side mount
• Plug: 3:00 regulator plug position
• Rotation: clockwise (CW)
• Pulley: match your original, most listed trucks use a 6 groove serpentine pulley, 7.3L diesel originals use 7 or 8 groove
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $424.39
Sale: $242.51
Save: 43%
Save: $181.88
Qty:
Free Shipping!

Description

FORD RANGER AND MAZDA B-SERIES PICKUPS:
• Ford Ranger 4.0L (245) V6, optional alternator, 1996, 1997, 1998, 1999, 2000, 2001
• Mazda B4000 pickup 4.0L V6, optional alternator, 1998, 1999, 2000
• Mazda B4000 pickup 4.0L V6, optional alternator, 2002, 2003
• Mazda B3000 pickup 3.0L V6, optional alternator, 2000-2005
• Mazda B2500 pickup 2.5L L4, optional alternator, 2000, 2001
• Mazda B2300 pickup 2.3L L4, 3 bolt mount, 2003

FORD EXPLORER:
• Ford Explorer 4.0L (245) V6, optional alternator, 1993, 1994
• Ford Explorer 4.0L (245) V6, optional alternator, 1995, 1996
• Ford Explorer 4.0L (245) V6 OHV, VIN X, optional alternator, 1997, 1998, 1999, 2000, 2001

FORD F-SERIES PICKUPS AND CHASSIS:
• Ford F-150 4.2L (256) V6 pickup, optional alternator, 1997-2002
• Ford F-150 and F-150 Heritage 4.2L (256) V6 pickup, all, 2003, 2004
• Ford F-250, F-350 7.3L (445) V8 diesel, optional alternator, with internal regulator, 1992
• Ford F-250, F-350 7.3L (445) V8 diesel without ambulance package, 1993
• Ford F-250, F-350 7.3L (445) V8 diesel without ambulance package, without turbo, 1994
• Ford F-250, F-350 7.3L (445) V8 diesel without ambulance package, with turbo, 1994
• Ford F-250, F-350 7.3L (445) V8 diesel without ambulance package, 1995, 1996, 1997, 1998
• Ford F-Super Duty, 1992, 1993, 1994
• Ford F-59 Commercial Stripped Chassis, 1993, 1994

FORD E-SERIES VANS AND ECONOLINE SUPER DUTY:
• Ford E-Series van (E-150, E-250, E-350 Econoline) 4.2L (256) V6, optional alternator, 1997-2003
• Ford E-Series van 5.0L (302) V8, optional alternator, 1993, 1994, 1995, 1996
• Ford E-Series van 5.8L (351) V8, optional alternator, 1993, 1994, 1995, 1996
• Ford E-Series van 7.3L (445) V8 diesel, standard alternator, 2nd production, 1992
• Ford E-Series van 7.3L (445) V8 diesel, standard Motorcraft alternator, 1993, 1994
• Ford E-Series van 7.3L (445) V8 diesel, standard Motorcraft alternator, 1995, 1996, 1997, 1998
• Ford E-Series van 7.3L (445) V8 diesel except ambulance package, 1999, 2000, 2001, 2002, 2003
• Ford E-450 Econoline Super Duty 7.3L V8 diesel except ambulance package, 1999
• Ford E-550 Econoline Super Duty 7.3L V8 diesel except ambulance package, 2002
• Ford Econoline Super Duty 5.8L (351) V8, 1996

SPECIFICATIONS:
• Type: alternator, 3G type, high output, internal regulator, internal fan
• Voltage: 12 volt
• Output: 200 amp, upgrade for the 95 amp and 130 amp original alternators listed
• Case: 3G large case (200 amp 3G units use the 146 mm large case stator)
• Mounting: 3G side mount
• Plug: 3:00 regulator plug position
• Rotation: clockwise (CW)
• Pulley: match your original, most listed trucks use a 6 groove serpentine pulley, 7.3L diesel originals use 7 or 8 groove
• Condition: New aftermarket

Details

Shipping Information

  • Item Requires Shipping
  • 17.6 lbs.
  • W12.0000” x H10.0000” x L12.0000”
