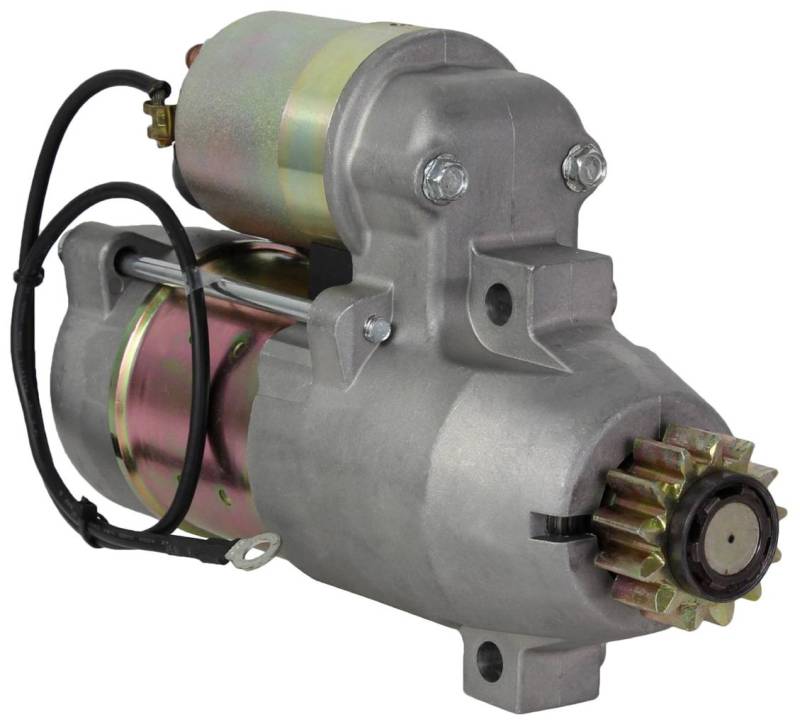

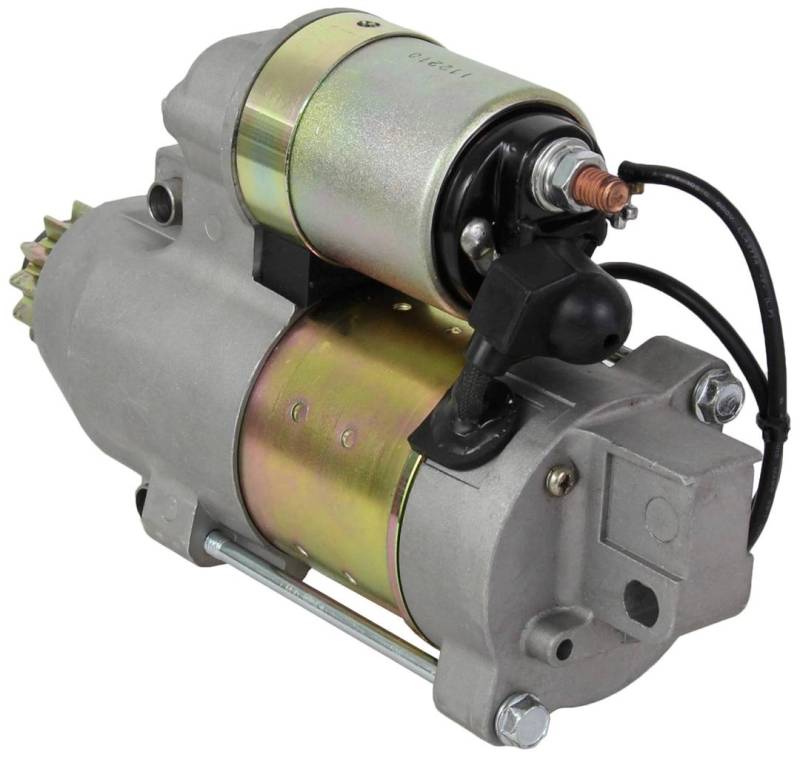

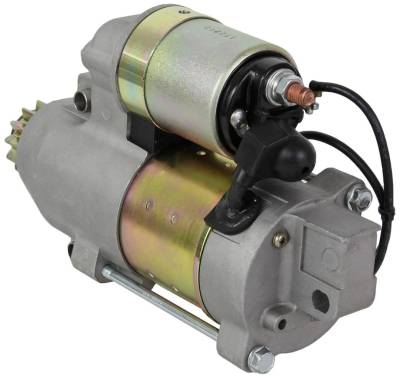

12V Starter Compatible With Mercury Marine 225Hp Efi 4-Stroke Outboard 225Cxl 225Xl 225Xxl Yamaha

OEM PART NUMBERS:
• Hitachi: S114-860 / S114860 / S114-860N / S114860N
• Yamaha: 69J-81800-00 / 69J8180000 / 69J-81800-00-00 / 69J818000000
• Yamaha: 69J-81800-01 / 69J8180001 / 69J-81800-01-00 / 69J818000100
• Mercury Marine: 50-888333T / 888333T / 888333T1



AFTERMARKET CROSS REFERENCE:
• API Marine: M0T5023N
• Arco Marine: 3434
• Sierra: 18-6833
SPECIFICATIONS:
• Type: Hitachi PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counter-Clockwise)
• Teeth: 13
• Gear OD: 39.7mm / 1.563in
• Mounting: 8.6mm ID Unthreaded (x3 ears)
• Weight: 8 lbs / 3.64 kg
• Condition: New

YAMAHA 200HP OUTBOARD APPLICATIONS (2002-2011):
• F200TXR / LF200TXR V6 3.3L 4-Stroke (2002-2011)

YAMAHA 225HP OUTBOARD APPLICATIONS (2002-2011):
• F225TUR / LF225TUR V6 3.3L 4-Stroke (2002-2006)
• F225TXR / LF225TXR V6 3.3L 4-Stroke (2002-2011)

MERCURY 225HP OUTBOARD APPLICATIONS (2003-2006):
• 225CXL / 225CXXL / 225XL / 225XXL EFI V6 4-Stroke (2003-2006)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
