OEM PART NUMBERS:
• Isuzu: 8941702050, 8941702051, 8970489660, 8970489662, 897048-9661, 897048-966-3
• Denso: 128000-1100, 228000-1130, 228000-1131, 228000-1132, 228000-1133
SPECIFICATIONS:
• Voltage: 12V
• Power: 1.4kW / 1.88HP
• Type: OSGR
• Unit Type: Denso
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 31.9mm / 1.256"
• Mounting Ear 1: 13.5mm ID Unthreaded
• Mounting Ear 2: 13.5mm ID Unthreaded
• Battery Studs: M8-1.25 Threaded
• Motor Studs: M8-1.25 Threaded
• Weight: 10.4 lbs / 4.73 kg
• Condition: New
APPLICATION:
• FD10 / FD15 / FD18 / FD20L-10 / FD25L-10 Lift Trucks
• FD10Z / FD18Z / FD25Z Lift Trucks
• Isuzu 4FE1 engine — all models
• Isuzu 3AB1 industrial/agricultural engines

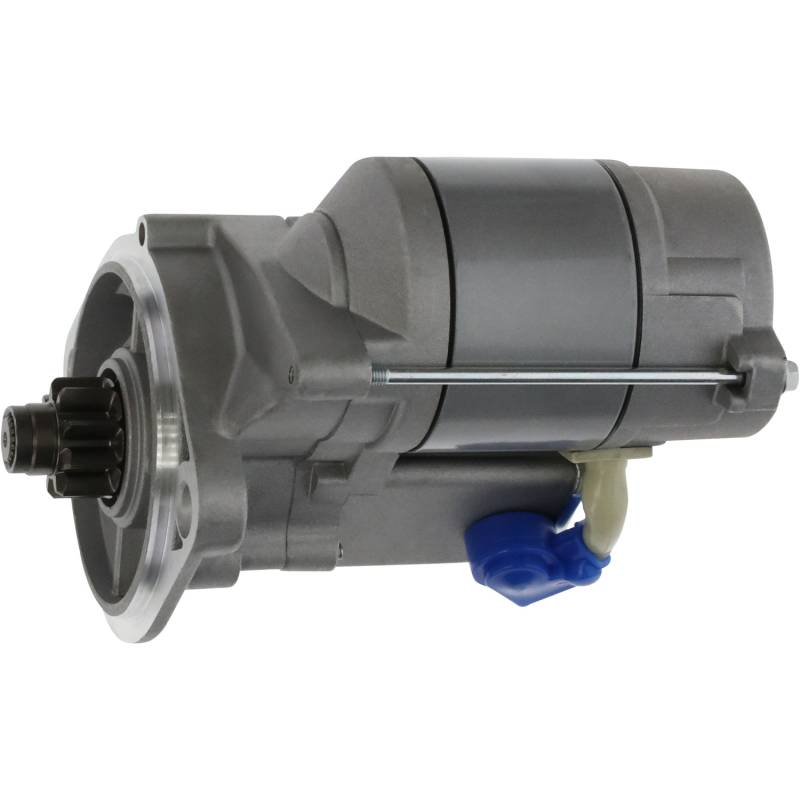

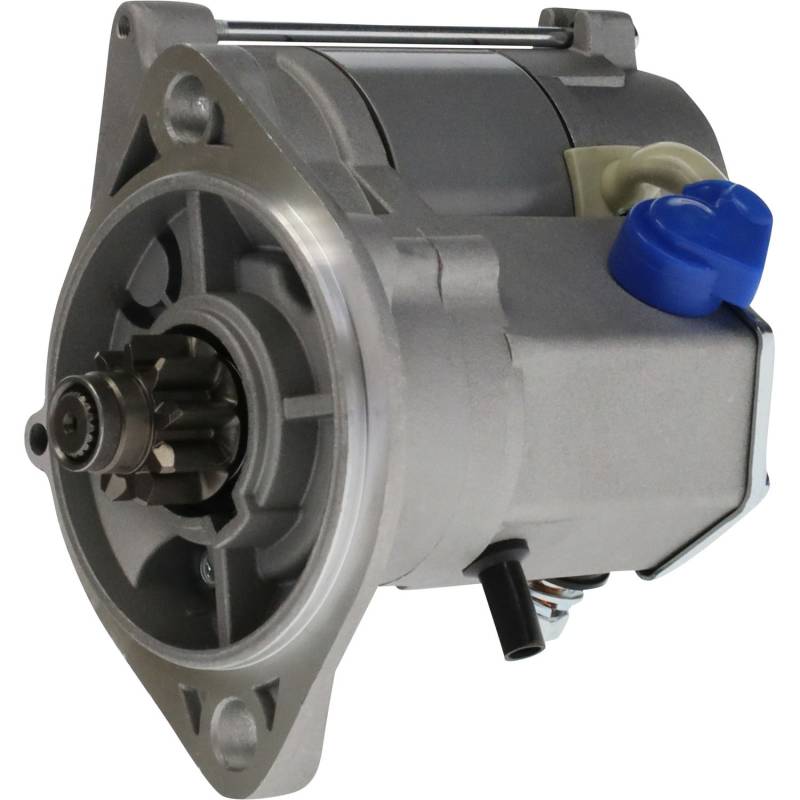

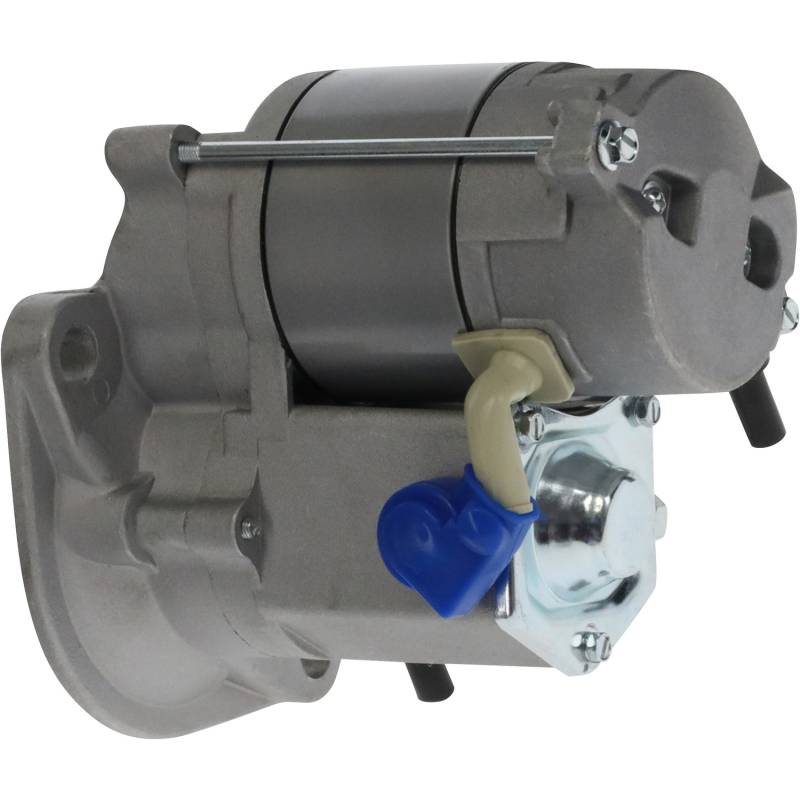

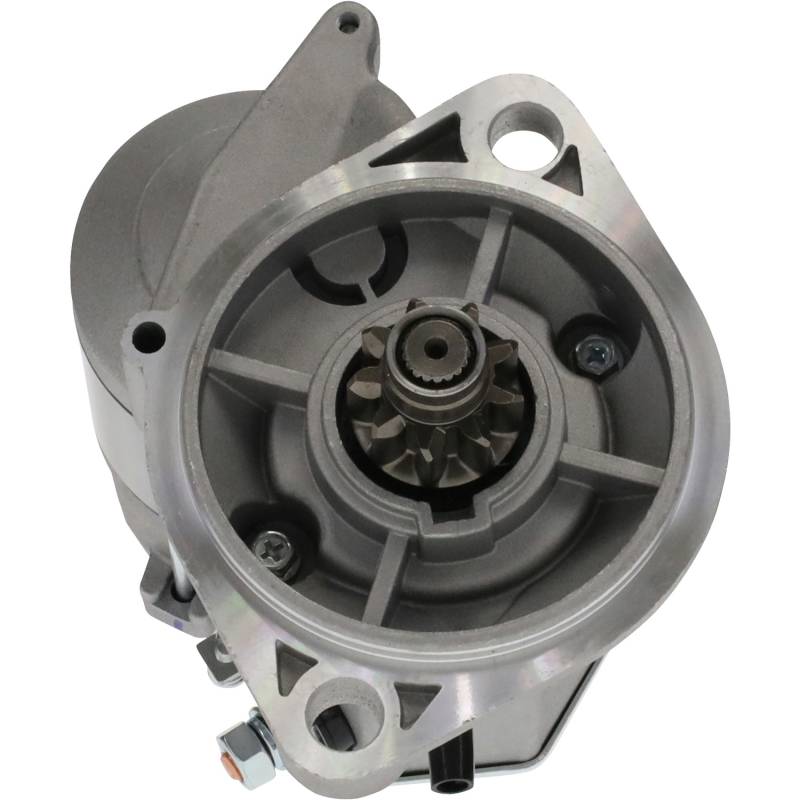

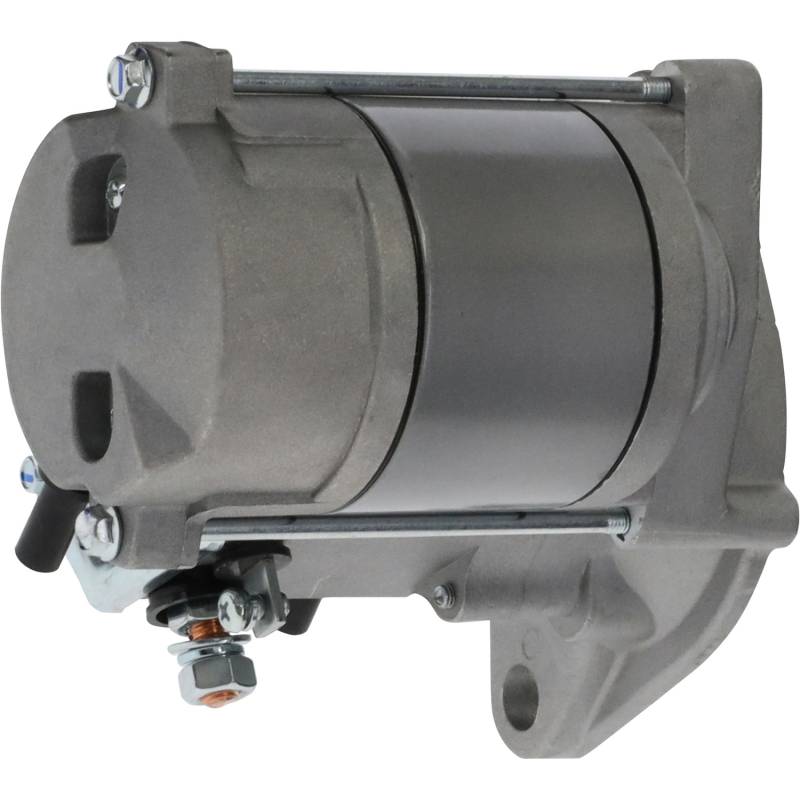

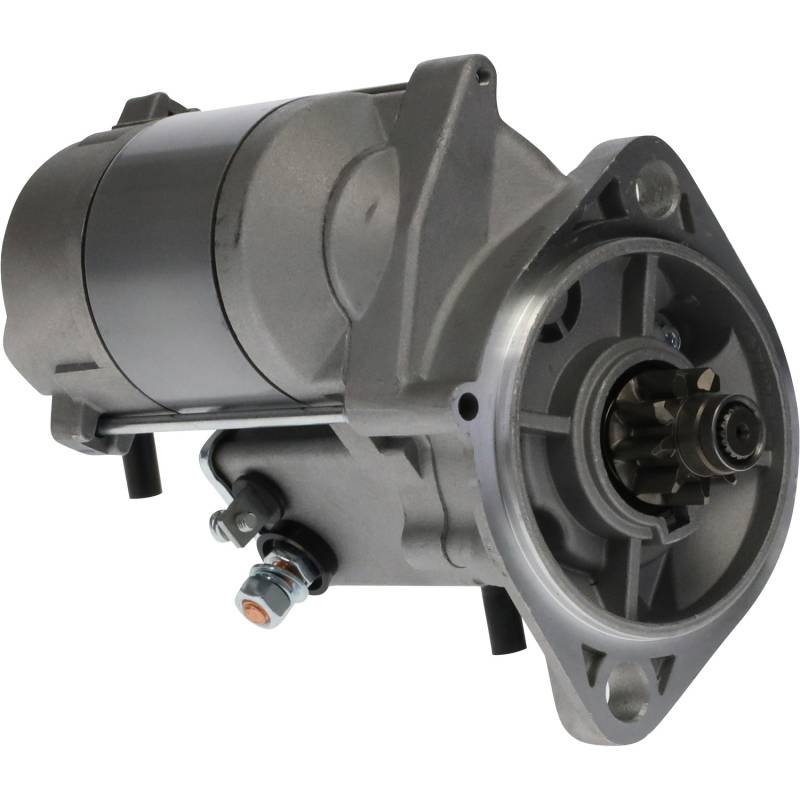

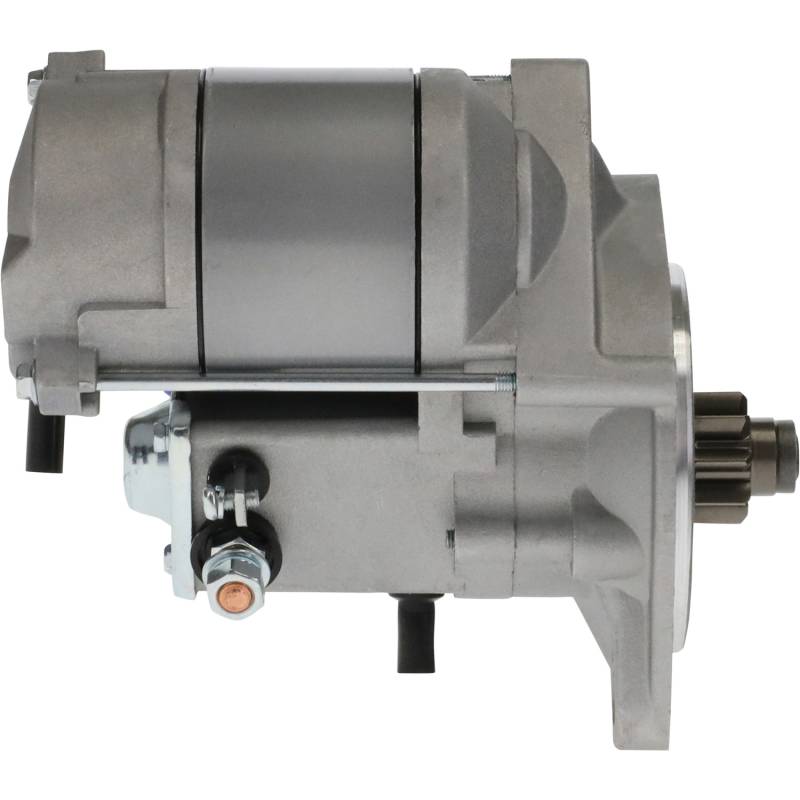

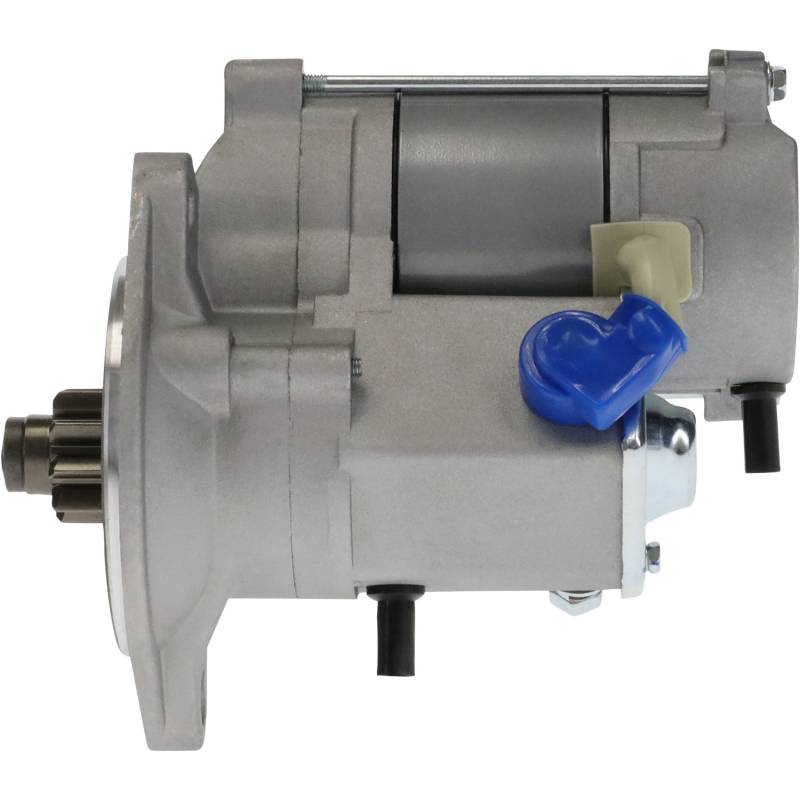

12V Starter Motor — FD Series Lift Trucks / 4FE1 Engine
12 volt 1.4kW starter motor for FD10, FD15, FD18, FD20L-10, FD25L-10, FD10Z, FD18Z, and FD25Z lift trucks with Isuzu 4FE1 engine. Also fits Isuzu 3AB1 industrial engines. Denso OSGR with 9-tooth drive pinion, CW rotation. Dual 13.5mm unthreaded mounting ears, M8-1.25 studs. Direct replacement for Denso 228000-1133, 128000-1100 and Isuzu 897048-9661, 8941702050.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
