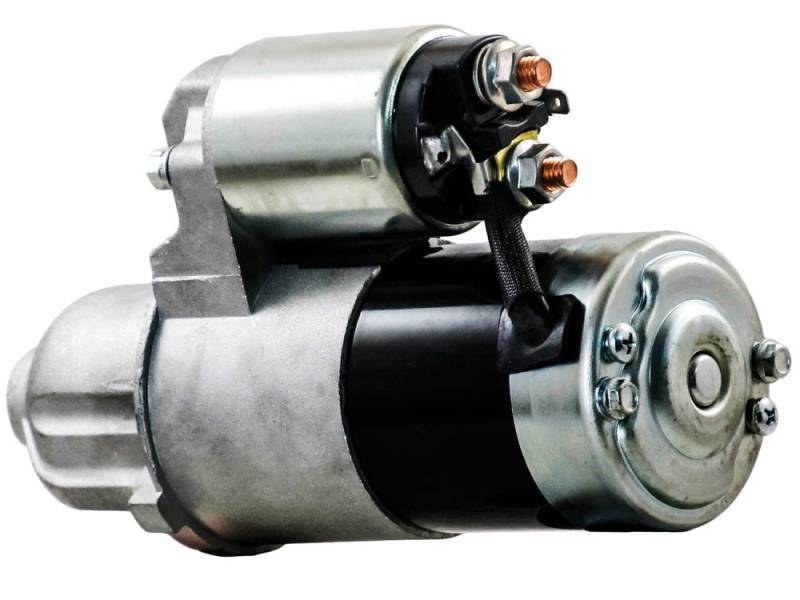

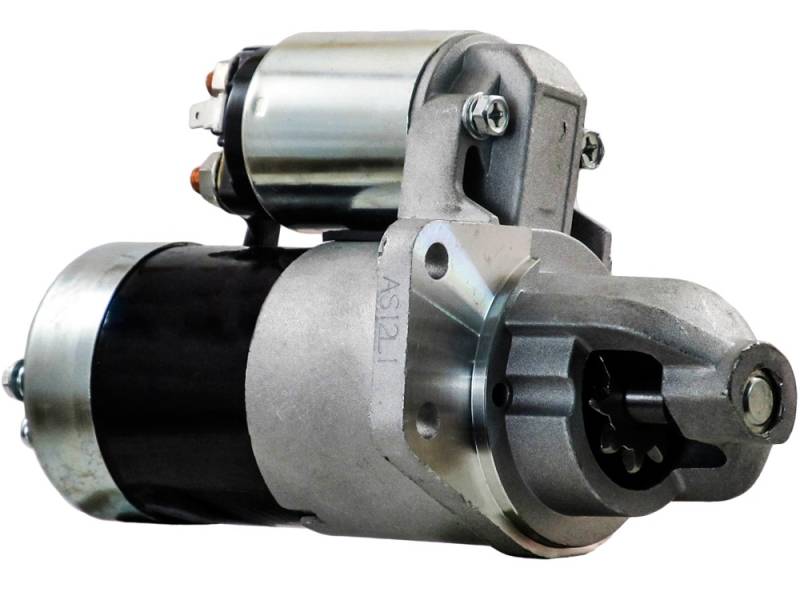

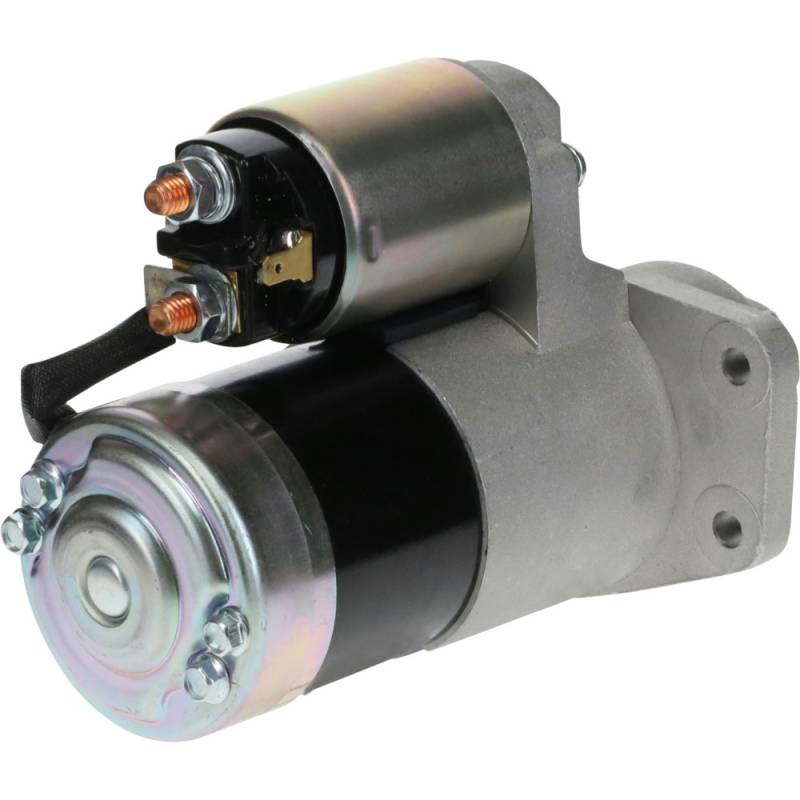

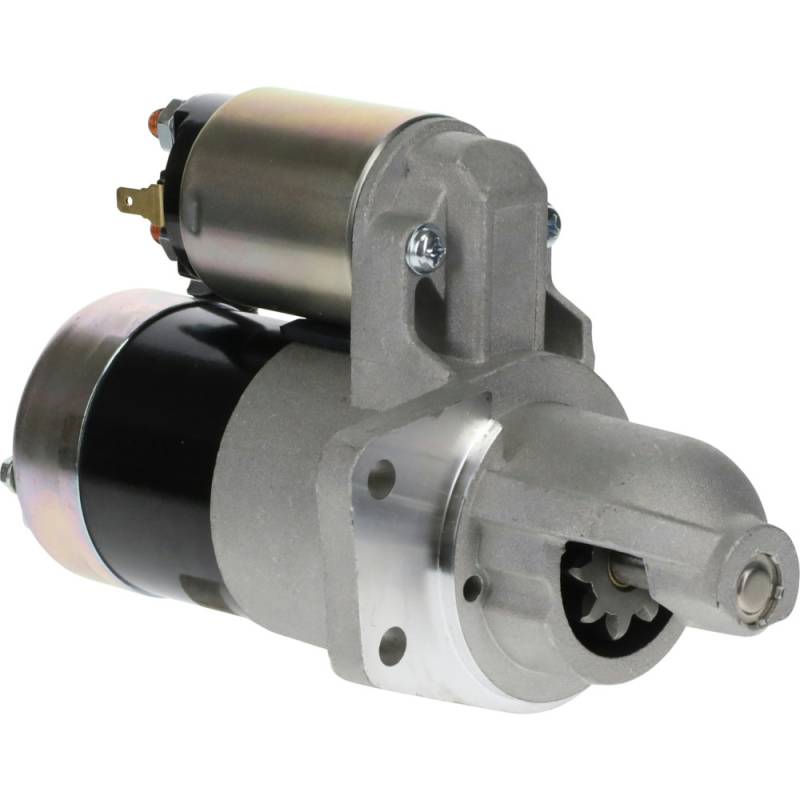

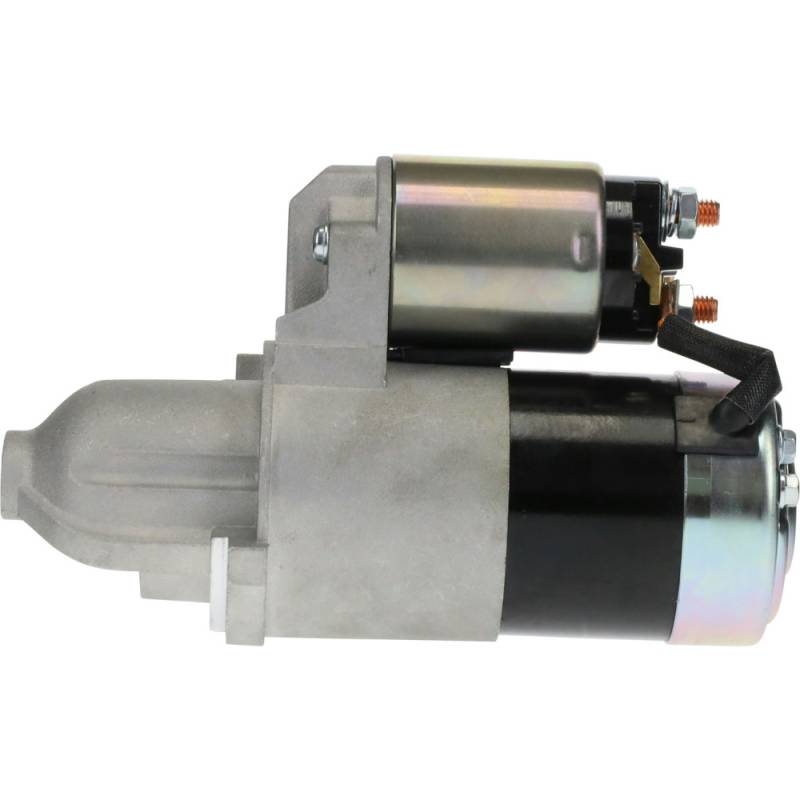

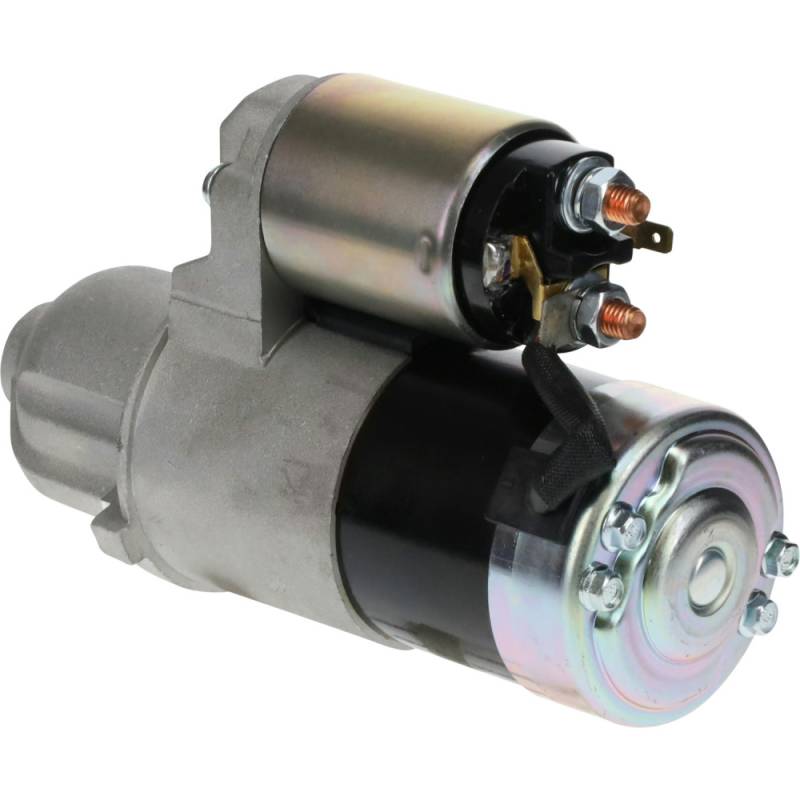

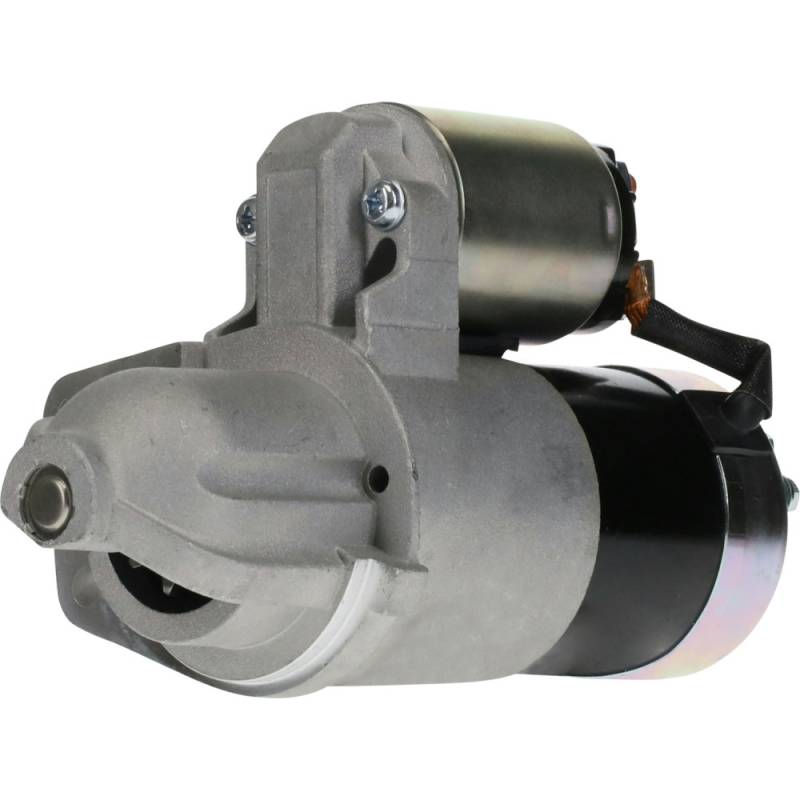

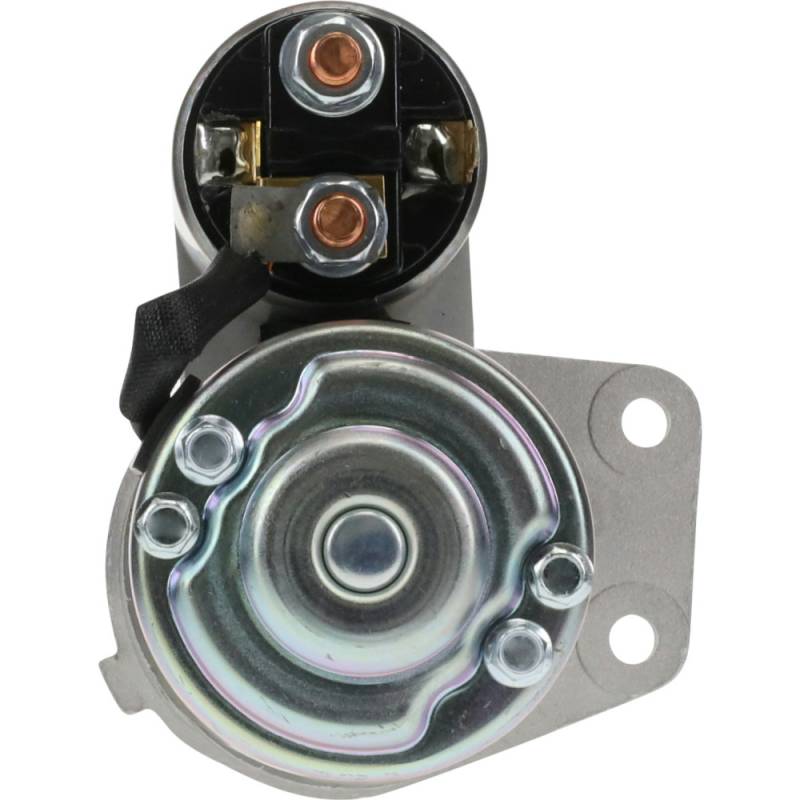

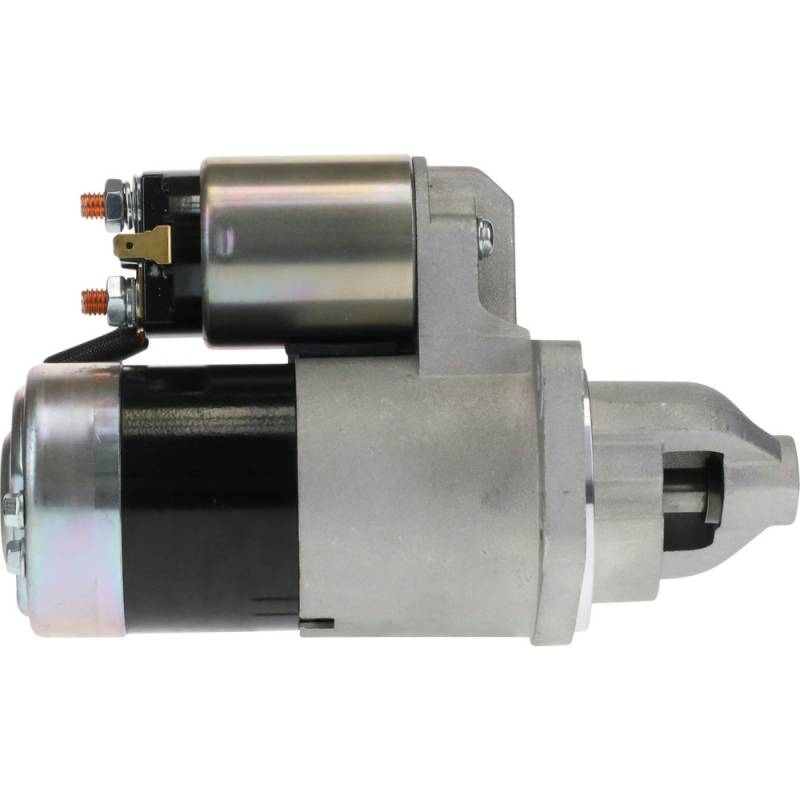

New Starter Motor Compatible With John Deere Tractor 316 318 420 Onan Engine Am104506 Am109172

⚠️ NEW AFTERMARKET 12V DIRECT DRIVE STARTER, 9 TOOTH, CCW, FOR THE ONAN B43E / B43G / B48G:
• 12 volt direct drive (DD), 0.8 kW, counterclockwise (CCW)

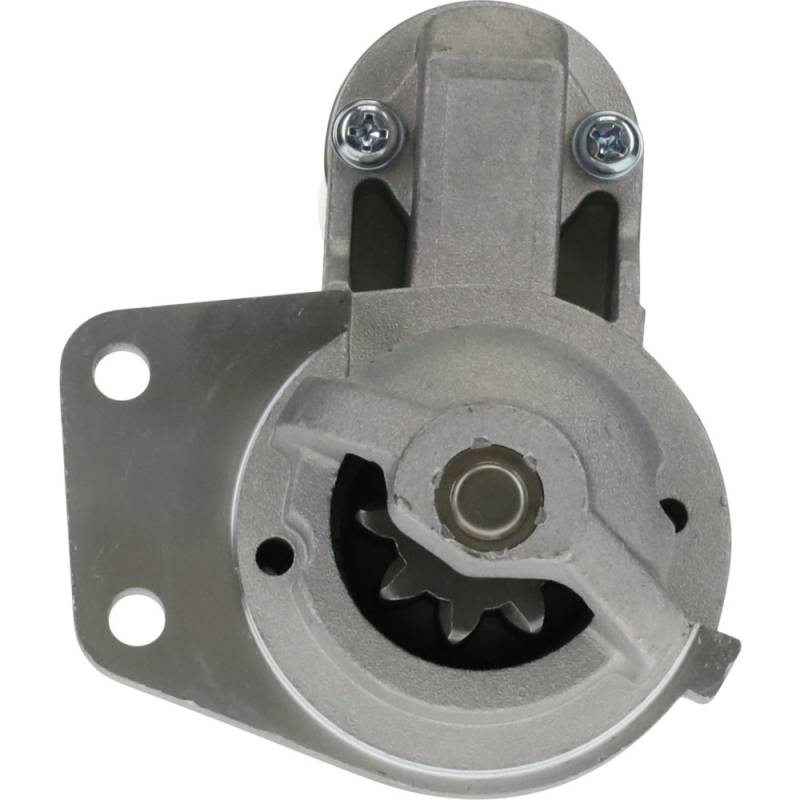

• 9 tooth pinion, gear OD 37.1 mm / 1.461 in
• 2 bolt flange, two 8 mm unthreaded mounting ears, about 8 lb (3.62 kg)
• Replaces John Deere AM104506 and AM109172, Onan 191-1682-02, Mitsubishi M2T43281
• Tractors from serial 420001 (P series engine) and 10 tooth units take a different starter: count the teeth before ordering

JOHN DEERE LAWN AND GARDEN TRACTORS (ONAN B SERIES, SERIAL UP TO 420000):
• John Deere 316 with the Onan B43E 16 HP 709cc gas twin 1984-1987
• John Deere 318 with the Onan B43G 18 HP 709cc gas twin 1983-1986
• John Deere 420 with the Onan B48G 20 HP 781cc gas twin 1983-1986

ONAN INDUSTRIAL AND OPE ENGINES:
• Onan B43E 16 HP 709cc horizontal shaft twin 1979 and later
• Onan B43G 18 HP 709cc horizontal shaft twin 1979 and later
• Onan B48G 20 HP 781cc horizontal shaft twin 1979 and later

ONAN MARINE ENGINES:
• Onan B43E marine engine
• Onan B43G marine engine
• Onan B48G marine engine
