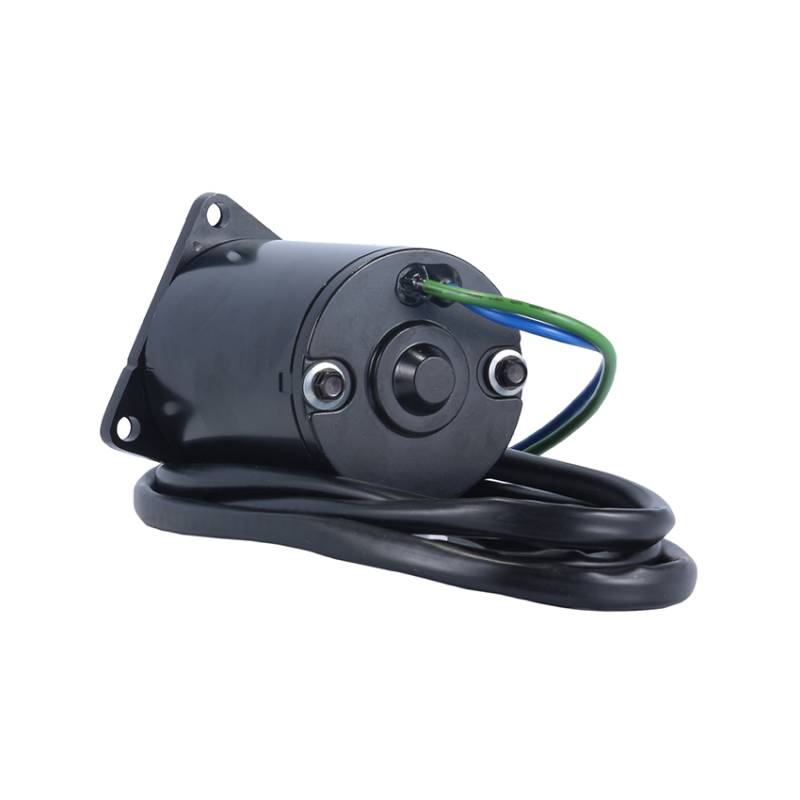

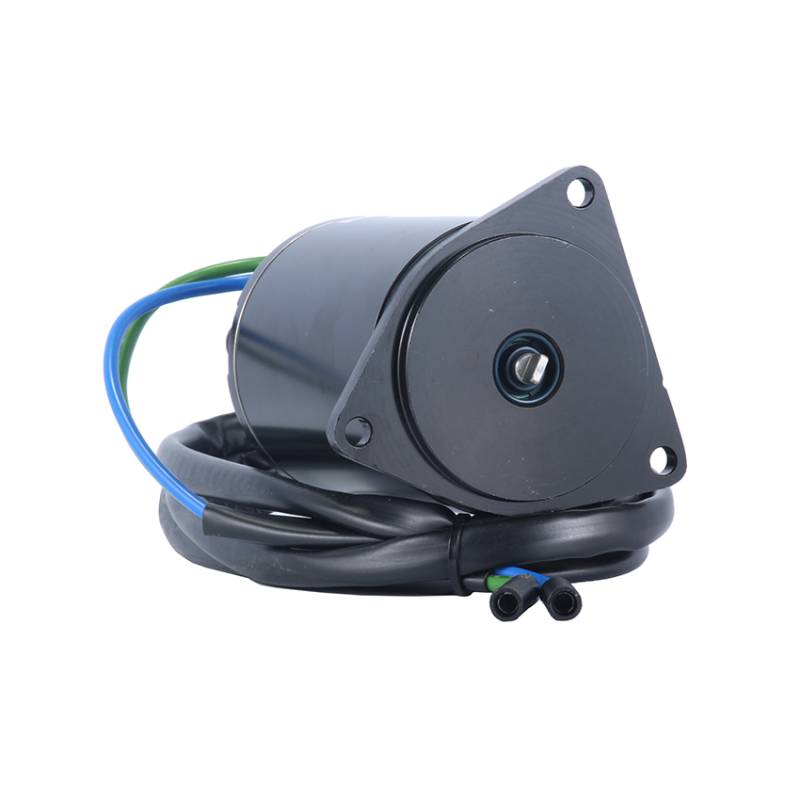

Yamaha Outboard Tilt Trim Motor Compatible With 115Hp 130Hp 140Hp 150Hp 175Hp 200Hp 2-Stroke

OEM PART NUMBERS:
• Yamaha: 6G5-43880-00 / 6G54388000
• Yamaha: 6G5-43880-01 / 6G54388001
• Ref: 0318-401-0010 / 03184010010
• Ref: MK-0757 / MK0757



AFTERMARKET CROSS REFERENCE:
• API Marine: PT608NK3
• Arco Marine: 6265
SPECIFICATIONS:
• Type: Tilt Trim Motor (Motor Only)
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 2-Wire Configuration
• Terminals: Ring Terminals (x3)
• Mounting: (3) 6mm Unthreaded Holes
• Shaft OD: 8mm / 0.315in
• Shaft Type: 2.5mm Drive Tang
• Field Housing OD: 64mm / 2.52in
• Overall Length: 130mm / 5.118in
• Current Type: DC
• Condition: New

YAMAHA APPLICATIONS:
• 115HP / 130HP (4-Cyl 2-Stroke) 1987-1991
• 140HP / 150HP / 175HP / 200HP (V6 2-Stroke) 1987-1991
