OEM PART NUMBERS:
• Volvo Penta: 852928 / 8529281 / 852928-1
• Volvo Penta: 853083-4 / 8530834
• Volvo Penta: 853084-2 / 8530842
• Volvo Penta: 854346
• Volvo Penta: 872449-4 / 8724494
• Volvo Penta: 873051-7 / 8730517
• Volvo Penta: 3857265-7 / 38572657
• Volvo Penta: 3586765 / 3861027 / 3863243
• EVH4002 / HYK4001
AFTERMARKET CROSS REFERENCE:
• API Marine: PT405N-NP
• Arco Marine: 6225
• 18-6274
SPECIFICATIONS:

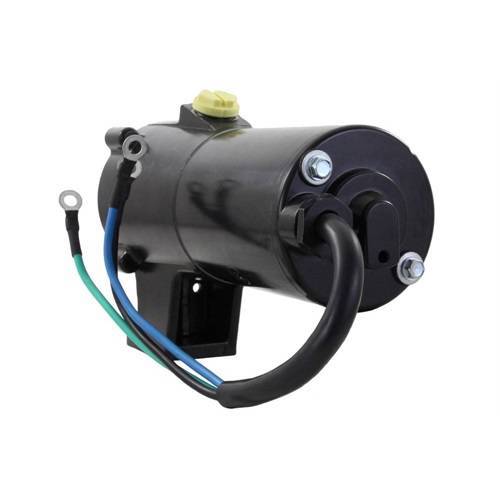

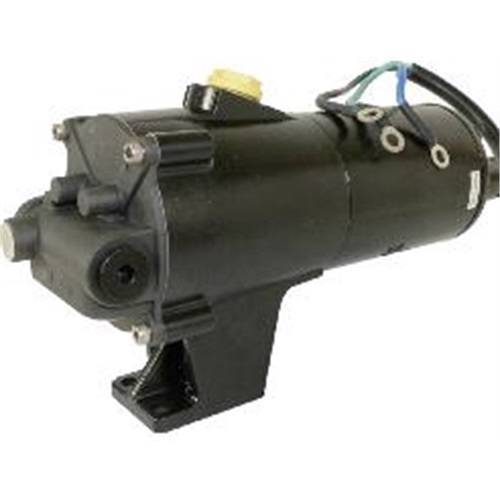

• Type: Tilt Trim Motor w/Reservoir & Hydraulic Pump
• Design:
• Voltage: 12V
• Rotation: Reversible
• Connection: 3-Wire
• Terminal: 6.5mm Ring Terminals (x3)
• Shaft OD: 8.25mm / 3.8mm Drive Tang
• Field Housing OD: 77.8mm / 3.063in
• Motor Length: 195mm / 7.677in
• Overall Length (w/Pump): 248mm / 9.764in
• Includes: Motor, Reservoir, and 2-Hose Hydraulic Pump
• Weight: 8 lbs
• Condition: New
VOLVO PENTA STERNDRIVE APPLICATIONS:
• AQ Series Gas Sterndrive: AQ115-AQ311 (1977-1993)
• Diesel Sterndrive: AD31/41, AQAD, AQD, TAMD, TMD, KAD42, D41 (1977-2000)
• Drive Types: 270/280/290, DP-A thru DPX, SP-A/C1, HS1A
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
