LEECE NEVILLE
No Image Available

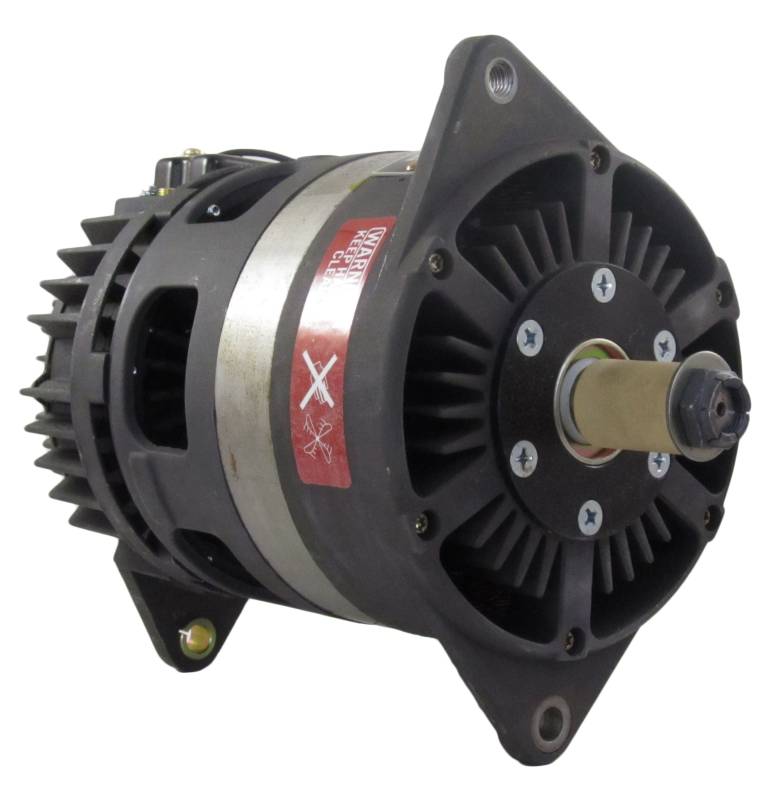

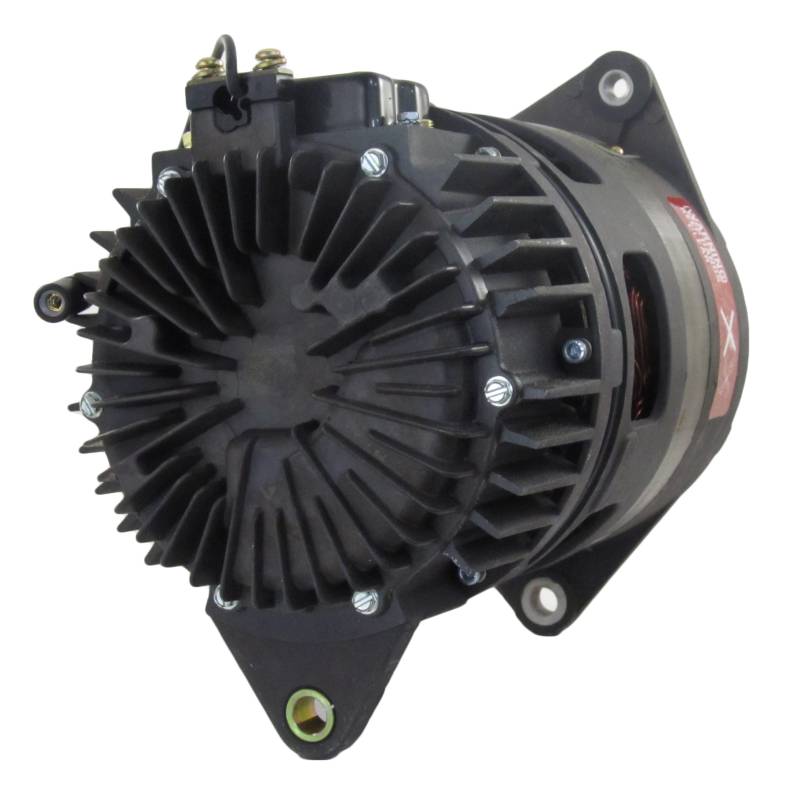

24V 60 Amp Alternator Compatible With M35a2 M35a3 M54a2 M809 M939 M151 M715 Hmmwv M-Series Military

(0) Reviews: Write first review
260-137*1
PRESTOLITE OEM PART NUMBERS:
• AMA5104UT - Current production number
• AMA5103UT - Superseded by AMA5104UT
• AMA5102UT - Superseded by AMA5104UT
• AMA5108UT - Alternate cross reference
• AMA5108 - Alternate cross reference
• AMA5104 - Without UT suffix
• AMA5103 - Without UT suffix
• AMA5102 - Without UT suffix
• A0013002 - Earlier Prestolite number
• A0013002AC - Earlier revision
• A0013002AF - Earlier revision
• 51-281 (51281)
• 51-164
• 51-270

LEECE NEVILLE OEM PART NUMBERS:
• 3002A
• 3002AE
• A0013002AE

CUMMINS OEM PART NUMBERS:
• 11664476
• 3047107
• 3049655
• 3084227

INTERNATIONAL HARVESTER / CASE IH:
• 690688C91

JOHN DEERE:
• AT116345

ADDITIONAL CROSS REFERENCES:
• 4R1411

MILITARY ORDNANCE NUMBER:
• 10929868

NATIONAL STOCK NUMBERS (NSN):
• 2920-00-909-2483 (2920009092483)
• 2920-01-168-7899 (2920011687899)
• 2920-01-269-7920 (2920012697920)

SPECIFICATIONS:
• Type: Alternator
• OEM: Prestolite / Leece Neville
• Voltage: 24V (28V Charging Output)
• Amperage: 60 Amps
• Fan Location: Internal
• Regulator: Internal (Adjustable Voltage)
• Polarity: Negative Ground
• Design: Water and Dust Proof (O-Ring Sealed Housings and Bearing Covers)
• AC Tap: Yes (For Alternator Rotation Sensing, Required for HMMWV)
• One Wire Connection for Regulator Energize
• Weight: 29.3 lbs (13.32 kg)
• Made in USA

FITS M-SERIES MILITARY VEHICLES:
• M35A2, M35A3, M35A1 - 2.5-Ton 6X6 Deuce and a Half
• M36A2, M36A3 - Long Wheelbase 2.5-Ton
• M109, M109A1, M109A3, M109A4 - Van Body
• M809 Series - 5-Ton 6X6 (M809, M810, M811, M813, M814, M815, M816, M817, M818, M819, M820, M821)
• M939 Series - 5-Ton 6X6 (M923, M925, M927, M928, M929, M930, M931, M932, M934, M936)
• M54A2, M51A2, M52A2, M543A2 - 5-Ton 6X6
• M39A2 Series - 5-Ton 6X6
• M151 - Military Utility Vehicle
• M715 - Military Truck
• HMMWV A0/A1 (M998, M998A1) - Humvee
• John Deere 644EZ Wheel Loader
• Military Forklifts and Support Equipment

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $2,240.12
Sale: $1,280.07
Save: 43%
Save: $960.05
Qty:
Free Shipping!

Description

MILITARY M-SERIES VEHICLES:

M35 SERIES 2.5-TON 6X6 (DEUCE AND A HALF):
• M35A2 - 2.5-Ton Cargo Truck, LDT-465 Multifuel Engine, 7.8L Inline 6-Cylinder Turbocharged, 134HP
• M35A3 - 2.5-Ton Cargo Truck, Caterpillar 3116 or Cummins Engine
• M35A1 - 2.5-Ton Cargo Truck, Continental LDS-427-2 Turbo Engine
• M36A2 - Long Wheelbase Cargo Variant
• M36A3 - Long Wheelbase Cargo Variant
• M109 - Van Body Variant
• M109A1 - Van Body Variant
• M109A3 - Van Body Variant
• M109A4 - Van Body Variant
• M275 - 2.5-Ton Variant

M809 SERIES 5-TON 6X6:
• M809 - Chassis Cab, Cummins NHC250, 14.0L Inline 6-Cylinder Diesel, 240HP
• M810 - Chassis Cab Variant
• M811 - Chassis Cab Variant
• M813 - 5-Ton Cargo Truck
• M813A1 - 5-Ton Cargo Truck
• M814 - Drop Side Cargo
• M815 - Bolster Truck
• M816 - Wrecker
• M817 - Dump Truck
• M818 - Tractor
• M819 - Tractor Wrecker
• M820 - Expansible Van
• M820A1 - Expansible Van
• M820A2 - Expansible Van
• M821 - Bridge Transporter

M939 SERIES 5-TON 6X6:
• M923 - 5-Ton Cargo Truck, Cummins NHC250 14.0L (M939/A1), Cummins 6CTA8.3 8.3L Turbo Diesel (M939A2), 240HP
• M923A1 - 5-Ton Cargo Truck
• M923A2 - 5-Ton Cargo Truck
• M925 - Cargo with Winch
• M925A1 - Cargo with Winch
• M925A2 - Cargo with Winch
• M927 - Long Wheelbase Cargo
• M927A1 - Long Wheelbase Cargo
• M927A2 - Long Wheelbase Cargo
• M928 - Long Wheelbase with Winch
• M928A1 - Long Wheelbase with Winch
• M928A2 - Long Wheelbase with Winch
• M929 - Dump Truck
• M929A1 - Dump Truck
• M929A2 - Dump Truck
• M930 - Dump Truck with Winch
• M930A1 - Dump Truck with Winch
• M930A2 - Dump Truck with Winch
• M931 - Tractor
• M931A1 - Tractor
• M931A2 - Tractor
• M932 - Tractor with Winch
• M932A1 - Tractor with Winch
• M932A2 - Tractor with Winch
• M934 - Expansible Van
• M934A1 - Expansible Van
• M934A2 - Expansible Van
• M936 - Wrecker
• M936A1 - Wrecker
• M936A2 - Wrecker

M54 SERIES 5-TON 6X6:
• M54A2 - 5-Ton Cargo Truck
• M54A2C - 5-Ton Cargo Truck
• M55A2 - 5-Ton Cargo Truck
• M51A2 - Dump Truck
• M52A2 - Tractor
• M543A2 - Wrecker

M39 SERIES 5-TON 6X6:
• M39A2 - Chassis Cab
• M40A2C - Chassis Variant
• M61A2 - Variant
• M63A2 - Variant

LIGHT MILITARY VEHICLES:
• M151 - 1/4-Ton Military Utility Vehicle (Military Jeep)
• M715 - 1-1/4-Ton Military Truck (Kaiser Jeep)

HMMWV (HUMVEE):
• HMMWV A0 - Basic Configuration
• HMMWV A1 - Improved Configuration
• M998 - Cargo/Troop Carrier
• M998A1 - Improved Cargo/Troop Carrier

INDUSTRIAL / CONSTRUCTION EQUIPMENT:
• John Deere 644EZ Wheel Loader
• Military Forklifts (24V Systems)
• Military Support Equipment

ENGINE COMPATIBILITY:
• Continental/Hercules LDT-465 Multifuel (M35A2) - 7.8L I6 Turbocharged, 478 cu.in., 134HP
• Continental LDS-427-2 Turbo (M35A1)
• Continental LD-465 Naturally Aspirated (Early M35A2)
• Cummins NHC250 (M809/M939/M939A1) - 14.0L I6 Diesel, 855 cu.in., 240HP
• Cummins 6CTA8.3 (M939A2) - 8.3L I6 Turbocharged Aftercooled Diesel, 504 cu.in., 240HP
• Caterpillar 3116 (M35A3)
• Various 24V Military Diesel and Multifuel Engines
