OEM PART NUMBERS:
• Yamaha: 63M-11631-00-89 / 63M116310089
• Yamaha: 62T-11631-00-92 / 62T116310092
• Yamaha: 62T-11631-01-92 / 62T116310192
• Yamaha: 62T-11631-02-92 / 62T116310292
SPECIFICATIONS:
• Type: Platinum Top End Rebuild Kit (Complete — All 3 Cylinders)
• Platinum Finish: Tin-Coated Pistons for Improved Break-In
• Standard Bore: 81.00mm | This Kit: 0.50mm Over — 81.50mm
• Engine: Yamaha 63M — 2-Stroke 3-Cylinder 1100cc Monoblock
• Bore × Stroke: 81mm × 68mm (standard) | HP: 110HP

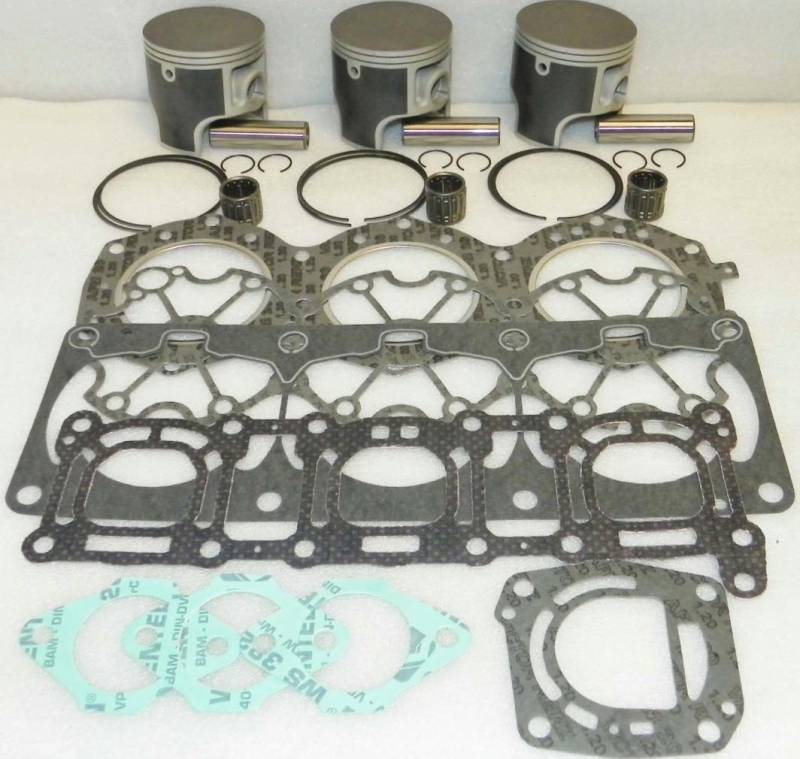

• Kit Contents: 3× Pistons, 3× Ring Sets, 3× Wrist Pins, Circlips,
Head Gasket, Base Gasket, Intake & Exhaust Gaskets
• Qty Required: 1 kit per engine (covers all 3 cylinders)
• Condition: New
YAMAHA 1100 MODEL APPLICATIONS:
• Wave Raider 1100 2-Stroke 3-Cyl 1100cc 110HP (1995-1996)
• Wave Venture 1100 2-Stroke 3-Cyl 1100cc 110HP 3-Seater (1996-1997)
• Exciter 220 Jet Boat 1100cc 63M (1996-1997) — 1 kit per engine
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
