12V Starter Motor Compatible With John Deere L118 L120 Scotts L2048 S2046 L2548 La120 La135 La145

5746A2
BRIGGS & STRATTON PART NUMBERS:
• 499521
• 795121 (current number)
• 497401
• 691262
• 393499, 394943
• 399169, 490420
• 494148
• 497595, 693054

JOHN DEERE PART NUMBERS:
• LG499521
• MIA11175 (current)
• SE501860 (exchange)
• LG497401, LG691262
• AM106883, LG490420
• AM38136, AM39285
• LG497595

CUB CADET PART NUMBERS:
• BS-795121, BS795121
• BS-499521, BS499521
• BS-399169, BS399169
• BS-497401, BS497401

TORO PART NUMBERS:
• 78-4340, 784340

REPLACEMENT PART NUMBERS:
• Stens 435-320, 435320
• Rotary 9798
• Lucas LRS2170, LRS02170
• Mitsubishi M1T02271

SPECIFICATIONS:
• Product: Starter
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)

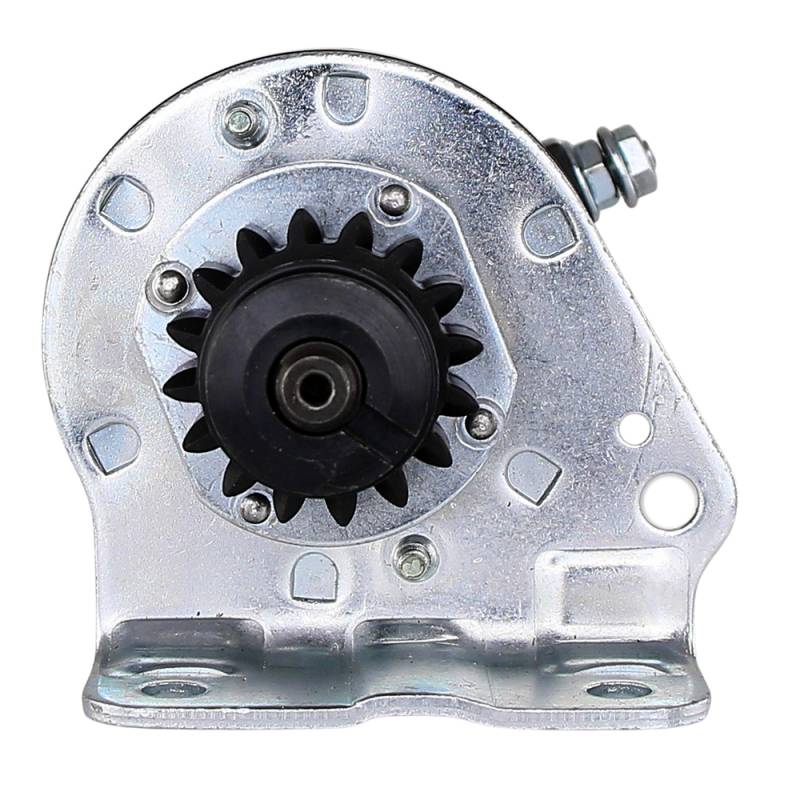

• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 3.75 in (95.3 mm), short case
• Mounting: three unthreaded ears, 8.1 to 8.3 mm ID
• Power: 0.7 kW
• Flywheel: plastic or aluminum ring gears only, not for steel ring gears
• Replaces: both short 3.75 in (95.3 mm) and long 4.25 in (108 mm) field case originals

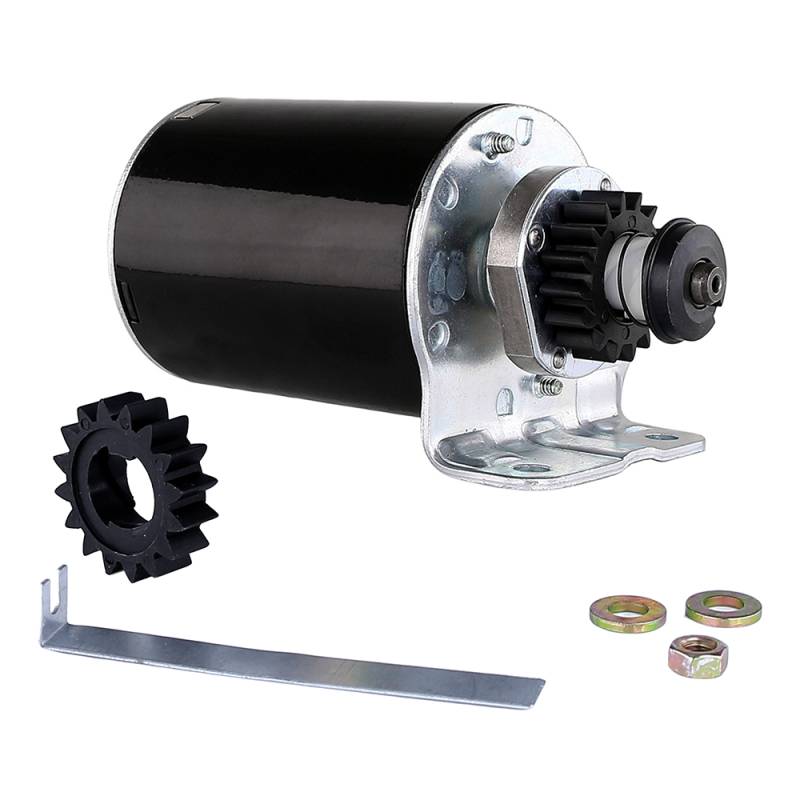

• Includes: extra 16 tooth plastic gear
• Weight: 2.34 kg (5.14 lb)
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $120.31
Sale: $68.75
Save: 43%
Save: $51.56
Qty:
Free Shipping!

Description

JOHN DEERE LAWN TRACTORS (BRIGGS & STRATTON TWIN):
• John Deere LT166 with the Briggs & Stratton 16 HP 480 cc twin 1998-2001
• John Deere LTR166 with the Briggs & Stratton 16 HP 480 cc twin 1998-2001

SABRE BY JOHN DEERE LAWN TRACTORS (BRIGGS & STRATTON V-TWIN):
• Sabre 1642G and 1642H with the Briggs & Stratton 16 HP V-twin
• Sabre 1642GV and 1642HV with the Briggs & Stratton V-twin 1998-1999
• Sabre 1842GV and 1842HV with the Briggs & Stratton 18 HP V-twin
• Sabre 1846HV and 1846HMS with the Briggs & Stratton 18 HP V-twin
• Sabre 1848GV and 1848HV with the Briggs & Stratton 18 HP V-twin
• Sabre 2046HV and 2046HS with the Briggs & Stratton 20 HP
• Sabre 2048HV with the Briggs & Stratton 20 HP V-twin
• Sabre 2254HV with the Briggs & Stratton 22 HP V-twin

CUB CADET LAWN TRACTORS (BRIGGS & STRATTON):
• Cub Cadet 1600 with the Briggs & Stratton 16.5 HP 1999
• Cub Cadet 1800 with the Briggs & Stratton 18 HP 1999
• Cub Cadet 2164 with the Briggs & Stratton 16 HP 1999-2001
• Cub Cadet 2165 with the Briggs & Stratton 16 HP 1994-1999
• Cub Cadet 3165 with the Briggs & Stratton 16 HP 1998-1999
• Cub Cadet 3185 with the Briggs & Stratton 18 HP 1998

BRIGGS & STRATTON TWIN ENGINES:
• Briggs & Stratton 290442, 290446, 290447, 290772, 290777
• Briggs & Stratton 294440, 294442, 294446, 294447, 294772, 294775, 294776, 294777
• Briggs & Stratton 303437, 303440, 303445, 303447, 303707, 303772, 303775, 303777
• Briggs & Stratton 350442, 350447, 350772, 350776, 350777, 351442, 351447, 351777, 380777

SPECIFICATIONS:
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 3.75 in (95.3 mm), short case
• Mounting: three unthreaded ears, 8.1 to 8.3 mm ID
• Power: 0.7 kW
• Flywheel: plastic or aluminum ring gears only, not for steel ring gears
• Replaces: both short 3.75 in (95.3 mm) and long 4.25 in (108 mm) field case originals
• Includes: extra 16 tooth plastic gear
• Weight: 2.34 kg (5.14 lb)
• Condition: New aftermarket

Details

Shipping Information

  • Item Requires Shipping
  • 6.1 lbs.
  • W4.0000” x H4.0000” x L8.0000”
