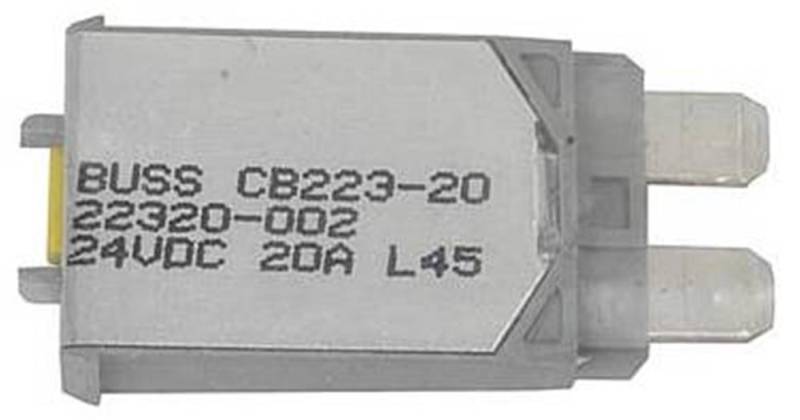

OEM PART NUMBERS — EATON / BUSSMANN:
• Eaton Bussmann: CB223-20
• Cooper Bussmann: CB223-20
• Bussmann CB223 Series 20 Amp
INDUSTRY / CATALOG CROSS-REFERENCES:
• Industry: CB223-20
• Eaton Series: CB223
• Other Names: 20 Amp Circuit Breaker
• Other Names: Type III Circuit Breaker
• Other Names: ATC Footprint Circuit Breaker
• Other Names: ATO Circuit Breaker
• Other Names: Manual Reset Circuit Breaker
• Other Names: Blade Style Circuit Breaker
• Other Names: ATC Fuse Replacement
• Other Names: Automotive Circuit Breaker
• Other Names: Ultra-Thin Circuit Breaker
• Other Names: Push-Button Circuit Breaker
PRODUCT SPECIFICATIONS:
• Product Type: Circuit Breaker
• Unit Type: Eaton Bussmann / Cooper Bussmann
• Series: CB223 Series
• Voltage Rating: 0-28 VDC (12V / 14V / 24V Systems)
• Amperage: 20 Amp
• Breaker Type: Type III (Manual Reset)
• Reset Method: Manual Button
• Footprint: ATC / ATO Blade Fuse Style
• Terminal Type: Blade
• Housing Material: UL 94V-0 Thermoplastic
• Cover Material: Silver Metal
• Design: Ultra-Thin (Thinnest Available)
• Certification: SAE J553
• Weather Sealed: No
• Packaging: Box
• Condition: New Genuine Bussmann
• Quantity: Sold Individually (1 Piece)
• Product Fit: Direct Drop-In ATC Fuse Replacement
• Installation: Push-In to ATC Fuse Socket
• Recommended Use: OEM / Aftermarket Replacement
• Compliance: SAE J553 / UL 94V-0
• Made By: Eaton Electrical
TYPE III MANUAL RESET EXPLAINED:
• Type I = Auto-Reset (Self-Resetting)
• Type II = Modified Reset
• Type III = MANUAL RESET (THIS PART)
• Manual Reset Requires Button Press
• Prevents Repeat Tripping
• Allows Fault Diagnosis Before Reset
KEY FEATURES:
• Direct Drop-In for 20A ATC / ATO Blade Fuse
• Resettable — No Replacement Fuse Needed
• Manual Reset Button on Exposed End
• Fits All Standard ATC / ATO Fuse Panels
• SAE J553 Automotive Compliant
• Ultra-Thin — Fits in Tight Spaces
• UL 94V-0 Fire-Resistant Housing
• Snap-Acting Thermal Element
• Precious Metal Electrical Contacts
UNIVERSAL APPLICATIONS:
• Automotive (Cars / Trucks / SUVs / Vans)
• Marine (Boats / PWC / Yachts)
• RV (Motorhomes / Trailers / Campers)
• Off-Road (ATV / UTV / Motorcycles / Snowmobiles)
• Commercial (Fleet / Bus / Delivery)
• Agricultural (Tractors / Combines)
• Construction Equipment
• Golf Carts / Lawn Equipment
CRITICAL FITMENT NOTES:
• For ATC / ATO Blade Fuse Panels ONLY
• Does NOT Fit ATM Mini-Blade Panels (Use CB233)
• Does NOT Fit MAXI Fuse Panels (Use CB227)
• Does NOT Fit Glass Tube Fuses
• Not Weatherproof — Install in Protected Area
• Verify Circuit Amperage Below 20A
• For 12V / 14V / 24V DC Systems (28 VDC Max)
WHAT IS INCLUDED:
• One (1) CB223-20 20 Amp Circuit Breaker
• Box Packaging
WHAT IS NOT INCLUDED:
• Fuse Panel / Block / Holder
• Mounting Hardware
• Wiring / Wiring Harness
• Installation Instructions
BUSSMANN HERITAGE:
• Founded 1914 by Bussmann Brothers in St. Louis, Missouri
• 100+ Years of Fuse / Circuit Protection Innovation
• Part of Eaton Electrical Since 2012
• 30,000+ Products in Global Catalog
• Industry Standard for Circuit Protection
