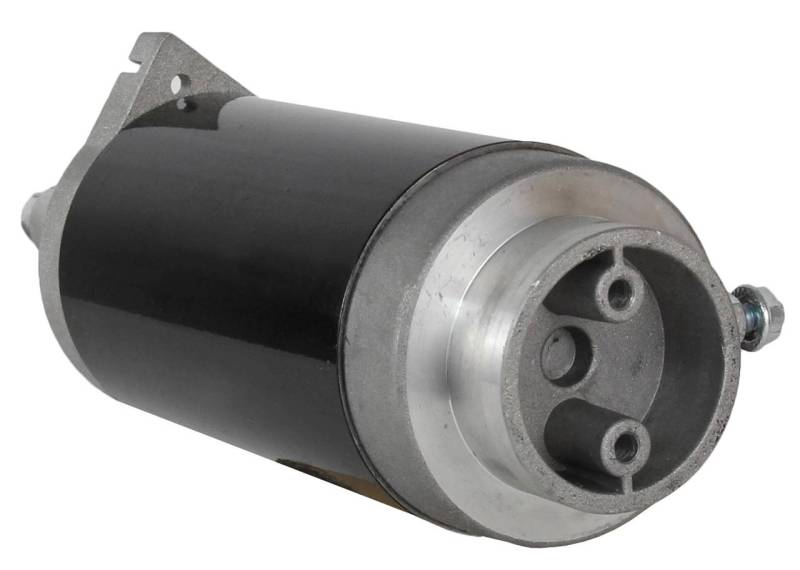

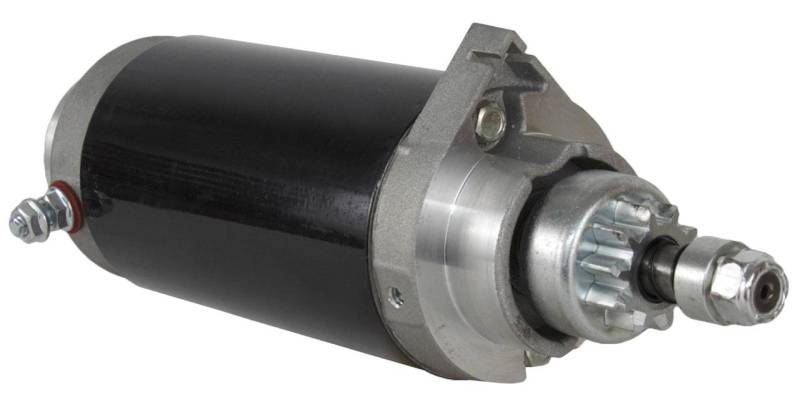

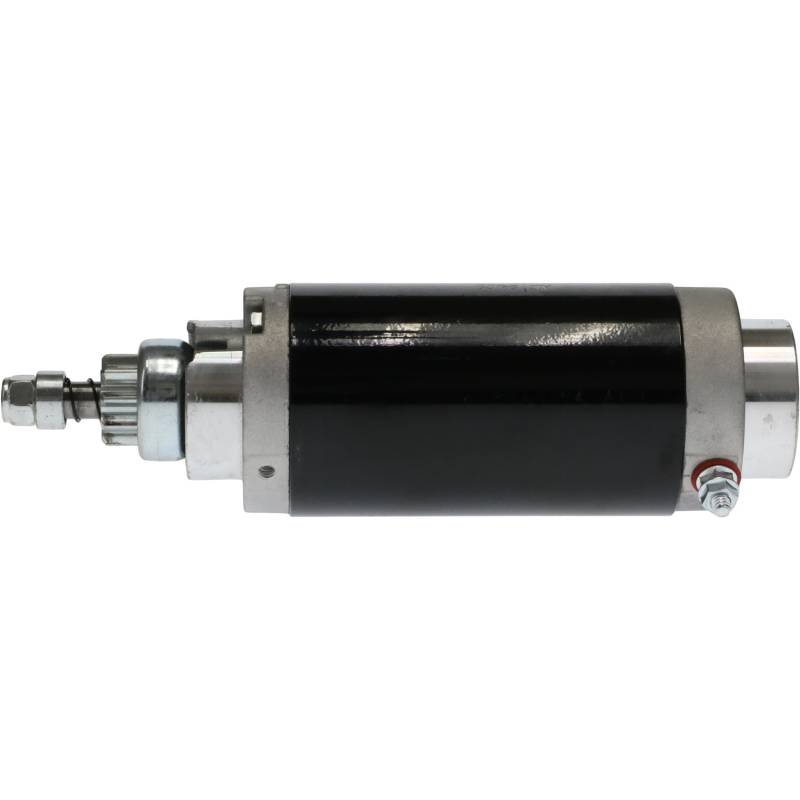

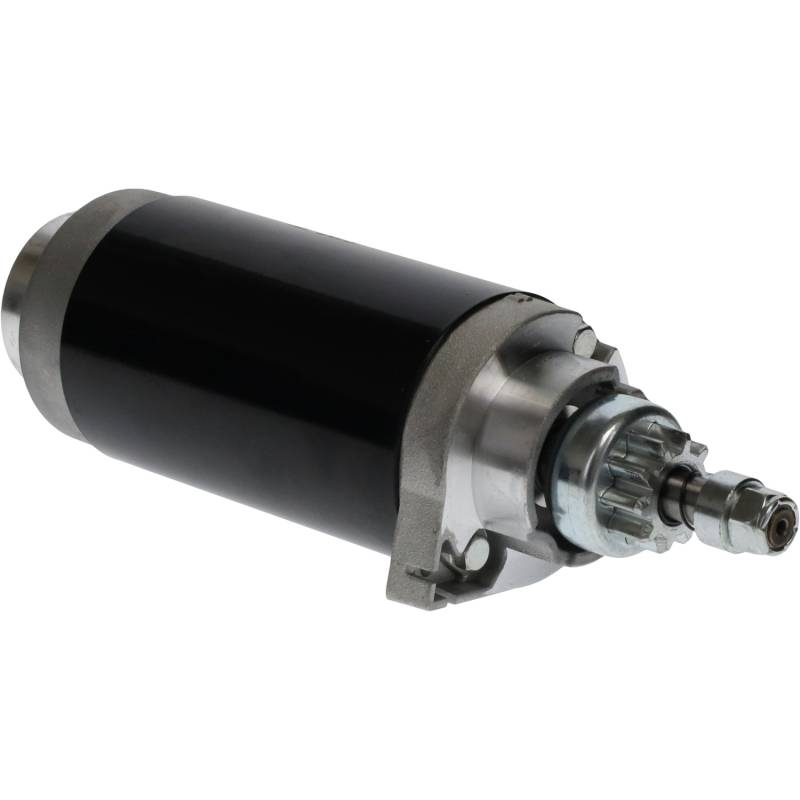

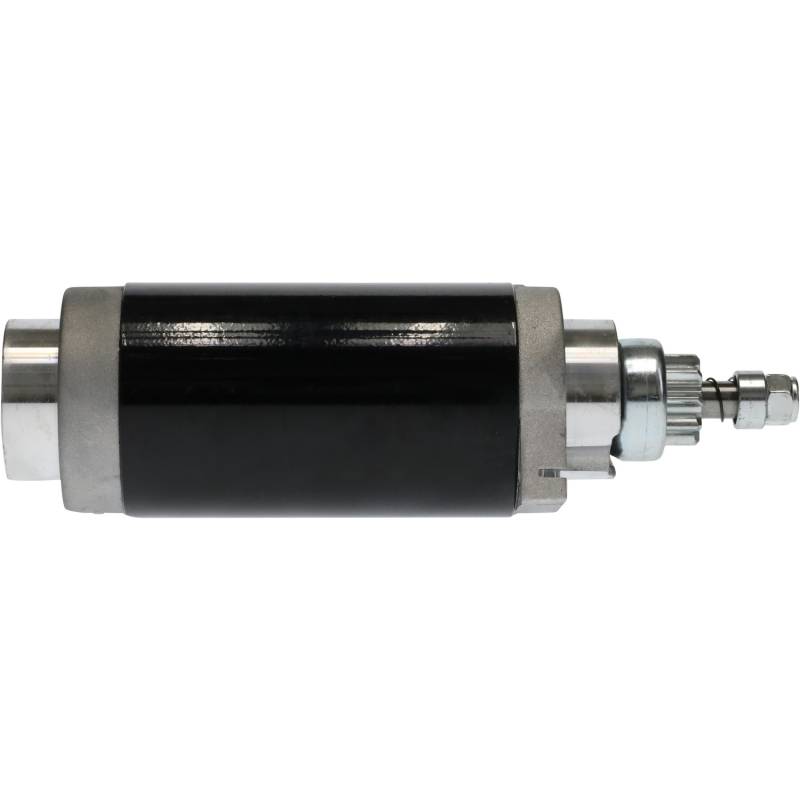

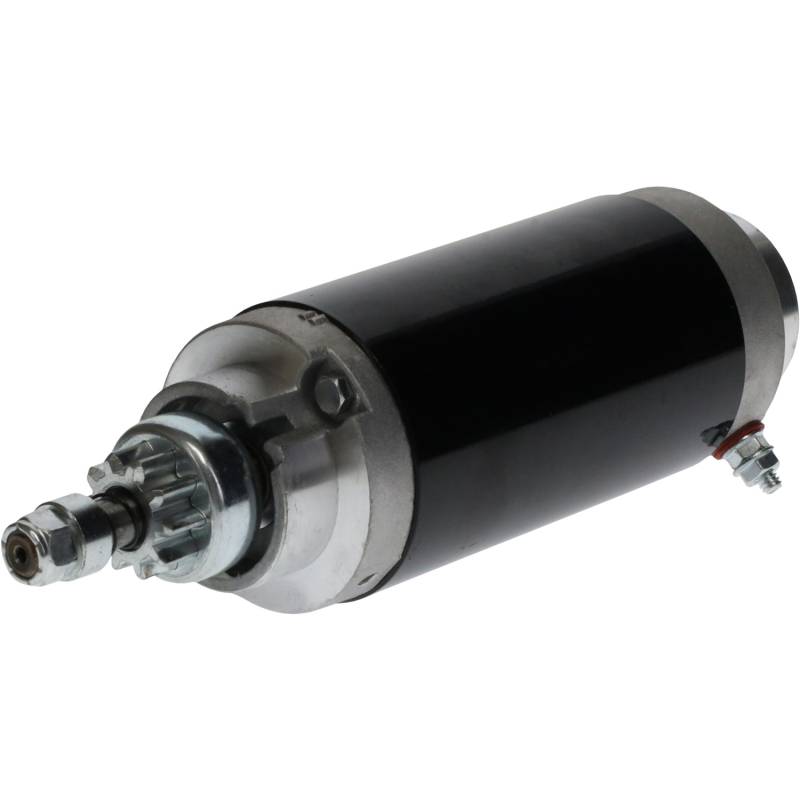

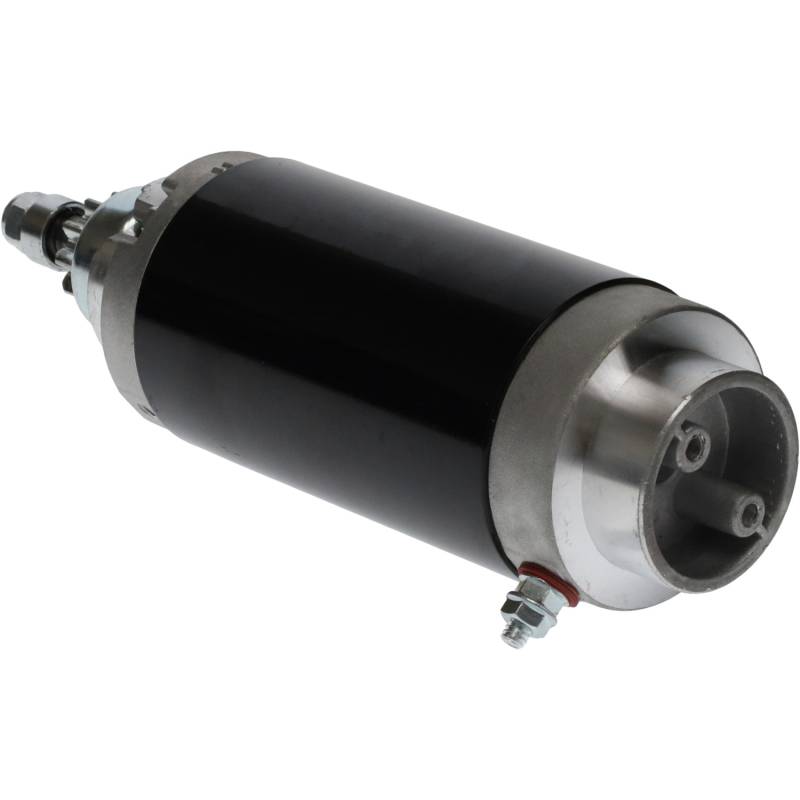

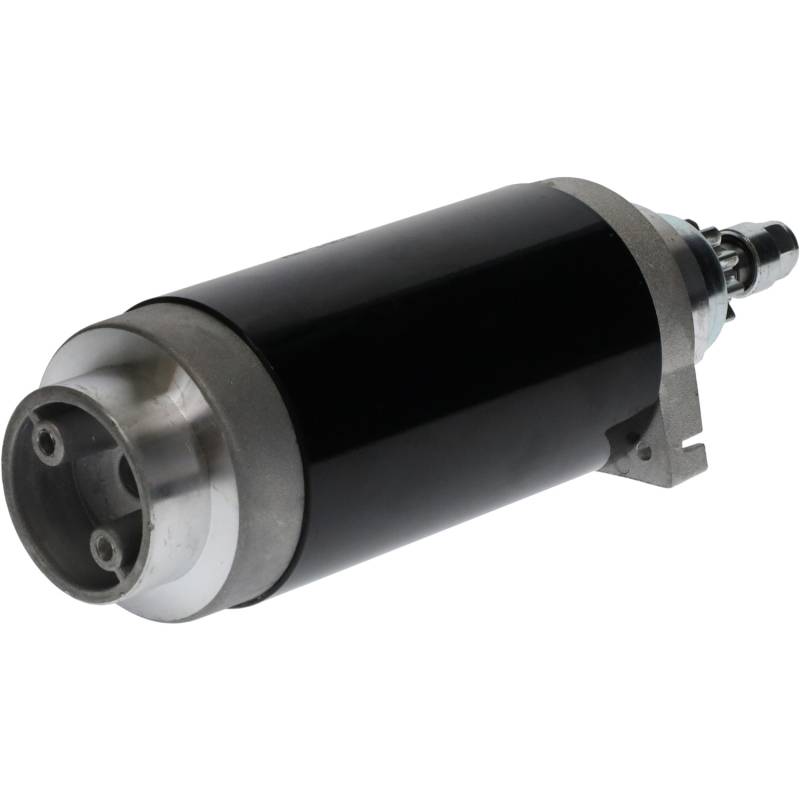

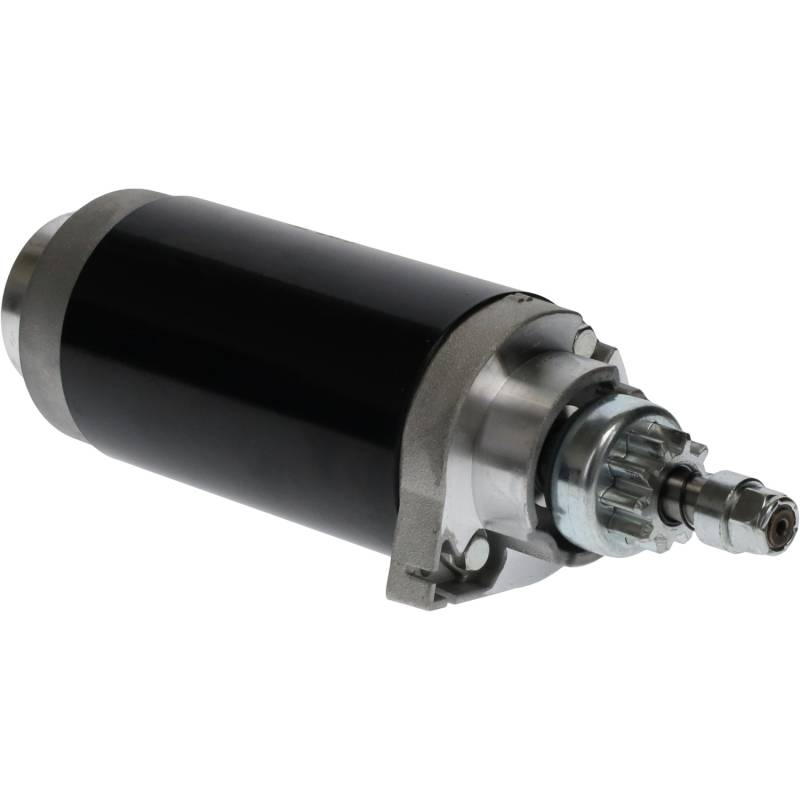

New Mercurymariner Marine Outboard Starter Motor Compatible With 50Elpto- 90Elpto Coastal 50-60315

5708C1
MERCURY MARINE PART NUMBERS:
• 50-60315, 5060315
• 50-88119, 5088119
• 50-55304A-1, 50-55304A1, 5055304A1
• 50-66015, 5066015
• 50-66015T1, 5066015T1
• 50-893891T, 50893891T

PRESTOLITE PART NUMBERS:
• MGL4001A
• MGL4001B

UNITED TECHNOLOGIES PART NUMBERS:
• SM01446
• SM09962
• SM09964

ARCO MARINE PART NUMBERS:
• 5375

SIERRA MARINE PART NUMBERS:
• 18-5642, 185642

SPECIFICATIONS:
• Type: permanent magnet direct drive (PMDD), Bendix drive
• Voltage: 12 Volt
• Rotation: Counterclockwise (CCW)

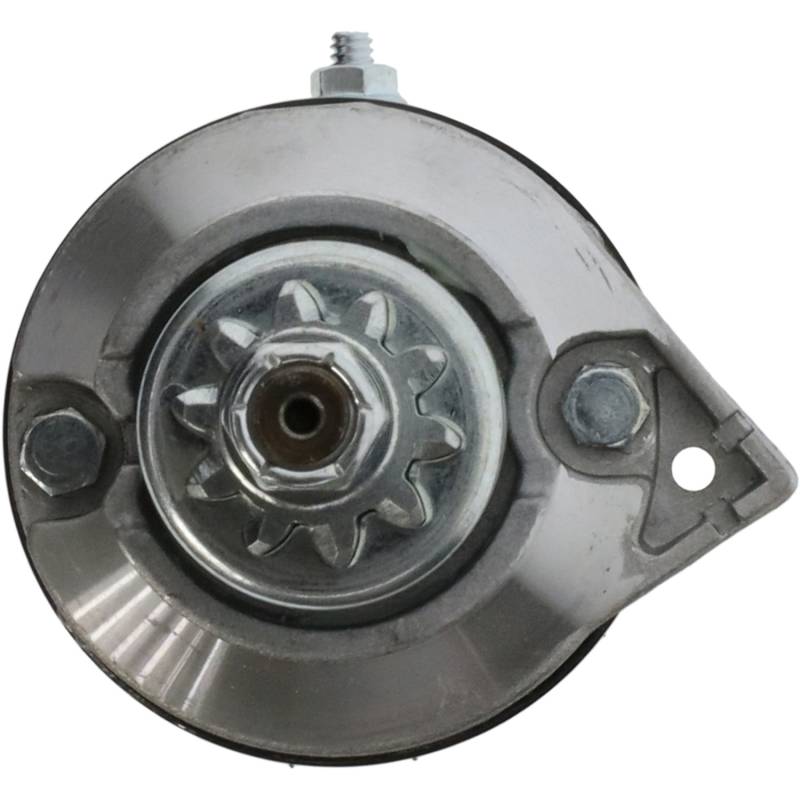

• Pinion: 10 teeth
• Gear OD: 32.5 mm (1.280 in)
• Field case length: 128.9 mm (5.07 in)
• Weight: about 7.9 lb (3.59 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $192.78
Sale: $110.16
Save: 43%
Save: $82.62
Qty:
Free Shipping!

Description

⚠️ 12 VOLT CCW 10 TOOTH PMDD STARTER, 1976-1999 MERCURY 75-90 HP OUTBOARDS:
• 12V, counterclockwise, permanent magnet direct drive, 10 tooth pinion with a 32.5 mm (1.280 in) gear
• 128.9 mm (5.07 in) long field case, about 7.9 lb
• An 8 tooth pinion or a 31.7 mm gear means a different starter; count the teeth and measure the gear first
• Replaces Mercury 50-60315, 50-88119, 50-55304A-1, Prestolite MGL4001A, MGL4001B, United Technologies SM01446

MERCURY 90 HP AND JET 65:
• Mercury 90ELPTO 90 HP 1.2L 71.1 ci 1987-1993
• Mercury 90ELPTO 90 HP 1.4L 84.6 ci 1994-1999
• Mercury 90ELO 90 HP 1.2L 71.1 ci 1987-1988
• Mercury 90ELHPTO 90 HP 1.2L 71.1 ci 1991-1993
• Mercury 90ELHPTO 90 HP 1.4L 84.6 ci 1994-1999
• Mercury 90ELPTO Coastal 90 HP 1.4L 84.6 ci 1999
• Mercury 90ELPTO Jet 65 1.4L 84.6 ci 1994-1999

MERCURY 75 HP:
• Mercury 75ELPT 75 HP 66.6 ci 1984-1985
• Mercury 75ELPTO 75 HP 66.6 ci 1986
• Mercury 75ELPTO 75 HP 71.1 ci 1987-1993
• Mercury 75ELPTO 75 HP 84.6 ci 1994-1999
• Mercury 75ELHPTO 75 HP 71.1 ci 1989-1993
• Mercury 75ELHPTO 75 HP 84.6 ci 1994-1999

MERCURY 80 HP:
• Mercury 80E 80 HP 66.6 ci 1978-1982
• Mercury 80EL 80 HP 66.6 ci 1978-1983
• Mercury 80ELPT 80 HP 66.6 ci 1979-1983
• Mercury 80ELO 80 HP 71.1 ci 1987-1989
• Mercury 80ELPTO 80 HP 71.1 ci 1987-1989

MERCURY 85 HP:
• Mercury 85 HP (Merc 850) 1976-1977, serial 4366802 and up
