12V Starter Motor Compatible With Cub Cadet Lt166 1600 1800 2164 2165 3165 3185 John Deere Sabre

5778*2
JOHN DEERE PART NUMBERS:
• MIU13772 (current number)
• MIA12048
• LG499521, MIA11175
• SE501860 (exchange)
• LG497595

BRIGGS & STRATTON PART NUMBERS:
• 795121
• 499521
• 497401
• 691262
• 393499
• 394943
• 399169
• 494198
• 494990
• 499529
• 494490
• 497595P
• 497595, 693054

TORO PART NUMBERS:
• 78-4340, 784340

GENERAC PART NUMBERS:
• 075255, 75255
• 75255A, 75255-A

REPLACEMENT PART NUMBERS:
• Stens 435-320, 435320
• Rotary 9798
• Johnson Evinrude SM01965, 0196540MO30SM
• United Technologies 0196540, 0196540MO30SM
• Lucas LRS02170, LRS2170
• Elmot 49-7955, 497955

SPECIFICATIONS:
• Product: Starter
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 3.75 in (95.3 mm), short case
• Mounting: three unthreaded ears, 8.1 to 8.3 mm ID
• Power: 0.7 kW
• Flywheel: plastic or aluminum ring gears only, not for steel ring gears
• Replaces: both short 3.75 in (95.3 mm) and long 4.25 in (108 mm) field case originals

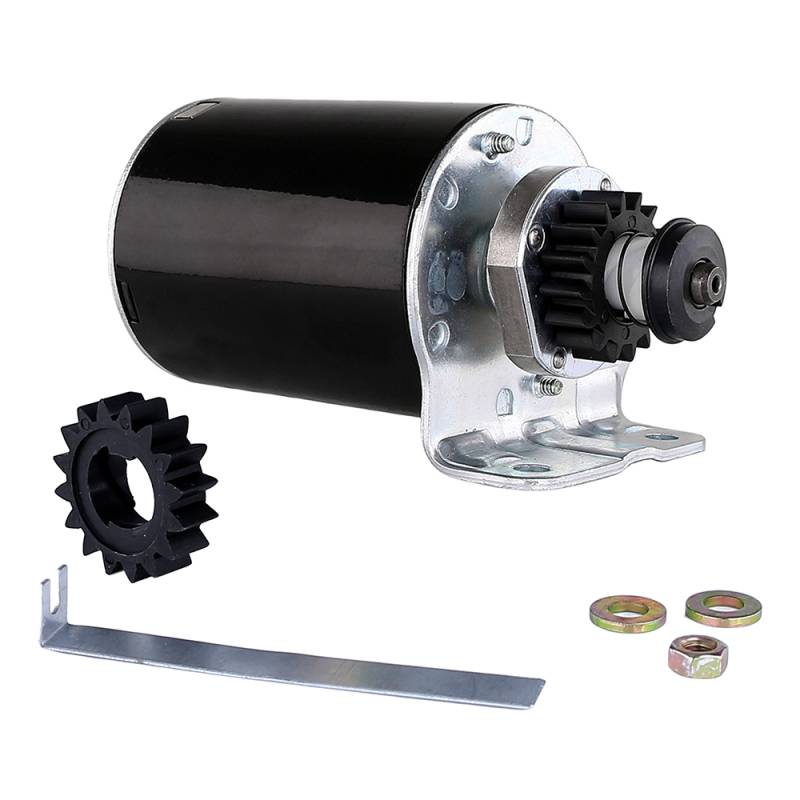

• Includes: extra 16 tooth plastic gear
• Weight: 2.34 kg (5.14 lb)
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $120.31
Sale: $68.75
Save: 43%
Save: $51.56
Qty:
Free Shipping!

Description

JOHN DEERE EZTRAK ZERO TURN MOWERS (BRIGGS & STRATTON V-TWIN):
• John Deere Z225 EZtrak with the Briggs & Stratton V-twin 2007-2013
• John Deere Z235 EZtrak with the Briggs & Stratton 20 HP 2016
• John Deere Z245 EZtrak with the Briggs & Stratton 23 HP 2008-2013
• John Deere Z255 EZtrak with the Briggs & Stratton 22 HP 2013-2016
• John Deere Z425 EZtrak with the Briggs & Stratton 23 HP 2007-2014
• John Deere Z435 EZtrak with the Briggs & Stratton 25 HP 2015-2019
• John Deere Z445 EZtrak with the Briggs & Stratton 25 HP 2007-2016
• John Deere Z465 EZtrak with the Briggs & Stratton 25 HP 2008-2016
• John Deere Z625 EZtrak with the Briggs & Stratton 25 HP 2015-2018
• John Deere Z645 and Z655 EZtrak with the Briggs & Stratton 27 HP 2011-2016
• John Deere Z665 EZtrak with the Briggs & Stratton 27 HP 2012-2016

JOHN DEERE ZTRAK ZERO TURN MOWERS AND X330 (BRIGGS & STRATTON V-TWIN):
• John Deere Z335E and Z355E ZTrak with the Briggs & Stratton 20 HP 2016-2019
• John Deere Z345M ZTrak with the Briggs & Stratton 20 HP 2017-2019
• John Deere Z345R, Z355R and Z375R ZTrak with the Briggs & Stratton 22 HP 2017-2019
• John Deere Z525E ZTrak with the Briggs & Stratton 22 HP 2016-2019
• John Deere Z535M 48, 54, 62 in and Z535R 48, 54 in ZTrak with the Briggs & Stratton 25 HP 2016-2019
• John Deere X330 42 in with the Briggs & Stratton 20 HP 2016-2019
• John Deere Z315E 42 in, Z325E 48 and 54 in ZTrak with Briggs & Stratton
• John Deere Z365R 48 in ZTrak with Briggs & Stratton
• John Deere Z515E 48, 54 and 60 in ZTrak with Briggs & Stratton
• John Deere Z545R 48, 54 and 60 in ZTrak with Briggs & Stratton
• John Deere S220 42 in and 48 in with Briggs & Stratton

TORO (BRIGGS & STRATTON):
• Toro 12-44 Pro lawn tractor with the Briggs & Stratton 12.5 HP 1988
• Toro HMR-1200 with the Briggs & Stratton 12 HP 1989
• Toro 212-5 with the Briggs & Stratton 12 HP 1989-1991
• Toro 216-H with the Briggs & Stratton 16 HP 1990
• Toro 246-H yard tractor with the Briggs & Stratton 16 HP 1992-1993
• Toro 190-DH lawn tractor with the Briggs & Stratton 19 HP 2000-2004
• Toro DH 220 lawn tractor with the Briggs & Stratton 656 cc 2005-2009
• Toro 12-32XL, 13-32XLE, 13-38XL, 14-38HXL, 15-44HXL, 16-44HXL lawn tractors with Briggs & Stratton
• Toro LT11 and LX466 with Briggs & Stratton
• Toro 74590 with the Briggs & Stratton 406777
• Toro 74592 with the Briggs & Stratton 441677
• Toro 74704 with the Briggs & Stratton 441577
• Toro 74816 (SV820 engine as listed) and 74818 (SV830 engine as listed)

EVINRUDE JOHNSON:
• Evinrude Johnson TE10REL 1993
• Evinrude Johnson TJ10REL 1993

GENERAC GENERATORS:
• Generac air-cooled generators with the Briggs & Stratton V-twin, Generac 075255

SPECIFICATIONS:
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 3.75 in (95.3 mm), short case
• Mounting: three unthreaded ears, 8.1 to 8.3 mm ID
• Power: 0.7 kW
• Flywheel: plastic or aluminum ring gears only, not for steel ring gears
• Replaces: both short 3.75 in (95.3 mm) and long 4.25 in (108 mm) field case originals
• Includes: extra 16 tooth plastic gear
• Weight: 2.34 kg (5.14 lb)
• Condition: New aftermarket
