API MARINE MOT3010
ARCO MARINE 5385
MERCURY MARINE 50-41583
UNITED TECHNOLOGIES 4438540-M030SM, SM44385

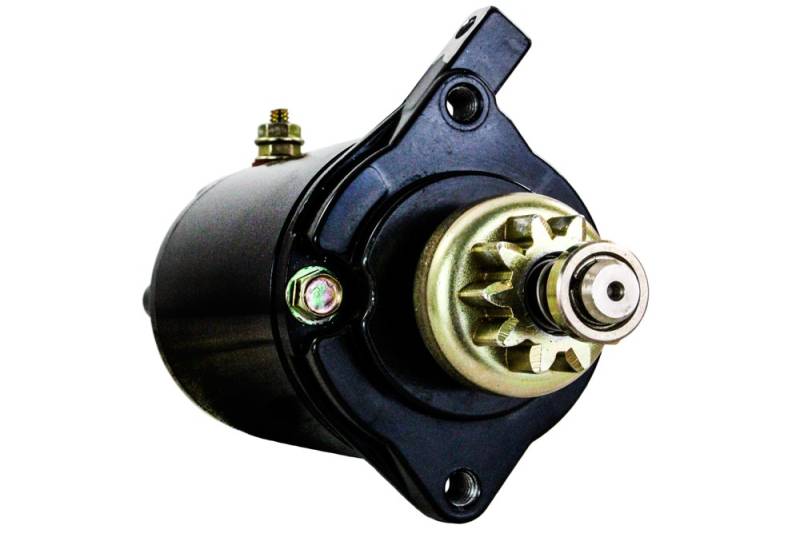

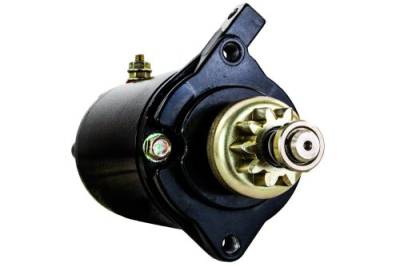

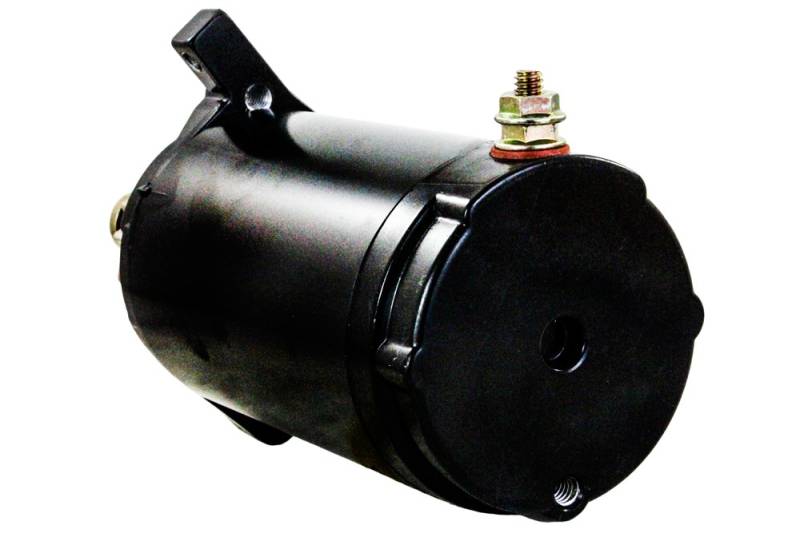

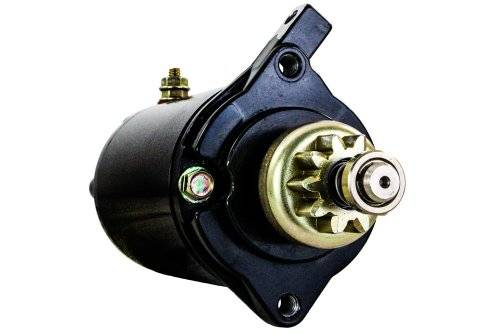

UNIT TYPE: MERCURY MARINE, JOHNSON ELECTRIC
TYPE: PMDD
VOLTAGE: 12 VOLTS
ROTATION: CCW
TEETH: 10 TEETH
PINION/SPLINES OD: 32.3MM / 1.272IN
MOUNTING HOLE 1: 5/16-18 ID THREADED
MOUNTING HOLE 2: 5/16-18 ID THREADED
MOUNTING HOLE 3: 1/4-20 ID THREADED
WEIGHT: 5.8LBS / 2.64KG
NOTES:
4.09” / 104MM FIELD HOUSING LENGTH
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
PLEASE VERIFY YOUR OEM PART NUMBER FROM YOUR ORIGINAL UNIT TO HELP ENSURE FITMENT.
MERCURY ENGINES – MARINE OUTBOARD 35E 33.3CI – 35 H.P. 1984-1985
MERCURY ENGINES – MARINE OUTBOARD 35EH 33.3CI – 35 H.P. 1984
MERCURY ENGINES – MARINE OUTBOARD 35EL 33.3CI – 35 H.P. 1984-1985
MERCURY ENGINES – MARINE OUTBOARD 35ELH 33.3CI – 35 H.P. 1984-1985
MERCURY ENGINES – MARINE OUTBOARD 35ELO 33.3CI – 35 H.P. 1986-1987
MERCURY ENGINES – MARINE OUTBOARD 35ELPT 33.3CI – 35 H.P. 1985
MERCURY ENGINES – MARINE OUTBOARD 35ELPTO 33.3CI – 35 H.P. 1986-1987
MERCURY ENGINES – MARINE OUTBOARD 35EO 33.3CI – 35 H.P. 1986-1987
MERCURY ENGINES – MARINE OUTBOARD 40E 33.3CI – 40 H.P. 1980-1983
MERCURY ENGINES – MARINE OUTBOARD 40EH 33.3CI – 40 H.P. 1980-1983
MERCURY ENGINES – MARINE OUTBOARD 40EL 33.3CI – 40 H.P. 1980-1983
MERCURY ENGINES – MARINE OUTBOARD 40ELH 33.3CI – 40 H.P. 1980-1983
