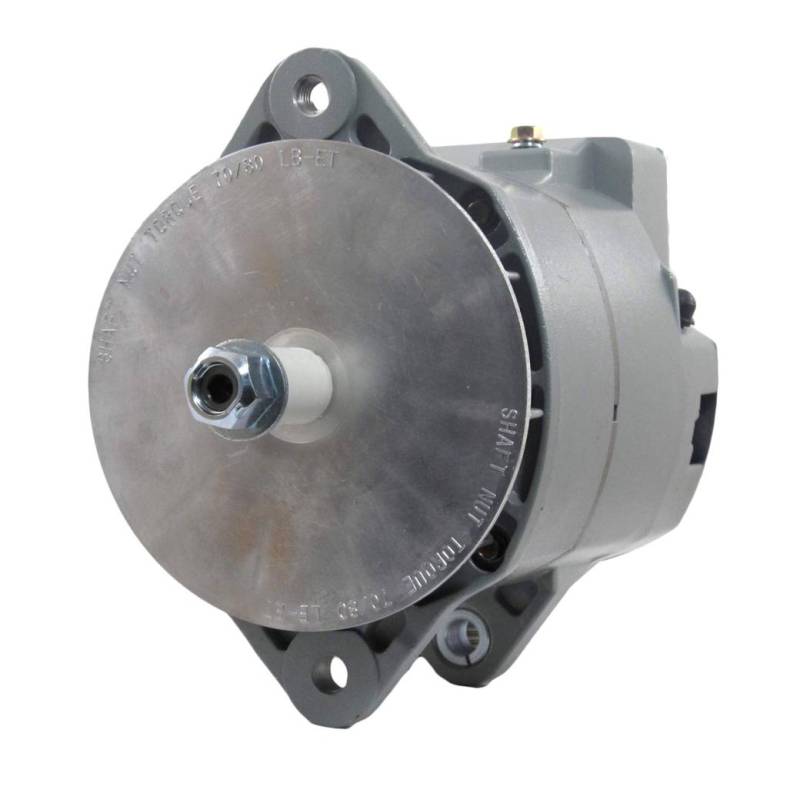

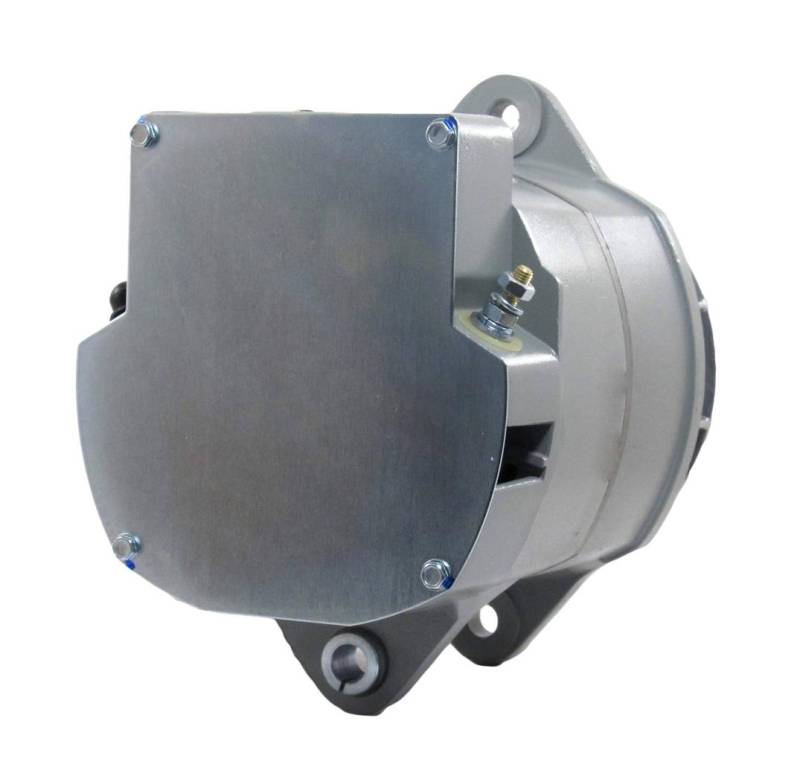

Alternator Compatible With Western Star By Engine Cummins K Kt L-10 N14 Nh Nta Ntc V-903 Vt-555

7262S3
VOLVO PART NUMBERS:
• 1114259
• 3134794

WESTERN STAR PART NUMBERS:
• 802010004

ALSO REPLACES, SAME 30SI TYPE UNIT:
• Delco 1117732, 1117736, 1117742, 1117800, 1117801, 1117803, 1117804, 1117808, 1117809, 1117811, 1117812, 1117813, 1117815, 1117816, 1117820, 1117830, 10459001, 10459004, 10459008, 10459058, 10459097, 10459257, 10459258, 1117806, 1117822, 1117823, 10459259, 10459260
• Cummins 3004806, 3062333, 3603877, 3603877RX, 3604652, 3604652RX, 3604877RX
• Ford D7HT-10300-BA, D7HT10300BA, D8HZ-10346-E, D8HZ10346E, D8HZ-10346-F, D8HZ10346F, E4HT-10300-BA, E4HT10300BA, E5HS-10300-BA, E5HS10300BA, E7HS-10346-AA, E7HS10346AA, E8HZ-10346-A, E8HZ10346A, E9HS-10300-BA, E9HS10300BA, F0HT-10300-AA, F0HT10300AA, F0HT-10300-EA, F0HT10300EA, F0HZ-10346-H, F0HZ10346H
• AC Delco 321-641, 321641, 321-670, 321670, 321-696, 321696, 321-754, 321754, 321-755, 321755
• Ford Engineering D7HT-BA, D7HTBA, E4HT-BA, E4HTBA, E5HS-BA, E5HSBA
• Motorcraft GL-191, GL191, GL-259, GL259, GL-292, GL292
• International 521829C91, 521879C91
• Navistar DRA10459008
• Detroit Diesel R0459108, 10459108
• Case 22-702, 22702
• Caterpillar 0R1699, 0R-1699
• Euclid E-820121X, E820121X
• New Holland V60510
• Versatile V60510
• White V1114255, V1114259
• Wilson 90-01-3094N, 90013094N, 90-01-4057N, 90014057N
• Delco #10 stud R terminal originals: 1117806, 1117822 (5/16 B+ stud), 1117823, 10459259, 10459260

SPECIFICATIONS:
• Type: 30SI Type heavy duty alternator, brushless, new
• Voltage: 12 volt, negative ground
• Output: 105 amp, also replaces the 90 amp 30SI originals listed
• Regulator: internal
• Fan: external
• Mount: J180 hinge
• B+ terminal: 1/4-28 stud
• R terminal: pin style
• Rotation: either direction
• Transformer rectifier: none, not the 24V TR version
• Pulley: not included, reuse your old pulley
• Weight: about 27.5 lb (12.5 kg)
• Condition: new aftermarket, not a Delco Remy branded unit

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $622.56
Sale: $355.75
Save: 43%
Save: $266.81
Qty:
Free Shipping!

Description

WESTERN STAR TRUCKS:
• Western Star, all models with the Caterpillar 3208, 1974-1978
• Western Star, all models with the Caterpillar 3306, 1974-1988
• Western Star, all models with the Caterpillar 3406, 1974-1988
• Western Star, all models with the Cummins K / KT, 1974-1988
• Western Star, all models with the Cummins L-10, 1985-1988
• Western Star, all models with the Cummins N14, 1985-1988
• Western Star, all models with the Cummins NH / NTA / NTC, 1974-1982
• Western Star, all models with the Cummins V-903, 1974-1984
• Western Star, all models with the Cummins VT-555, 1974-1986
• Western Star, all models with the Detroit 12V-71, 1974-1979
• Western Star, all models with the Detroit 6V-53, 1974-1979
• Western Star, all models with the Detroit 6V-71, 1974-1979
• Western Star, all models with the Detroit 6V-92, 1974-1993
• Western Star, all models with the Detroit 8V-71, 1974-1981
• Western Star, all models with the Detroit 8V-92, 1974-1991
• Western Star 3800 with the Caterpillar 3306 10.5L (638ci), 1991-1993

WHITE TRACTORS:
• White 2-180 tractor with the Caterpillar 3208, 1987-1991
• White 4-225 tractor with the Caterpillar 3208, 1987-1991
• White 4-270 tractor with the Caterpillar 3306, 1987-1991

ALSO LISTED BY MAKE ONLY, MATCH THE NUMBER ON YOUR OLD UNIT:
• Volvo heavy trucks, all models, various engines, 1983-1988

SAME 30SI TYPE UNIT ALSO FITS:
• Freightliner FL, FLC, FLD 112 / 120, FLT, FLA086, FLL086, FLT086 and WF series trucks (1973-1993)
• International 1652SC, 1654, 2200 to 2675 series, 3000 to 3900 buses, 4700 to 4900, 5070, 8100 to 9700, S series, Paystar, Transtar (1975-1996)
• Kenworth C500, C540, K100, K100E, L700, T400, T450, T600, T800, W900 trucks (1973-1993)
• Mack CH, CL, CM, CS, DM, F, FDM, MB, MC, MH, MR, MS, R, RB, RD, RL, RM, RS, RW, RWS, U series and Midliner trucks (1975-1998)
• Peterbilt 282, 357, 359, 362, 375, 377, 378, 379 trucks (1975-1991)
• White trucks by engine, White WCA, WCL, WCM, WCS, WHL, WIA, WXLL and White / GMC trucks (1974-1994)
• Autocar ACL, ACM, AT, C / DC, Constructor, DK, DS, S trucks (1981-1988)
• Crane Carrier, Crown Coach, Diamond Reo, Duplex, FWD, Giant, Gillig, Hino, Ottawa truck and bus chassis (1981-1993)
• Champion 562D, 600D, 710, 710A, 716A, 720, 720A, 726A, 730, 730A, 736A, 740, 740A, 750, 750A, 760 motor graders (1975-2007)
• Case 9150, 9170, 9180 4WD tractors with Cummins 6-611, 6-855, L10TA, NTA855 (1986-1993)
• Chevrolet / GMC C, D, J, N series, Kodiak, Topkick, C60 to C8500, D9K / D9L Titan, J8C / J9C Bruin, N9E / N9F Bison, MC90, MH90, NH90, NI90 trucks (1976-1993)
• GMC Astro, Brigadier, Gen'l, B6000, C5000, C6000, C7000, P4500, P6000 trucks (1979-1991)
• Ford 846, 876, 936, 946, 976, 1156, FW-20, FW-30, FW-40, FW-60 tractors (1977-1998)
• Ford L6000 to L9000, LN, LNT, LS, LT, LTS 8000 / 9000, LA, LTA, LTL 9000, CL9000, CLT9000, C7000, C8000, F-700, F-8000 trucks (1980-1993)
• Cummins L10 and N14 industrial engines (1990-2007)
• Steiger 103 to 108, Bearcat, Cougar, Panther, Lion 9180, Tiger, Wildcat, PT and ST series 4WD tractors (1974-1992)
• Versatile 555, 756, 835, 836, 846, 855, 856, 875, 876, 895, 935, 936, 945, 946, 950, 955, 956, 975, 976, 1156 tractors (1977-1993)

SPECIFICATIONS:
• Type: 30SI Type heavy duty alternator, brushless, new
• Voltage: 12 volt, negative ground
• Output: 105 amp, also replaces the 90 amp 30SI originals listed
• Regulator: internal
• Fan: external
• Mount: J180 hinge
• B+ terminal: 1/4-28 stud
• R terminal: pin style
• Rotation: either direction
• Transformer rectifier: none, not the 24V TR version
• Pulley: not included, reuse your old pulley
• Weight: about 27.5 lb (12.5 kg)
• Condition: new aftermarket, not a Delco Remy branded unit
