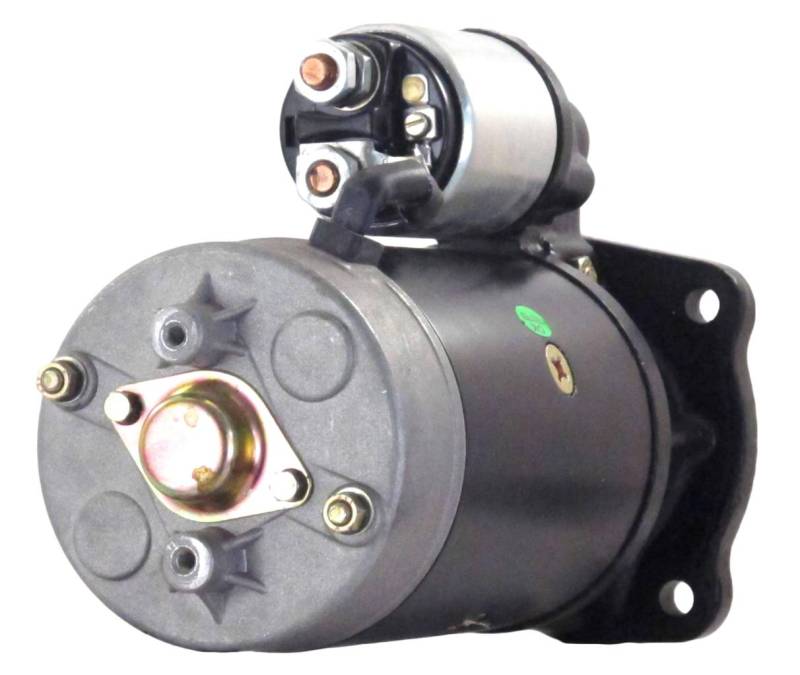

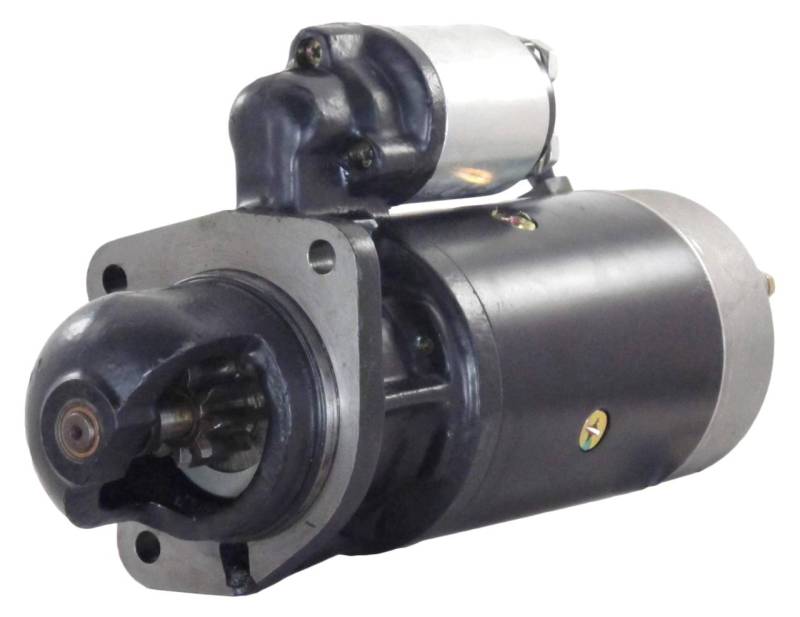

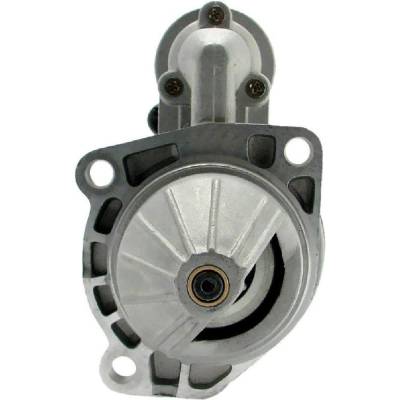

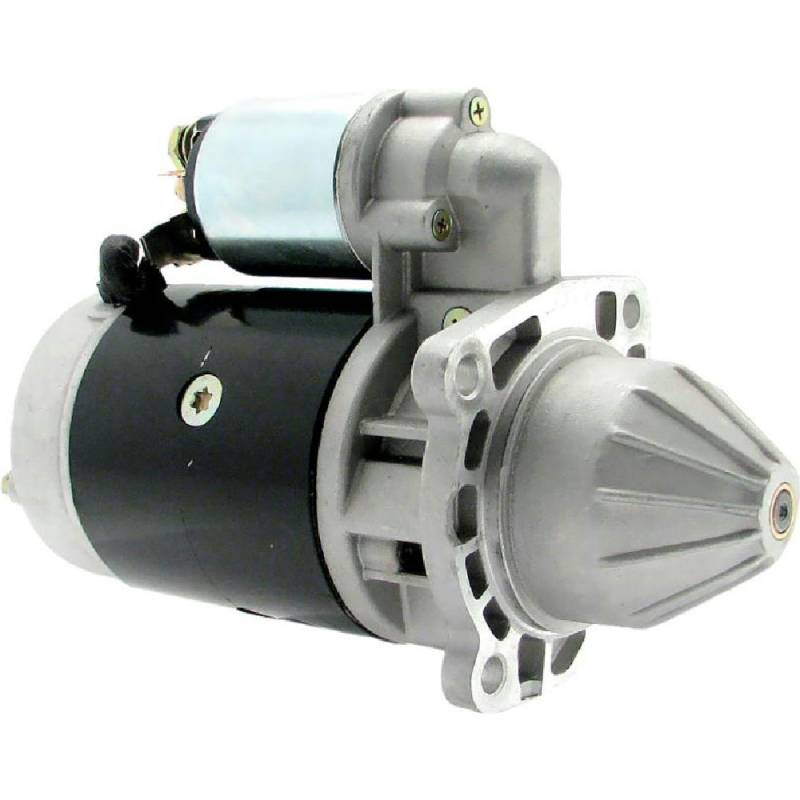

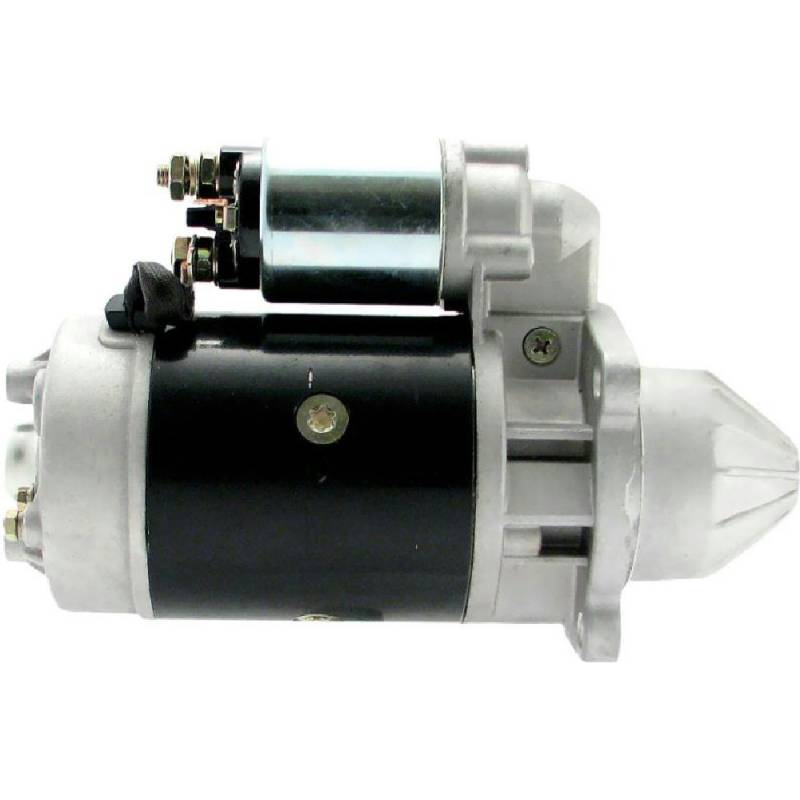

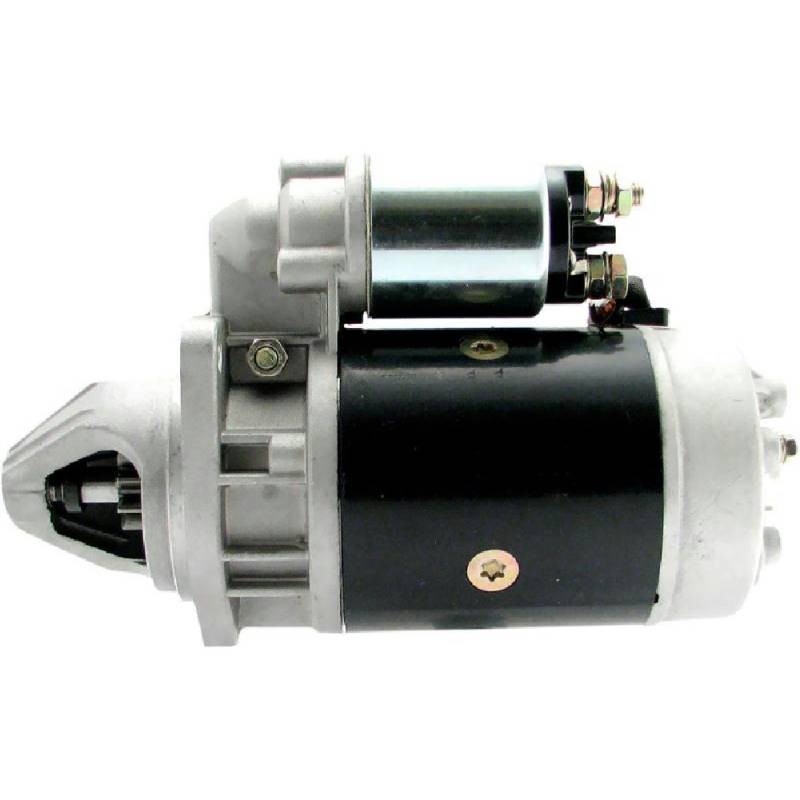

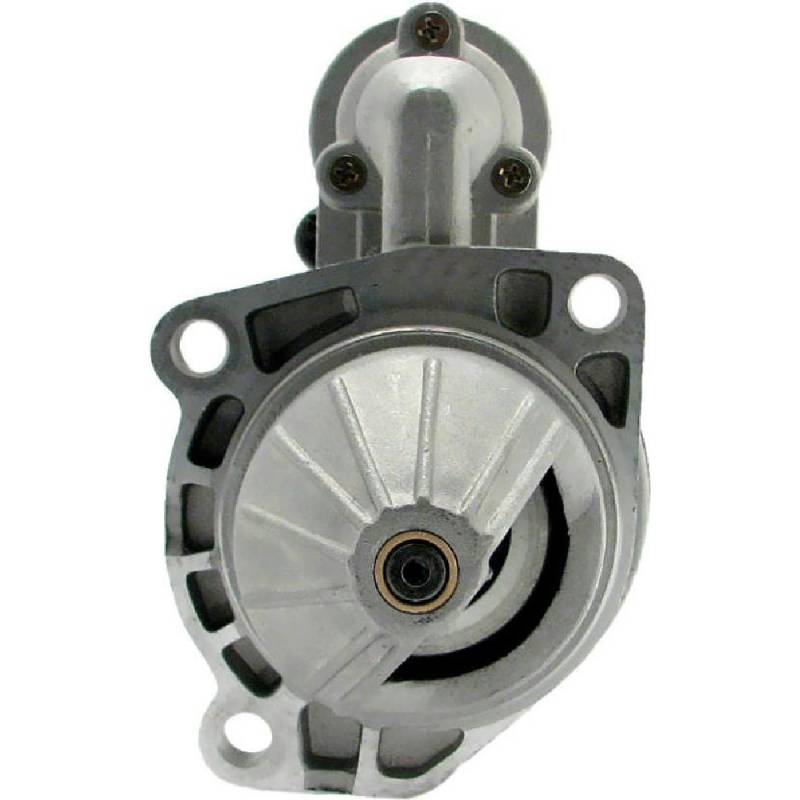

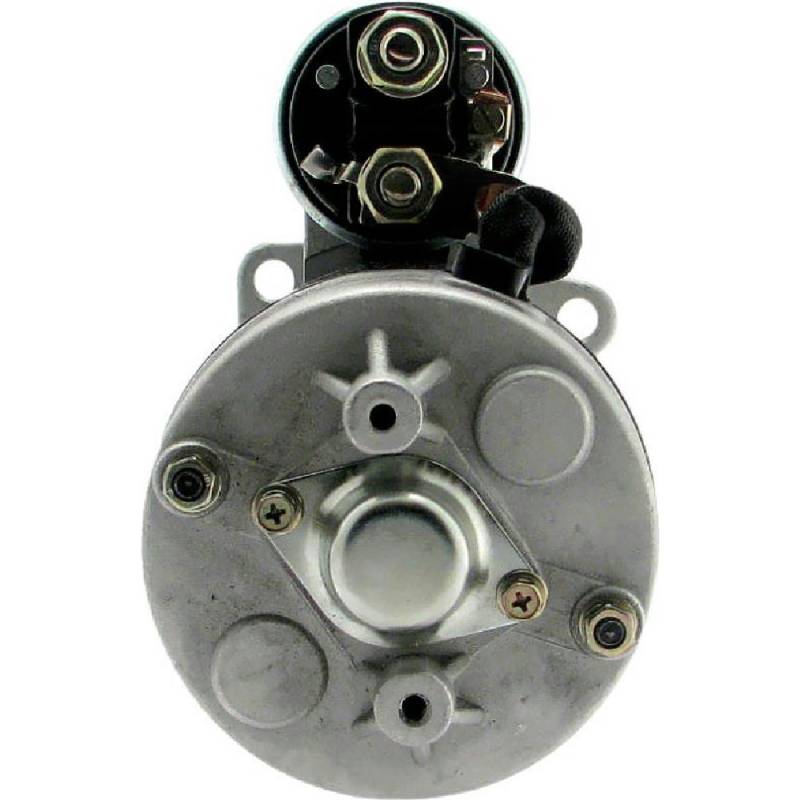

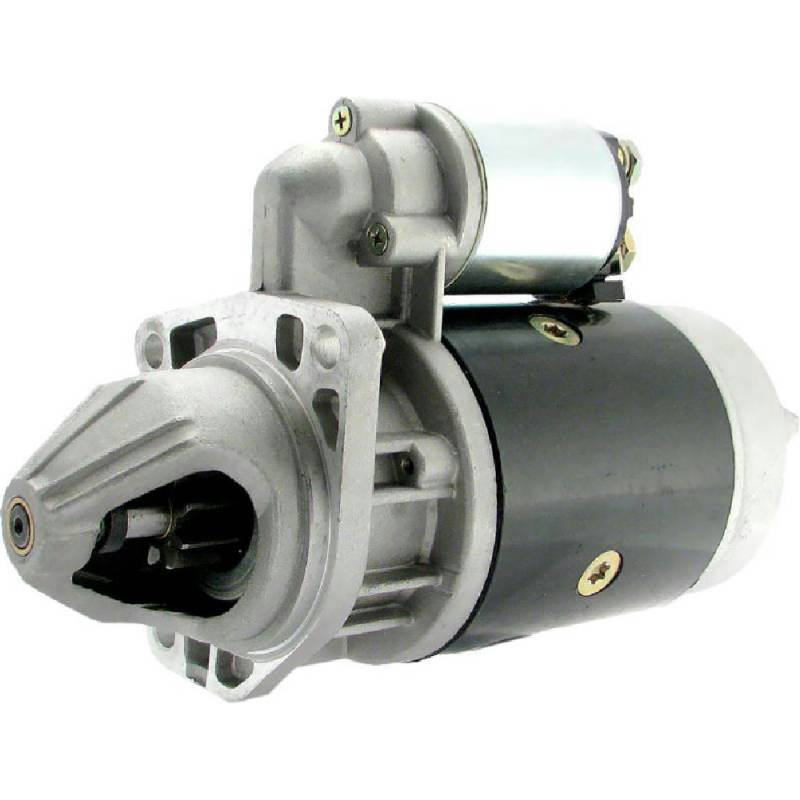

New Starter Motor Compatible With Deutz-Fahr Tractor Dx3.60 Dx3.70 Dx3.80 Dx3.90 Dx4.10 117-9318

BOSCH PART NUMBERS:
• 0 001 369 014, 0001369014
• 0 986 016 550
• SR9942X

DEUTZ / KHD PART NUMBERS:
• 01179318, 1179318, 117-9318
• 01179319, 1179319, 117-9319

MAHLE / LETRIKA PART NUMBERS:
• Mahle MS308
• Letrika IS0567, AZJ3179

SPECIFICATIONS:
• Type: Bosch 369 series direct drive (DD)
• Voltage: 12 Volt
• Power: 3.1 kW (4.15 HP)
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, 34.8 mm (1.37 in) OD
• Flange: 89 mm, 31 mm flange to flywheel
• Mounting: 3 unthreaded 10.9 mm holes, 127 mm circle
• Weight: about 29 lbs (13 kg)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
