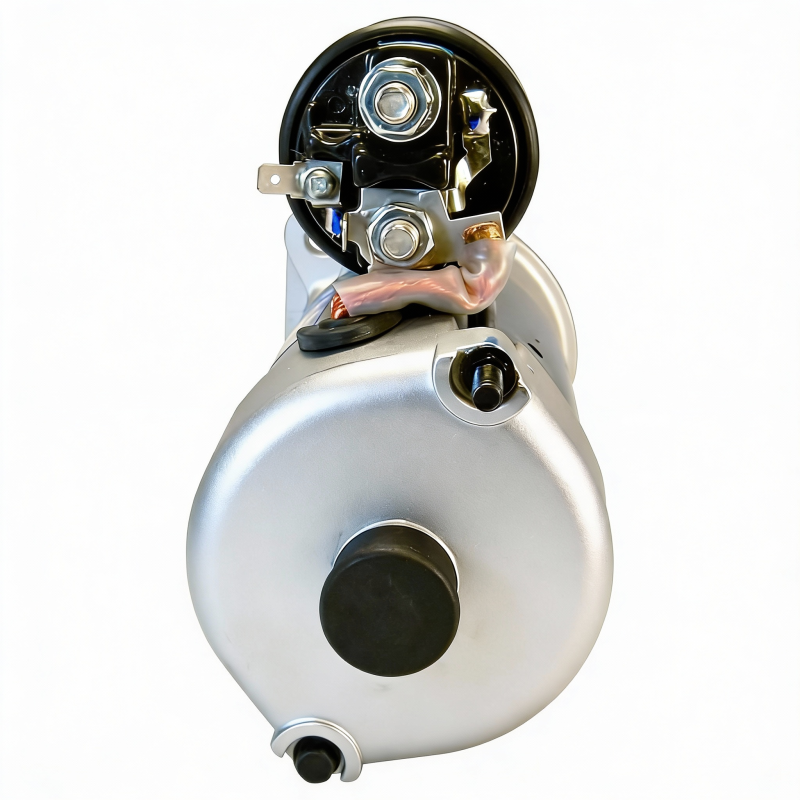

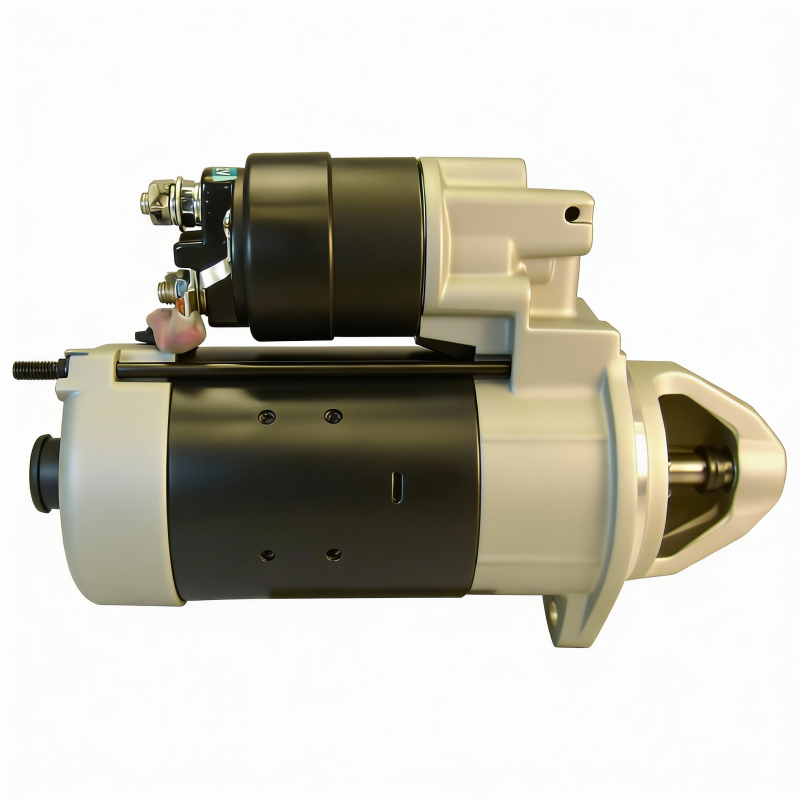

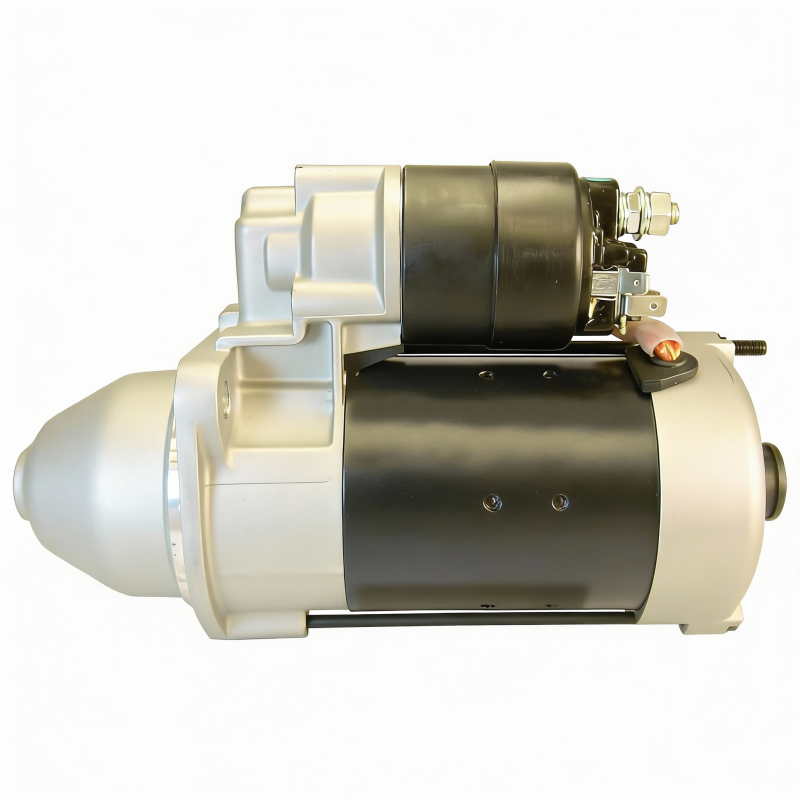

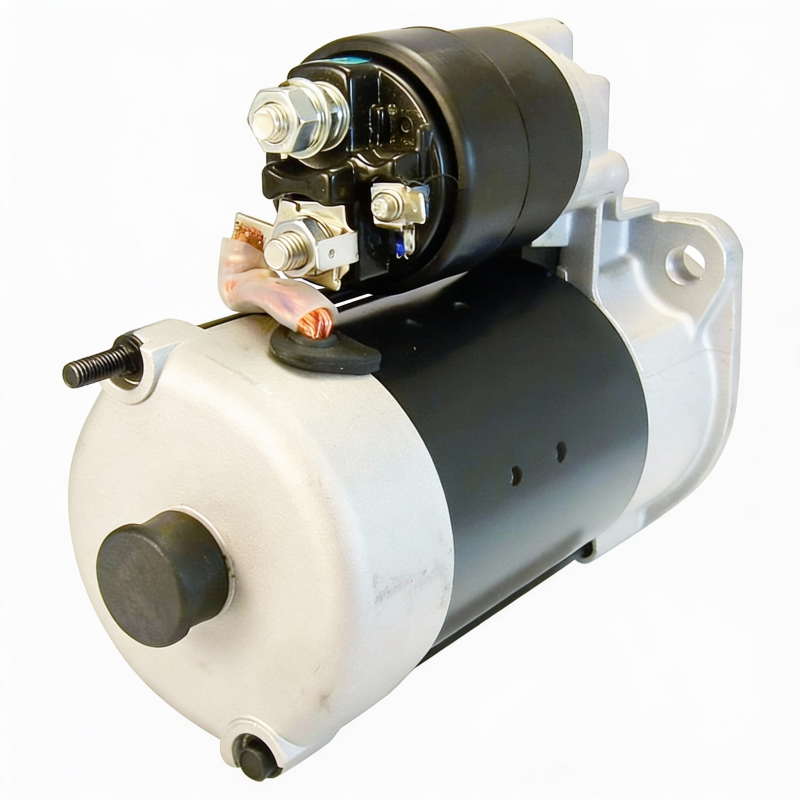

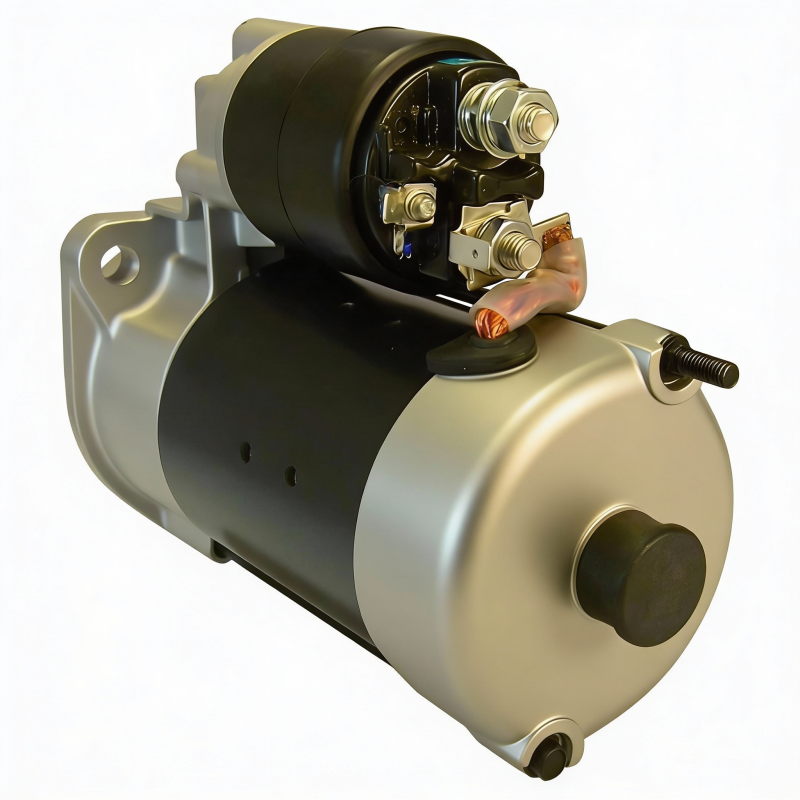

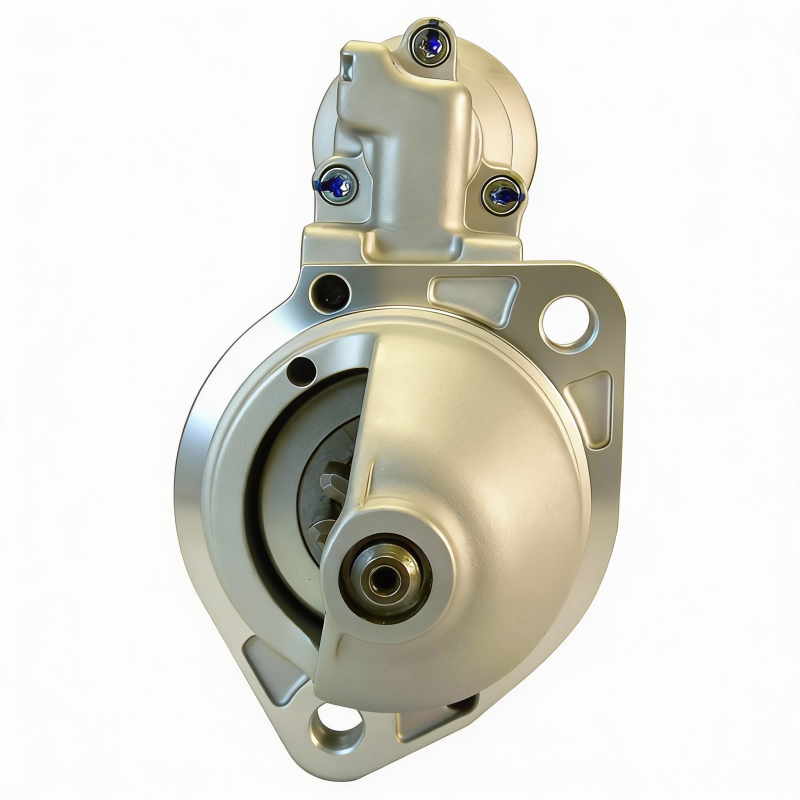

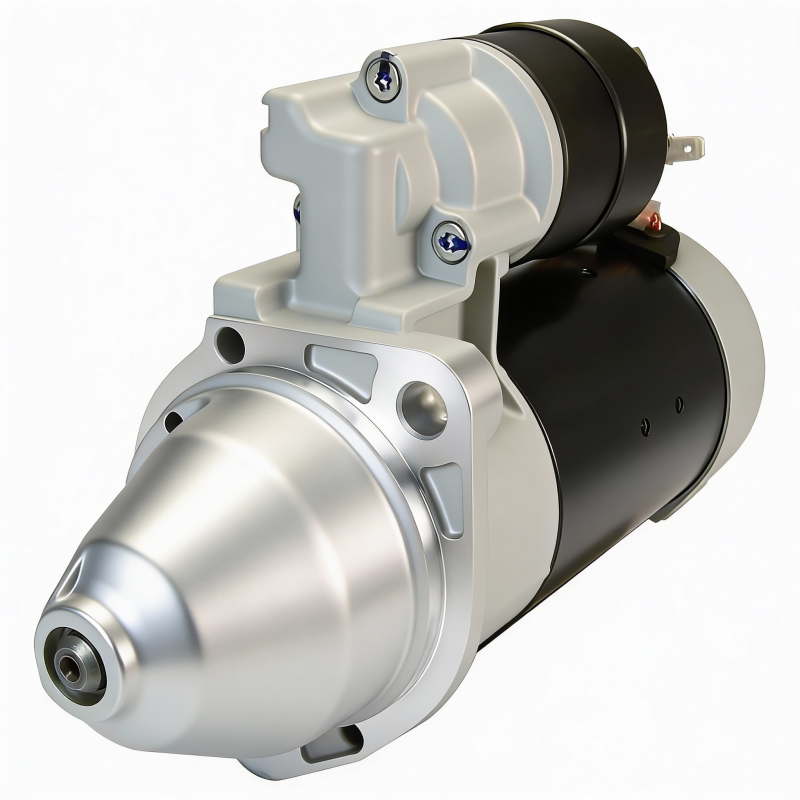

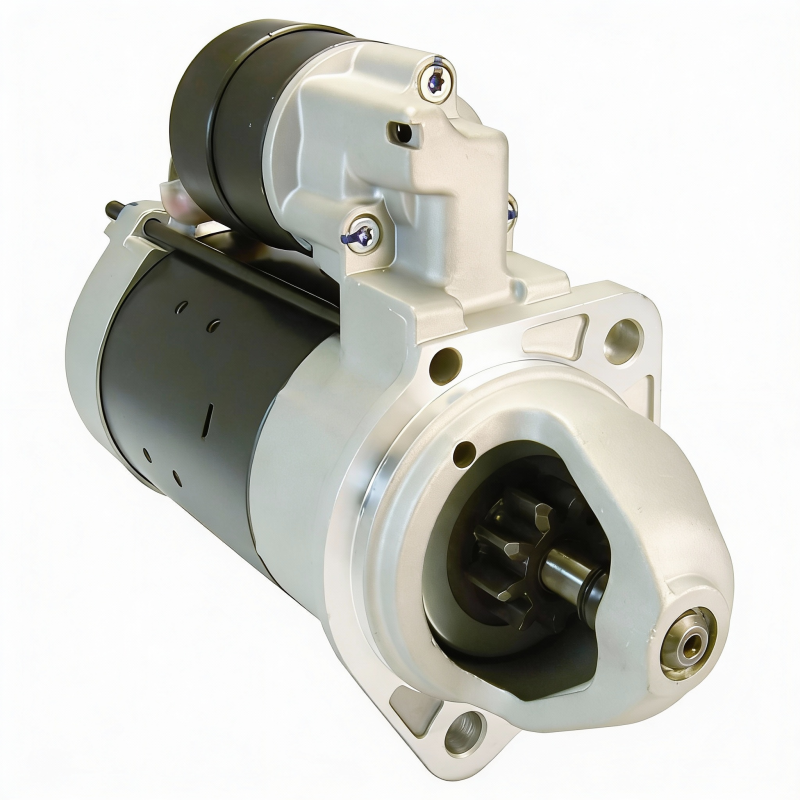

12V Starter Motor Compatible With 2001-2006 3307 3307P 2000-2015 3205 3205P Single Drum Roller

1214209*1
OEM PART NUMBERS:
• 1214209 (Hamm)
• 2033874 (Vogele)

SPECIFICATIONS:
• Type: PLGR (Planetary Gear Reduction)
• Voltage: 12V
• Rotation: Clockwise (CW)
• Teeth: 9 Spline
• Weight: 12 lbs / 5.44 kg

FITS ENGINES:
• BF4M1011F - 4-Cylinder Turbocharged Deutz Diesel (75 HP)
• F4M1011F - 4-Cylinder Deutz Diesel (42-57 HP)
• F4M2011 - 4-Cylinder Deutz Diesel (45-65 HP)
• BF4L1011 - 4-Cylinder Deutz Diesel (51.5 KW / 70 HP)

FITS ROLLERS:
• 3307 / 3307P - BF4M1011F Diesel - 2001-2006
• 3205 / 3205P - F4M1011F / F4M2011 Diesel - 2000-2015
• HW90/10, HW90/12 - BF4L1011 Diesel - 1995-2004
• HW90 B/10 - Deutz Diesel - 2004-2015

FITS CONSTRUCTION EQUIPMENT:
• Asphalt Pavers with Deutz Diesel Engines
• Cold Milling Machines with Deutz Diesel Engines

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $281.19
Sale: $160.68
Save: 43%
Save: $120.51
Qty:
Free Shipping!

Description

ROLLERS:

3307:
• 3307 Single Drum Vibratory Roller - BF4M1011F Deutz Diesel - 2001, 2002, 2003, 2004, 2005, 2006
• 4-Cylinder Turbocharged Deutz Diesel, 75 HP (55.4 KW), 66 in Smooth Drum, Operating Weight: 6,620 lbs (ROPS)

3307P:
• 3307P Single Drum Vibratory Padfoot Roller - BF4M1011F Deutz Diesel - 2001, 2002, 2003, 2004, 2005, 2006
• 4-Cylinder Turbocharged Deutz Diesel, 75 HP (55.4 KW), 66 in Padfoot Drum, Operating Weight: 6,840 lbs (ROPS)

3205:
• 3205 Single Drum Vibratory Roller - F4M1011F / F4M2011 Deutz Diesel - 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
• 4-Cylinder Deutz Diesel, 42-65 HP, 54 in Drum, Operating Weight: 5.4 Tonnes (11,900 lbs)

3205P:
• 3205P Single Drum Vibratory Padfoot Roller - F4M1011F / F4M2011 Deutz Diesel - 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
• 4-Cylinder Deutz Diesel, 64 HP, 54 in Padfoot Drum, Operating Weight: 5.47 Tonnes (12,060 lbs)

THREE-WHEEL ROLLERS:

HW90:
• HW90/10 Three-Wheel Static Roller - BF4L1011 Deutz Diesel - 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
• 4-Cylinder Deutz Diesel, 51.5 KW (70 HP), Operating Weight: 10.4 Tonnes (22,930 lbs)
• HW90/12 Three-Wheel Static Roller - BF4L1011 Deutz Diesel - 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
• 4-Cylinder Deutz Diesel, 51.5 KW (70 HP), Operating Weight: 12.4 Tonnes (27,340 lbs)
• HW90 B/10 Three-Wheel Static Roller - Deutz Diesel - 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
• Operating Weight: 10.6 Tonnes (23,370 lbs)

ASPHALT PAVERS:
• Asphalt Pavers equipped with Deutz Diesel Engines

COLD MILLING MACHINES:
• Cold Milling Machines equipped with Deutz Diesel Engines

NOTE:
• All models equipped with Deutz diesel engines
• Verify OEM part number from your original unit before ordering
