MAHLE / LETRIKA (ISKRA) PART NUMBERS: • MS101, MS-101
• IS1077, IS-1077
• 11.131.117, 11131117
• AZF4611, AZF4616, AZF4691
• 11.131.839, 11131839
• 11.131.213, 11131213
CASE IH PART NUMBERS: • 84146320
• A162469
• 87419387
CUMMINS PART NUMBERS: • 3283813
• 3957589
• 3675245RX
DENSO PART NUMBERS: • 228000-5620, 2280005620
• 228000-6390, 2280006390
• 228000-5621, 2280005621
• 228000-5622, 2280005622
• 228000-6391, 2280006391
• DSN2023 (aftermarket)
DELCO REMY PART NUMBERS: • 10461645
• 10465537
ONAN PART NUMBERS: • 191-2212, 1912212

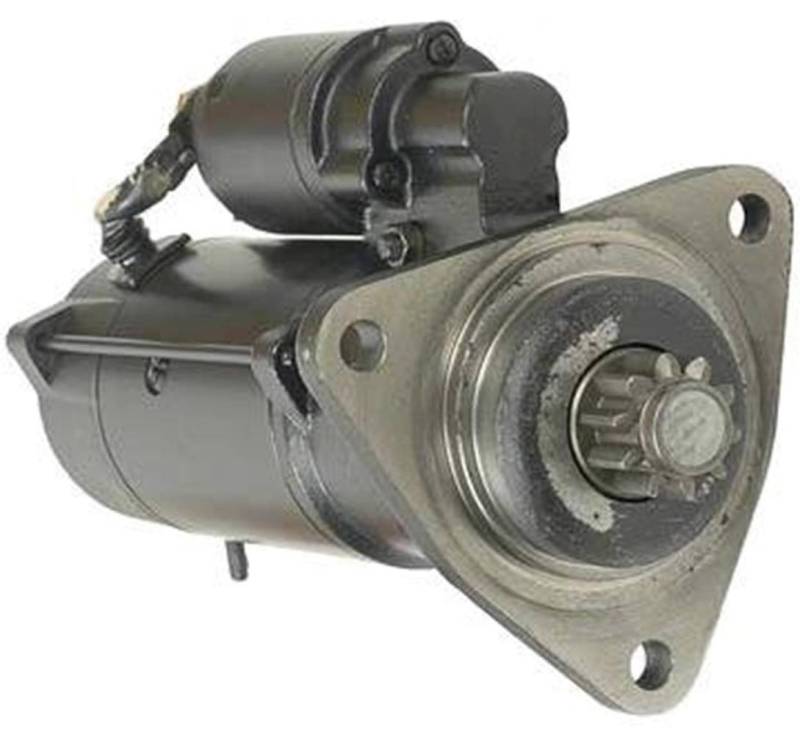

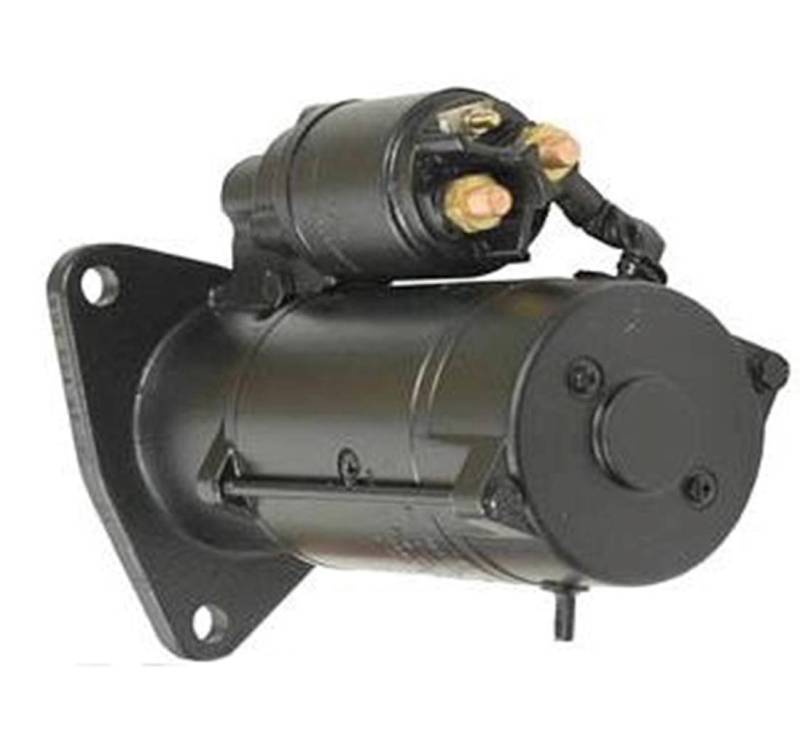

SPECIFICATIONS: • Type: Mahle / Letrika (Iskra) IS1077 type, planetary gear reduction (PLGR)
• Voltage: 12 Volt
• Power: 4.2 kW (5.63 HP)
• Rotation: Clockwise (CW)
• Pinion: 10 teeth, 38.8 mm (1.528 in) OD
• Mounting: three ears, 13.4 mm unthreaded, 125.7 mm (4.949 in) centers
• Registry (pilot) OD: 92 mm (3.622 in)
• Terminals: M10-1.5 B+ and motor studs, spade S terminal
• Jump start protection: yes
• Weight: 25.7 lb (11.7 kg)
• Condition: New
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
