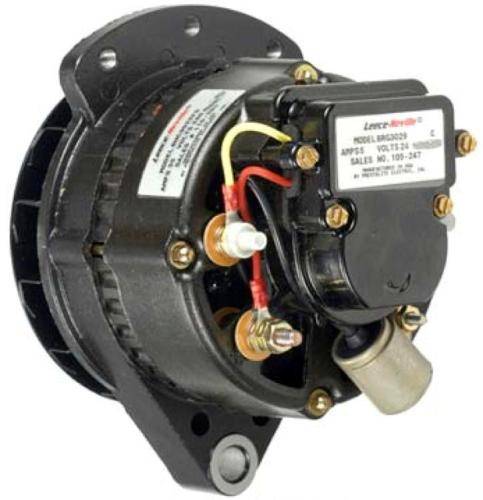

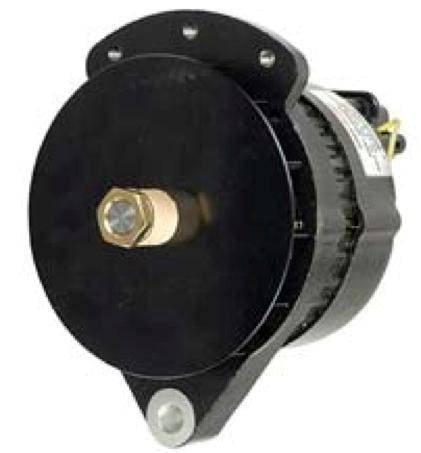

New 24V 35A Alternator Compatible With Caterpillar Marine Engine 3306 3406 3408 110-285 60197

API MARINE: 20150
ARCO MARINE: 60197
BOSCH REMAN: AL9936X
HALLIBURTON SERVICES: 0106000047 010600047
MOTOROLA: 10-285 8HC3022F 8HC3022FS
PRESTOLITE: 110-285

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: LEECE NEVILLE
VOLTAGE: 24
AMPERAGE: 35
FAN: EXTERNAL
REGULATOR: INTERNAL
MOUNT: SPOOL
ROTATION: BI-DIRECTIONAL
HOUSING COATING: E-COAT
UL APPROVED: NO
SPOOL LENGTH: 1"
MOUNTING BOLT SIZE: .505-.520
EAR SIZE: 5/16-18 NC (3 HOLE)
MOUNTING HOLES: 3
POSITIVE STUD SIZE: 1/4-20 NC
NEGATIVE STUD SIZE: 10-24 NC
REGULATOR SENSE: LOCAL SENSE
TRIO: NO
REGULATOR EXCITE: SELF EXCITE
SMARTCHEK REGULATOR: NO
LAMP DRIVER: NO
REGULATOR MODEL: 8RG3029
ADJUSTABLE: NO
RECTIFIER LOCATION: INTERNAL
SHAFT DIAMETER: .6265-.6272
REGULATOR POSITION: 12:00
B+ TERMINAL: 1/4-20
WEIGHT: 11.62 LBS / 5.28 KG
