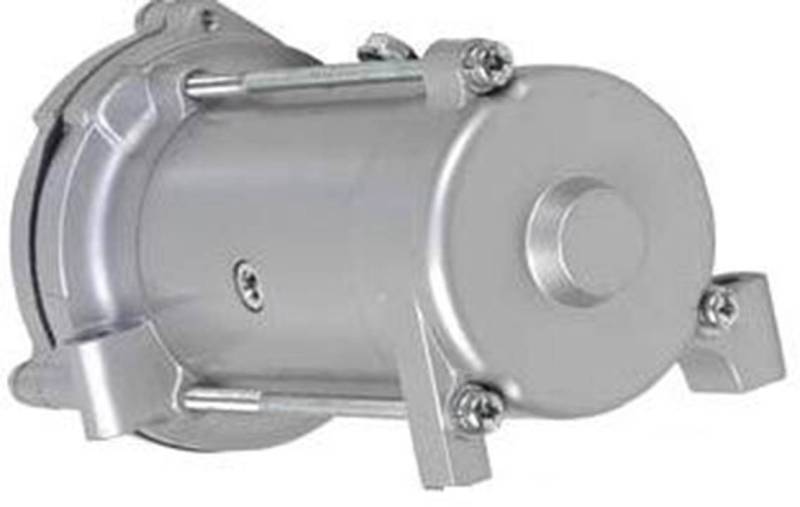

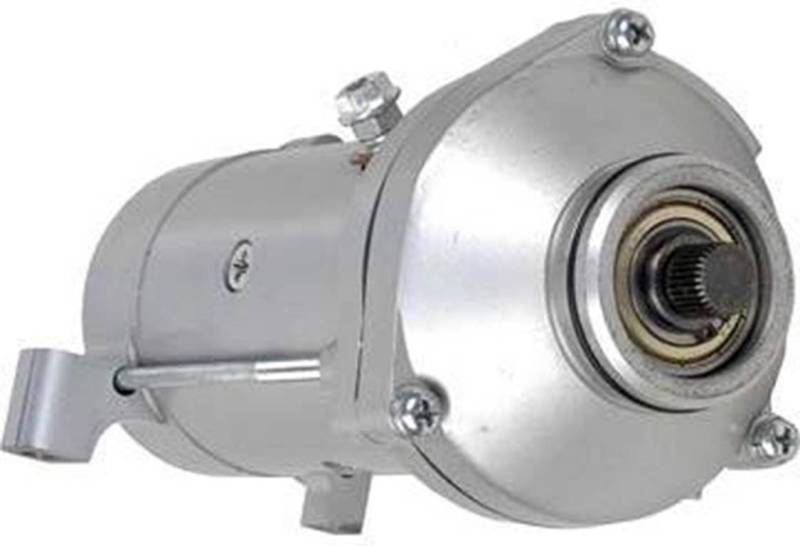

Starter Motor Compatible With 1985 Honda Gl1200l Gold Wing Ltd 1986 Gl1200d Deluxe Gl1200a Aspencade

OEM PART NUMBERS:
• Honda: 31200-MG9-406 / 31200MG9406
• Honda: 31200-MG9-681 / 31200MG9681

SPECIFICATIONS:
• Item Description: Starter Motor
• Unit Type: Honda / Mitsuba
• Type: PMDD (Permanent Magnet Direct Drive)
• Output: 0.6kW
• Voltage: 12 Volts
• Rotation: CW (Clockwise)
• Tooth Count: 31 Spline
• Pinion/Splines OD: 13.5mm / 0.531in
• Mounting Hole 1: 6.8mm ID Unthreaded
• Mounting Hole 2: 6.1mm ID Unthreaded
• Design: 3-Bolt Drive End
• Weight: 5.35 lbs / 2.43 kg
• Condition: New

HONDA GL1200 GOLD WING APPLICATIONS:
• GL1200A Gold Wing Aspencade 1181cc (1985-1987)
• GL1200D Gold Wing Deluxe 1181cc (1986)
• GL1200I Gold Wing Interstate 1181cc (1985-1987)
• GL1200L Gold Wing LTD 1181cc (1985)
• GL1200SEI Gold Wing Aspencade SE-i 1181cc (1986)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
