YAMAHA OEM PART NUMBERS:
• 689-81800-12
• 689-81800-12-00
• 689-81800-13
• 689-81800-13-00
SPECIFICATIONS:

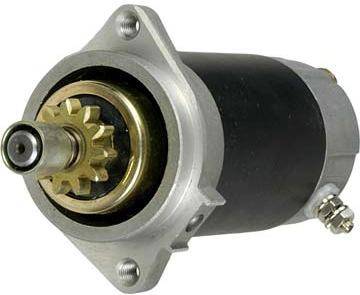

• Type: Marine Outboard Starter
• Unit: Hitachi PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• kW: 0.6kW
• Rotation: Counterclockwise (CCW)
• Teeth: 11
• Pinion/Splines OD: 33.1mm (1.303in)
• Mounting Hole 1: M8-1.25 ID Threaded
• Mounting Hole 2: M8-1.25 ID Threaded
• Weight: 5.11 lbs (2.32 kg)
COMPATIBLE WITH YAMAHA OUTBOARD:
25HP Models (1984-1997):
• 25EL, 25ES, 25L, 25S - 1984-1985 Hitachi system
• C25ELH, C25ELR, C25MLH, C25MSH - 1991-1997 Commercial
• CV25EL, CV25EML - 1990 CV series
30HP Models (1984-1997):
• 30EL, 30ES - 1984-1986 Hitachi system
• C30ELR - 1991-1997 Commercial
• CV30EL - 1990 CV series
40HP Models (1991-1997):
• C40ELR, C40ESH, C40MLH, C40MSH, C40PLR - 1991-1997 Commercial
• CV40EL - 1990 CV series
ENGINE TYPE:
• 2-Stroke Outboards
• Hitachi Starting System
• 25HP, 30HP, 40HP displacement
⚠️ NOT COMPATIBLE WITH:
• 4-stroke Yamaha outboards
• Non-Hitachi starting systems
• Engines outside 1984-1997 range
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
