OEM PART NUMBERS:
• Monarch/Bucher: 08053 / 208013 / 2590112 / 2590100 / M2590112 / M2680100 / M2680102 / MH0053 / MH08053 / P33939 / 151604-0088 / 500205019833
• Iskra (Letrika/Mahle): 11.212.629 / 11.216.237 / AME1719 / IM0164 / IM0167 / MM74
• Waltco: 70092401
• Eagle: 1330185
• Thieman: 4423720
• Leyman: P-33939
• Delamerica: 16399 / 20813
• Western: W-8053 / W-8054
• Ref: 14785 / 17208 / 50501 / 56539 / 8110 / 82195 / 8301 / M4100 / 262174

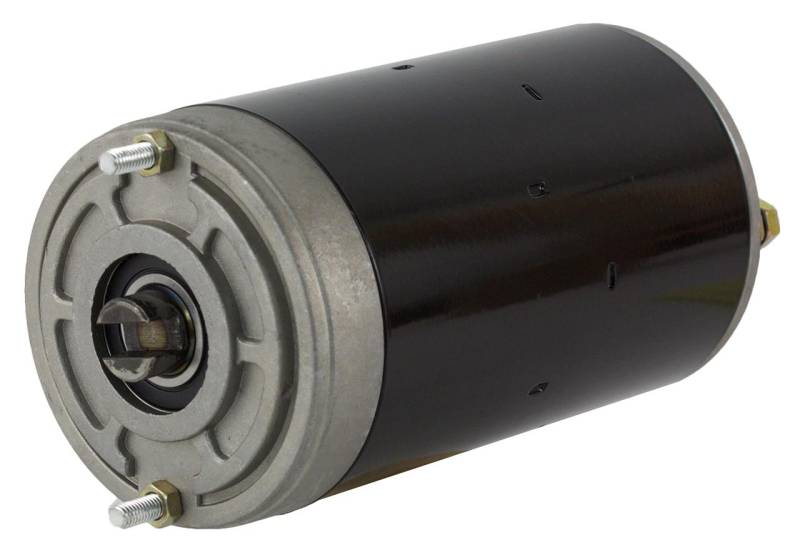

SPECIFICATIONS:
• Voltage: 12V
• Rotation: CCW (Counter-Clockwise)
• Power: 0.8kW / 1.07 HP
• Motor Type: Bi-Directional Permanent Magnet
• Shaft OD: 15.6mm (0.614 in) - 1/4 in Slot

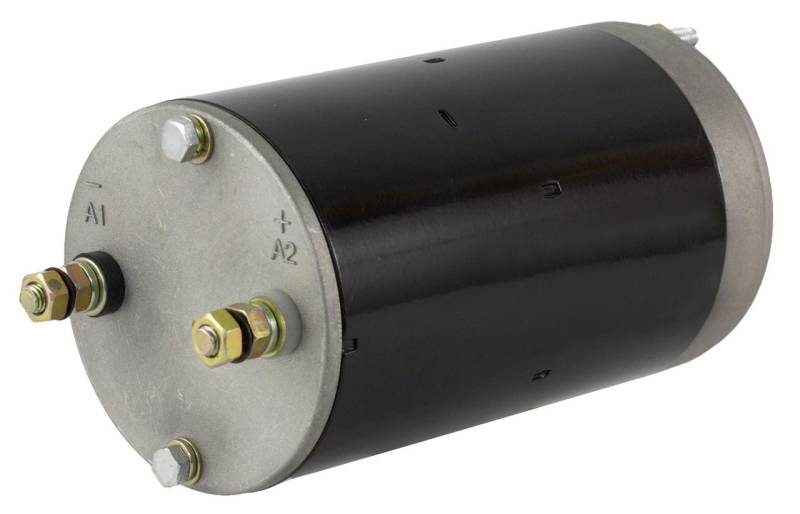

• Terminal: M6-1.0 (A2 = Motor / A1 = Ground)
• Field Housing OD: 79mm / 3.110 in
• Overall Length: 166mm / 6.535 in
• Bolt Size: 5mm
• Bearing: Single Ball Bearing
• Weight: 5.1 lbs / 2.32 kg
• Condition: New
APPLICATION:
• Sno-Way ST 22 Snow Plow Systems
• Monarch / Bucher Hydraulic Pump Systems
• Waltco / Eagle / Leyman / Thieman / Delamerica Liftgates
• Wheelchair Lifts / Levelers / Material Handling Equipment
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
