New Mando Style 12V 55A Marine Alternator Compatible With 1987-1995 Mercruiser Hp 420 425 465 525Sc

(0) Reviews: Write first review
12174*5
OEM PART NUMBERS:
• API Marine: 20054
• ARCO Marine: 60050
• Mercury Marine: 12449 / 19685 / 817119 / 817119-1 / 817119-2 / 817119A1 / 817119A4 / 98555
• Mercury Additional: 78403A1 / 78403A2 / 92497 / 92497A3 / 98555A1 / 56045 / 59755 / 69729 / 78477 / 12449A1
• Mando: AC155603 / AC155604 / AR150 / AR150AA / AR150AR / AR150BA / A000B0331
• Crusader: 39200 / 39049 / 39064
• OMC: 3854182 / 3853853 / 3854809 / 987774 / 985465 / 983424 / 985466 / 984565 / 986008 / 988247 / 3860769
• Volvo Penta: 3854809-5 / 3854182-7 / 3853853-4 / 3850927-9
• Marine Power: 1210-000
• Sierra: 18-5965 / 18-5966 / 18-5966-1 / 18-5957
• Quicksilver: 8M6007464 / 8M6007471
• Yamaha: 19-1400-10 / 10140010
• Item Reference: 12174N-1G / 12174N1G

SPECIFICATIONS:
• Product Type: Marine Alternator
• Unit Style: Mando / Mando Marine Type
• Voltage: 12 Volts
• Amperage: 55 Amps
• Polarity: Negative
• Rotation: Bi-Directional / CW
• Output Stud Dimensions: 1/4-20
• Weight: 11.26 lbs / 5.12 kg
• Regulator: Internal (9:00 Clock Position)
• Fan: External
• Pulley: Single Groove V-Belt (2-inch mounting foot)
• Mounting: (1) 5/16-18 Threaded Mounting Hole
• Mounting: (1) 3/8-inch Unthreaded Mounting Hole

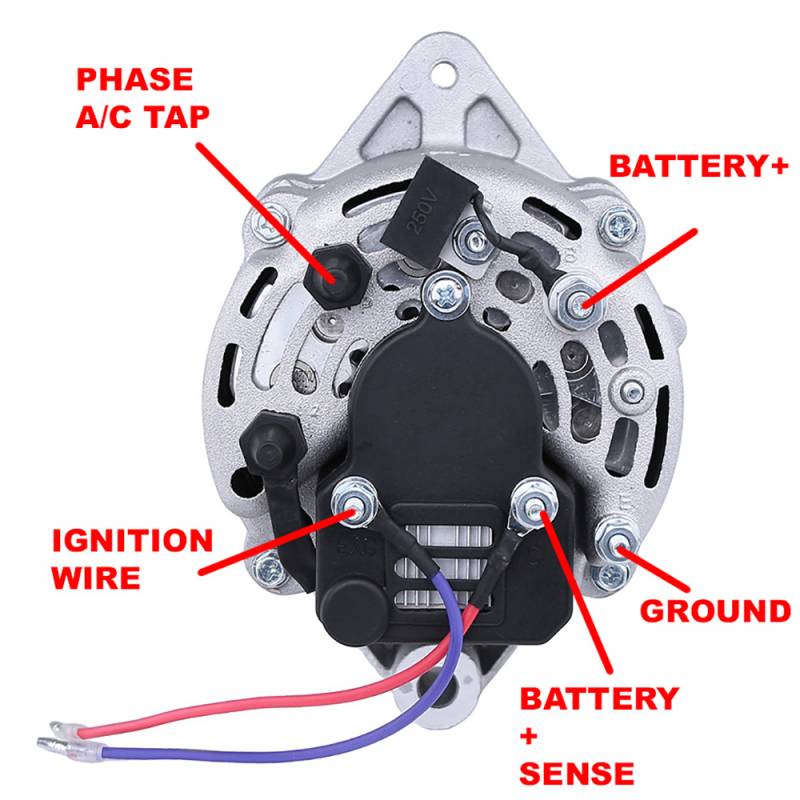

• B+ Terminal: 1/4-20 Threaded
• Certifications: SAE J1171 Marine Ignition Protection / USCG Compliant
• Application: Marine Inboard / Sterndrive (Pre-Serpentine V-Belt)
• Condition: New Aftermarket
• Country of Origin: Taiwan

VEHICLE APPLICATIONS SUMMARY:
• MerCruiser Stern Drive / Inboard 1978-1997 GM 2.5L / 3.0L / 4.3L / 5.0L / 5.7L / 7.4L / 8.2L
• MerCruiser HP 420 / 425 / 465 / 525SC (7.4L / 8.2L) 1987-1995
• OMC Marine Inboard / V-Drive 1987-1996 (2.3L/3.0L/4.3L/5.0L/5.7L/5.8L/7.4L/7.5L/8.2L)
• OMC Cobra Inboard 1987-1993
• Volvo Penta 3.0 / 4.3 / 5.0 / 5.7 / 5.8 / 7.4 / 8.2 GL/GS/Gi/FL/Fi (1993-1999)
• Crusader 350 / 5.0 / 5.7 Inboard GM V8 (1985-2004)
• Pleasurecraft Marine Inboard / Lucas Marine / Mando Marine (1985+)
• Chrysler Marine IB & Stern Drive (Motorola w/ Tach Hookup)
• Body: Marine Inboard / Sterndrive Pre-Serpentine V-Belt

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $258.34
Sale: $147.62
Save: 43%
Save: $110.72
Qty:
Free Shipping!

Description

MERCRUISER HIGH PERFORMANCE (HP) INBOARD ENGINES — MANDO 55A ALTERNATOR:
• MerCruiser HP 420 MerCruiser GM 7.4L 454CI V8 Gas Mando 55A (1987-1989)
• MerCruiser HP 425 MerCruiser GM 7.4L 454CI V8 Gas Mando 55A (1990-1993)
• MerCruiser HP 425 (Gen V) MerCruiser GM 7.4L 454CI V8 Gas Mando 55A (1992-1993)
• MerCruiser HP 465 MerCruiser GM 8.2L 502CI V8 Gas Mando 55A (1990-1992)
• MerCruiser HP 465 (Gen V) MerCruiser GM 8.2L 502CI V8 Gas Mando 55A (1992-1994)
• MerCruiser HP 525SC MerCruiser GM 7.4L 454CI V8 Gas Mando 55A (1991-1992)
• MerCruiser HP 525SC (Gen V) MerCruiser GM 7.4L 454CI V8 Gas Mando 55A (1992-1995)

MERCRUISER INBOARD (IB) ENGINES:
• MerCruiser IB 230 MIE MerCruiser GM 5.0L 305CI V8 Gas Mando 55A (1981-1995)
• MerCruiser IB 260 MIE MerCruiser GM 5.7L 350CI V8 Gas Mando 55A (1987)
• MerCruiser IB 5.0L (4-BBL) MerCruiser GM 5.0L 305CI V8 Gas Mando 55A (1987-1995)
• MerCruiser IB 5.7L MIE MerCruiser GM 5.7L 350CI V8 Gas Mando 55A (1988-1995)
• MerCruiser IB 7.4L MIE (LH) (Gen V) MerCruiser GM 7.4L 454CI V8 Mando 55A (1992-1996)
• MerCruiser IB 7.4L MIE (LH) (Gen VI) MerCruiser GM 7.4L 454CI V8 Mando 55A (1996-1997)
• MerCruiser IB 7.4L MIE (LH) w/Hurth MerCruiser GM 7.4L 454CI V8 Mando 55A (1989-1992)
• MerCruiser IB 8.2L MIE (Gen V) MerCruiser GM 8.2L 502CI V8 Mando 55A (1993-1996)
• MerCruiser IB 8.2L MIE w/Hurth MerCruiser GM 8.2L 502CI V8 Mando 55A (1990-1992)

MERCRUISER STERN DRIVE — GM 4-CYLINDER:
• MerCruiser 120 MerCruiser GM 2.5L 153CI 4-Cyl Gas Mando 55A (1983-1989)
• MerCruiser 140 MerCruiser GM 3.0L 181CI 4-Cyl Gas Mando 55A (1983-1986)
• MerCruiser 2.5L MerCruiser GM 2.5L 153CI 4-Cyl Gas Mando 55A (1987-1989)
• MerCruiser 3.0 / 3.0LX MerCruiser GM 3.0L 181CI 4-Cyl Gas Mando 55A (1987-1995)

MERCRUISER STERN DRIVE — GM V6:
• MerCruiser 175 MerCruiser GM 4.3L 262CI V6 Gas Mando 55A (1987-1992)
• MerCruiser 185 MerCruiser GM 3.8L 229CI V6 Gas Mando 55A (1983-1984)
• MerCruiser 185 MerCruiser GM 4.3L 262CI V6 Gas Mando 55A (1985-1987)
• MerCruiser 205 MerCruiser GM 4.3L 262CI V6 Gas Mando 55A (1985-1991)
• MerCruiser 4.3L (2-BBL) MerCruiser GM 4.3L 262CI V6 Gas Mando 55A (1988-1992)
• MerCruiser 4.3LX (4-BBL) MerCruiser GM 4.3L 262CI V6 Gas Mando 55A (1988-1992)
• MerCruiser 4.3L (Gen II) MerCruiser GM 4.3L 262CI V6 Gas Mando 55A (1992-1996)
• MerCruiser 4.3LX (Gen II) MerCruiser GM 4.3L 262CI V6 Gas Mando 55A (1992-1996)

MERCRUISER STERN DRIVE — GM V8:
• MerCruiser 200 MerCruiser GM 5.0L 305CI V8 Gas Mando 55A (1985-1987)
• MerCruiser 228 MerCruiser GM 5.0L 305CI V8 Gas Mando 55A (1982-1984)
• MerCruiser 230 MerCruiser GM 5.0L 305CI V8 Gas Mando 55A (1985-1987)
• MerCruiser 260 MerCruiser GM 5.7L 350CI V8 Gas Mando 55A (1987)
• MerCruiser 330 MerCruiser GM 7.4L 454CI V8 Gas Mando 55A (1982-1987)
• MerCruiser 350 Mag Alpha MerCruiser GM 5.7L 350CI V8 Mando 55A (1986-1995)
• MerCruiser 350 Mag Alpha 4-BBL MerCruiser GM 5.7L 350CI V8 Mando 55A (1996)
• MerCruiser 5.0LX MerCruiser GM 5.0L 305CI V8 Gas Mando 55A (1988-1995)
• MerCruiser 5.7L BRAVO MerCruiser GM 5.7L 350CI V8 Mando 55A (1988-1995)
• MerCruiser 454 Mag Alpha MerCruiser GM 7.4L 454CI V8 Mando 55A (1986-1988)
• MerCruiser 454 Mag BRAVO MerCruiser GM 7.4L 454CI V8 Mando 55A (1988-1992)
• MerCruiser 454 Mag BRAVO Gen V MerCruiser GM 7.4L 454CI V8 Mando 55A (1992-1996)
• MerCruiser 454 Mag BRAVO Gen VI MerCruiser GM 7.4L 454CI V8 Mando 55A (1996-1997)
• MerCruiser 7.4L BRAVO MerCruiser GM 7.4L 454CI V8 Mando 55A (1988-1991)
• MerCruiser 7.4L BRAVO (Gen V) MerCruiser GM 7.4L 454CI V8 Mando 55A (1992-1996)
• MerCruiser 502 Mag BRAVO MerCruiser GM 8.2L 502CI V8 Mando 55A (1990-1992)
• MerCruiser 502 Mag BRAVO (V) MerCruiser GM 8.2L 502CI V8 Mando 55A (1992-1993)

MERCRUISER SKI ENGINES:
• MerCruiser 350 Mag Ski MerCruiser GM 5.7L 350CI V8 Mando 55A (1991-1996)
• MerCruiser 5.7L Ski MerCruiser GM 5.7L 350CI V8 Mando 55A (1985-1987)
• MerCruiser 5.7L Competition Ski MerCruiser GM 5.7L 350CI V8 Mando 55A (1987-1995)

OMC MARINE INBOARD & V-DRIVE (1987-1996):
• OMC Marine Inboard & V-Drive OMC 3.0L GM Motorola System (1987-1996)
• OMC Marine Inboard & V-Drive OMC 4.3L GM V6 Motorola System (1987-1996)
• OMC Marine Inboard & V-Drive OMC 5.7L GM V8 Motorola System (1987-1996)
• OMC Marine Inboard & V-Drive OMC 7.4L GM V8 Motorola System (1988-1996)
• OMC Marine Inboard & V-Drive OMC 5.0L GM V8 Motorola (1987-1988)
• OMC Marine Inboard & V-Drive OMC 5.0L Ford V8 Motorola (1990-1992)
• OMC Marine Inboard & V-Drive OMC 5.8L Ford V8 Motorola (1989-1992)
• OMC Marine Inboard & V-Drive OMC 5.8L Ford V8 Motorola Exc. EFI (1993-1996)
• OMC Marine Inboard & V-Drive OMC 7.5L Ford V8 Motorola (1987-1990)
• OMC Marine Inboard & V-Drive OMC 8.2L GM V8 Motorola (1988-1992)
• OMC Marine Inboard & V-Drive OMC 2.3L Ford I4 Motorola (1987-1990)
• OMC Marine Inboard & V-Drive OMC 3.2L GM I4 Motorola (1992-1993)
• OMC Cobra Inboard OMC Ford 2.3L GM 3.0L-8.2L Ford 7.5L (1987-1993)

VOLVO PENTA MARINE ENGINES (1993-1999):
• Volvo Penta 3.0GL Volvo Penta GM 3.0L I4 Gas Motorola (1993-1999)
• Volvo Penta 3.0GS Volvo Penta GM 3.0L I4 Gas Motorola (1993-1999)
• Volvo Penta 4.3GL Volvo Penta GM 4.3L V6 Gas Std 51A (1993-1999)
• Volvo Penta 4.3GS Volvo Penta GM 4.3L V6 Gas Std 51A (1993-1999)
• Volvo Penta 4.3Gi Volvo Penta GM 4.3L V6 EFI Gas (1993-1999)
• Volvo Penta 5.0FL Volvo Penta Ford 5.0L V8 Std 51A (1993-1999)
• Volvo Penta 5.0Fi Volvo Penta Ford 5.0L V8 EFI (1993-1999)
• Volvo Penta 5.7GL/5.7GS/5.7GSi/5.7Gi Volvo Penta GM 5.7L V8 (1993-1999)
• Volvo Penta 5.8L Volvo Penta Ford 5.8L V8 Standard 51A FL (1993-1996)
• Volvo Penta 7.4GL Volvo Penta GM 7.4L V8 Standard 51A GL (1994-1999)
• Volvo Penta 8.2GL Volvo Penta GM 8.2L V8 Standard 51A GL (1994-1999)

CRUSADER / PLEASURECRAFT / CHRYSLER / LUCAS / MANDO MARINE:
• Crusader 350 Crusader GM 5.0L 305CI V8 Gas Mando 55A (1985-2004)
• Crusader 5.0 Crusader GM 5.0L V8 Gas 39200 (1999-2003)
• Crusader 5.7 Crusader GM 5.7L V8 Gas 39200 (1999-2003)
• Pleasurecraft Marine Various Inboard Engines Mando 55A (1985-Present)
• Lucas Marine Various Inboard Engines Mando 55A (1985-Present)
• Mando Marine Various Inboard Engines Mando 55A (1985-Present)
• Chrysler Marine IB & Stern Drive Various Engines Motorola w/ Tach Hookup
