OEM PART NUMBERS:
• Denso: 228000-5660 / 2280005660
• Denso: 228000-5661 / 2280005661
• Denso: 228000-5662 / 2280005662
• Briggs & Stratton: 825083
• Daihatsu: 28100-87805A / 2810087805A
• Toro: 99-9207 / 999207
SPECIFICATIONS:
• Voltage: 12V
• Type: OSGR (Offset Gear Reduction)
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Pinion OD: 28.6mm / 1.126in
• Power: 1.0kW
• Mounting Hole 1: M10-1.25 ID Threaded
• Mounting Hole 2: M10-1.25 ID Threaded
• Weight: 8 lbs / 3.64 kg
• Condition: New
APPLICATION:
• Cub Cadet 5234DE/5234DL Daihatsu 23HP Diesel (2004-2006)
• Toro Groundsmaster 225 Daihatsu DM950G (1999-2004)
• Toro Groundsmaster 3320 Diesel (2005-2009)
• Toro Reelmaster 2000-D Diesel (2002-2009)
• Toro Z590-D Z Master Diesel (2008-2009)
• Toro Z597-D Z Master Diesel (2004-2007)
• Gravely 260Z / 272Z Diesel
• Daihatsu DM950G Industrial Diesel Engine

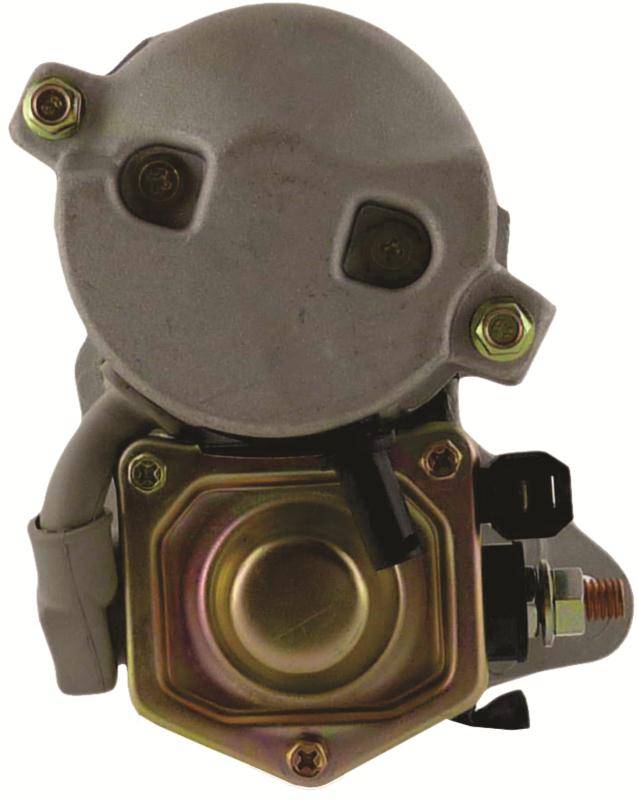

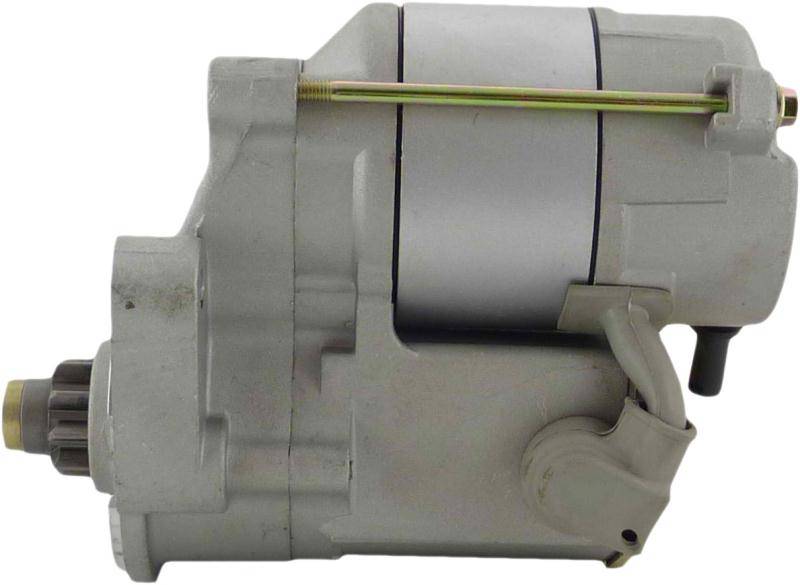

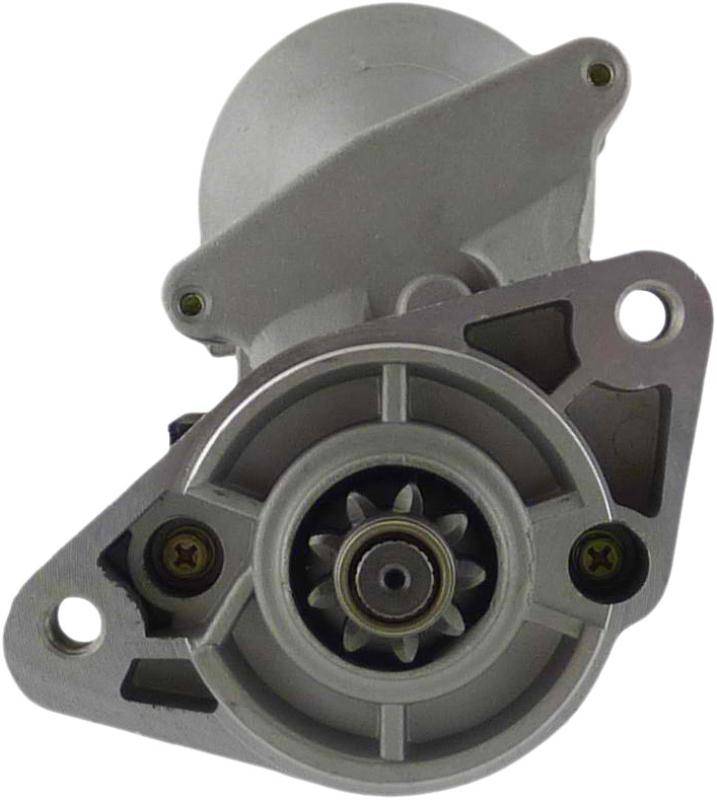

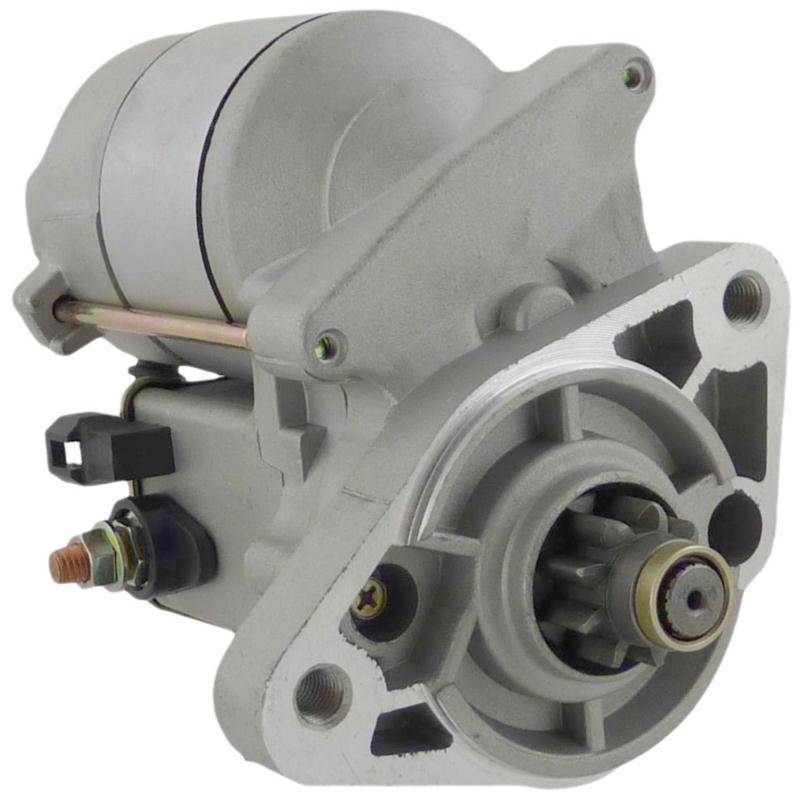

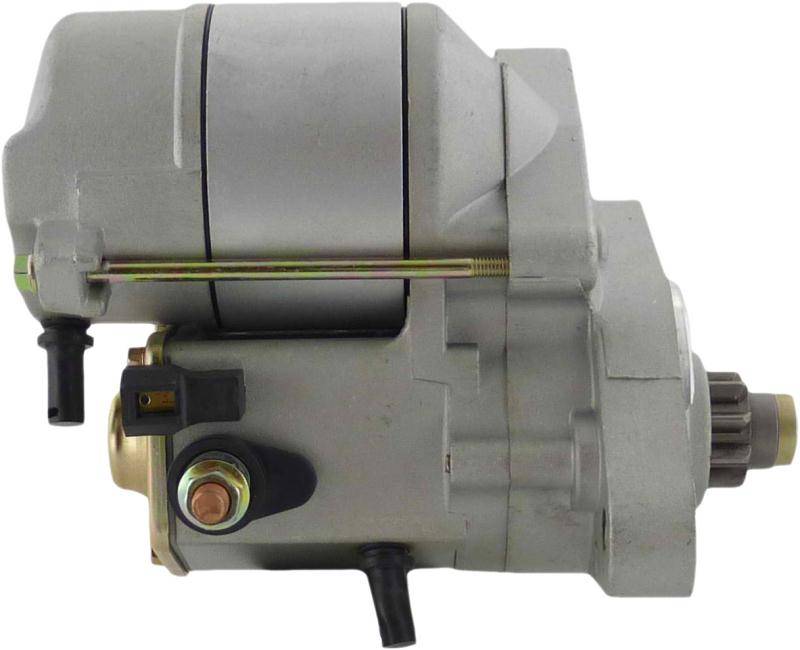

12V Denso OSGR Starter — Toro / Cub Cadet / Gravely Daihatsu DM950G Diesel
New 12V Denso OSGR starter for commercial diesel turf and grounds maintenance equipment powered by Daihatsu DM950G engines. Fits Toro Groundsmaster 225 and 3320, Reelmaster 2000-D, Z590-D and Z597-D Z Master, Cub Cadet 5234DE and 5234DL compact tractors, and Gravely 260Z and 272Z. 9-tooth CW rotation, 1.0kW with dual M10-1.25 threaded mounts. Replaces Denso 228000-5660, 228000-5661, 228000-5662, Briggs & Stratton 825083, Daihatsu 28100-87805A, and Toro 99-9207.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
