OEM PART NUMBERS:
• Mercury Marine: 67914A2
• Mercury Marine: 76395A2
• Mercury Marine: 76395A5
• Mercury Marine: 79271A4
• Mercury Marine: 88475A5
• Mercury Marine: 92975A6
• Mercury Marine: 92975A28
• Mercury Marine: 92975A32
• Mercury Marine: 93247A4
• Mercury Marine: 93247A7
• Mercury Marine (Superseded): 74436A9, 8263, 8263A1, 64461A4, 97528A3, 92975A4, 92975A22
• ERH4102 / ERH-4102S
• HYC5009
• 40-413 / 40-405
AFTERMARKET CROSS REFERENCE:
• API Marine: PT440A
• Arco Marine: 6217
• 18-6763
SPECIFICATIONS:

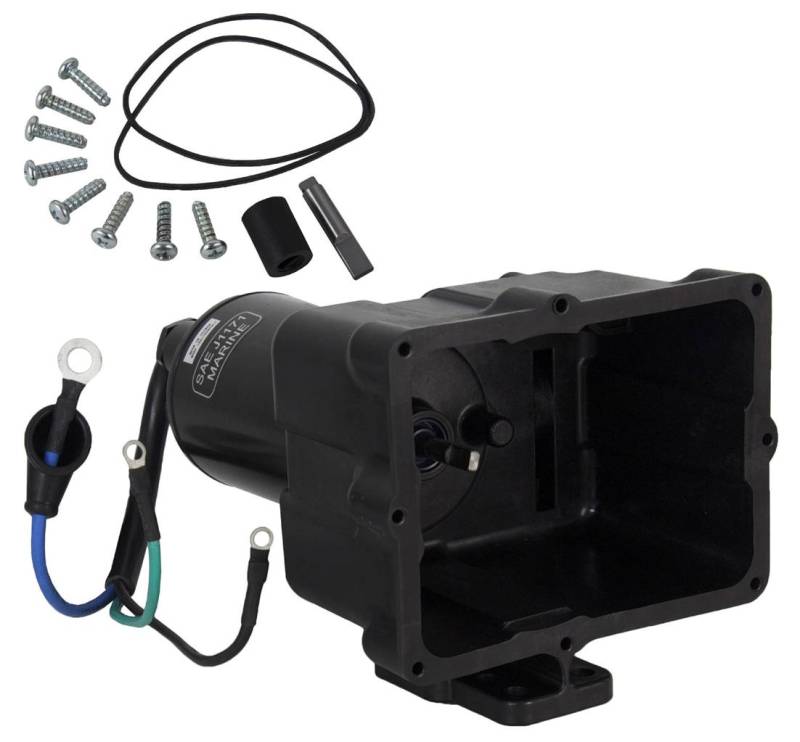

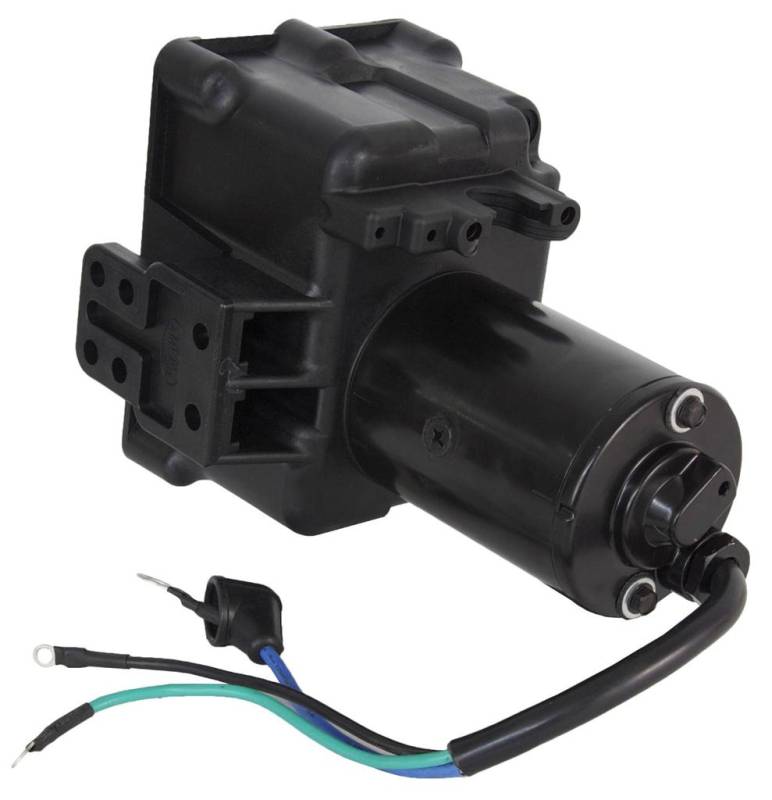

• Type: Tilt Trim Motor with Reservoir
• Unit Type:
• Voltage: 12V
• Rotation: Reversible
• Wire Connection: 3-Wire Harness w/3 Ring Terminals
• Shaft OD: 7.9mm (0.311 in)
• Shaft Type: Tanged Shaft
• Field Housing OD: 78mm (3.071 in)
• Overall Length: 207.7mm (8.177 in)
• Includes: Reservoir, 3-Wire Harness, Ring Terminals
• SAE J1171 Marine Ignition Protection Certified
• Weight: 8 lbs
• Condition: New
MERCRUISER STERN DRIVE APPLICATIONS:
• MerCruiser MC-1 / MC-II / TR / TRS 2.5L-V8 w/(1978-1984)
• MerCruiser Alpha One-SS / SSM w/Square Pump (1983-1994)
MERCURY OUTBOARD APPLICATIONS:
• Mercury 35E/35EH/35EL/35ELH/35ELO/35ELPT 35HP (1984-1986)
• Mercury 45MLH 45HP (1986-1987)
• Mercury 40-220HP Various Models w/Tilt & Trim (1975-1992)
VOLVO PENTA / BMW MARINE APPLICATIONS:
• Volvo Penta All Stern Drive Models w/(1975-1984)
• BMW D150Z 136HP / D190Z 165HP / D636Z 180HP 3.6L 6-Cyl VM Diesel w/Z-Drive (1981-1987)
• BMW D530 5-Cyl 3.0L VM Diesel (1986-1987)
• BMW B130 130HP 2.0L 4-Cyl / B190 165HP 2.8L 6-Cyl / B220 190HP 3.3L 6-Cyl / B635 3.5L 6-Cyl Gasoline w/Z-Drive (1977-1987)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
