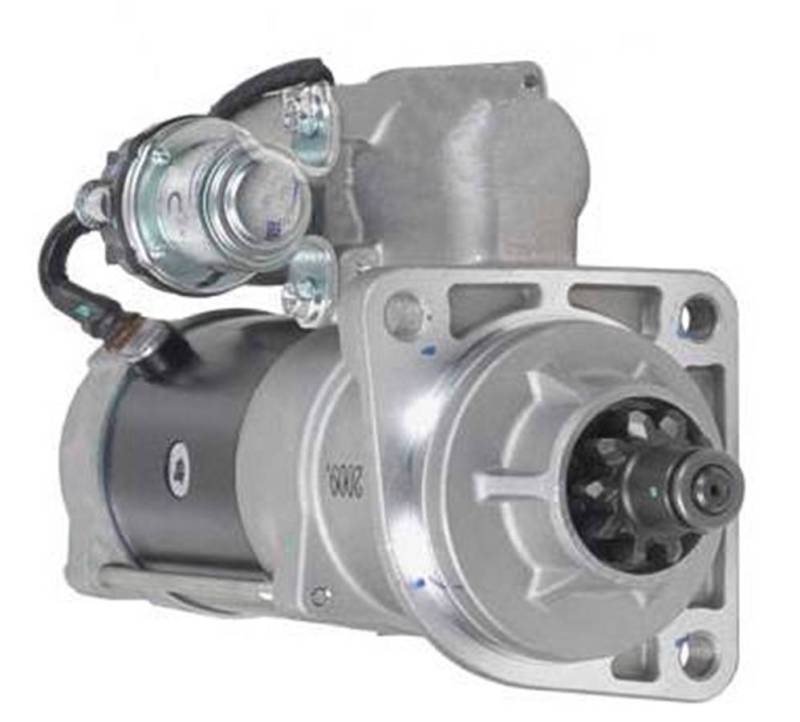

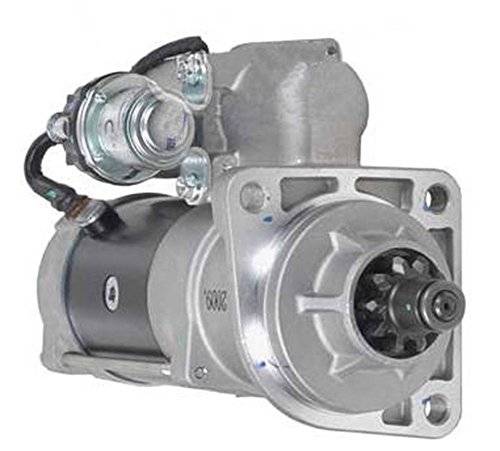

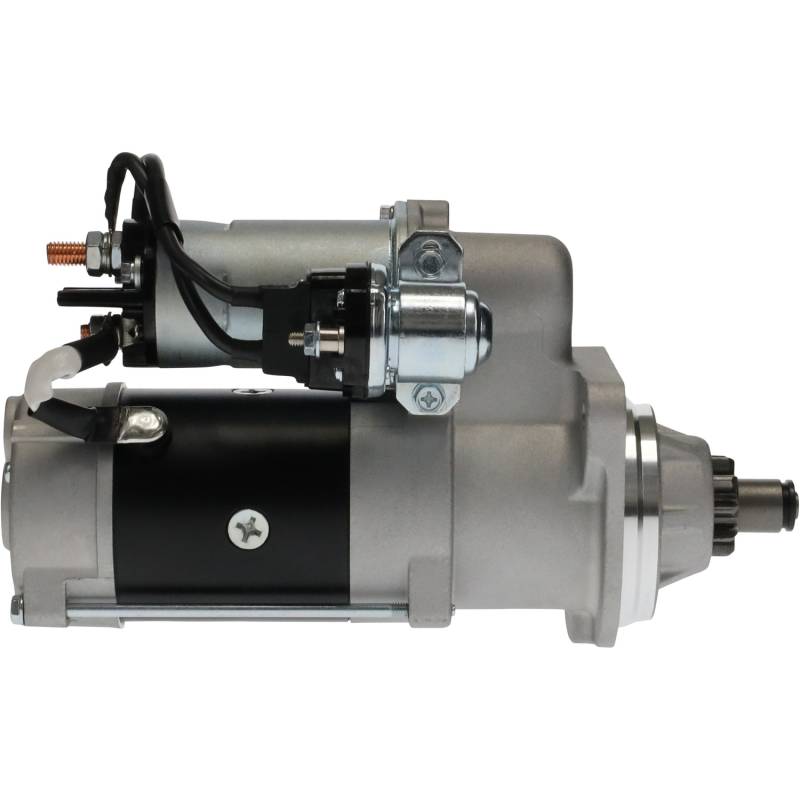

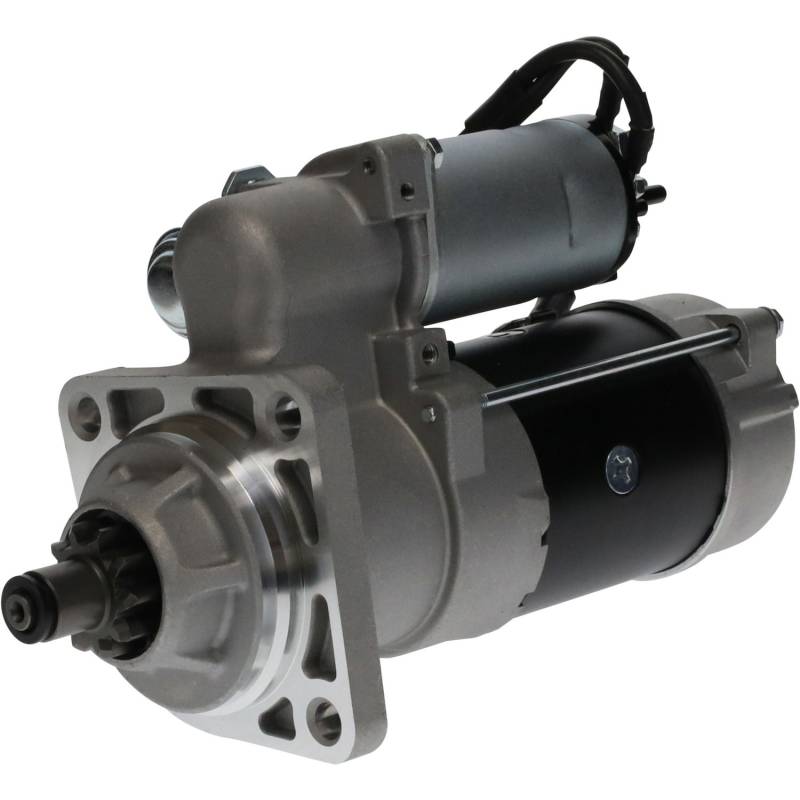

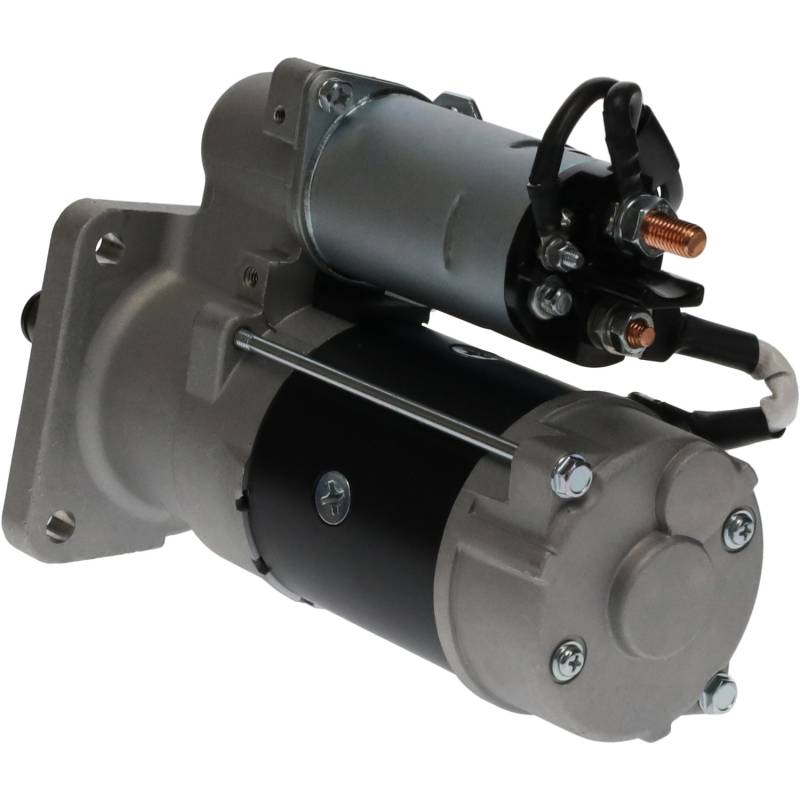

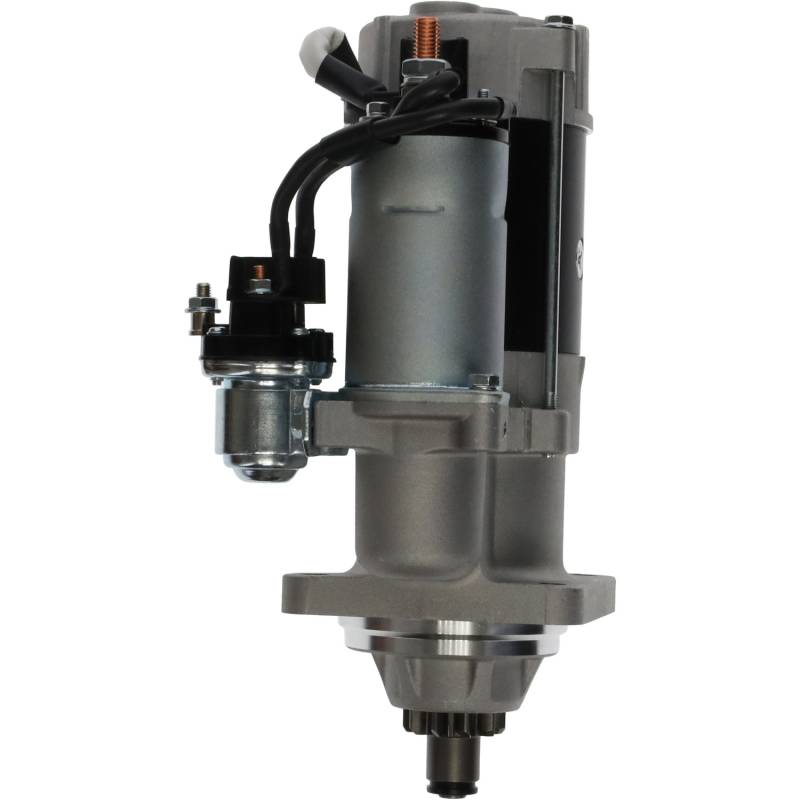

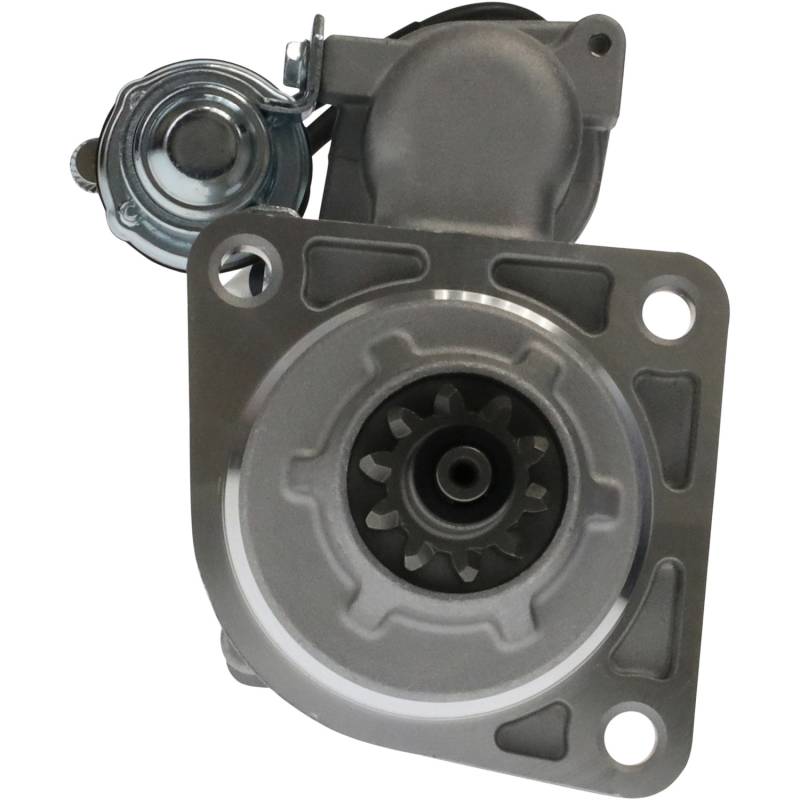

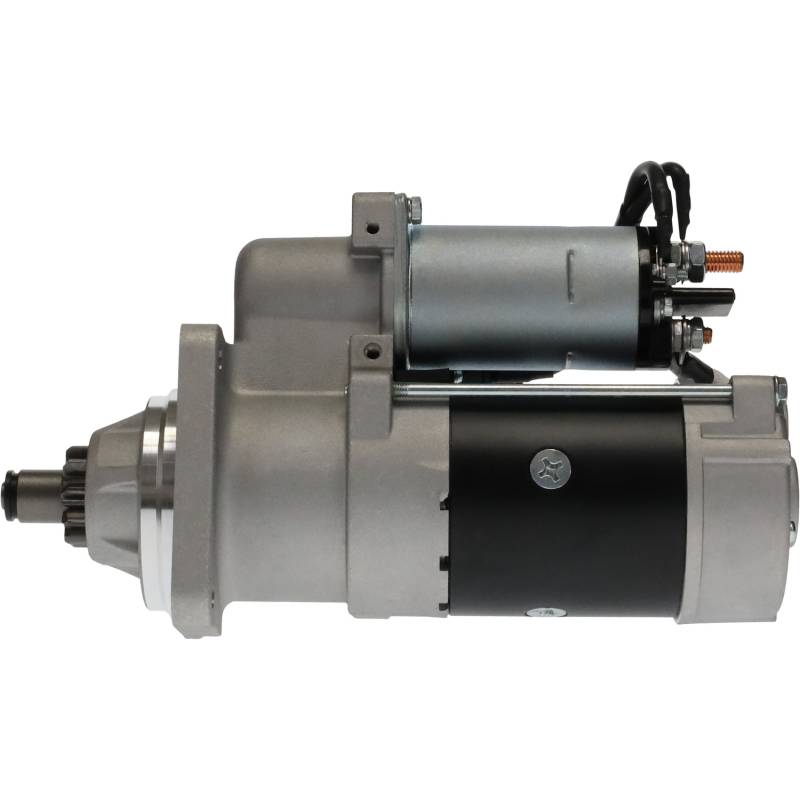

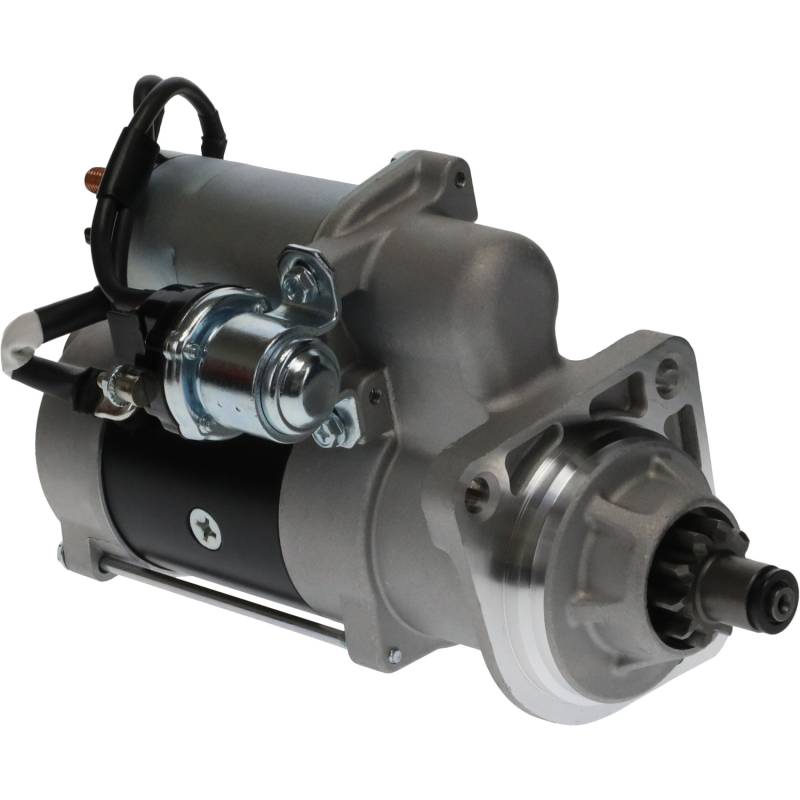

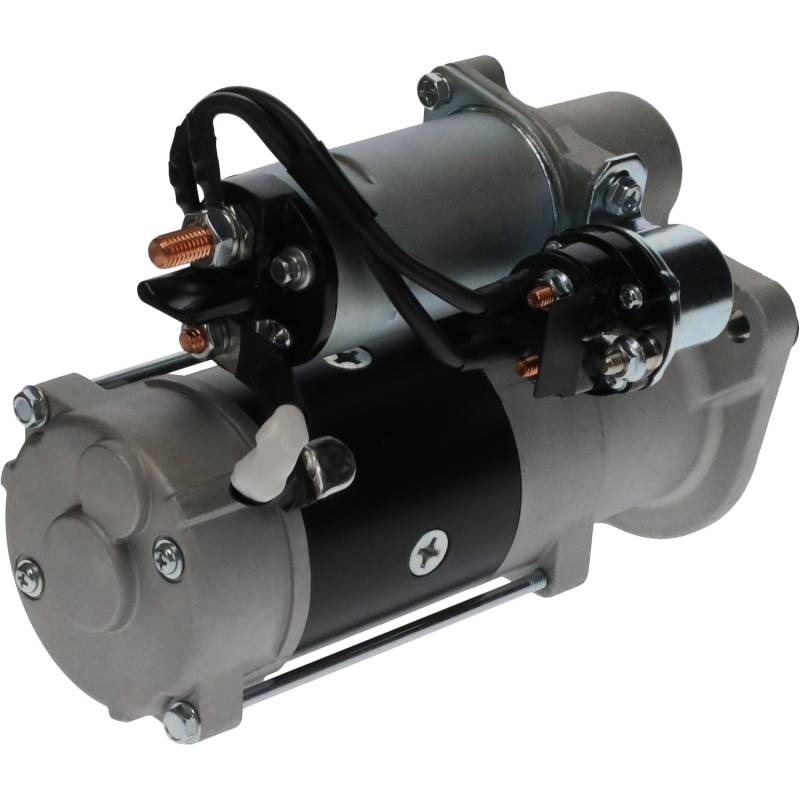

New 12V 10T Starter Motor Compatible With Freightliner Cummins Thomas Trucks 8200571 8200196 8200571

141-461
DELCO PART NUMBERS:
• 8200571
• 8200196
• 8300064
• 8200796

CUMMINS PART NUMBERS:
• 4996706

FREIGHTLINER PART NUMBERS:
• 2132-8200571, 21328200571

WILSON PART NUMBERS:
• 91-01-4779, 91014779

DENSO PART NUMBERS:
• 428000-7090, 4280007090
• 438000-3110, 4380003110

PACCAR (KENWORTH, PETERBILT) PART NUMBERS:
• D61-6002-006, D616002006
• D61-6005-004, D616005004

BLUE BIRD PART NUMBERS:
• 10341347

OTHER REPLACEMENT NUMBERS:
• Leece-Neville M105610
• Mitsubishi M009T71779

SPECIFICATIONS:
• Type: planetary gear reduction (PLGR) starter, 29MT type, type 500
• Voltage: 12 volt
• Output: 2.9 kW (3.89 hp)
• Rotation: clockwise (CW)
• Pinion: 10 tooth, 8/10 pitch
• Gear OD: 40 mm (1.575 in)
• Length: 306 mm (12.047 in)
• Solenoid position: 315 degrees
• Mounting: SAE 1 flange, 3 ears, 11.0 mm unthreaded holes
• Mounting ear center to center: 89 mm (3.504 in)
• Pilot OD: 89 mm (3.504 in)
• Wet clutch seal: yes
• Control relay: included (integrated magnetic switch)
• Ground: grounded case
• Weight: 19.12 lb (8.69 kg)
• Engines: Cummins ISB 6.7, B6.7, QSB 6.7, ISB 6.7G, B6.7N, PACCAR PX-6, PX-7
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $619.10
Sale: $353.77
Save: 43%
Save: $265.33
Qty:
Free Shipping!

Description

FREIGHTLINER TRUCKS:
• Freightliner M2 106 with the Cummins ISB6.7-200, ISB6.7-220, ISB6.7-240, ISB6.7-260, ISB6.7-280 2007-2013; ISB 6.7 2007-2018; B6.7 2017-2018, 2018-2022
• Freightliner Business Class M2 100 with the Cummins ISB 6.7 2007-2015
• Freightliner M2 112 with the Cummins B6.7 2017-2018
• Freightliner 108SD with the Cummins ISB 6.7 2012-2017; B6.7 2018-2022
• Freightliner 114SD with the Cummins ISB 6.7 2012-2015
• Freightliner FC80 with the Cummins ISB 6.7 2006-2007
• Freightliner MT45 with the Cummins ISB 6.7 2008-2018; B6.7 2018-2022
• Freightliner MT55 with the Cummins ISB 6.7 2008-2017; B6.7 2018-2022

STERLING:
• Sterling Acterra with the Cummins ISB 6.7 2008-2010

INTERNATIONAL:
• International 4300 with the Cummins ISB 6.7 2014-2020
• International 4300LP with the Cummins ISB 6.7 2016-2019
• International 4700 with the Cummins ISB 6.7 2018-2020
• International 7300 with the Cummins ISB 6.7 2016-2020
• International HV507 with the Cummins B6.7 2019-2022
• International HV607 with the Cummins B6.7 2019-2022
• International MV607 with the Cummins B6.7 2019-2022
• International DuraStar with the Cummins ISB 6.7 2014-2015

KENWORTH (PACCAR PX-6, PX-7):
• Kenworth K270 with the PACCAR PX-6 2013; PX-7 2014-2018
• Kenworth K370 with the PACCAR PX-6 2013; PX-7 2014-2018
• Kenworth T170 with the PACCAR PX-6 2008-2013; PX-7 2014-2018
• Kenworth T270 with the PACCAR PX-6 2008-2013; PX-7 2014-2018
• Kenworth T300 with the PACCAR PX-6 2008
• Kenworth T370 with the PACCAR PX-6 2008-2013; PX-7 2014-2018

PETERBILT:
• Peterbilt 210 with the PACCAR PX-6 2008-2013; PX-7 2014-2015
• Peterbilt 220 with the PACCAR PX-6 2010, 2013; PX-7 2014-2019
• Peterbilt 325 with the PACCAR PX-6 2008-2013; PX-7 2014-2019
• Peterbilt 330 with the PACCAR PX-6 2008-2013; PX-7 2014-2019
• Peterbilt 335 with the PACCAR PX-6 2008-2010
• Peterbilt 337 with the PACCAR PX-6 2010-2013; PX-7 2014-2019
• Peterbilt 348 with the PACCAR PX-6 2011-2012; PX-7 2016-2019
• Peterbilt 536 with the Cummins B6.7N 2022

AUTOCAR:
• Autocar Xpert with the Cummins ISB 6.7 2012, 2014-2022
• Autocar Xspotter Off Road with the Cummins ISB 6.7 2010-2011, 2016; QSB 6.7 2010-2018
• Autocar Xspotter On Road with the Cummins ISB 6.7 2011-2022

ALSO FITS, FREIGHTLINER CHASSIS:
• Freightliner MB Line with the Cummins ISB 6.7 2007-2017; B6.7 2018-2022
• Freightliner MC Line with the Cummins ISB 6.7 2007-2017; B6.7 2018-2022
• Freightliner MCL with the Cummins ISB 6.7 2011, 2014
• Freightliner S2 with the Cummins ISB 6.7 2008-2009, 2011, 2015-2016
• Freightliner S2C with the Cummins ISB 6.7 2013-2017; B6.7 2018-2022
• Freightliner S2RV with the Cummins ISB 6.7 2015-2016; B6.7 2017, 2018-2022
• Freightliner XB Line with the Cummins ISB 6.7 2009, 2012-2015
• Freightliner XB Straight Rail with the Cummins ISB 6.7 2006-2018; B6.7 2018-2022
• Freightliner XBA ARBOC with the Cummins B6.7 2020
• Freightliner XBA with the Cummins ISB 6.7 2015-2016; B6.7 2018-2019
• Freightliner XC Lowered Rail with the Cummins ISB 6.7 2011-2017
• Freightliner XC Modular Rail with the Cummins ISB 6.7 2008-2017; B6.7 2018-2022
• Freightliner XC Raised Rail with the Cummins ISB 6.7 2007-2018; B6.7 2018-2022
• Freightliner XC Straight Rail with the Cummins ISB 6.7 2006-2017; B6.7 2018-2022
• Freightliner MB-65 with the Cummins ISB 6.7 2015-2016
• Freightliner MBC with the Cummins ISB 6.7 2015-2016
• Freightliner XBP, XBR, XBS with the Cummins ISB 6.7 2015-2016
• Freightliner XCL, XCM, XCR, XCS with the Cummins ISB 6.7 2013-2016
• Freightliner B2 with the Cummins ISB 6.7 2008-2017; ISB 6.7G 2017-2019; B6.7 2018-2022; B6.7N 2019-2022

ALSO FITS, MOTORHOMES AND MOTORHOME CHASSIS:
• Winnebago Adventurer with the Cummins ISB 6.7 2010
• Winnebago Destination with the Cummins ISB 6.7 2008-2009
• Winnebago Forza with the Cummins ISB 6.7 2014-2022
• Winnebago Inspire with the Cummins ISB 6.7 2022
• Winnebago Journey Express with the Cummins ISB 6.7 2010-2011
• Winnebago Journey with the Cummins ISB 6.7 2008-2009, 2012-2017
• Winnebago Meridian with the Cummins ISB 6.7 2016
• Winnebago Solei with the Cummins ISB 6.7 2016
• Fleetwood Bounder Classic with the Cummins ISB 6.7 2013
• Fleetwood Bounder Diesel with the Cummins ISB 6.7 2008-2010
• Fleetwood Discovery LXE with the Cummins ISB 6.7 2018-2021
• Fleetwood Discovery with the Cummins ISB 6.7 2008-2010, 2018-2021
• Fleetwood Excursion with the Cummins ISB 6.7 2013-2016
• Fleetwood Expedition with the Cummins ISB 6.7 2008-2016
• Tiffin Allegro Bay with the Cummins ISB 6.7 2008-2010, 2019-2021
• Tiffin Allegro Breeze with the Cummins ISB 6.7 2019-2021
• Tiffin Allegro Open Road with the Cummins ISB 6.7 2007-2010
• Tiffin Allegro Red 340 with the Cummins ISB 6.7 2019-2021
• Tiffin Allegro Red with the Cummins ISB 6.7 2009-2021
• Newmar Canyon Star with the Cummins ISB 6.7 2021-2022
• Newmar Kountry Star with the Cummins ISB 6.7 2020-2022
• Newmar New Aire with the Cummins ISB 6.7 2018-2021
• Newmar Ventana LE with the Cummins ISB 6.7 2012-2019
• Newmar Ventana with the Cummins ISB 6.7 2008-2022
• Thor Motor Coach Aria with the Cummins ISB 6.7 2017-2021
• Thor Motor Coach Astoria with the Cummins ISB 6.7 2011-2012
• Thor Motor Coach Avanti with the Cummins ISB6.7-220 2011; ISB6.7-200 2012
• Thor Motor Coach Palazzo with the Cummins ISB 6.7 2013-2022
• Thor Motor Coach Tuscany XTE with the Cummins ISB 6.7 2013-2017
• Jayco Embark with the Cummins ISB 6.7 2019-2022
• Jayco Seneca Prestige with the Cummins ISB 6.7 2021-2022
• Jayco Seneca with the Cummins ISB 6.7 2012-2022
• Renegade Valencia with the Cummins ISB 6.7 2018-2022
• Itasca Latitude with the Cummins ISB 6.7 2008-2009
• Itasca Meridian V Class with the Cummins ISB 6.7 2010-2011
• Itasca Meridian with the Cummins ISB 6.7 2008-2009, 2012-2016
• Itasca Solei with the Cummins ISB 6.7 2014-2016
• Itasca Suncruiser with the Cummins ISB 6.7 2010
• Dynamax DX3 with the Cummins ISB 6.7 2013
• Dynamax Dynaquest ST with the Cummins ISB 6.7 2011-2014
• Dynamax Dynaquest XV with the Cummins ISB 6.7 2011-2012
• Dynamax Europa with the Cummins ISB 6.7 2021-2023
• Dynamax Force HD with the Cummins ISB 6.7 2015-2018
• Dynamax Isata 5 with the Cummins ISB 6.7 2016-2022
• Nexus Bentley Diamond with the Cummins ISB 6.7 2019-2020
• Nexus Bentley with the Cummins ISB 6.7 2016-2020
• Nexus Evoque with the Cummins ISB 6.7 2019-2020
• Nexus Ghost with the Cummins ISB 6.7 2016-2021
• Nexus Triumph with the Cummins ISB 6.7 2020-2021
• Nexus Wraith with the Cummins ISB 6.7 2018-2021
• Monaco Coach Cayman with the Cummins ISB 6.7 2008-2009, 2011
• Monaco Coach La Palma with the Cummins ISB 6.7 2009
• Safari Compression with the Cummins ISB 6.7 2008-2009
• Roadmaster Rail A-Straight Rail with the Cummins ISB 6.7 2008-2009
• Roadmaster Rail AE-Stacked Rail with the Cummins ISB 6.7 2008-2009
• Workhorse R26 with the Cummins ISB 6.7 2007-2009

ALSO FITS, BUSES, TERMINAL TRACTORS AND SPECIALTY:
• Lion LionC with the Cummins ISB 6.7 2017-2019
• Thomas Saf-T-Liner with the Cummins ISB 6.7 2016-2021
• Thomas Transit Liner with the Cummins ISB 6.7 2017-2021
• Blue Bird bus with the Cummins ISB 6.7 2007-2015
• Thomas Built bus with the Cummins ISB 6.7 2007-2015
• Van Hool T2100 with the Cummins ISB 6.7 2009-2013
• Van Hool T2140 with the Cummins ISB 6.7 2009-2013
• Van Hool T2145 with the Cummins ISB 6.7 2009-2013
• Capacity Of Texas Sabre 5 with the Cummins QSB 6.7 2016-2020; ISB 6.7 2016-2021
• Capacity Of Texas TJ5000 with the Cummins QSB 6.7 2011-2020; ISB 6.7 2011-2021
• Capacity Of Texas TJ6500 with the Cummins ISB 6.7 2011-2021
• Capacity Of Texas TJ7000 with the Cummins QSB 6.7 2011; ISB 6.7 2013-2014
• Capacity Of Texas TJ9000 with the Cummins ISB 6.7 2011, 2014, 2016-2021; QSB 6.7 2016-2020
• American LaFrance Condor with the Cummins ISB 6.7 2007

ENGINES (ALL L6 6.7L 408 CID):
• Cummins ISB 6.7 L6 6.7L 408 cid diesel, also listed as ISB6.7-200, ISB6.7-220, ISB6.7-240, ISB6.7-260, ISB6.7-280
• Cummins B6.7 and QSB 6.7 L6 6.7L 408 cid diesel
• Cummins ISB 6.7G and B6.7N L6 6.7L 408 cid natural gas
• PACCAR PX-6 and PX-7 L6 6.7L 408 cid diesel (Kenworth, Peterbilt)

SPECIFICATIONS:
• Type: planetary gear reduction (PLGR) starter, 29MT type, type 500
• Voltage: 12 volt
• Output: 2.9 kW (3.89 hp)
• Rotation: clockwise (CW)
• Pinion: 10 tooth, 8/10 pitch
• Gear OD: 40 mm (1.575 in)
• Length: 306 mm (12.047 in)
• Solenoid position: 315 degrees
• Mounting: SAE 1 flange, 3 ears, 11.0 mm unthreaded holes
• Mounting ear center to center: 89 mm (3.504 in)
• Pilot OD: 89 mm (3.504 in)
• Wet clutch seal: yes
• Control relay: included (integrated magnetic switch)
• Ground: grounded case
• Weight: 19.12 lb (8.69 kg)
• Engines: Cummins ISB 6.7, B6.7, QSB 6.7, ISB 6.7G, B6.7N, PACCAR PX-6, PX-7
• Condition: New aftermarket
