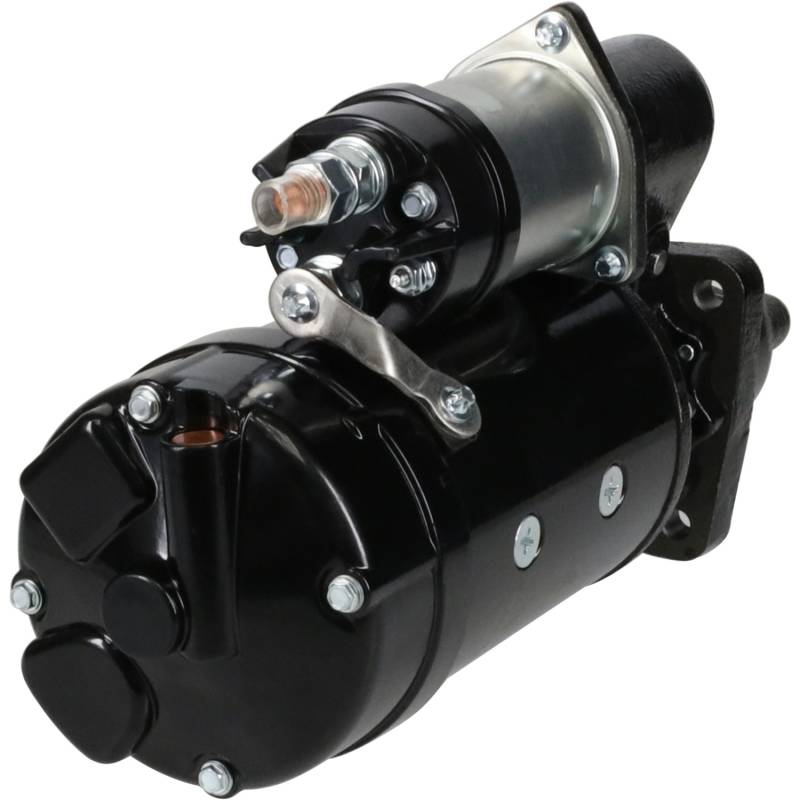

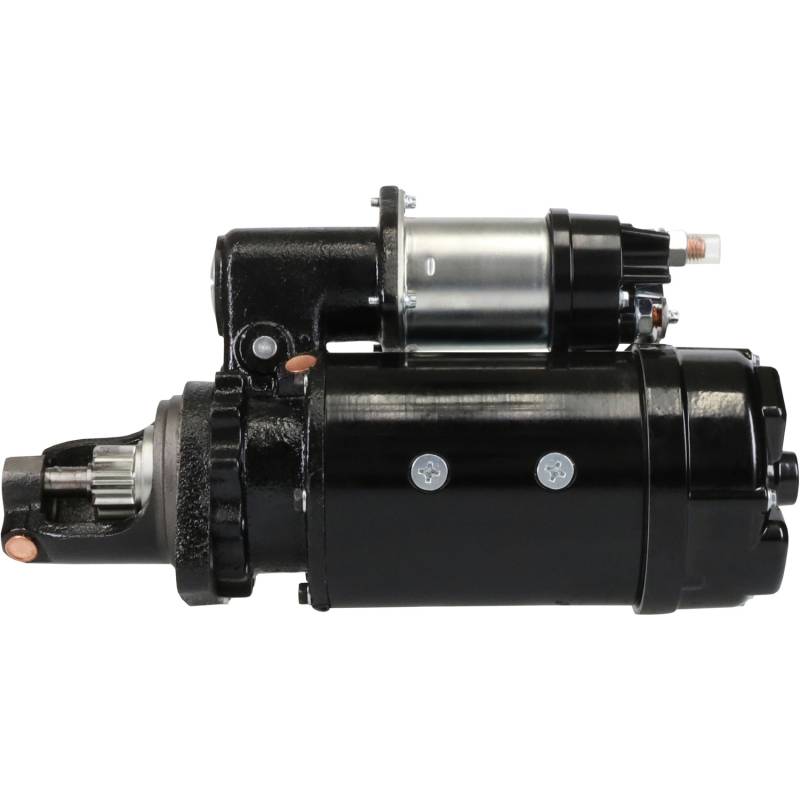

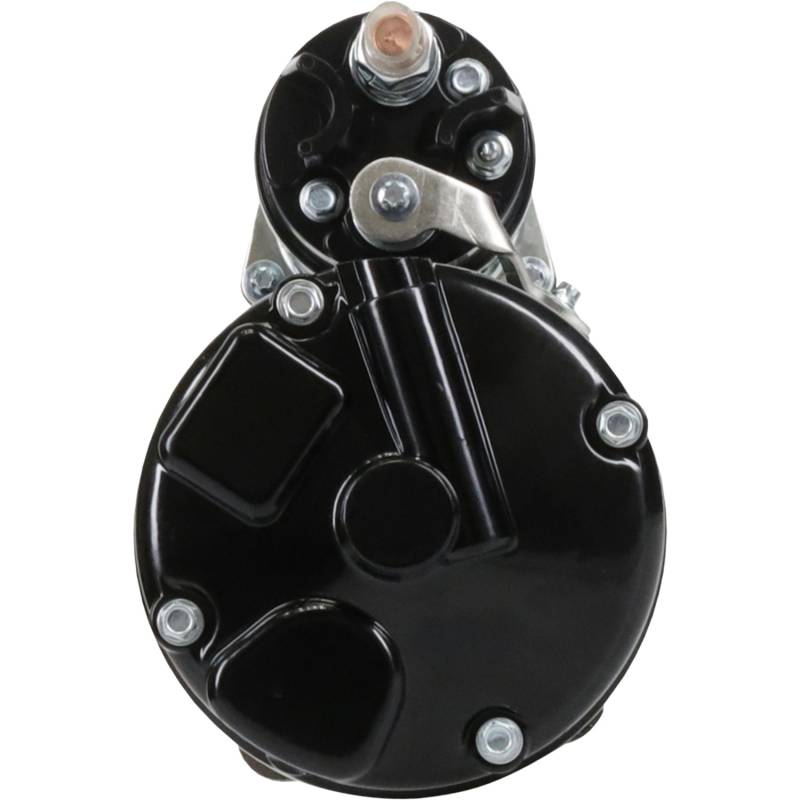

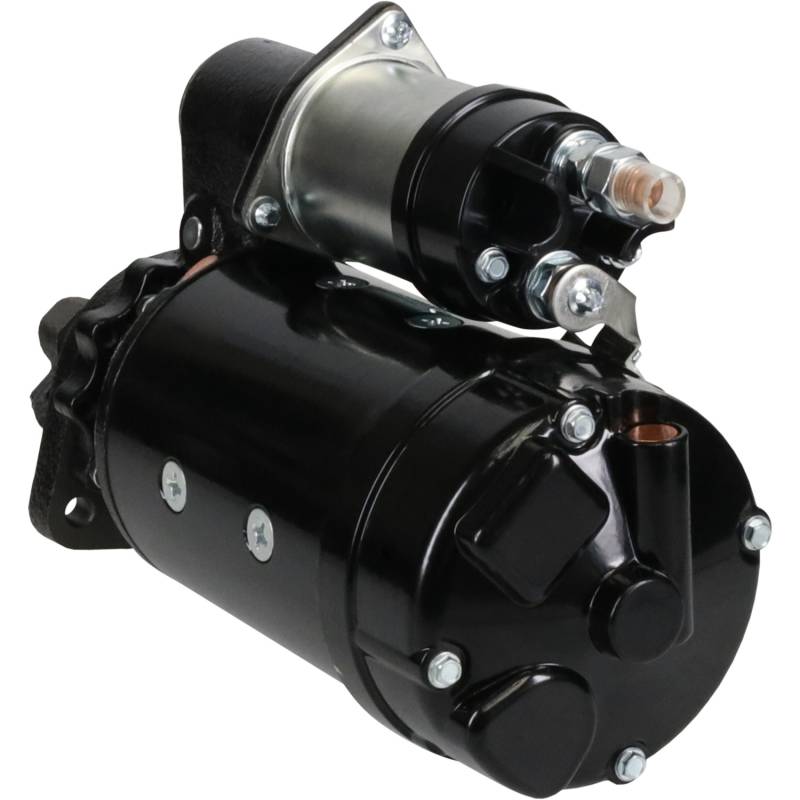

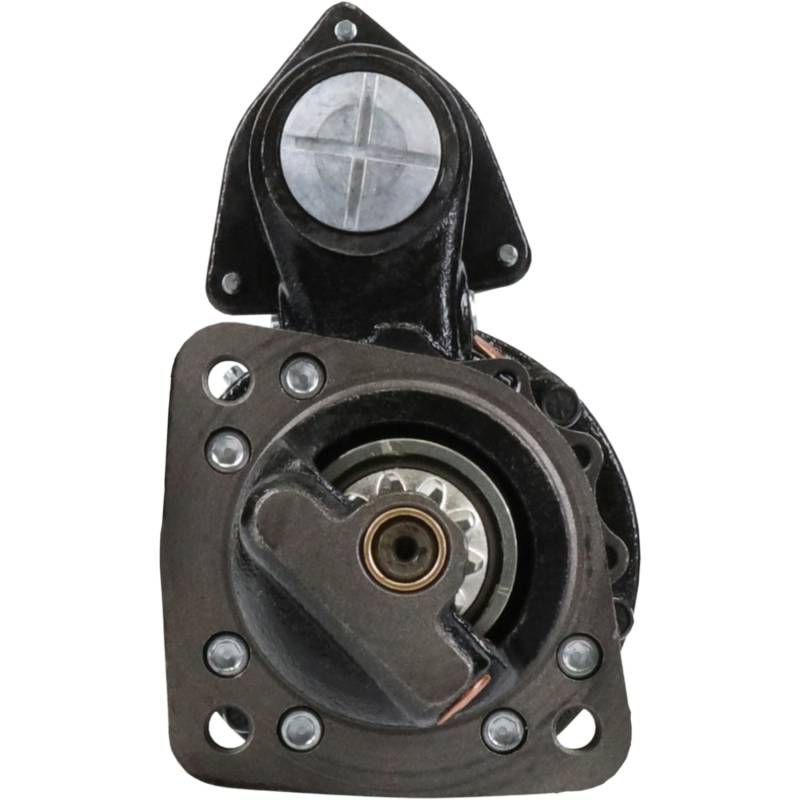

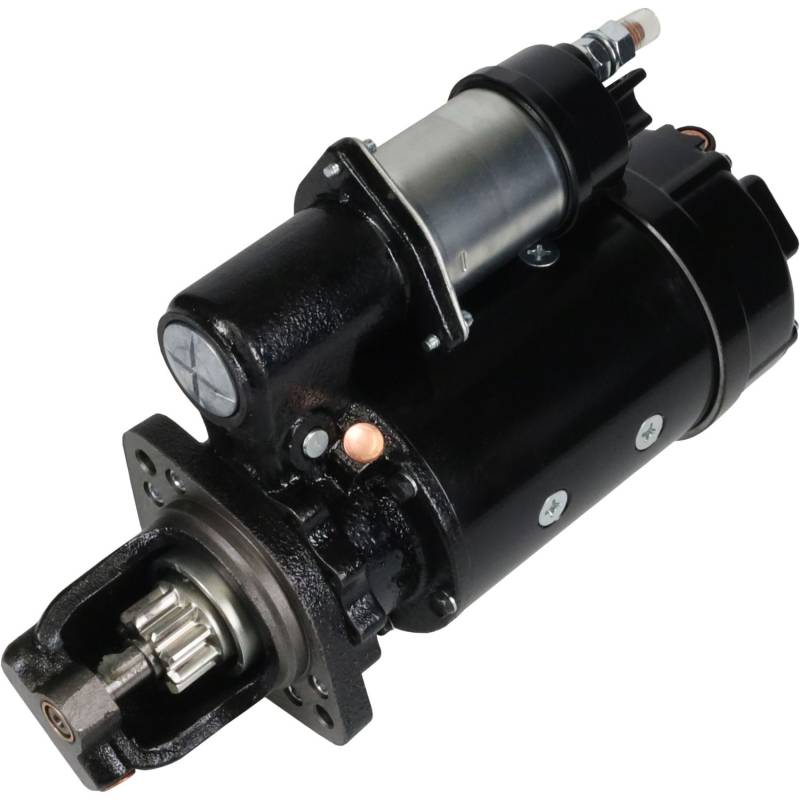

Starter Motor Compatible With John Deere 4030 4230 4430 4630 Tractor 329 404 Diesel Engine Replaces

EQUIPMENT APPLICATIONS:
• John Deere 6600, 7700 Combines (404 Diesel 1975-1978)
• John Deere 6620, 7720, 8820 Combines (6-359/6-466 Diesel 1987-1988)
• John Deere 5200 Harvester (404 Diesel 1974-1977)
• John Deere 3010, 3020, 4010, 4020, 4030, 4230, 4430, 4630 Tractors
• International TD-7E Crawler (D-239 Diesel 1980-1985)
• International TD-8E Crawler (DT-239 Diesel 1980-1985)
• Case/IH 782, 1400 Cotton Pickers (D-358 Diesel 1977-1988)
• White MY-40B thru MY-80B Lift Trucks (Perkins 4-236 1975-1981)

OEM PART NUMBERS:
• AC Delco: 323-745, 323-837, 323-885
• Bosch: SR10009X
• Caterpillar: 10R0392, 369714, 690837
• Clark: 067005274
• Cummins: 3675164RX
• Delco: 10461003, 10461004, 10461225, 10461273, 10461303, 10478831, 1113391, 1113420, 1113421, 1113428, 1113431, 1113436, 1113441, 1113473, 1113496, 1113498, 1113499, 1990309, 1990318, 1990326, 1993705, 1993712, 1993726, 1993754, 1993769, 1993790, 1993792, 1993800, 1993881, 1993886
• Ford: F3HT-11001-BA, F3HZ-11002-C, F3HZ-11002-CRM, F3HZ-11V002-CRM
• Ford/New Holland: 9842667
• International: 739713C9, 739713C91
• John Deere: AR62267, AR77215, AR77254, AR78538, SE501444, SE501446, SE501452, TY1597, TY6618, TY6701, TY6710
• Massey Ferguson: 294-165-M91, 1903109M91, 1903109V91
• Motorcraft: SA-809

SPECIFICATIONS:
• Family: Delco 37MT
• Type: Direct Drive (DD)
• Voltage: 12V
• Power: 4.6kW / 6.17HP
• Rotation: CW (Clockwise)
• Teeth: 10
• Gear OD: 37.9mm / 1.492"
• Length: 341.6mm / 13.449"
• Solenoid Position: 52°
• Mount Holes: 10.6mm ID Unthreaded (x3)
• Mounting Ear Distance 1: 106.1mm / 4.177"
• Mounting Ear Distance 2: 89.2mm / 3.512"
• Mounting Ear Distance 3: 89.2mm / 3.512"
• Registry OD: 88.8mm / 3.496"
• B+ Stud: 1/2-13
• S Terminal: 10-32 Threaded
• Housing Rotatable: Yes
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
