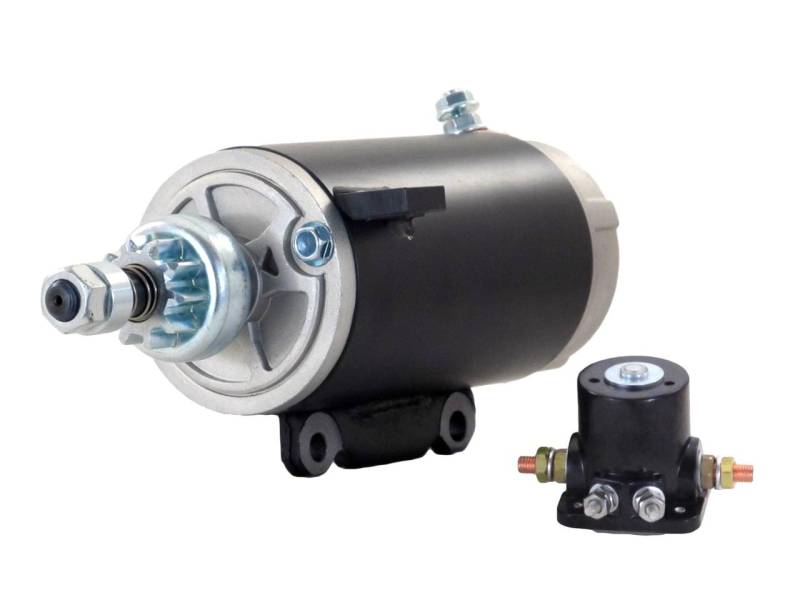

Starter Motor Compatible With & Solenoid 81-95 Evinrude Marine Outboard 90 90Hp 18-5634 18-5647

REPLACES THESE STARTER NUMBERS:
PRESTOLITE SALES 20513506TBA
SIERRA MARINE 18-5625, 18-5634, 18-5647
UNITED TECHNOLOGIES 0139940-M030SM, 0228940-M030SM, 0246540-M030SM, 0246640-M030SM,139940, 1791640-M030SM, 1791740-M030SM
UNIT TYPE: OMC OUTBOARD MARINE, JOHNSON ELECTRIC

TYPE: PMDD

VOLTAGE: 12 VOLTS

ROTATION: CCW

TEETH/SPLINES: 10 TEETH/SPLINES

PINION/SPLINES OD: 32.3MM / 1.272IN

MOUNTING HOLE 1: UNTHREADED

MOUNTING HOLE 2: UNTHREADED

MOUNTING HOLE 3: UNTHREADED

NEW OR REMANUFACTURED: NEW

APPROXIMATE WEIGHT: 7.68 LBS / 3.49 KG
NOTES:

4.78”/121.4MM LONG FIELD CASE
SOLENOID REPLACES THESE PART NUMBERS
OMC OUTBOARD MARINE 383622, 395419, 582708, 586180
MERCURY MARINE 47886, 47886T
SIERRA MARINE 18-5808
UNIT TYPE: OMC OUTBOARD MARINE

VOLTAGE: 12 VOLTS

NUMBER OF TERMINALS: 4

DUTY CYCLE: INTERMITTENT DUTY

NEW OR REMANUFACTURED: NEW
NOTES:
(2) 10-32 & (2) 5/16-24 THREADED TERMINALS, INSULATED GROUND
