OEM PART NUMBERS:
• Komatsu: 3863240 / 600-863-4410 / 600-863-4510
• Komatsu: 600-863-4610 / 600-863-4611 / 600-832-3220
• Komatsu: 600-863-4110 / 600-863-4130
• Nikko: 0-24000-3060 / 0-24000-3061 / 0-24000-3071
• Nikko: 0-24000-3240 / 02-24-2029
• Denso: 228000-4990 / 228000-4991 / 228000-4992
• Denso: 9722809-499
SPECIFICATIONS:
• Voltage: 24V
• Power: 4.5kW / 6.03HP
• Rotation: CW (Clockwise)
• Type: OSGR (Offset Gear Reduction)
• Teeth: 10
• Gear OD: 1.531 Inch / 38.9mm
• Pinion OD: 1.512 Inch / 38.4mm
• Mounting: 11mm Unthreaded (Both Ears)
• Battery Stud: M10-1.5 Threaded
• Switch Terminal: M5-0.8 Set-Screw
• Weight: 20 lbs / 8.5 kg
• Note: Dry Clutch Only
• Condition: New
APPLICATION:
• Excavator PC60-7/PC75-UUE/PC100/PC120/PC128/PC130-6/PC138US/PC158US (S4D102E)
• Excavator PC200-6/PC200-7/PC210-6D/PC220-6/PC220-7/PC228UU-1 (S6D102E)
• Wheeled Excavator PW128E-1/PW128UUE-1 (4D102-E1)
• Dozer D37E/D41-E/D41A/D39E-21/D31P-20/D31E-20 (SD102/S4D102E/S6D102)
• Loader WA80E-3/WA100-3/WA120/WA180/WA200-3/WA250-3 (1997-2007)
• Forklift FD035/FD40ZT-7/CX20/DX20/EX50
• Generator EG125BS-2/EG90BS-1/EGS120 / Grader GD355A-3/GD405A-3
• Dry clutch applications only — not compatible with wet clutch

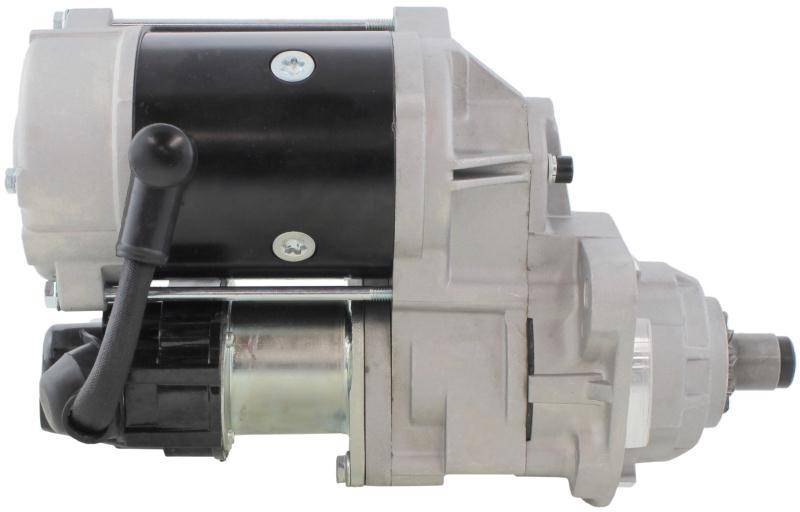

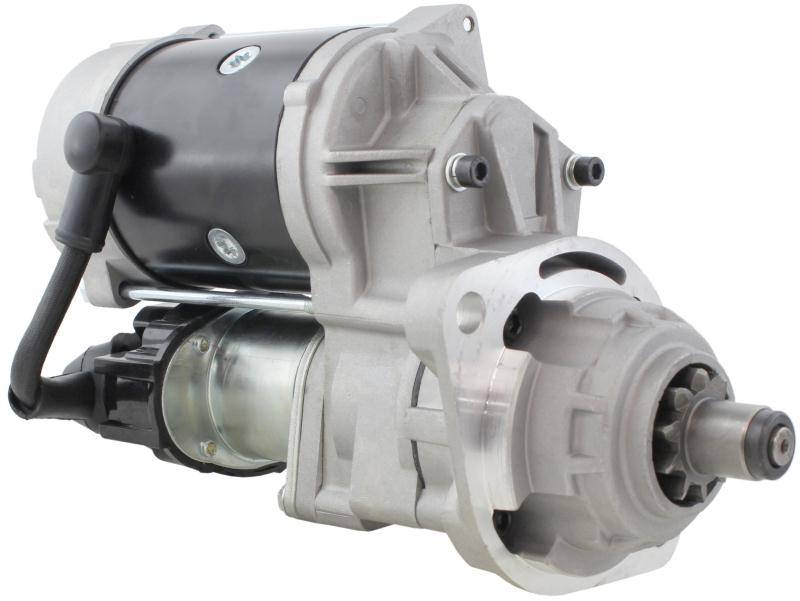

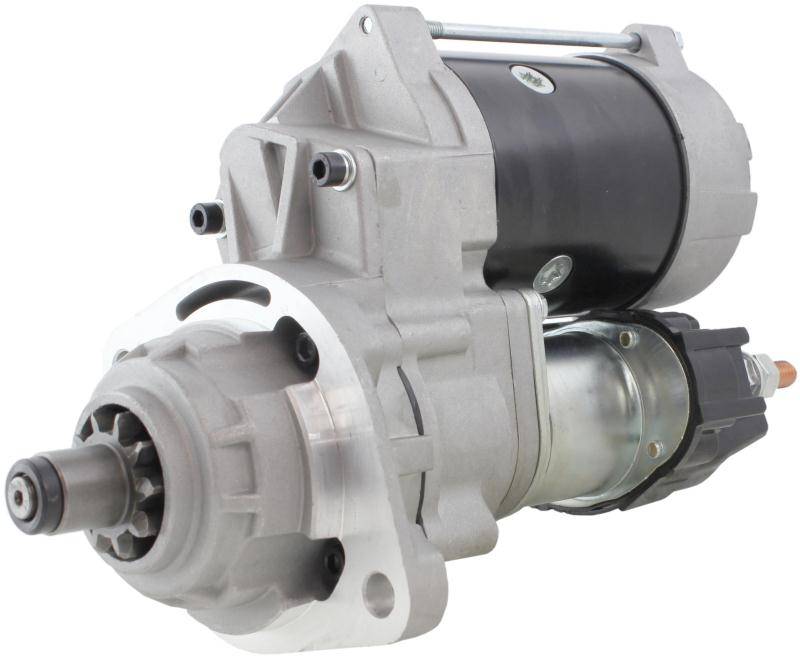

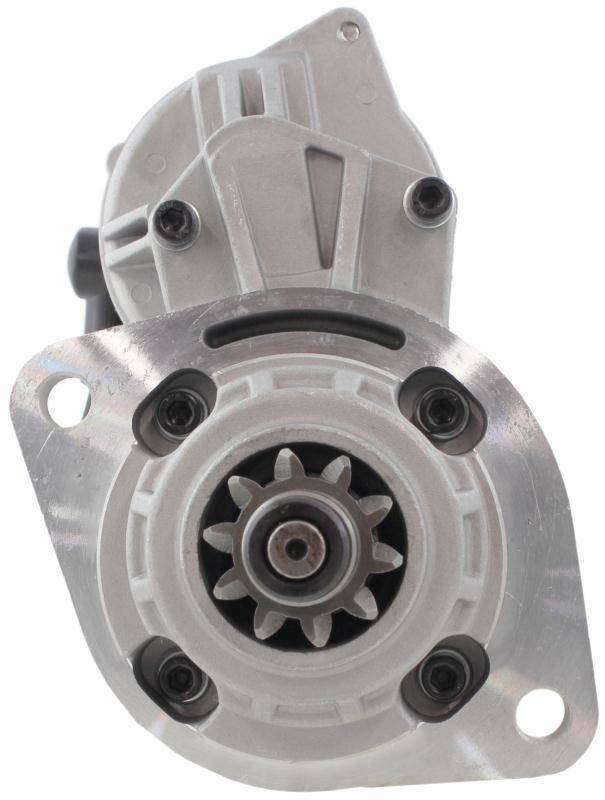

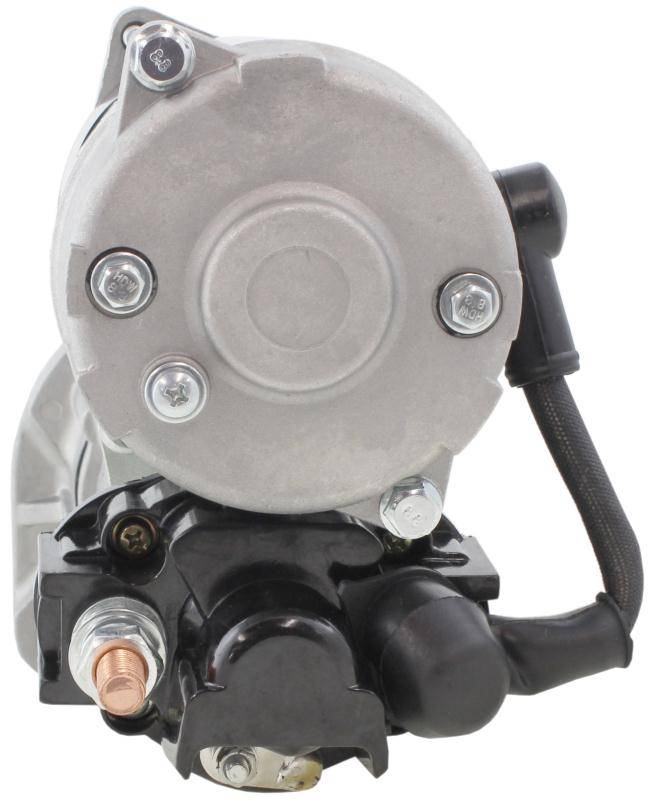

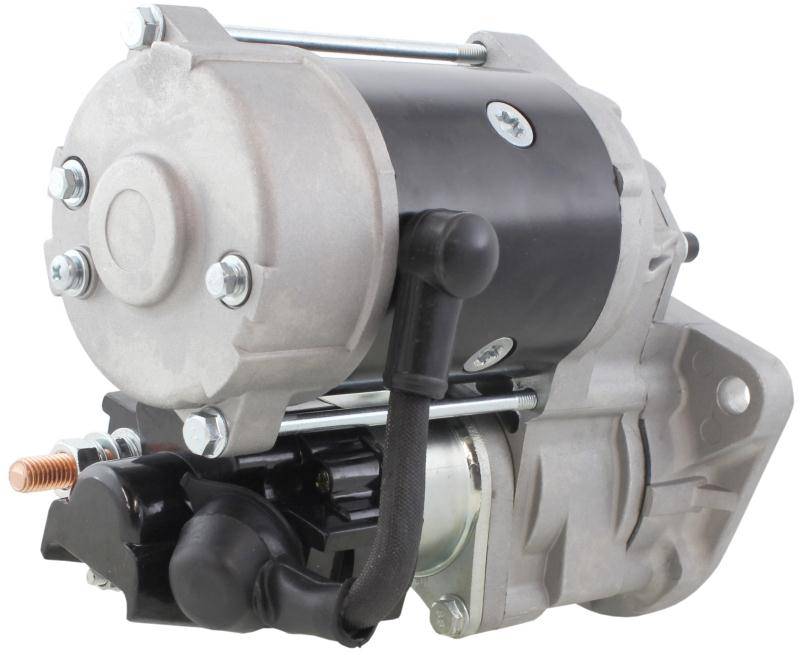

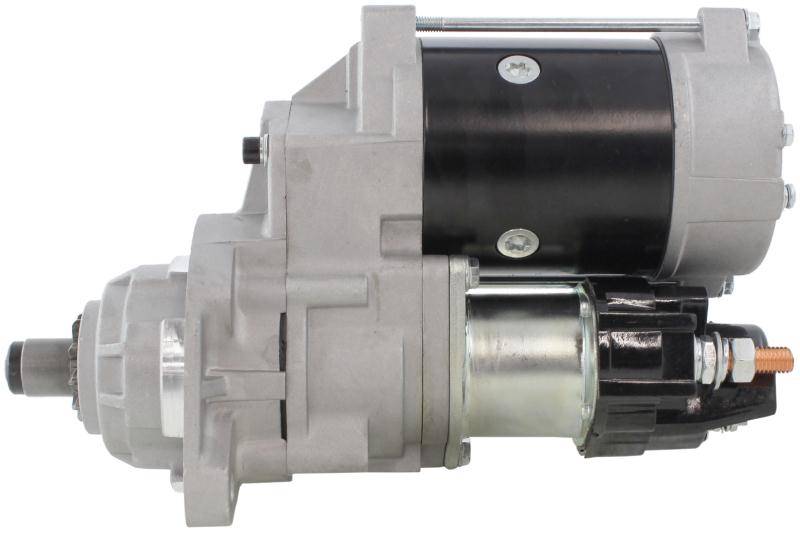

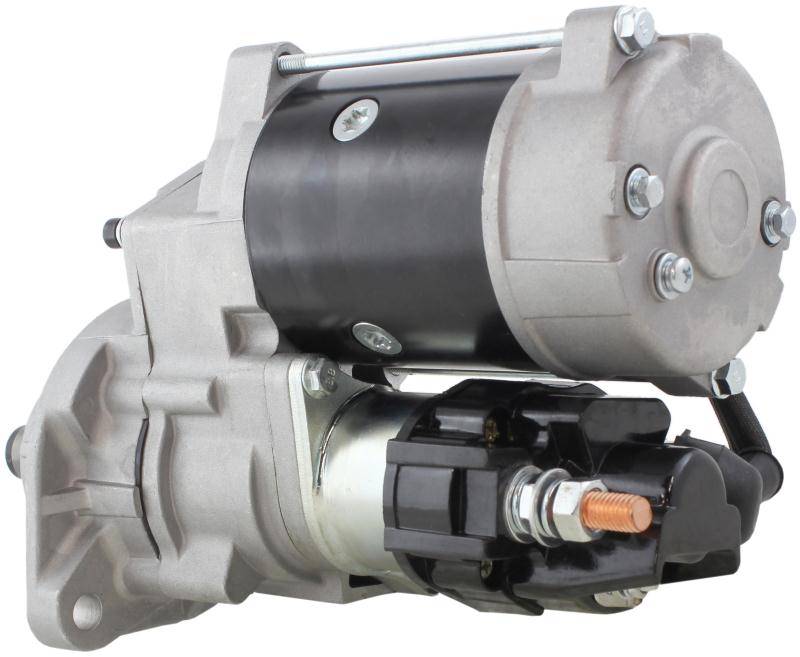

Starter Motor — Komatsu PC100-6 PC120 PC200-6 PW128E-1 Dozer D37E D41-E
Replacement starter for Komatsu PC100-6, PC120, PC200-6, PC220-7, and PW128E-1 wheeled excavator. Replaces Denso 228000-4990, Komatsu 600-863-4611 and 600-863-4510, and Nikko 0-24000-3061. Also fits EG125BS-2 and EG90BS-1 generators. Clockwise offset gear reduction.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
