BOSCH PART NUMBERS: • 0 001 414 022, 0001414022
• 0 001 416 026, 0001416026
VOLVO PART NUMBERS: • 4774617
• 4881097, 9004881097
MAHLE / LETRIKA (ISKRA) PART NUMBERS: • 11.139.111, AZK5460, MS499
• 11.139.526, AZK5565, MS713
• IS9099, IS 9099
OTHER PART NUMBERS: • Lucas LRS01940, LRS01918
• Prestolite 860520, 860520GB
• Delco Remy 19024026, DRS0171
• AVF IM526

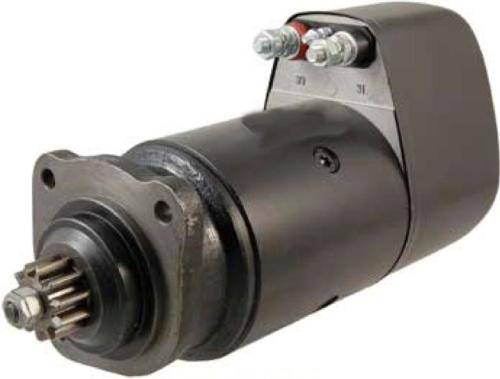

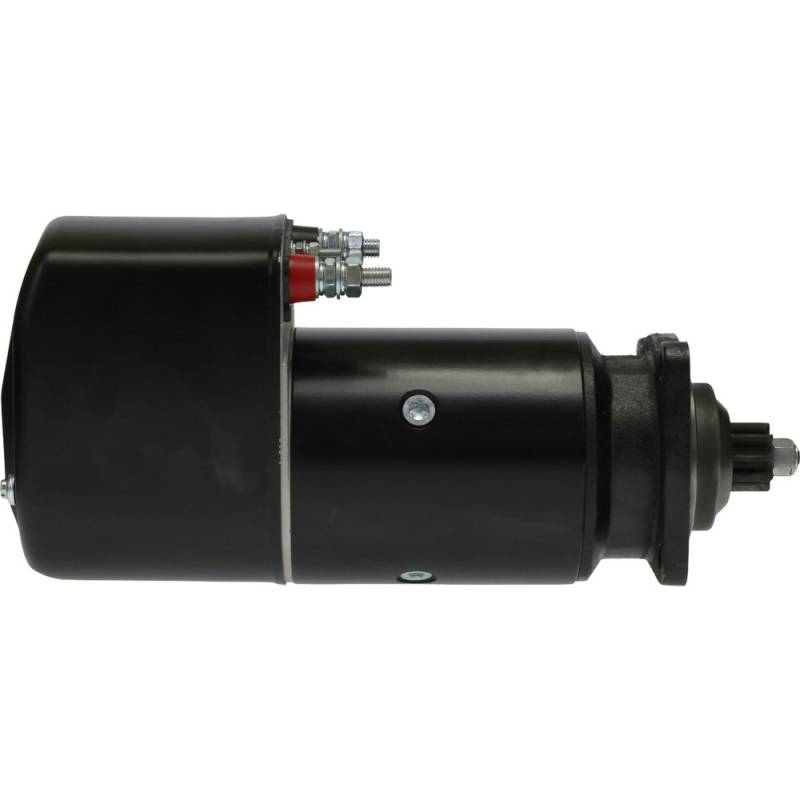

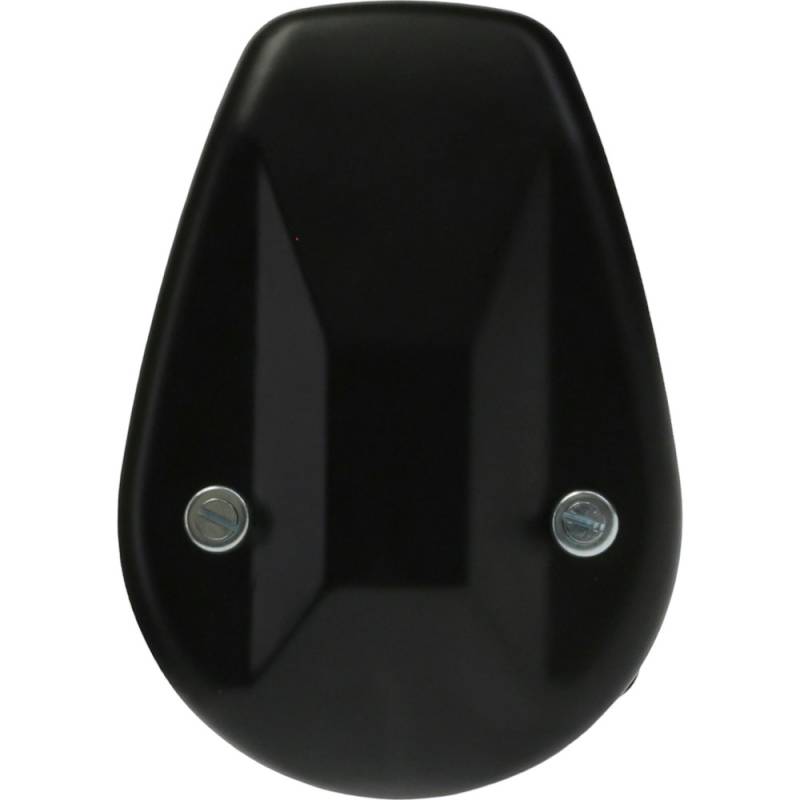

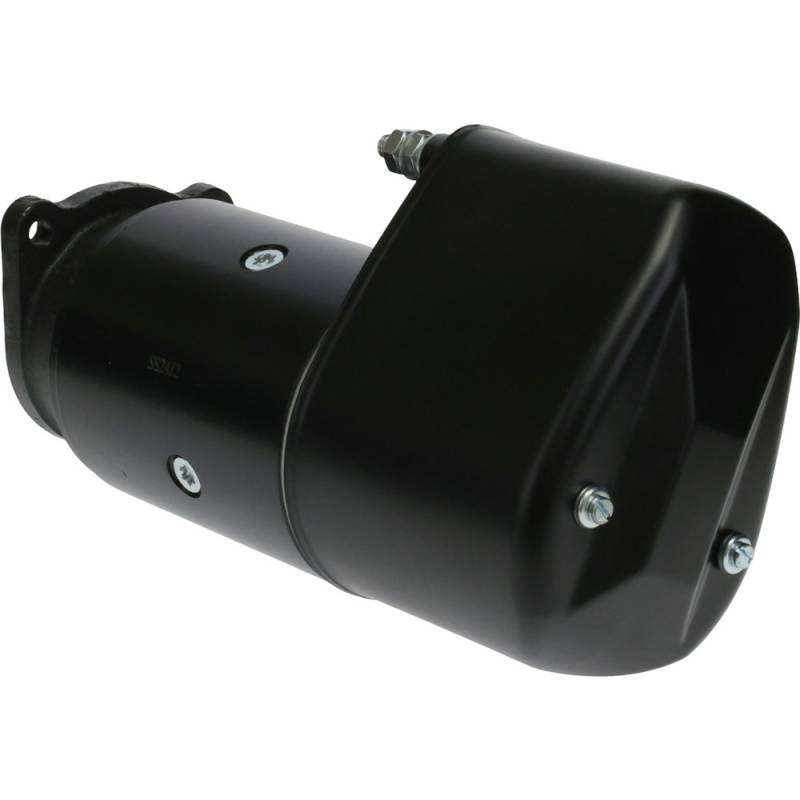

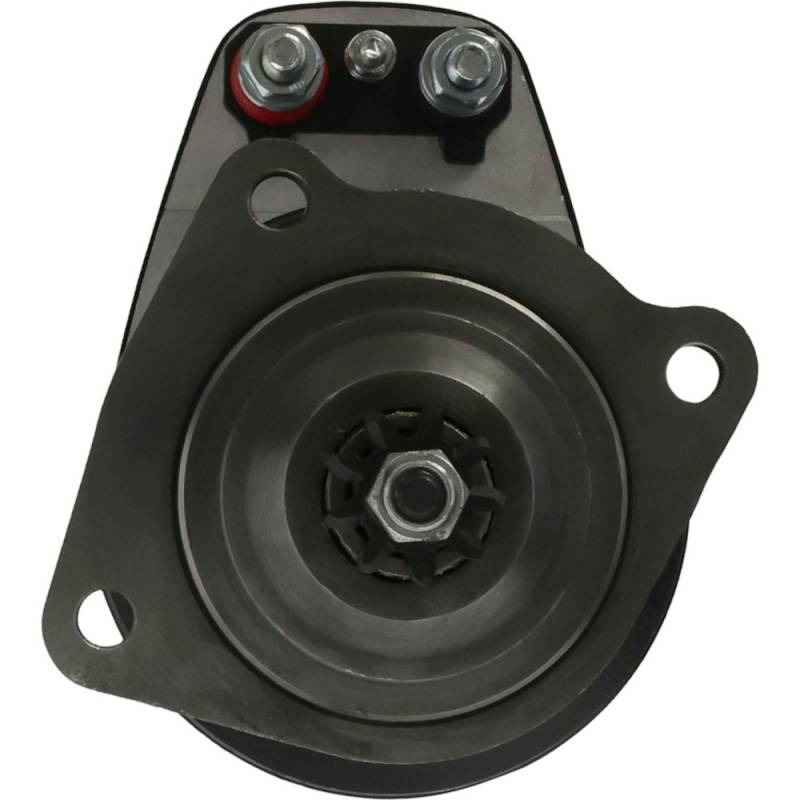

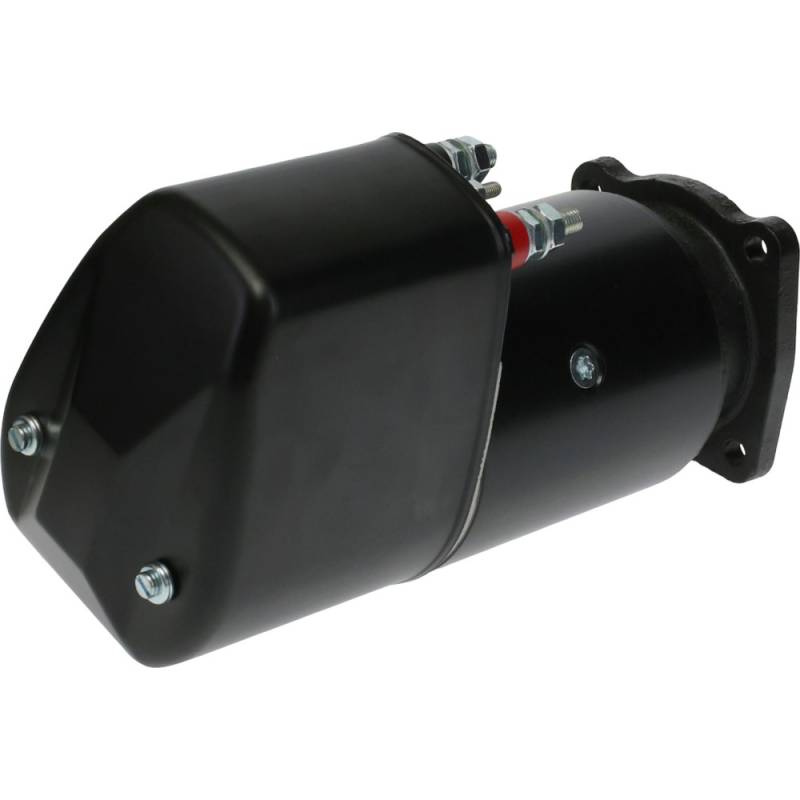

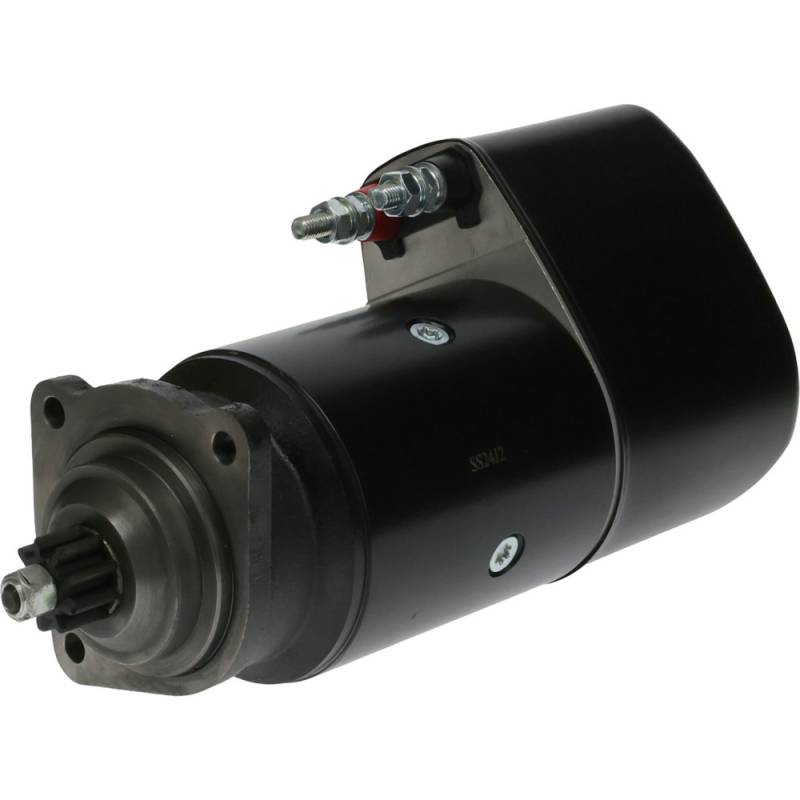

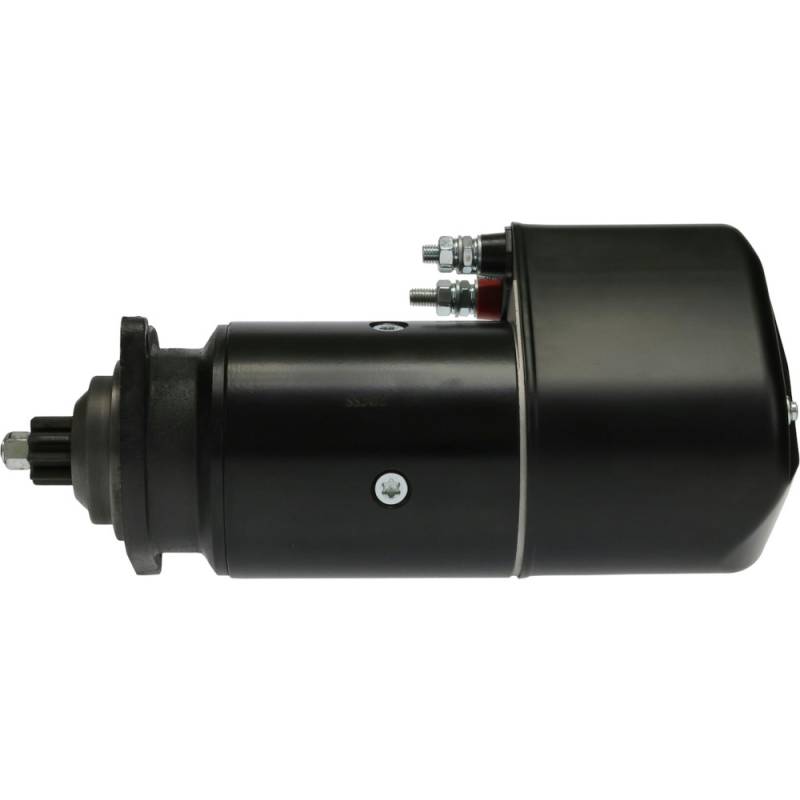

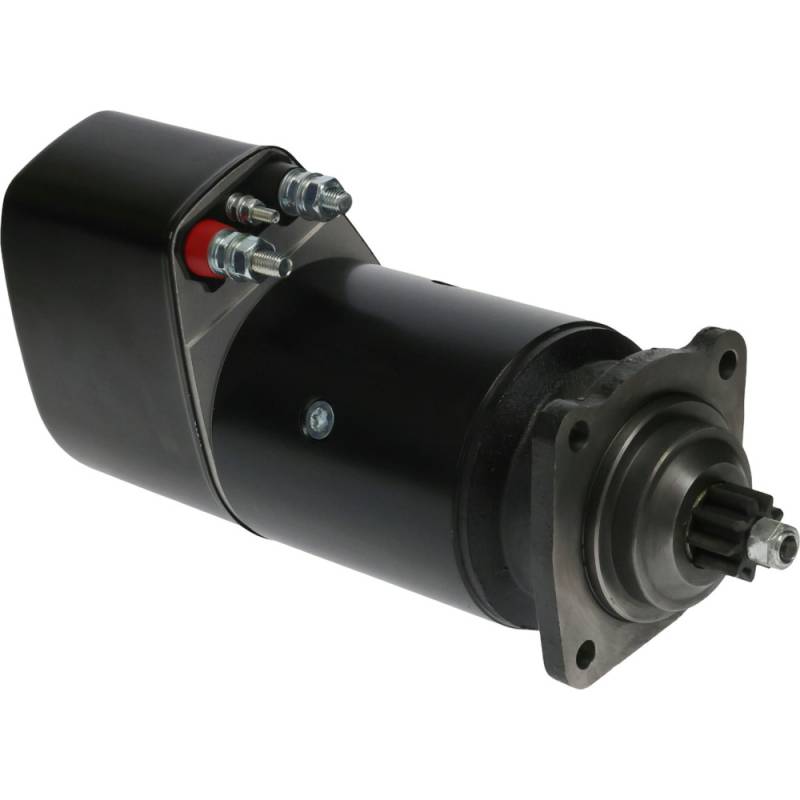

SPECIFICATIONS: • Type: direct drive (DD), Bosch / Iskra
• Voltage: 24 Volt
• Power: 5.4 kW
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, 34.5 mm OD
• Flange pilot: 89 mm
• Pinion projection: 51 mm
• Mounting: 3 unthreaded 10.9 mm holes
• B+ terminal: M10
• Overall length: 385 mm
• Weight: about 37.6 lbs (17.1 kg)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
