YANMAR PART NUMBERS: • 129772-77200, 12977277200
• 119573-77201, 11957377201
• 129470-77200, 12947077200
• 119573-77200, 11957377200
HITACHI PART NUMBERS: • LR155-20, LR15520
• LR180-03C, LR18003C
DELCO REMY PART NUMBERS: • RA00121
QUICKSILVER PART NUMBERS: • 8M6007518
LUCAS PART NUMBERS: • LRA01248, LRA1248
PRESTOLITE PART NUMBERS: • 20115006TBA
WILSON PART NUMBERS: • 90-25-1092, 90251092

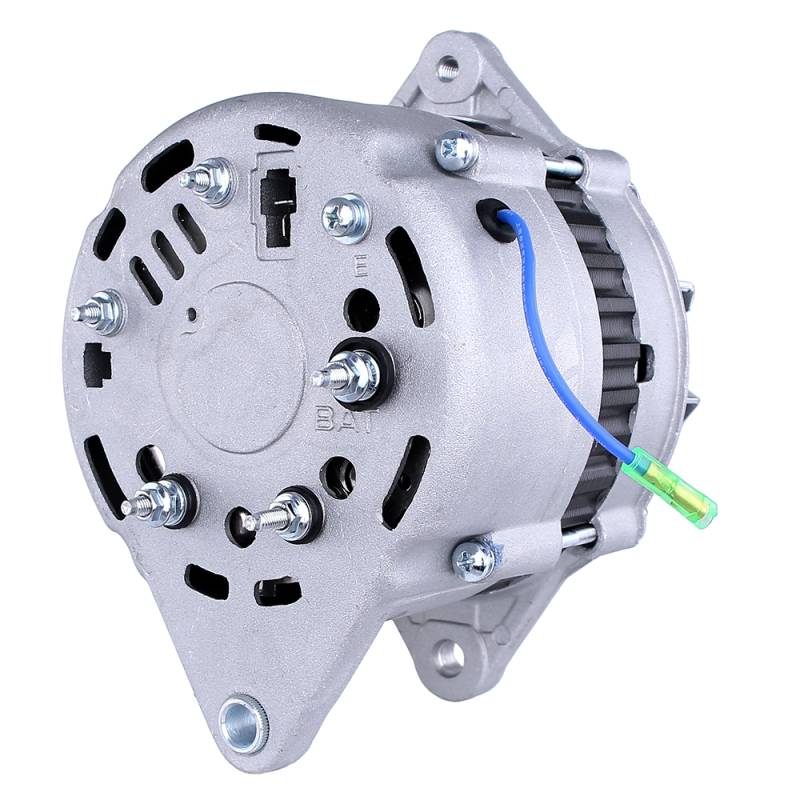

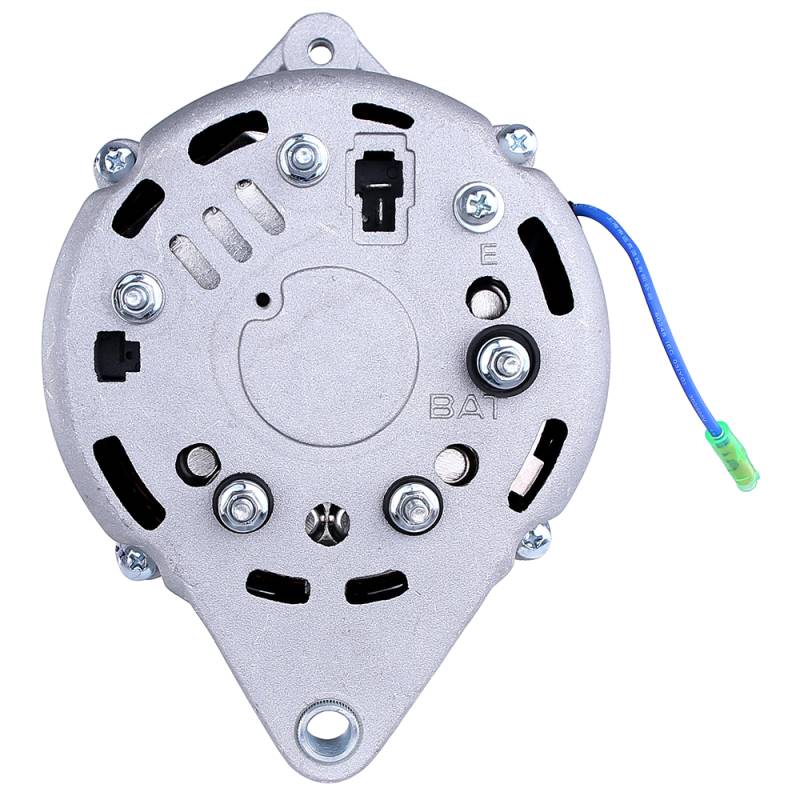

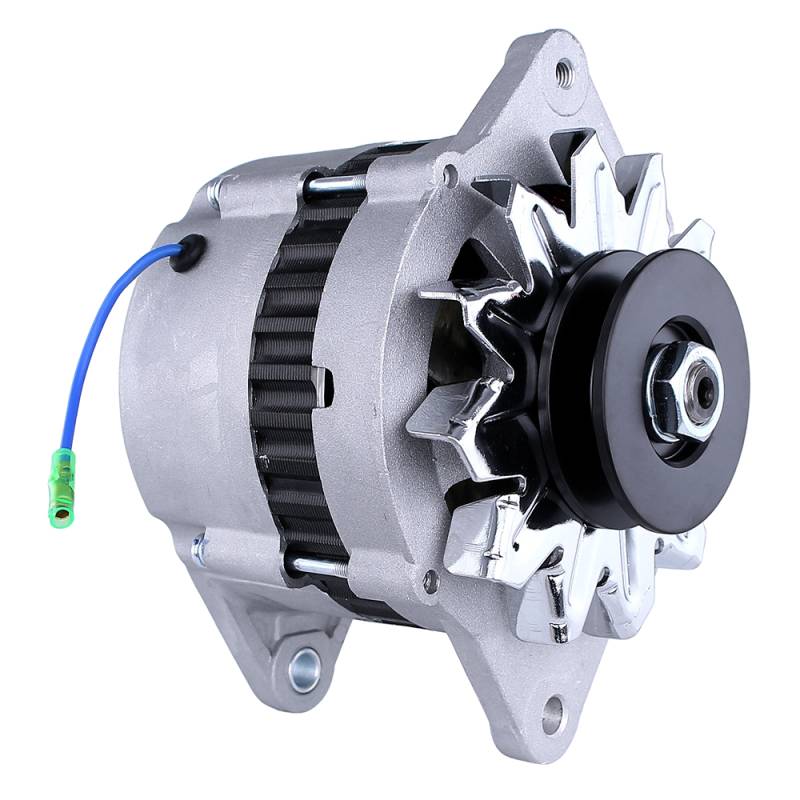

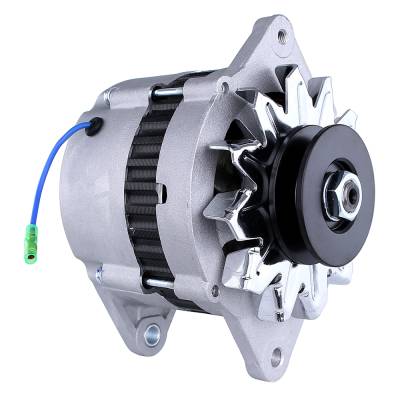

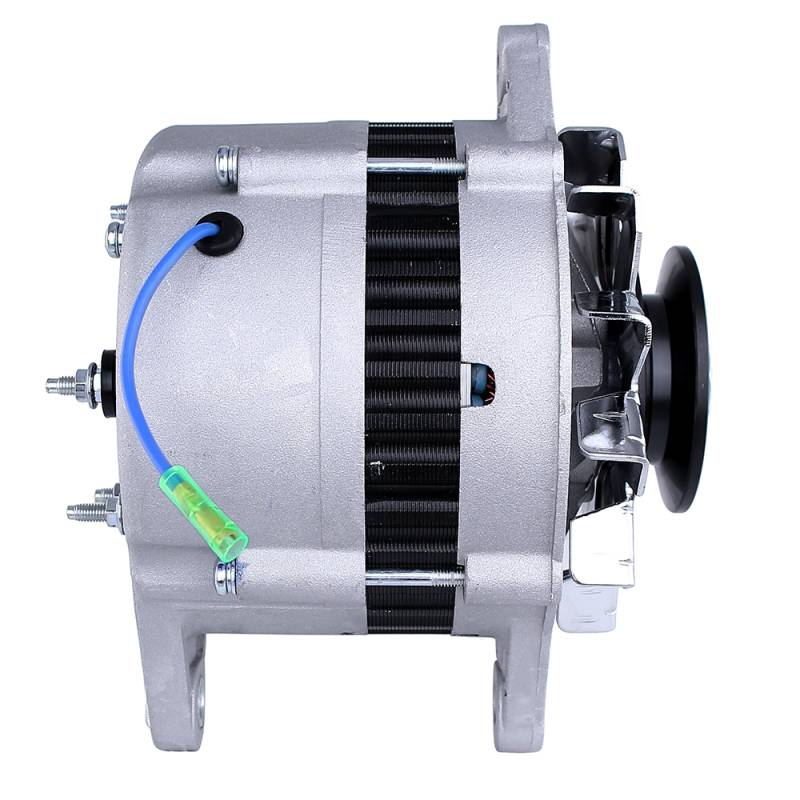

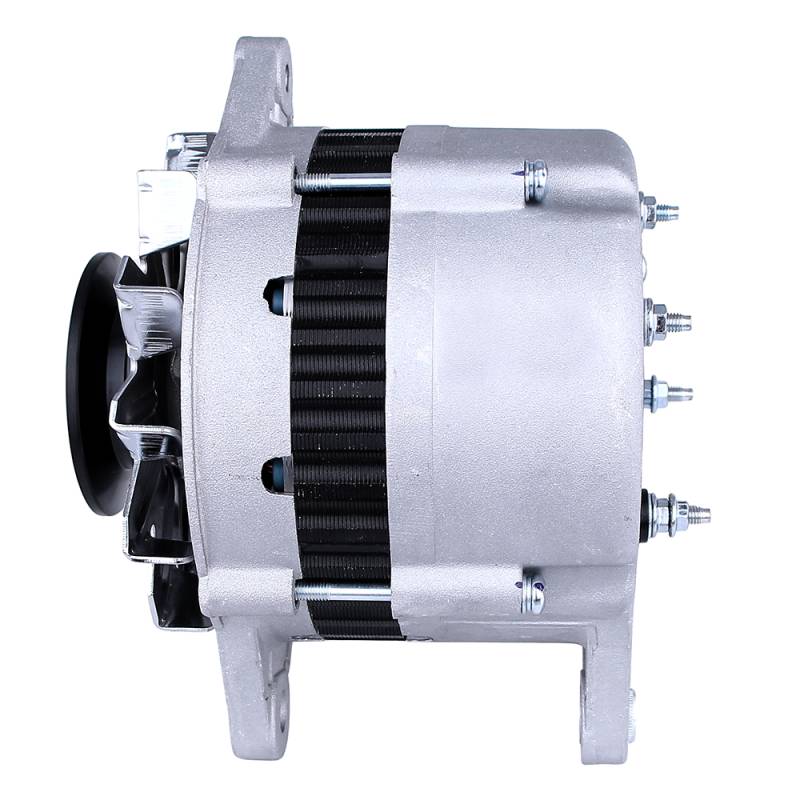

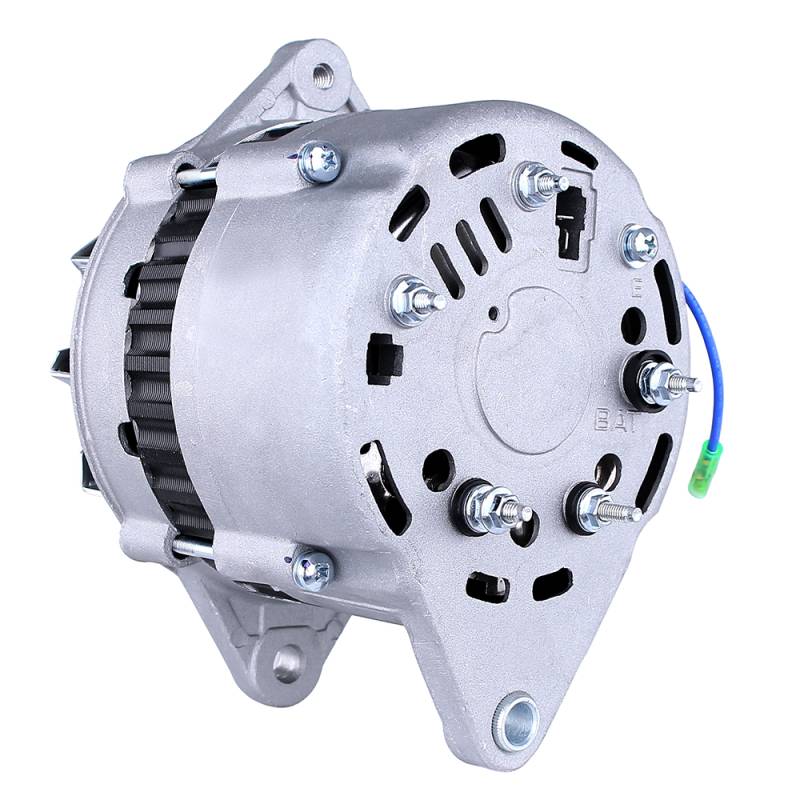

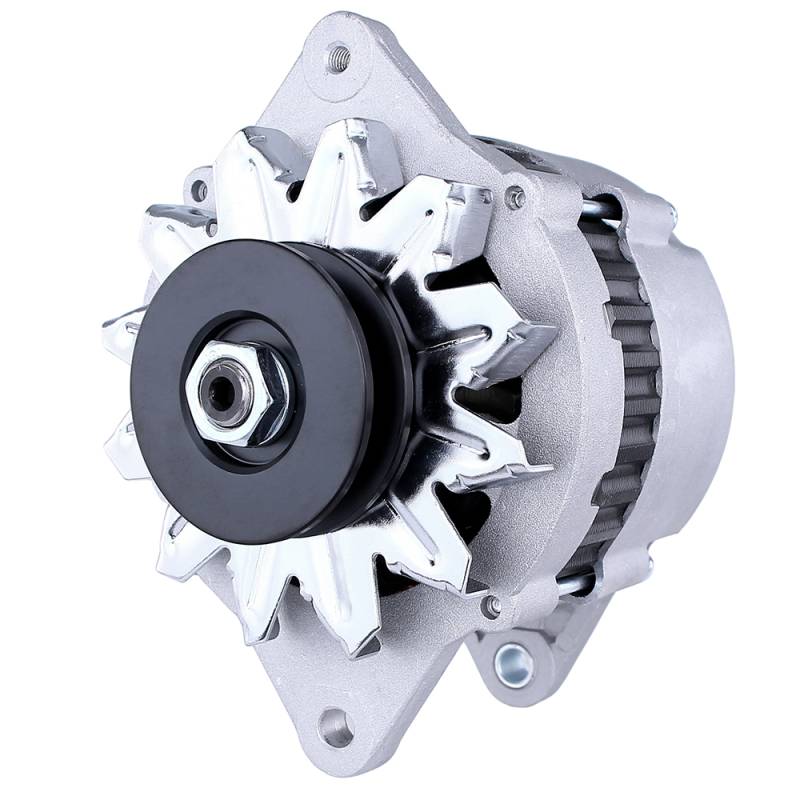

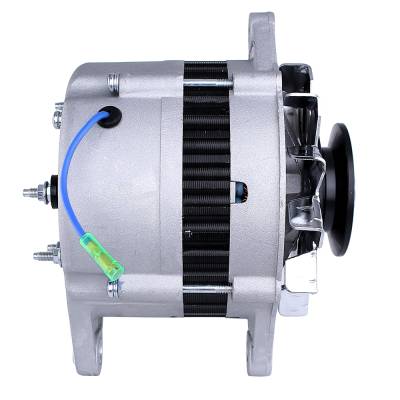

SPECIFICATIONS: • Type: alternator, internal regulator, external fan
• Voltage: 12 volt
• Output: 80 amp
• Rotation: clockwise (CW)

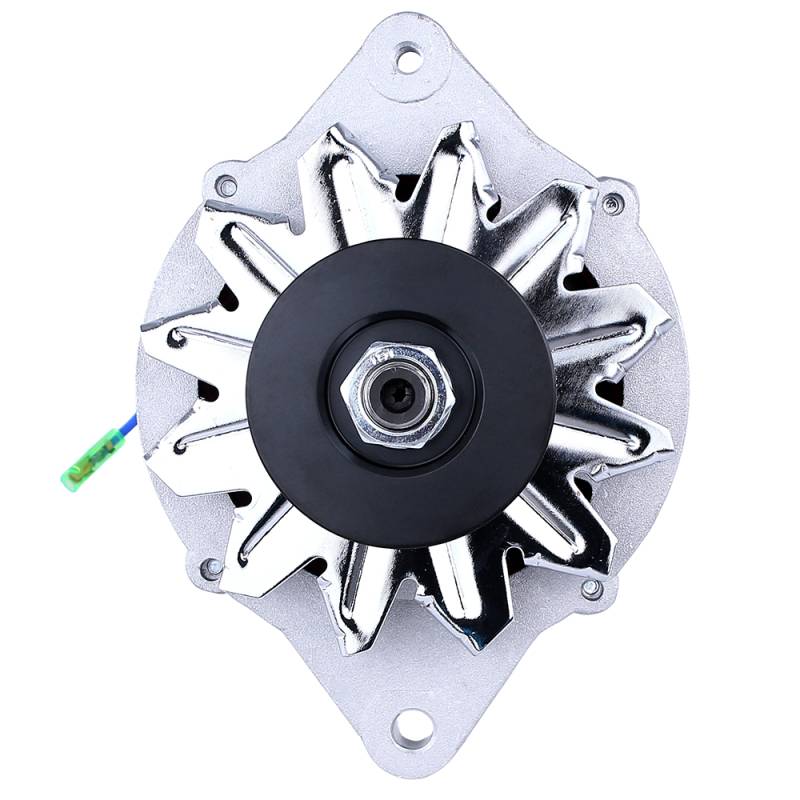

• Pulley: 1-groove V-belt, 2.913 in (74 mm) OD, 1/2 in belt
• Mounting ear 1: M8-1.25 threaded, 14 mm thick
• Mounting ear 2: 10.5 mm unthreaded, 14 mm thick
• Mounting ear 3: 10.4 mm unthreaded, 15 mm thick
• B+ terminal: M5-0.8 stud
• Ground: insulated (isolated ground), fully insulated
• Terminals: L (warning light) and R (relay)
• Regulator plug clock: 12:30
• Weight: 13.52 lb (6.14 kg)
• Condition: New aftermarket
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
