OEM PART NUMBERS:
• Bosch: 0-124-315-030, 0-124-315-042
• John Deere: RE509648, RE529377, SE501831
SPECIFICATIONS:
• Voltage: 12V / Amperage: 70A
• Type: Bosch / Regulator: Internal / Fan: Internal
• Pulley: Serpentine 6-Groove
• Polarity: Negative / Regulator Clock: 3:00
• B+ Terminal: M8-1.25 / Connector: 2-Blade Plug
• Mounting: 4 Ears (2x M8-1.25 Threaded, 2x 8.5mm Unthreaded)
• Weight: 14.1 lbs / 6.41 kg / Condition: New
APPLICATION:
• 5225/5325/5325N/5425/5425N/5525/5525N Farm Tractor PowerTech (2005-2008)
• 4120/4320/4520/4720 Utility Tractor 4024T (2004-2009)
• 244J/304J Wheel Loader (2004+)
• 325/328/332 Skid Steer Loader (2000-2005)
• 313/315/317/320 Skid Steer Loader (2007+)
• CT315/CT322/CT332 Compact Track Loader

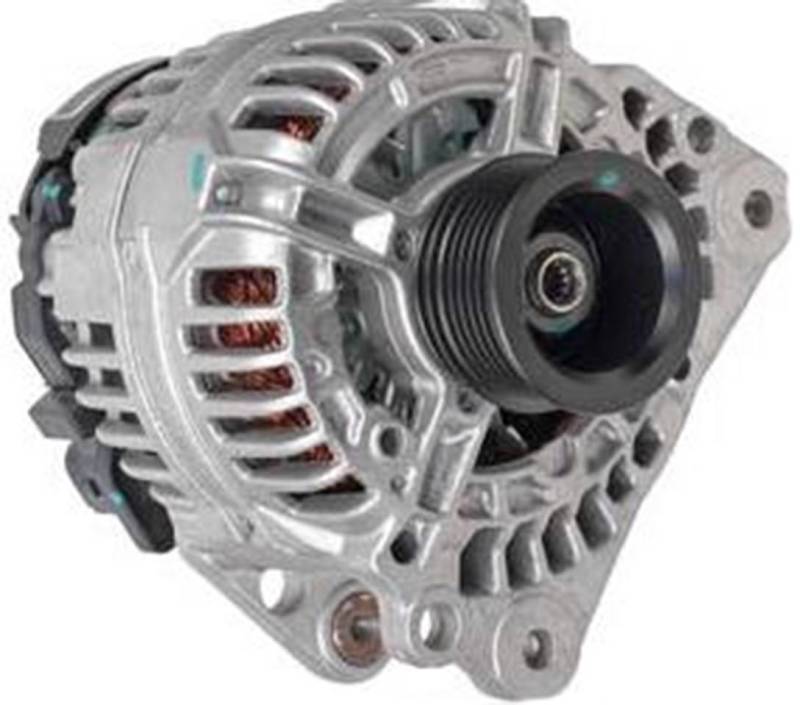

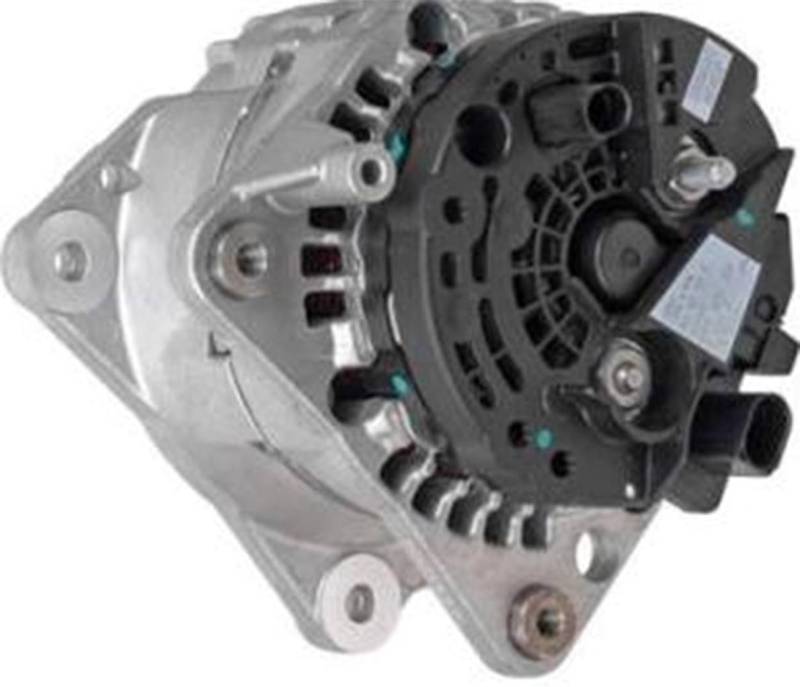

12V 70A Alternator — 5225 5325 5425 5525 4120 4320 4520 4720 Tractor
Replacement alternator for agricultural and utility tractors with PowerTech and 4024T diesel engines. This 12-volt 70-amp Bosch-type unit features serpentine 6-groove pulley, internal fan, and internal voltage regulator. The 3:00 clock position and 2-blade plug connector match the factory configuration. Four mounting ears with M8-1.25 threaded and 8.5mm unthreaded holes ensure direct bolt-on fit. Covers 5225 56HP, 5325/5325N 67HP, 5425/5425N 81HP, and 5525/5525N 91HP PowerTech tractors. Also fits 4120 through 4720 utility tractors with 4024T engines from 43 to 58HP. Weighs 14.1 lbs. Replaces Bosch 0-124-315-030 and SE501831.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
