OEM PART NUMBERS:
• Mercury Marine: 875286A1 / 875286A-1 / 875286T / 881247A1 / 889956
• Mercury Marine: 8M0064020 / 8M6000803 / 828506
• 19020704 / 19020707 / 8600514
• 20115011TBA
SPECIFICATIONS:

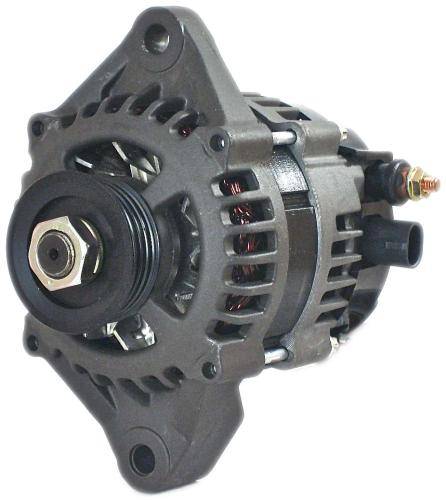

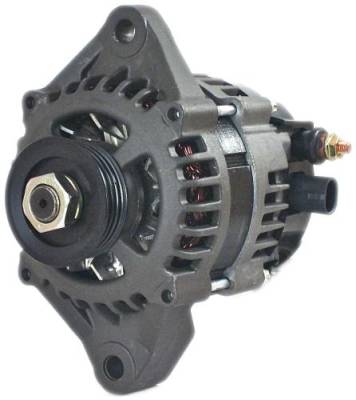

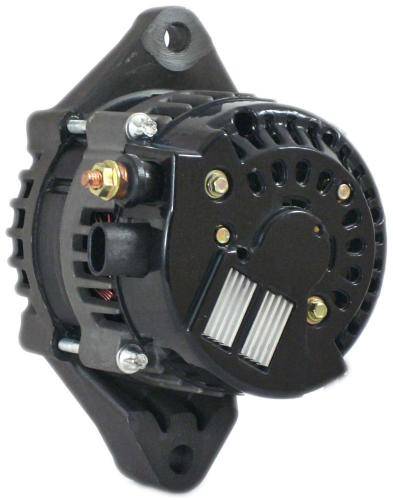

• Type: 5SI Series Marine Alternator
• Voltage: 12V / Amperage: 50A
• Rotation: CW / Regulator: Internal / Fan: Internal
• Pulley: 4-Groove Serpentine 50mm OD
• Clock Position: 9:00 / Polarity: Negative
• B+ Terminal: M6-1.0 / Permanent Magnet
• Mounting: (1) 10mm Unthreaded Hole in 31mm Foot + (1) 10mm Unthreaded Ear
• SAE J1171 Marine Ignition Protection Certified
• Weight: 7.46 lbs / 3.39 kg / Condition: New
APPLICATIONS:
• Mercury Marine Optimax/EFI/DFI/DTS/Pro XS Outboard 75-300HP
• 1.5L 3-Cyl (75/90/115/125HP) and 3.0L V6 (200/225/250/300HP)
• Model Years: 1998-2015
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
