OEM PART NUMBERS:
• Komatsu: 3863240 / 600-863-4410 / 600-863-4510
• Komatsu: 600-863-4610 / 600-863-4611 / 600-832-3220
• Komatsu: 600-863-4110 / 600-863-4130
• Nikko: 0-24000-3060 / 0-24000-3061 / 0-24000-3071
• Nikko: 0-24000-3240 / 02-24-2029
• Denso: 228000-4990 / 228000-4991 / 228000-4992
• Denso: 9722809-499
SPECIFICATIONS:
• Voltage: 24V
• Power: 4.5kW / 6.03HP
• Rotation: CW (Clockwise)
• Type: OSGR (Offset Gear Reduction)
• Teeth: 10
• Gear OD: 1.531 Inch / 38.9mm
• Pinion OD: 1.512 Inch / 38.4mm
• Mounting: 11mm Unthreaded (Both Ears)
• Battery Stud: M10-1.5 Threaded
• Switch Terminal: M5-0.8 Set-Screw
• Weight: 20 lbs / 8.5 kg
• Note: Dry Clutch Only
• Condition: New
APPLICATION:
• Excavator PC60-7/PC75-UUE/PC100/PC120/PC128/PC130-6/PC138US/PC158US (S4D102E)
• Excavator PC200-6/PC200-7/PC210-6D/PC220-6/PC220-7/PC228UU-1 (S6D102E)
• Wheeled Excavator PW128E-1/PW128UUE-1 (4D102-E1)
• Dozer D37E/D41-E/D41A/D39E-21/D31P-20/D31E-20 (SD102/S4D102E/S6D102)
• Loader WA80E-3/WA100-3/WA120/WA180/WA200-3/WA250-3 (1997-2007)
• Forklift FD035/FD40ZT-7/CX20/DX20/EX50
• Generator EG125BS-2/EG90BS-1/EGS120 / Grader GD355A-3/GD405A-3
• Dry clutch applications only — not compatible with wet clutch

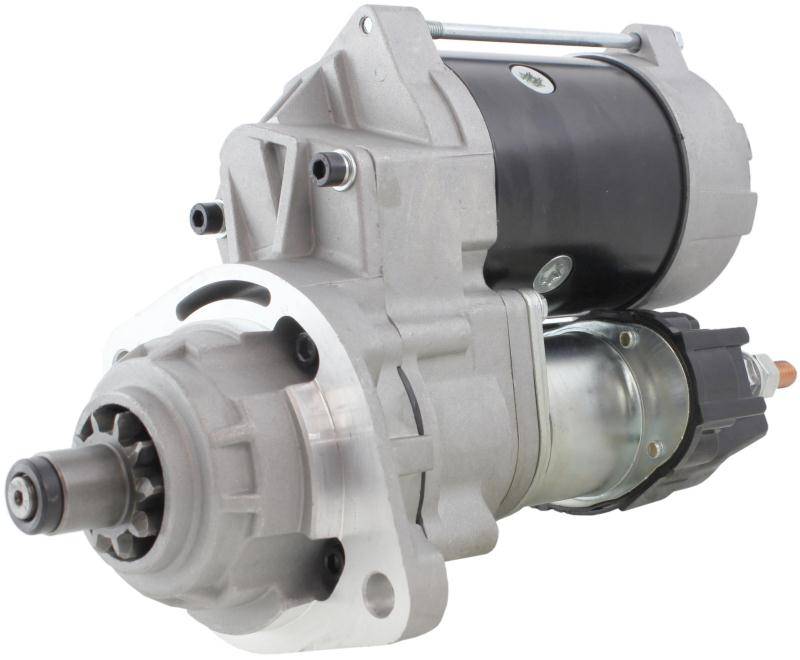

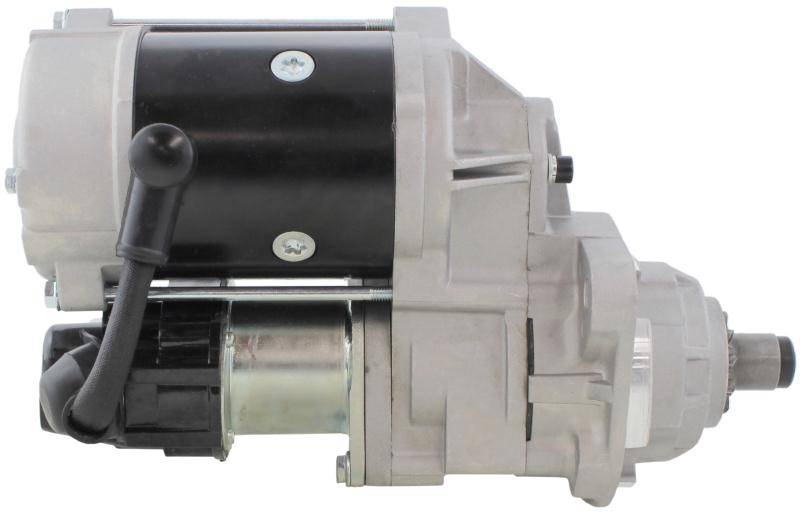

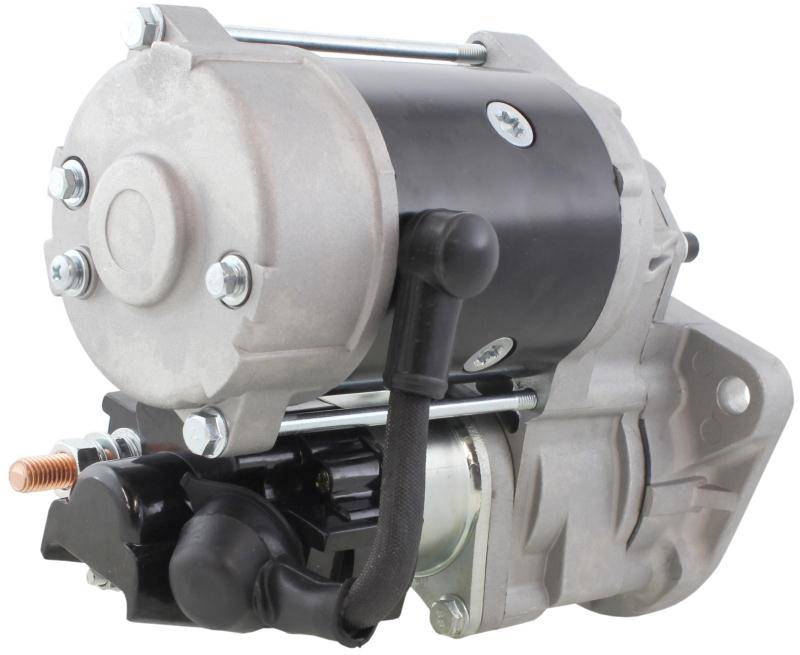

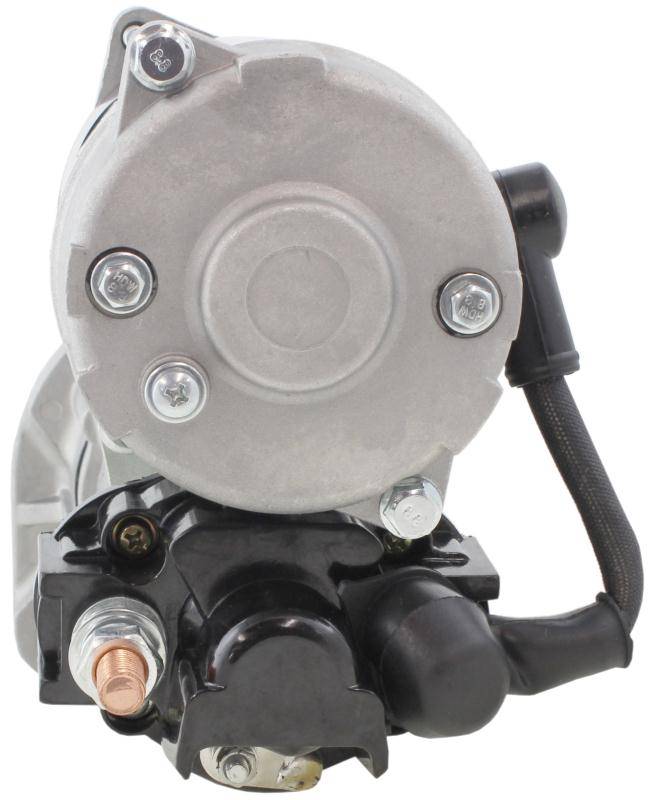

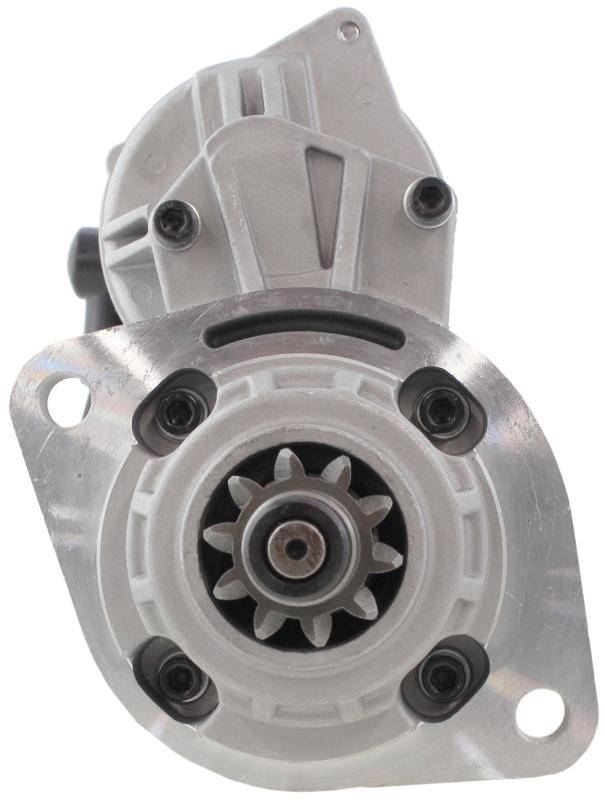

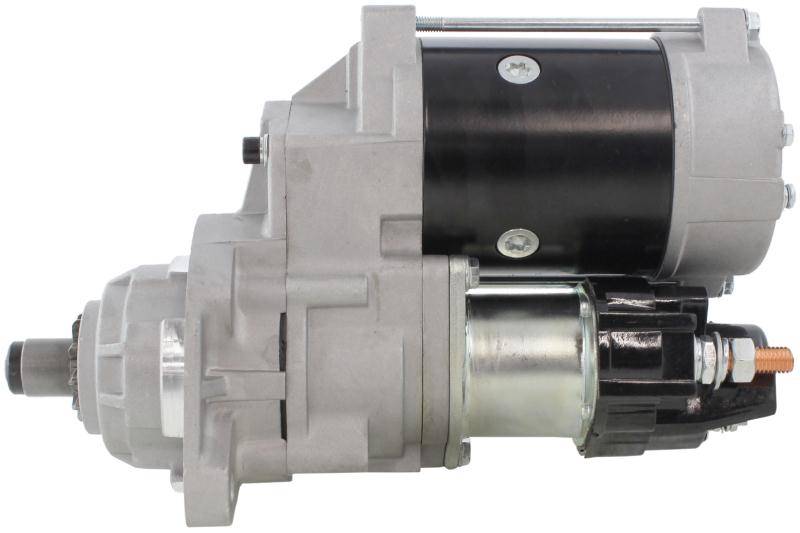

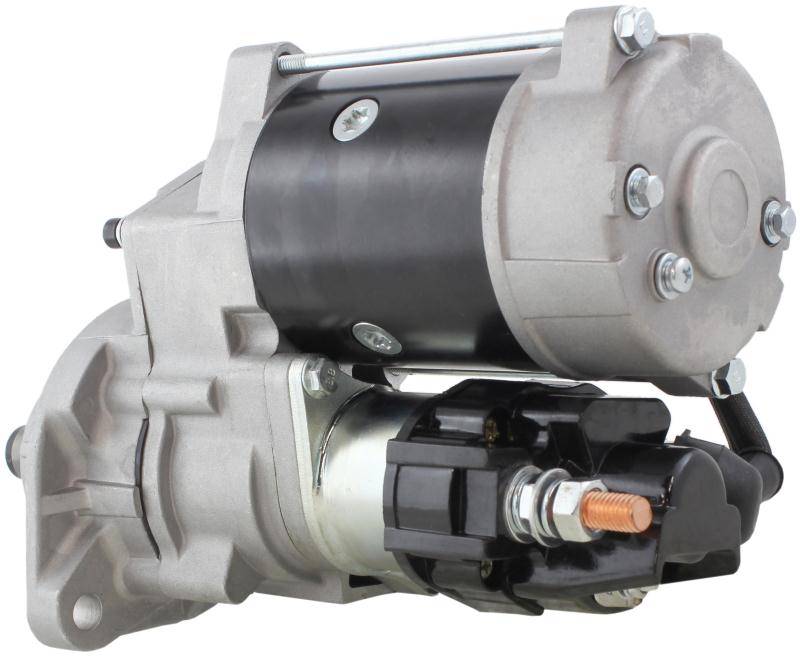

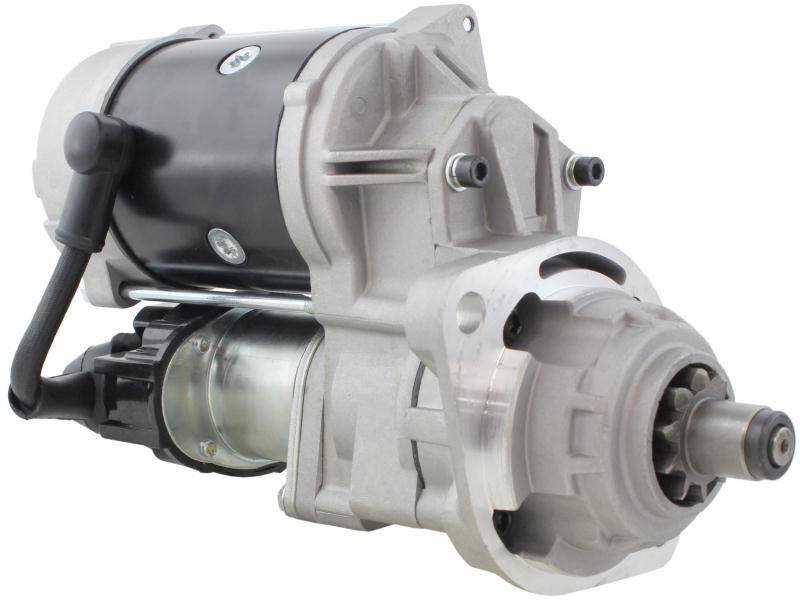

Engine Starter — Komatsu Dozer D37E D41-E PC200-6 PC220-7 EG125BS-2 Generator
Complete engine starter for Komatsu D37E and D41-E dozers, PC200-6/PC220-7 excavators, FD035 forklift, and EG125BS-2 generator. Replaces Denso 9722809-499, Komatsu 600-863-4110, 600-863-4130, 600-832-3220, and Nikko 0-24000-3060. Dry clutch only.
