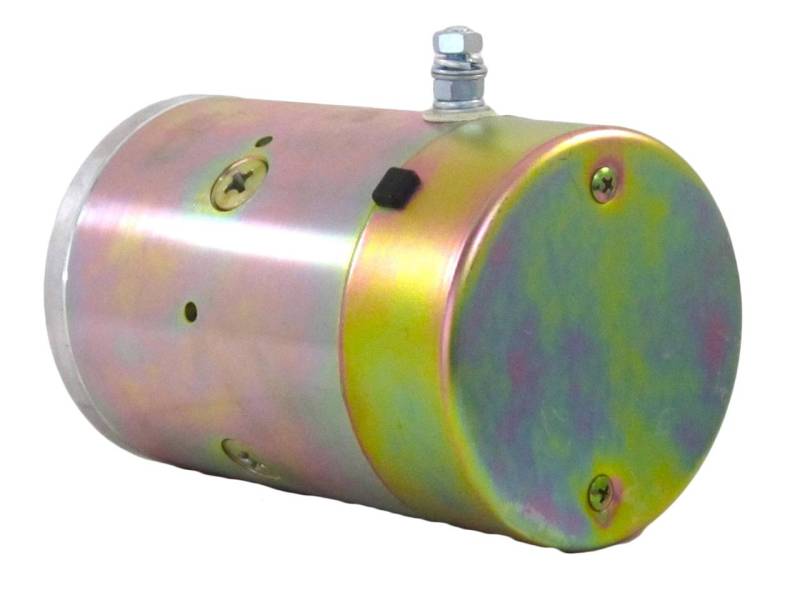

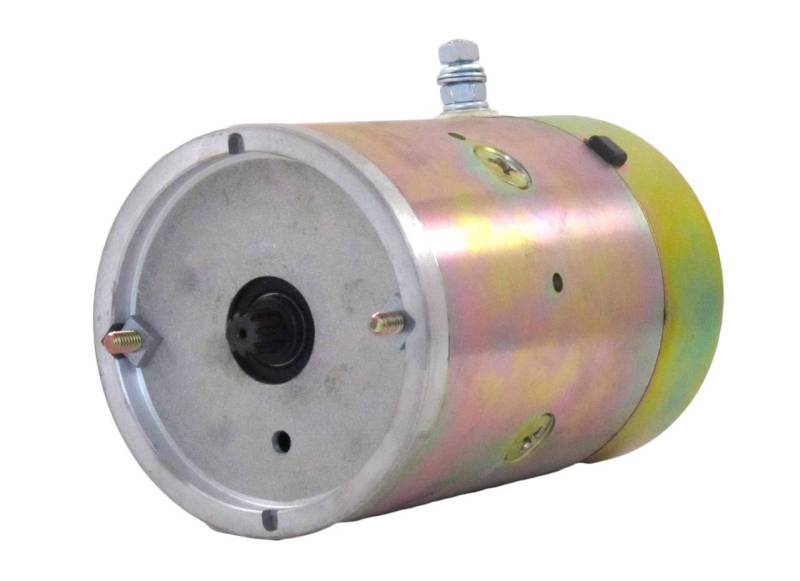

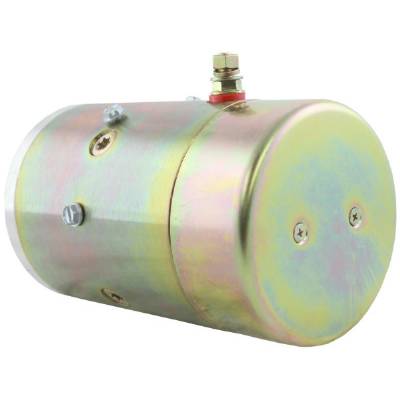

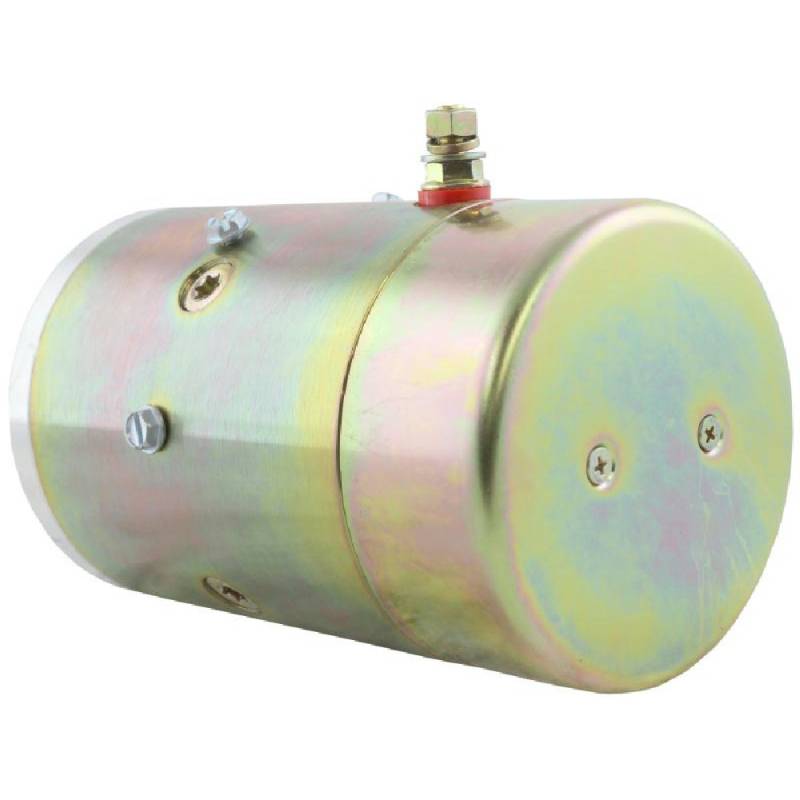

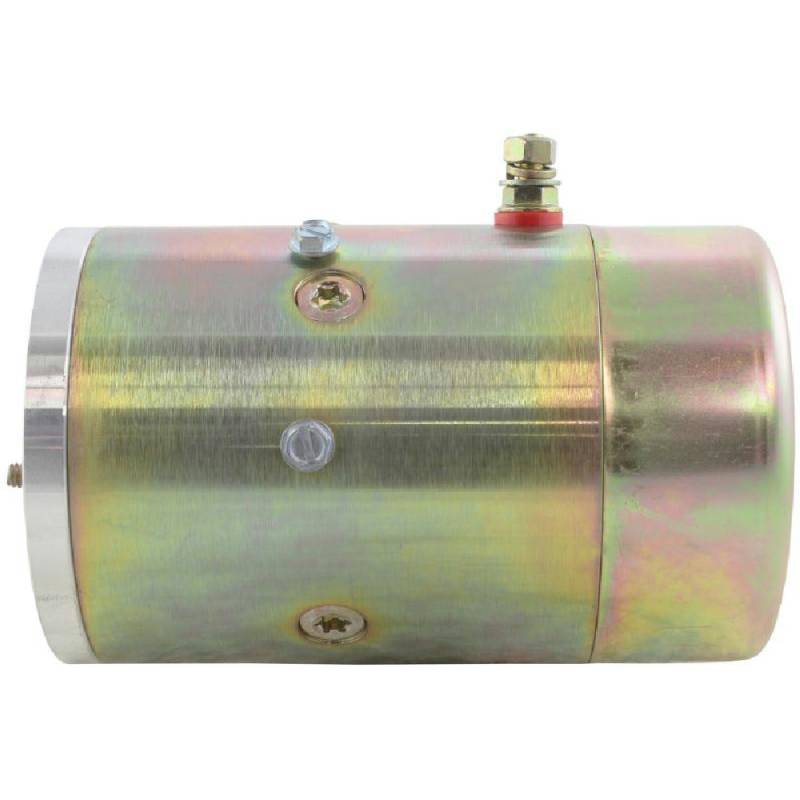

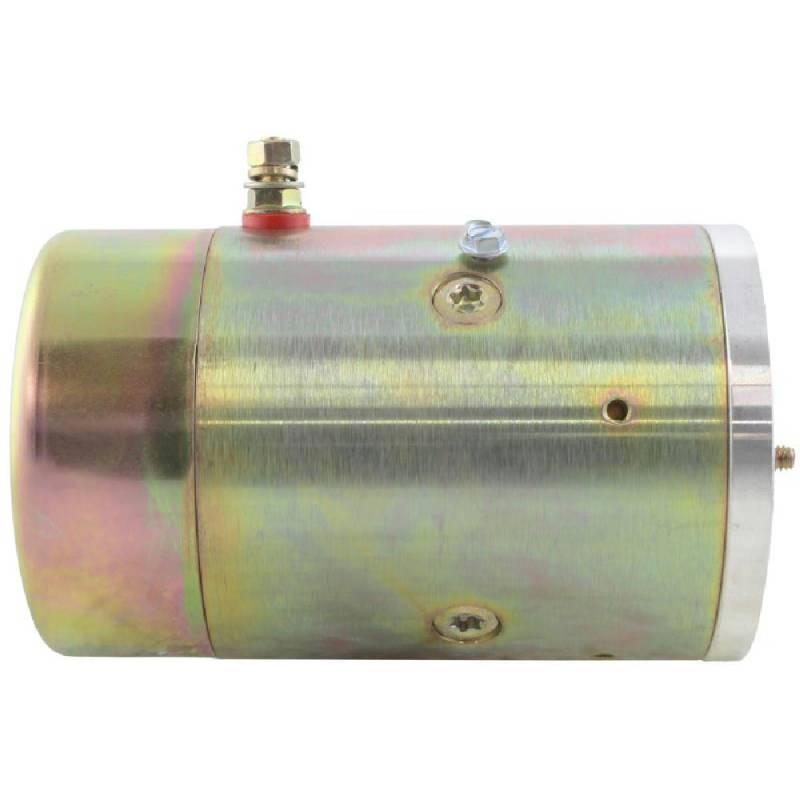

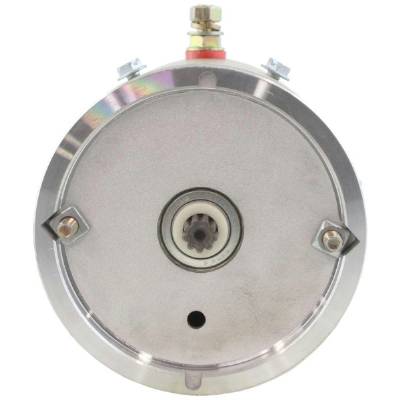

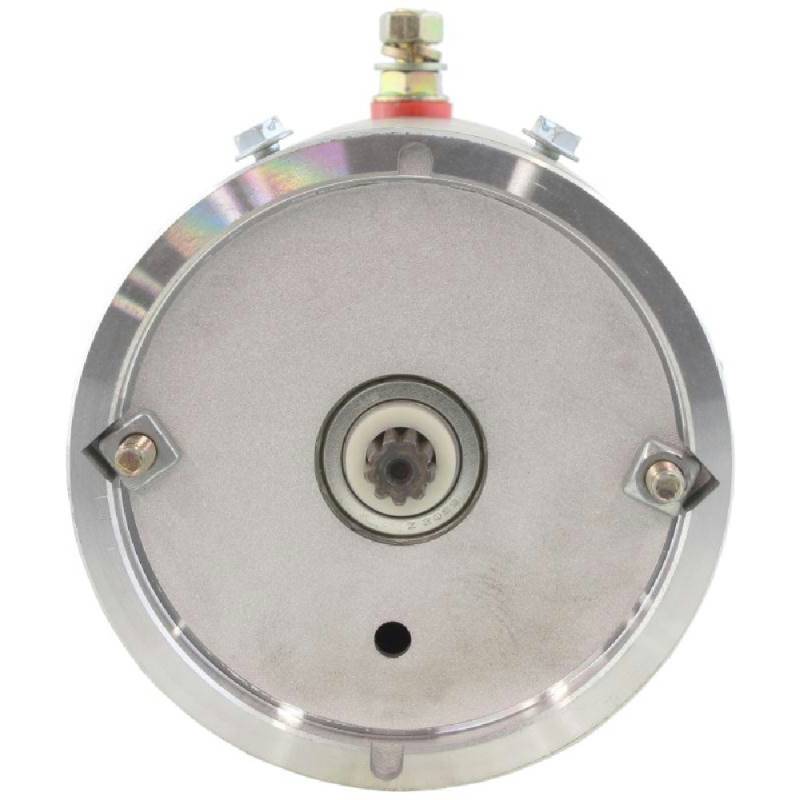

12V Pump Motor Compatible With Fenner Stone Hydrylac Waltco Dell Maxon Liftgates Sno-Way Northman

(0) Reviews: Write first review
10735*5
FENNER STONE / SPX PART NUMBERS:
• 1175-AC, 1175AC
• 1185-AC, 1185AC
• 1785-AC, 1785AC
• 1787-AC, 1787AC
• 1931-AC, 1931AC
• 4142-AC, 4142AC

PRESTOLITE PART NUMBERS:
• 46-4048, 464048
• MUE-6114, MUE6114
• MUE-6114S, MUE6114S
• MUE-6212, MUE6212

MAXON PART NUMBERS:
• 222423
• 226578

WALTCO PART NUMBERS:
• 70392900

ANTHONY PART NUMBERS:
• A-150265, A150265

LEYMAN PART NUMBERS:
• P46340

SNO-WAY PART NUMBERS:
• 96001551

HINIKER PART NUMBERS:
• H25010230, H-25010230, 25010230

OTHER PART NUMBERS:
• Northman 998126
• Buyers SAM 1303590
• Venco 13850
• Del America 25169
• Dell D-6000, D6000
• Dell DCM-0013, DCM0013
• T-8789, T8789
• 02-1020, 021020
• Western Motors W-9787, W9787

SPECIFICATIONS:
• Type: DC hydraulic pump motor, standard duty
• Voltage: 12 Volt
• Power: 1.7 kW (2.28 HP)
• Rotation: Clockwise (CW)
• Shaft: 12.2 mm (0.480 in), 9 straight splines
• Terminal: one 5/16 inch threaded post
• Field case: 113.8 mm (4.480 in)
• Overall length: 195 mm (7.677 in)
• Bearings: double ball bearing
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $395.41
Sale: $225.95
Save: 43%
Save: $169.46
Qty:
Free Shipping!

Description

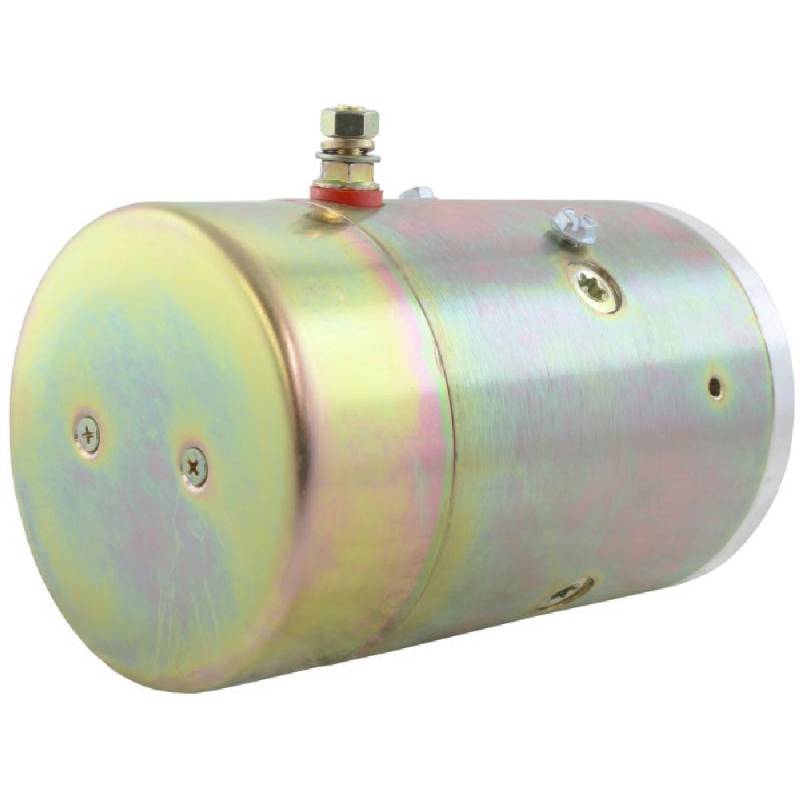

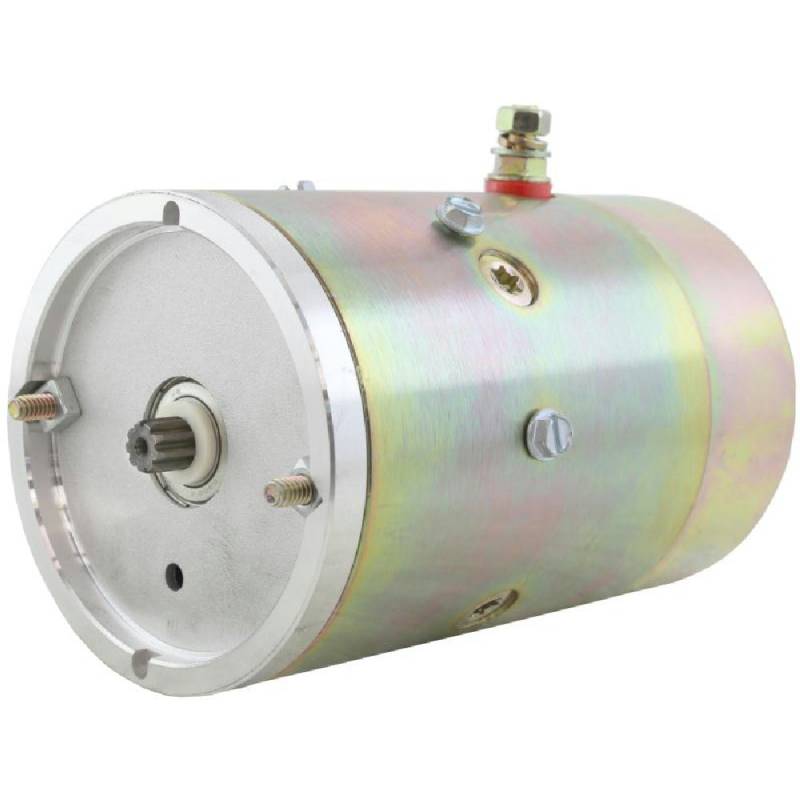

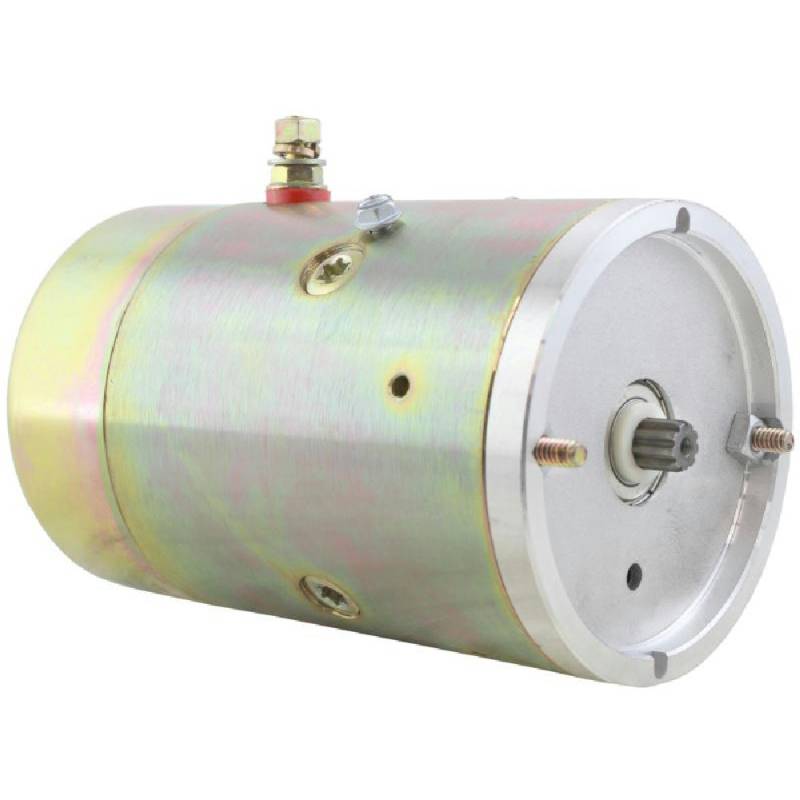

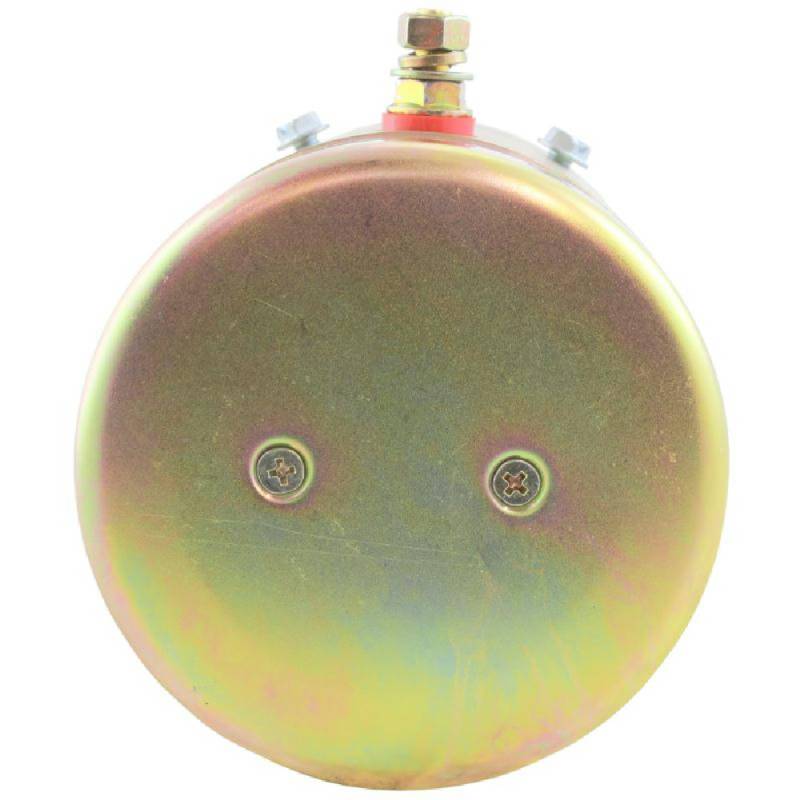

⚠️ 12V CW 1.7 KW 9 SPLINE PUMP MOTOR, 1 POST, NEW:
• 12 volt DC, clockwise (CW) rotation, 1.7 kW (2.28 HP), standard duty
• 12.2 mm (0.480 in) 9 straight spline shaft, one 5/16-24 terminal post
• 113.8 mm (4.480 in) field case, 195 mm (7.677 in) overall length, double ball bearing
• Check rotation, spline and post count: CCW, tang shaft, 2 post and longer heavy duty motors are different parts

SNO-WAY GENERATION I SNOW PLOWS, FENNER HYDRAULICS (SNO-WAY MOTOR 96001551):
• 1994-2001 Sno-Way 24 Series snow plow, gravity, from 24G100000
• 1994-2001 Sno-Way 24 Series snow plow, down pressure, from 24D100000
• 1994-2001 Sno-Way 25 Series snow plow, gravity, from 25G100000
• 1994-2001 Sno-Way 25 Series snow plow, down pressure, from 25D100000
• 1994-2001 Sno-Way 28D V-plow, 8 ft 3 in and 9 ft 1 in, from 28D100000

ANTHONY MEDIUM RAILTRAC LIFTGATES WITH THE FENNER POWER UNIT (ANTHONY MOTOR A-150265):
• Anthony AR-1200, AR-1200-AB, AR-1200-DT, AR-1200-AB-DT Medium RailTrac liftgate
• Anthony AR-1800, AR-1800-AB, AR-1800-DT, AR-1800-AB-DT Medium RailTrac liftgate
• Anthony AR-1800-RT-AB Medium RailTrac liftgate
• Anthony AR-2000-DT Medium RailTrac liftgate
• Anthony AR-2500, AR-2500-AB Medium RailTrac liftgate
• Anthony AR-2500-GB, AR-2500-GB-AB Medium RailTrac liftgate
• Anthony AR-2500-RT, AR-2500-RT-AB Medium RailTrac liftgate
• Anthony HCR-3000, HCR-3000-AB Medium RailTrac liftgate
