OEM PART NUMBERS:
• JS Barnes / Haldex: 2200353, 2200858, 2200980
• Prestolite: MBD5112, MBD5112S
• Ohio Motors: D468210XWF02, D468237XWF07A, D468242XWF07, D468247XW07A, D468247XWF07A, D468250XWF07, D468250XWF07A, D468255XWF07A, D482252X7707A
• JLG: 3160263, 3160264, 7011041
• Western Motor: W-5112, W5112
SPECIFICATIONS:
• Voltage: 24V DC
• Power: 4 HP
• Rotation: CW (Clockwise)
• Field Housing OD: 127mm / 5.000in
• Overall Length: 285mm / 11.220in
• Shaft: Chrysler Amplex Coupler Type
• Terminal 1: 3/8-16
• Terminal 2: 3/8-16
• Bearings: Double Ball Bearing
• Amp Draw: 40A No-Load / 380A Max Load
• Housing: Cast Aluminum Comm. and Drive Ends with Black Field Case
• Weight: 34.5 lbs / 15.68 kg
• Condition: New
APPLICATION:
• JLG E2 Series Electric Scissor Lifts (1998-2012)
• Haldex Barnes Hydraulic Pump Applications

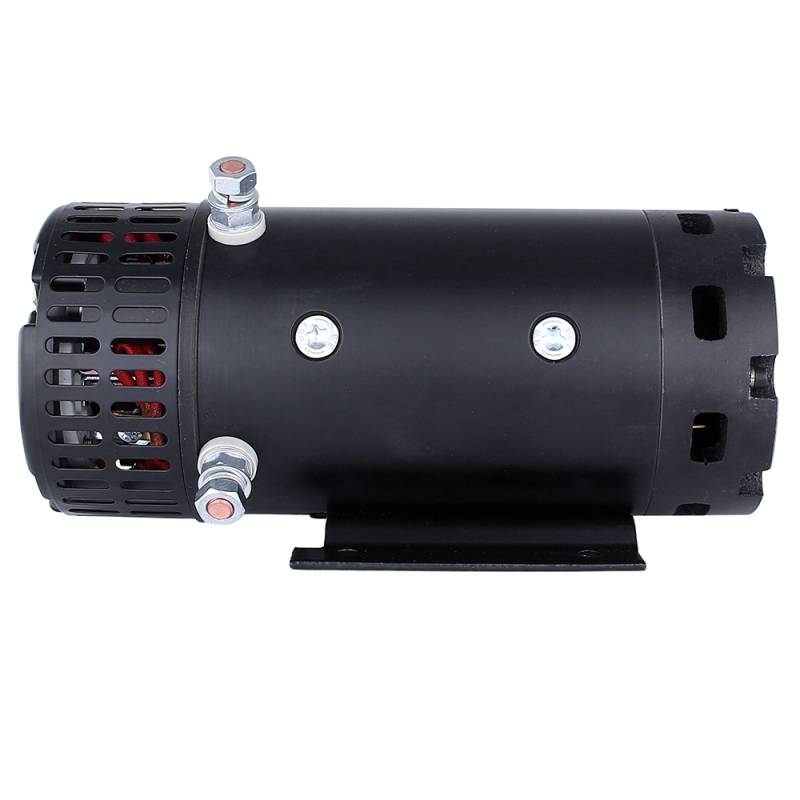

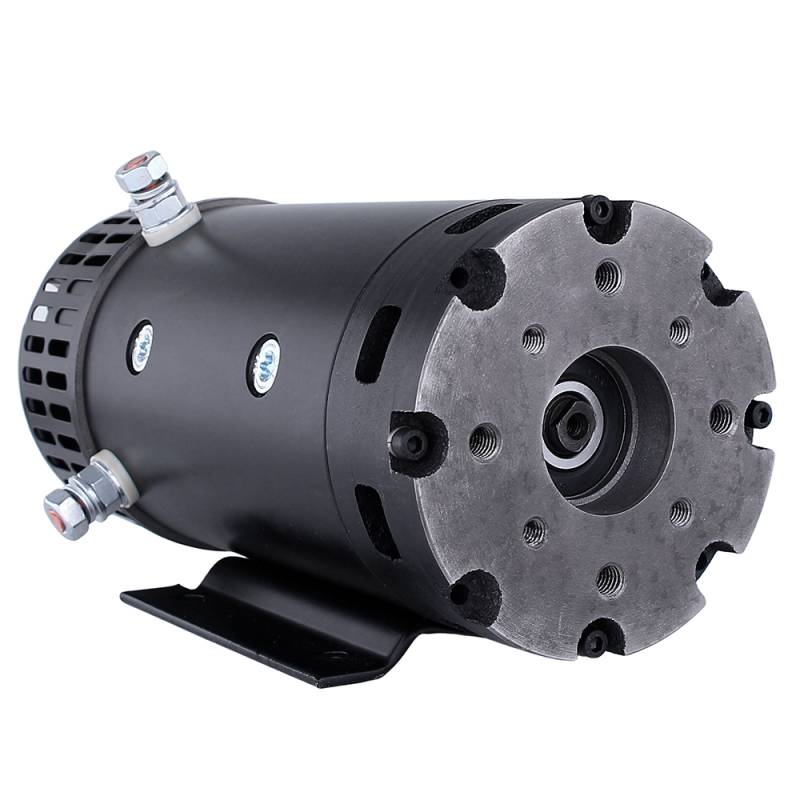

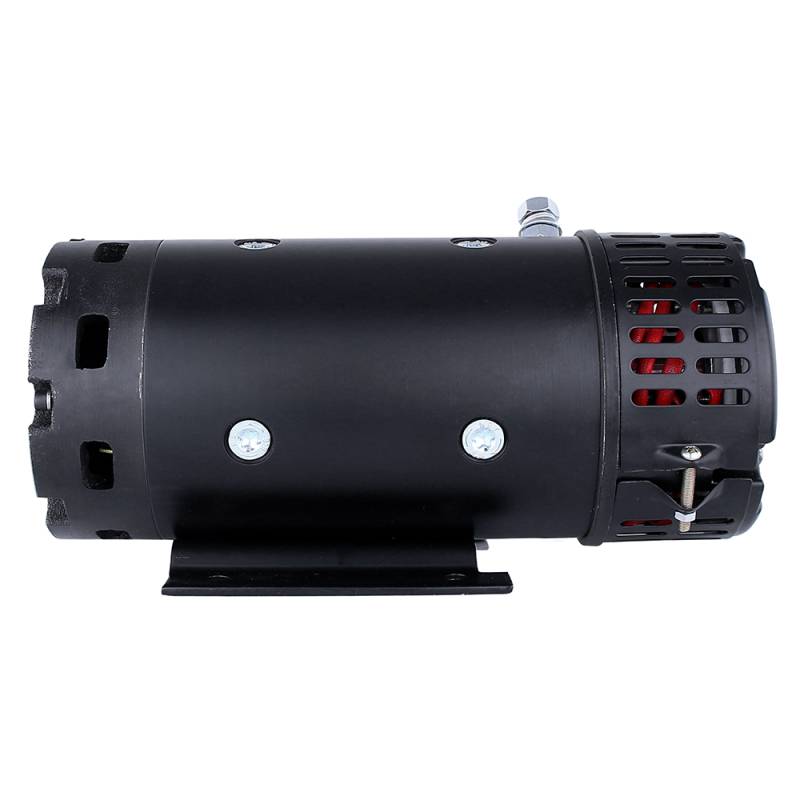

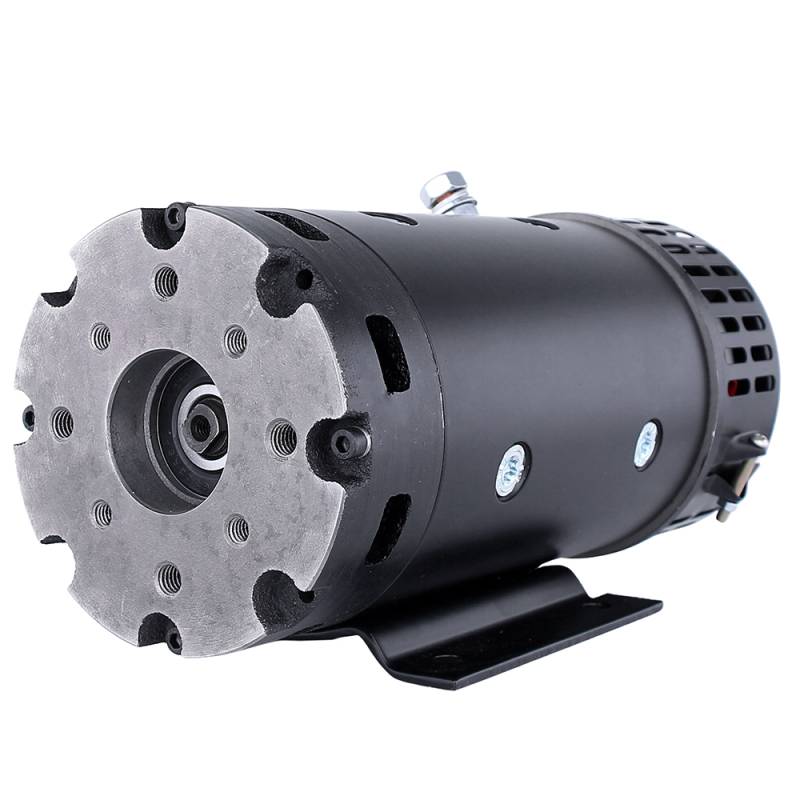

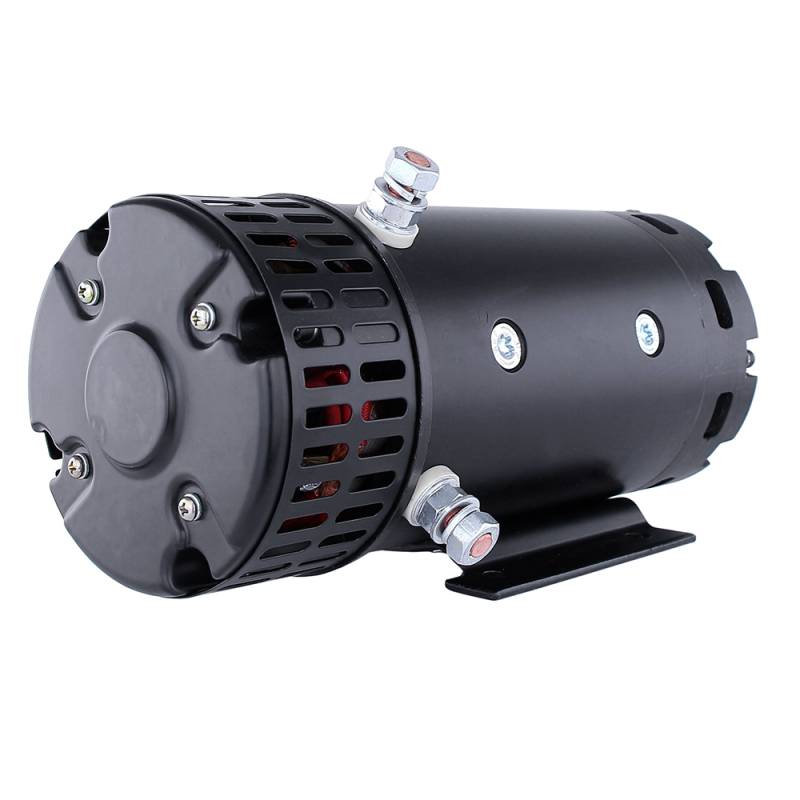

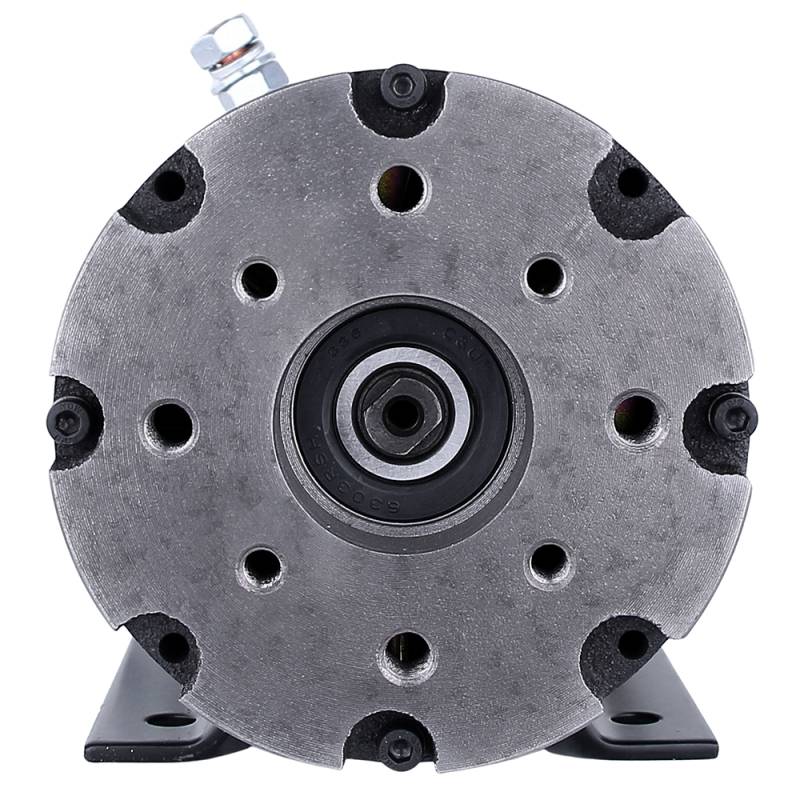

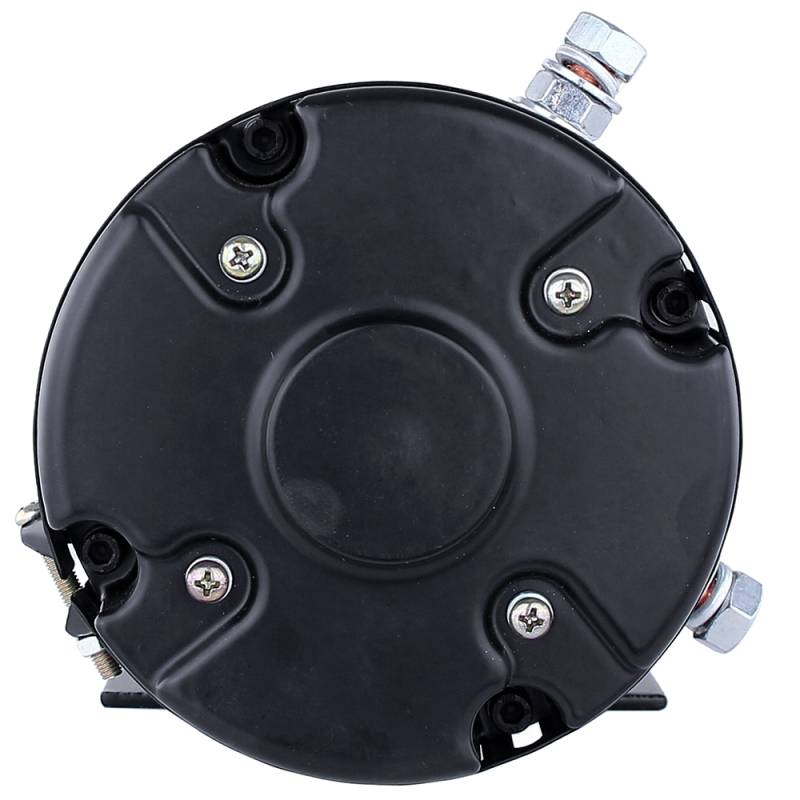

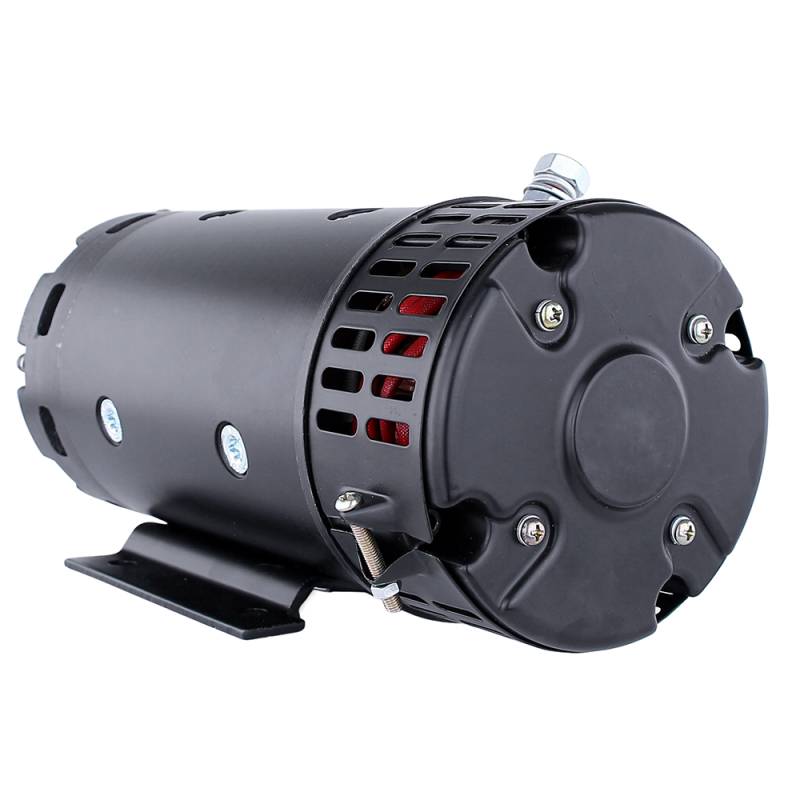

Heavy Duty 24V Pump Motor - Cast Aluminum Double Ball Bearing
Professional grade 24 Volt electric hydraulic pump motor with cast aluminum commutator and drive ends and double ball bearing construction for maximum durability. This 4 HP clockwise motor features a 5-inch diameter field housing, Chrysler Amplex coupler type shaft, and 3/8-16 terminals. Designed for Haldex Barnes and Ohio Motors hydraulic pump assemblies used in JLG E2 series electric scissor lifts including 1532E2, 1932E2, 2032E2, 2632E2, 2646E2, and 3246E2 models from 1998-2012. Cross-references Ohio D468237XWF07A, Prestolite MBD5112, and Haldex 2200858.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
