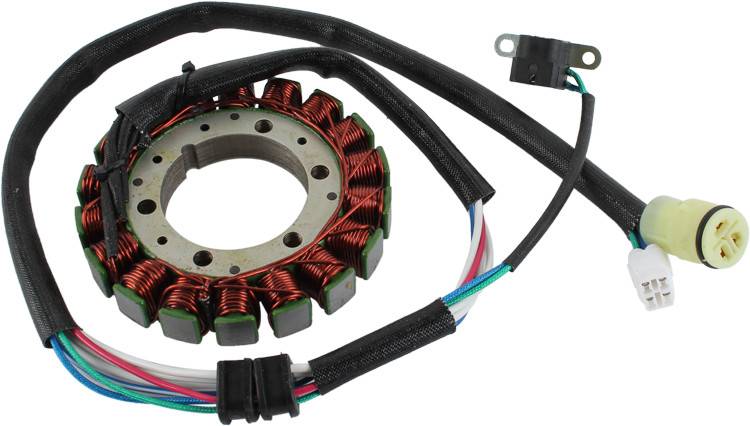

Stator Coil Compatible With Yamaha Raptor 350 Yfm350r 348Cc 2004-2013 Warrior 350 Yfm350x 2002-2004

AYA4031
OEM PART NUMBERS:
• Yamaha: 5NF-81410-00-00 / 5NF814100000

SPECIFICATIONS:
• Item Description: Stator Coil / Magneto Stator
• Output: 300 Watts
• Exterior Diameter: 115mm
• Interior Diameter: 53mm
• Thickness: 24mm
• Temperature Rating: 200°C
• Weight: 4 lbs
• Condition: New

YAMAHA ATV APPLICATIONS:
• Raptor 350 YFM350R 348cc SOHC Single Cylinder (2004-2013)
• Raptor 350 SE YFM350RSE 348cc SOHC Single Cylinder (2005-2007)
• Warrior 350 YFM350X 348cc SOHC Single Cylinder (2002-2004)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $267.31
Sale: $152.75
Save: 43%
Save: $114.56
Qty:
Free Shipping!

Description

YAMAHA RAPTOR 350 (2004-2013):
• YFM350R Raptor 350 348cc Air-Cooled SOHC 4-Stroke Single Cylinder 2-Valve (2004-2013)
• YFM350RSE Raptor 350 SE (Special Edition) 348cc SOHC Single Cylinder (2005-2007)
• 83mm Bore x 64.5mm Stroke, 9.2:1 Compression, Mikuni 36mm BSR Carburetor
• DC-CDI Ignition, 6-Speed Manual w/ Reverse, 2WD Chain Drive, Electric Start
• Sport ATV with Independent Double Wishbone Front Suspension, Dual Hydraulic Disc Front Brakes

YAMAHA WARRIOR 350 (2002-2004):
• YFM350X Warrior 350 348cc Air-Cooled SOHC 4-Stroke Single Cylinder 2-Valve (2002-2004)
• 83mm Bore x 64.5mm Stroke, 9.2:1 Compression, Mikuni 36mm BTM Carburetor
• DC-CDI Ignition, 6-Speed Manual w/ Reverse, 2WD Chain Drive, Electric Start

NOTE: The Raptor 350 replaced the Warrior 350 in the Yamaha sport ATV lineup. Both share the same 348cc air-cooled SOHC single-cylinder engine platform. This stator uses OEM 5NF-81410-00-00 and fits ONLY the 2002+ Warrior and 2004+ Raptor. Earlier Warrior 350 models (1987-2001) use a different stator (3HN-85510-10-00).

Details

Shipping Information

  • Item Requires Shipping
  • 4.0 lbs.
  • W4.0000” x H4.0000” x L8.0000”
  • Free Shipping!
