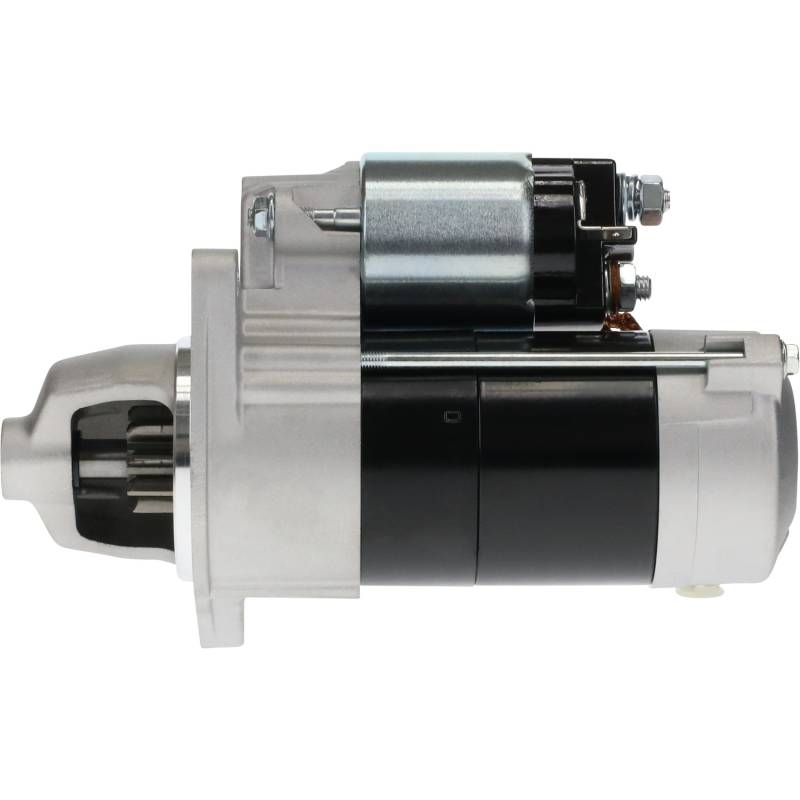

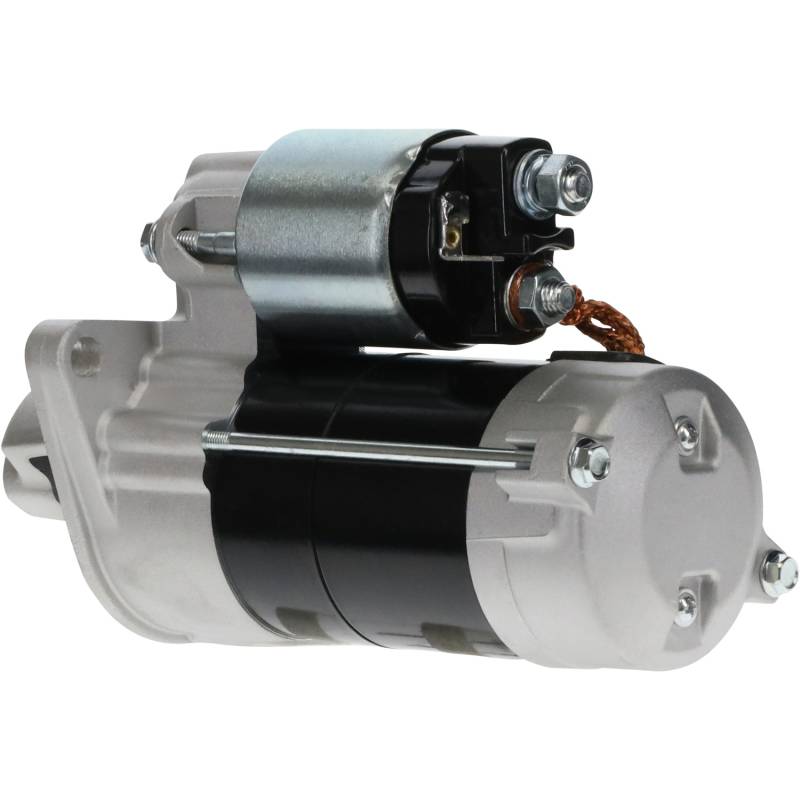

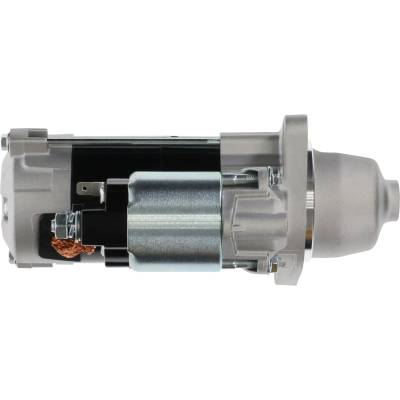

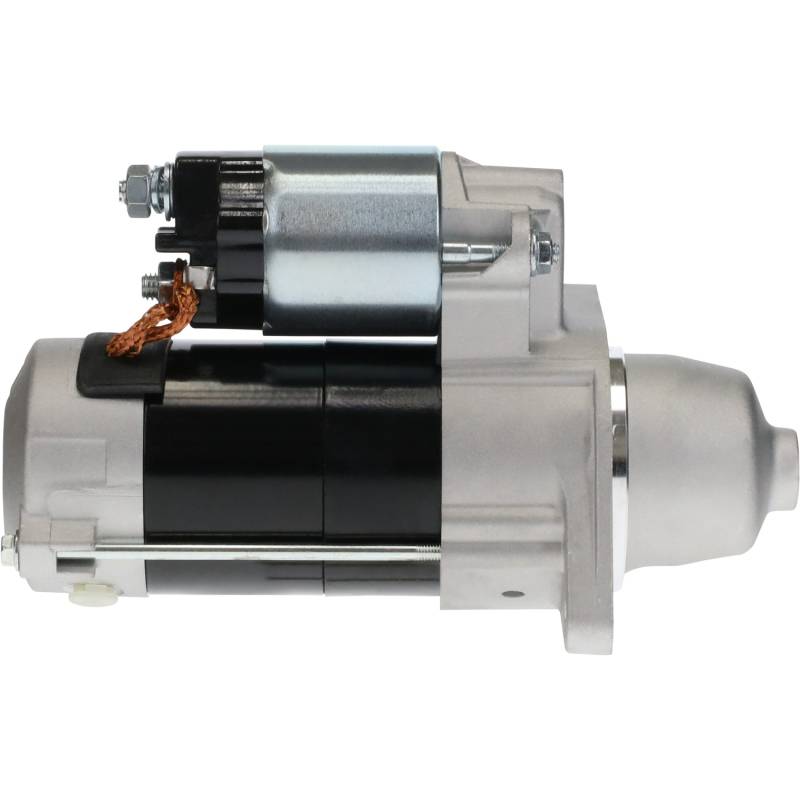

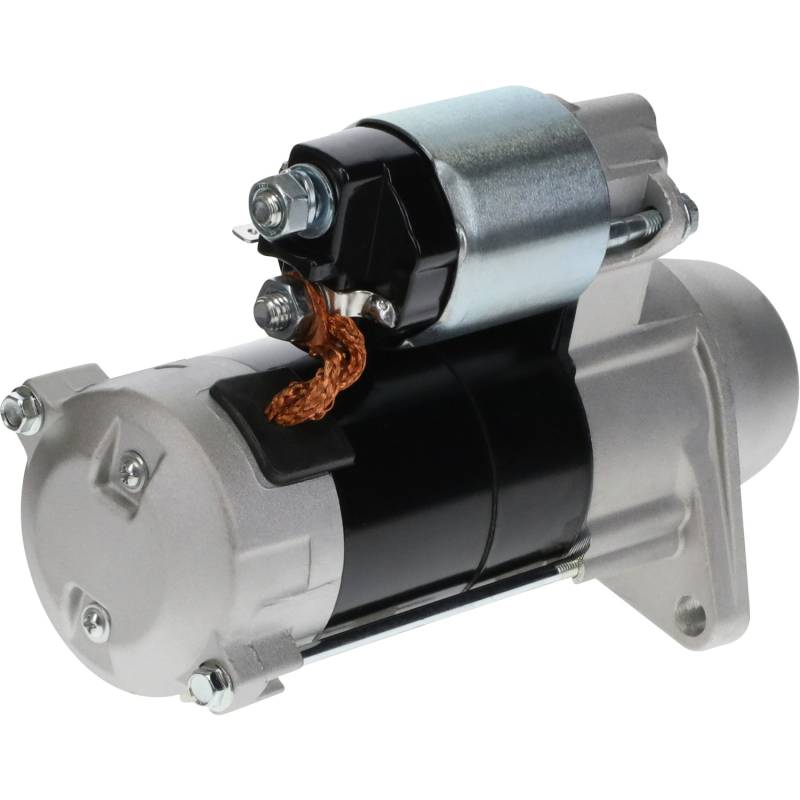

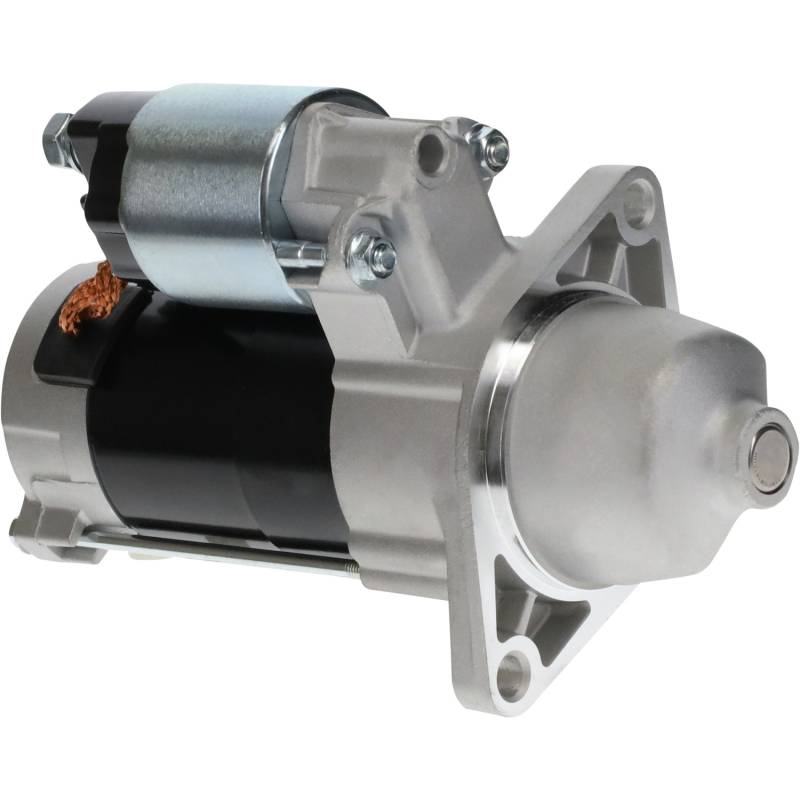

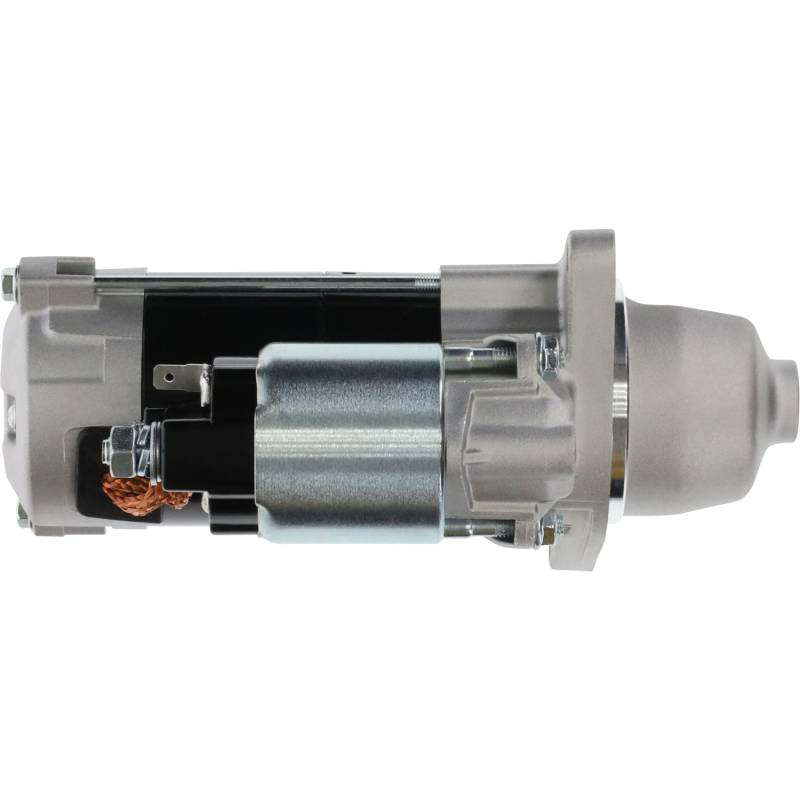

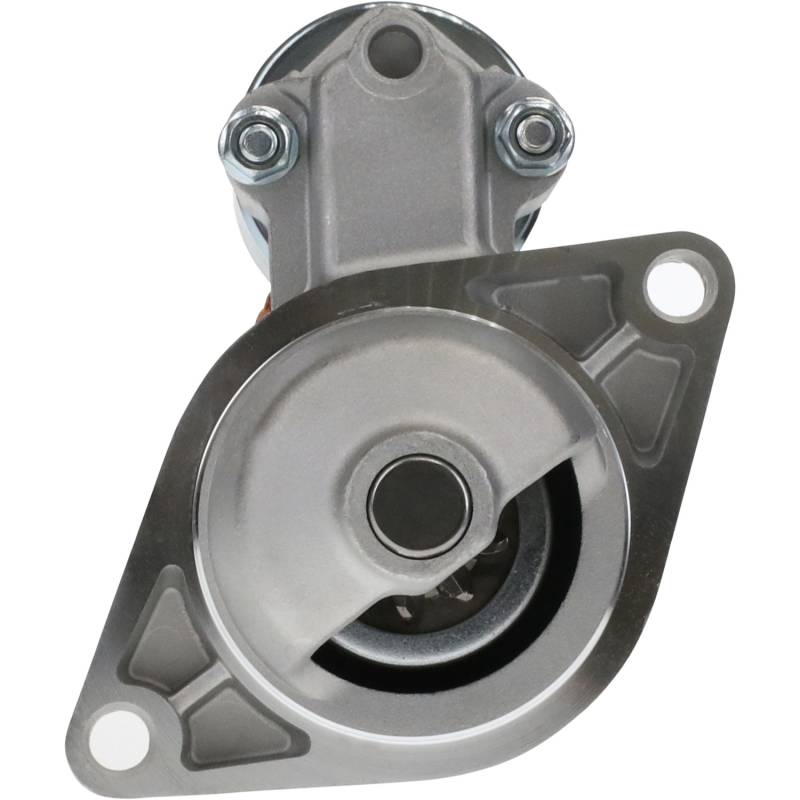

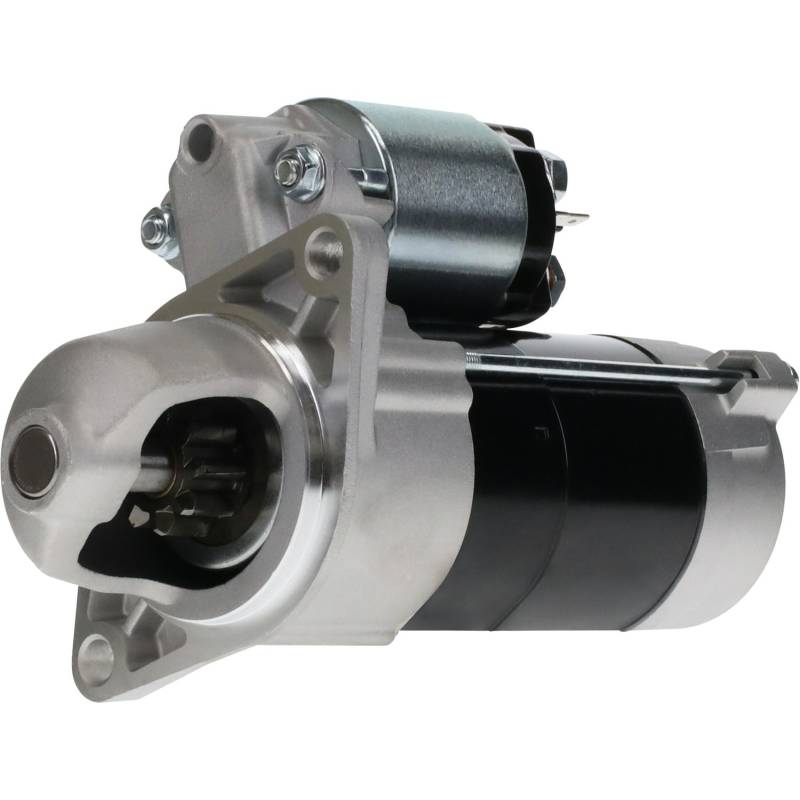

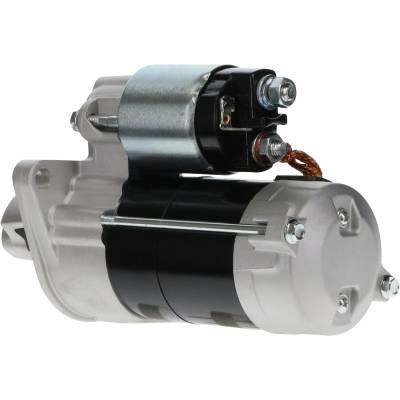

12V Starter Motor Compatible With 1977-2004 M-50B M2-12 M3-20 M3-20A M3-20B Inboard Diesel 2-4

17354A1
UNIVERSAL MARINE OEM PART NUMBERS:
• 299512
• 301295

DENSO / NIPPONDENSO PART NUMBERS:
• 028000-7460 / 0280007460
• 028000-7461 / 0280007461
• 028000-7462 / 0280007462
• 028000-7470 / 0280007470
• 028000-7471 / 0280007471
• 028000-7472 / 0280007472
• 028000-9570 / 0280009570
• 9702809-746 / 9702809746

KUBOTA PART NUMBERS (Cross-Reference):
• 15231-63012 / 1523163012
• 15231-63013 / 1523163013
• 15231-63014 / 1523163014
• 15231-63015 / 1523163015
• 15231-63016 / 1523163016
• 15271-63014 / 1527163014
• 15271-63C13 / 1527163C13
• 16097-61361 / 1609761361
• 19293-63011 / 1929363011

AFTERMARKET PART NUMBERS:
• 20513040 (Prestolite)
• 9-141-327 (Magneton)
• 91-29-5112N, 91-29-5112
• DXS532, RXS470
• 0-986-012-221
• 10461646
• 69022
• RS41277

SPECIFICATIONS:
• Type: PMGR
• Voltage: 12 Volts
• Power: 0.95 KW
• Rotation: Clockwise (CW)
• Teeth: 9
• Mounting Hole 1: M10-1.25 Threaded
• Mounting Hole 2: M10-1.25 Threaded
• Weight: 6.6 lbs / 3 kg

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $169.47
Sale: $96.84
Save: 43%
Save: $72.63
Qty:
Free Shipping!

Description

UNIVERSAL MARINE INBOARD ENGINES:

2-CYLINDER MODELS:
• 5411 - 2cyl 11HP Diesel - 1977, 1978, 1979, 1980, 1981, 1982
• M-12 - 2cyl 10HP Diesel - 1983, 1984, 1985, 1986, 1987, 1988
• M-15 - 2cyl 11HP Diesel - 1982, 1983
• M2-12 - 2cyl 11HP Diesel - 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997

3-CYLINDER MODELS:
• 5421 - 3cyl 21HP Diesel - 1978, 1979, 1980, 1981
• M-25 - 3cyl 21HP Diesel - 1981, 1982, 1983, 1984, 1985, 1986
• M-25 XP - 3cyl 23HP Diesel - 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993
• M-25 XPA - 3cyl 23HP Diesel - 1994, 1995, 1996, 1997, 1998, 1999
• M3-20 - 3cyl 18HP Diesel - 1988, 1989, 1990, 1991, 1992, 1993
• M3-20A - 3cyl 18HP Diesel - 1994, 1995, 1996, 1997
• M3-20B - 3cyl Diesel - 1998, 1999, 2000, 2001, 2002, 2003, 2004

4-CYLINDER MODELS:
• M-50B - 4cyl Diesel - 1998, 1999, 2000, 2001, 2002, 2003, 2004

NOTES:
• PMGR Starter Type
• 12V / 0.95 KW
• 9 Tooth Pinion
• Clockwise Rotation
• M10-1.25 Threaded Mounting Holes
• Solenoid has single wire lead from battery stud
• Also available in OEM Bosch: 17354OEM
• Verify OEM part number before ordering
