OEM PART NUMBERS:
• Case IH / CNH: 87652089 / 87755553 / 87361085 / 47744887
• Letrika (Iskra): 11.203.493 / 11203493 / 11.203.729 / 11203729 / 11.203.823 / 11203823
• Letrika (Iskra): AAK5591 / AAK5745 / AAK5760 / IA1225
• MAHLE: MG443
• Lucas: LRA03787
• AC DRA0262
• Lombardini: 5840260 / 5840.260

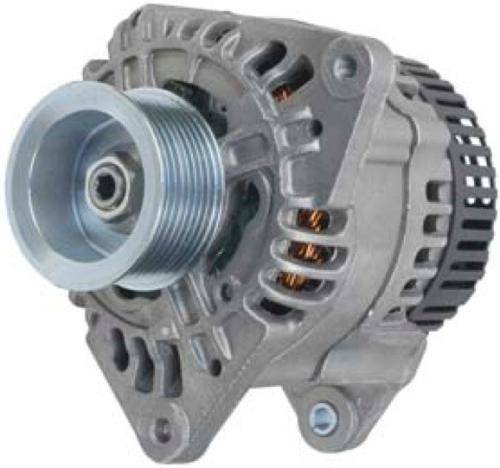

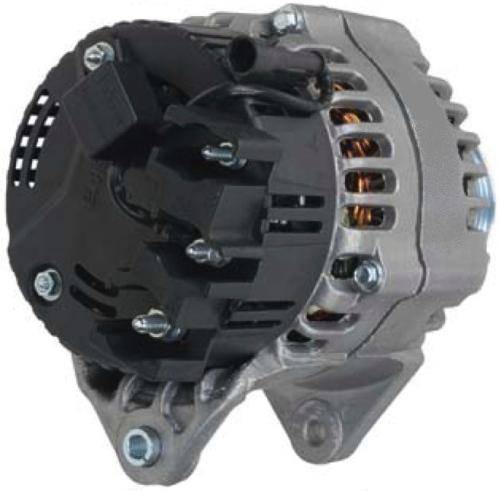

SPECIFICATIONS:
• Type: Alternator
• Design: Letrika (Iskra) Type PMA (Permanent Magnet)
• Voltage: 12V
• Amperage: 120A
• Rotation: CW (Clockwise)
• Fan: External
• Regulator: Internal
• Pulley: 8-Groove Serpentine (S8) 71.6mm OD Solid
• B+ Terminal: M6x1.0
• D+ Terminal: M5x0.8
• W Terminal: M5x0.8
• Mount Hole 1: M8x1.25 Threaded
• Mount Hole 2: 8.2mm Unthreaded
• Mount Hole 3: 8.2mm Unthreaded
• Polarity: Negative
• Weight: 13.4 lbs / 6.09 kg
• Condition: New
CASE IH MAXXUM APPLICATIONS:
• MXM120 / MXM130 / MXM140 / MXM155 / MXM175 / MXM190 (2002-2008)
NEW HOLLAND TM / TV APPLICATIONS:
• TM115-TM190 (1999-2008) / TV145 Bi-Directional (2004-2008)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
