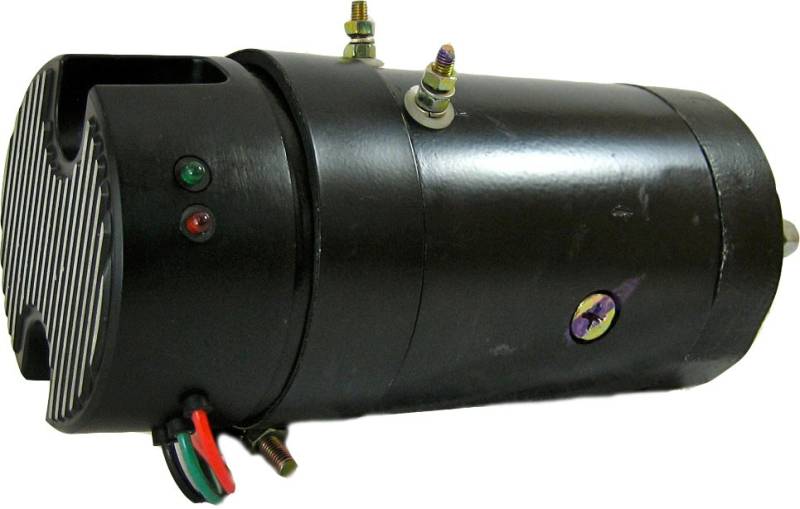

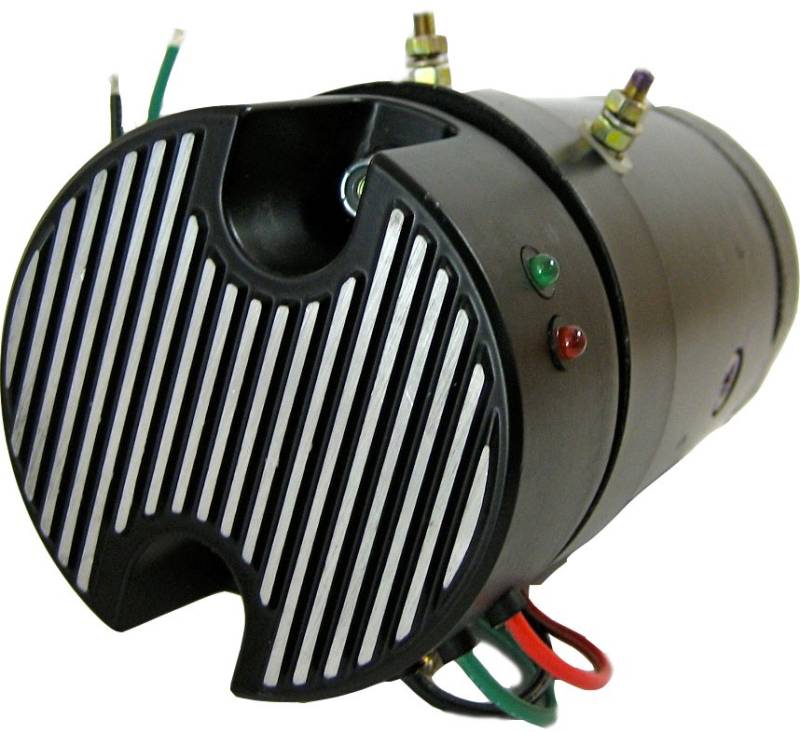

12V Generator With Regulator Compatible With 1965-1969 Harley-Davidson Fl Series 1979-1984 Xlh

HARLEY-DAVIDSON OEM:
• 29975-65 / 2997565
• 29975-65A / 2997565A
• 29975-65B / 2997565B
• 29975-65C / 2997565C
• 29975-65TA / 2997565TA
• 29978-77 / 2997877
• 29978-77A / 2997877A

HITACHI OEM:
• G113-01 / G11301
• G113-01A / G11301A

SPECIFICATIONS:
• Type: Generator with Regulator
• Voltage: 12V DC
• Amperage: 10 Amps
• Rotation: CCW (Counterclockwise)
• Shaft OD: 13.2mm / 0.52in
• Shaft: 4 Straight Splines, Keyway Behind Threads
• Terminal 1 Size: 10-32
• Terminal 2 Size: 10-32
• Overall Length: 233.6mm / 9.197in
• Field Housing OD: 95.1mm / 3.744in
• Finish: Black
• Includes: Voltage Regulator
• Weight: 10 lbs

FITS MOTORCYCLES:
• FL Series 12V (1965-1969)
• XLCH Sportster 1000cc (1975-1978)
• XLH Sportster 1000cc (1979-1984)
• XLHA Sportster Anniversary 1000cc (1982)
• XLS Roadster 1000cc (1979-1984)
• XLSA Roadster Anniversary 1000cc (1982)
• XLX-61 1000cc (1983-1984)
• XR1000 1000cc (1983-1984)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
