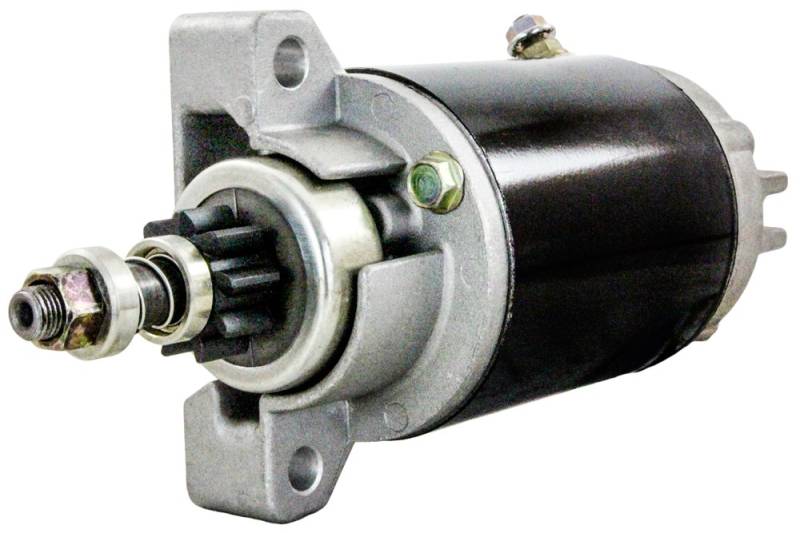

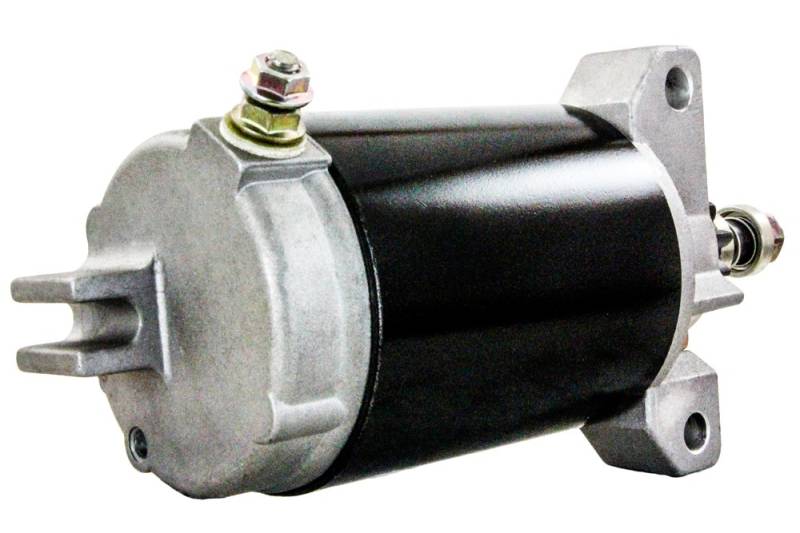

New 12V Ccw Pmdd Starter Compatible With 1998-2001 Mariner Marine 25E 25Eh 25El 25Elh 25Elpt B/F

YAMAHA-BUILT 30.4CI 2-CYLINDER 4-STROKE POWERHEAD FAMILY (PRIMARY ENGINE):
• 30.4 cubic inch (498cc) 2-Cylinder 4-Stroke gasoline powerhead manufactured by Yamaha
• Sold under Mercury Marine, Mariner Marine, and Yamaha brand designations during 1998-2008
• Mechanically the same powerhead with different cosmetic branding
• "B/F" designation = "Big Foot" model variant

MARINER MARINE 25HP B/F 4-STROKE OUTBOARDS (1998-2001):
• 1998-2001 Mariner Marine 25E B/F 4-Stroke 25HP Outboard — 30.4ci (498cc) 2-Cyl
• 1998-2001 Mariner Marine 25EH B/F 4-Stroke 25HP Outboard — 30.4ci (498cc) 2-Cyl Hand-tilt
• 1998-2001 Mariner Marine 25EL B/F 4-Stroke 25HP Outboard — 30.4ci (498cc) 2-Cyl Long Shaft
• 1998-2001 Mariner Marine 25ELH B/F 4-Stroke 25HP Outboard — 30.4ci (498cc) 2-Cyl Long Shaft Hand-tilt
• 1998-2001 Mariner Marine 25ELPT B/F 4-Stroke 25HP Outboard — 30.4ci (498cc) 2-Cyl Long Shaft Power Trim
• Note: Mariner brand discontinued in North America after 2001 (continues internationally)

MERCURY MARINE 25HP B/F 4-STROKE OUTBOARDS (1998-2005):
• 1998-2005 Mercury Marine 25E B/F 4-Stroke 25HP Outboard — 30.4ci (498cc) 2-Cyl
• 1998-2004 Mercury Marine 25EH B/F 4-Stroke 25HP Outboard — 30.4ci (498cc) 2-Cyl Hand-tilt
• 1998-2005 Mercury Marine 25EL B/F 4-Stroke 25HP Outboard — 30.4ci (498cc) 2-Cyl Long Shaft
• 1998-2005 Mercury Marine 25ELH B/F 4-Stroke 25HP Outboard — 30.4ci (498cc) 2-Cyl Long Shaft Hand-tilt
• 1998-2005 Mercury Marine 25ELPT B/F 4-Stroke 25HP Outboard — 30.4ci (498cc) 2-Cyl Long Shaft Power Trim

YAMAHA F25 / T25 / F25A / FT25B 4-STROKE OUTBOARDS (1998-2008):
• 2000 Yamaha Outboard Motors F25EH (Hand-tilt)
• 1998-2008 Yamaha Outboard Motors F25ELH 25HP 4-Stroke (Long Shaft Hand-tilt)
• 1998-2008 Yamaha Outboard Motors F25ELR 25HP 4-Stroke (Long Shaft Remote)
• 1998-2008 Yamaha Outboard Motors F25ESH 25HP 4-Stroke (Short Shaft Hand-tilt)
• 2001-2008 Yamaha Outboard Motors F25ESR 25HP 4-Stroke (Short Shaft Remote)
• 2000 Yamaha Outboard Motors F25MH 25HP 4-Stroke (Manual Tilt Hand-tilt)
• 1999-2008 Yamaha Outboard Motors F25MLH 25HP 4-Stroke (Manual Tilt Long Shaft Hand-tilt)
• 1999-2008 Yamaha Outboard Motors F25MSH 25HP 4-Stroke (Manual Tilt Short Shaft Hand-tilt)
• 1998-2008 Yamaha Outboard Motors F25TLR 25HP 4-Stroke (Tiller Long Shaft Remote)
• 2001-2006 Yamaha Outboard Motors T25TLR 25HP 4-Stroke (High-Torque Tiller Long Shaft Remote)
• 2000-2009 Yamaha Outboard Motors FT25B High-Thrust 25HP 4-Stroke (Sailboat / Heavy-Duty Variant)

MERCURY/MARINER MODEL NAMING DECODER:
• E = Standard / EH = Hand-tilt / EL = Extra Long shaft / ELH = Extra Long Hand-tilt
• ELPT = Extra Long Power Trim / B/F = Big Foot model variant

YAMAHA F25/T25 NAMING DECODER:
• F = 4-Stroke prefix / T = High-Torque variant
• EH = Electric start Hand-tilt / ELH = Electric Long shaft Hand-tilt / ELR = Electric Long shaft Remote
• ESH = Electric Short shaft Hand-tilt / ESR = Electric Short shaft Remote
• MH = Manual tilt Hand-tilt / MLH = Manual Long shaft Hand-tilt / MSH = Manual Short shaft Hand-tilt
• TLR = Tiller Long shaft Remote / FT = High-Thrust variant for sailboats and displacement hulls

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 9-tooth pinion, 1.138" (28.9mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original UT/JE design
• Field case length: 3.43" / 87.1mm
• Mounting Hole 1: 9.0mm ID unthreaded
• Mounting Hole 2: 8.0mm ID unthreaded
• Mounting Hole 3: 8.0mm SLOT ID unthreaded (oblong slot — important fitment detail)
• Wattage: 65 Watts
• Weight: 5.45 lbs (2.48 kg)
• OEM Manufacturer: Johnson Electric / United Technologies
• Predecessor catalog #: 18434
• Will NOT fit Mercury / Mariner 9.9HP / 15HP / 20HP outboards (different starter family — series)
• Will NOT fit Mercury / Mariner 30HP / 40HP / 50HP / 60HP outboards (different starter family)
• Will NOT fit Mercury / Mariner 25HP 2-Stroke outboards (different starter family — series)
• Will NOT fit Yamaha F30 / F40 / F50 / F60 4-Stroke outboards (different starter family)
• Will NOT fit Yamaha F9.9 / F15 / F20 4-Stroke outboards (different starter family — verify your specific model)
• Will NOT fit Yamaha post-2008 F25 4-Stroke (different starter design 67C series — verify your OEM number)
• Always verify your OEM part number from the original starter unit before ordering
