OEM PART NUMBERS:
• Mahle: IS 1059 / IS1059
• Bosch: 0-001-223-502 / 0001223502
• John Deere: RE501347
SPECIFICATIONS:

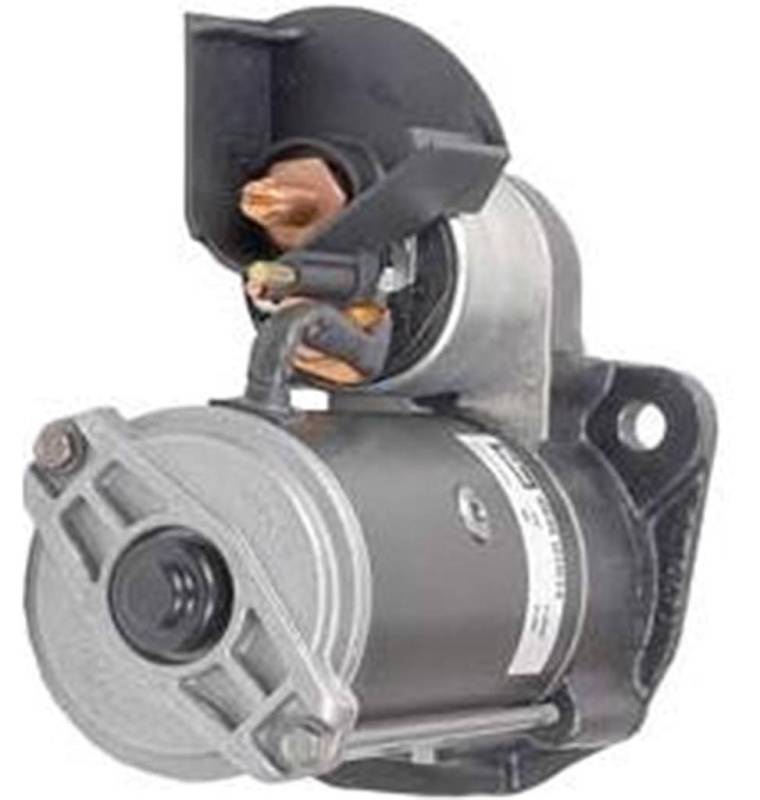

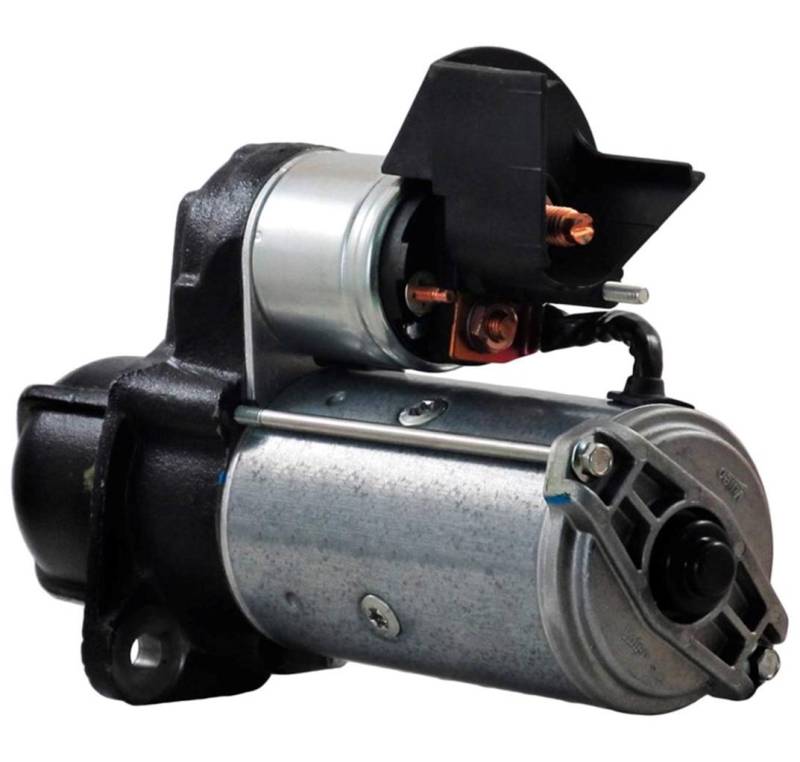

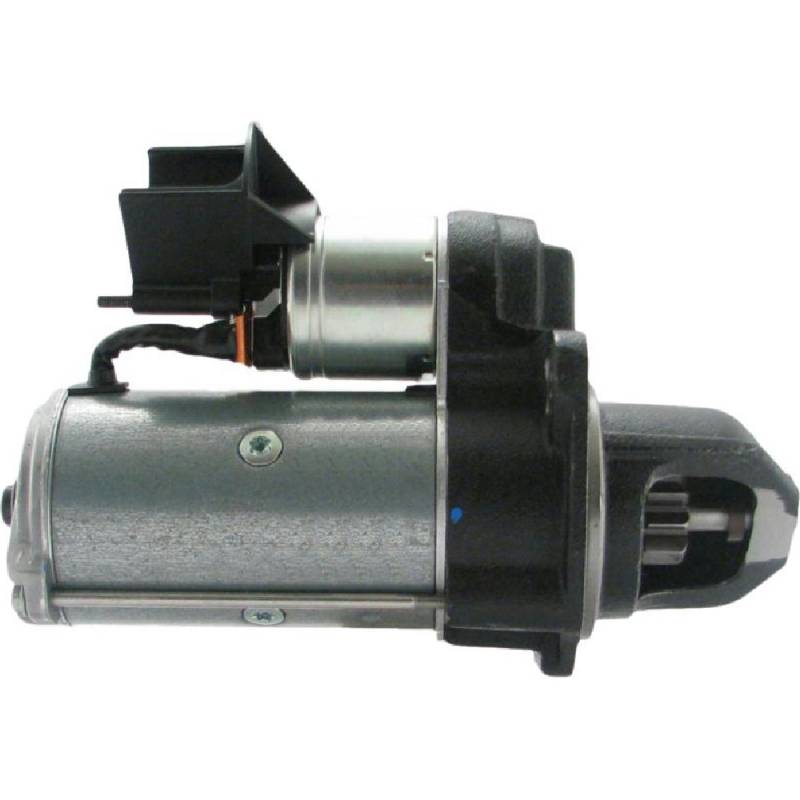

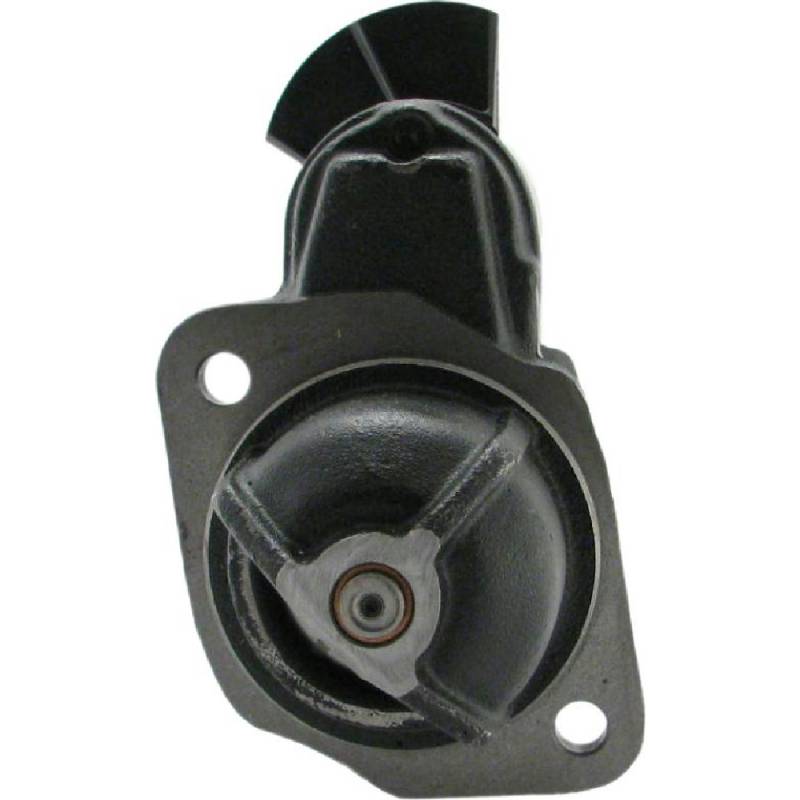

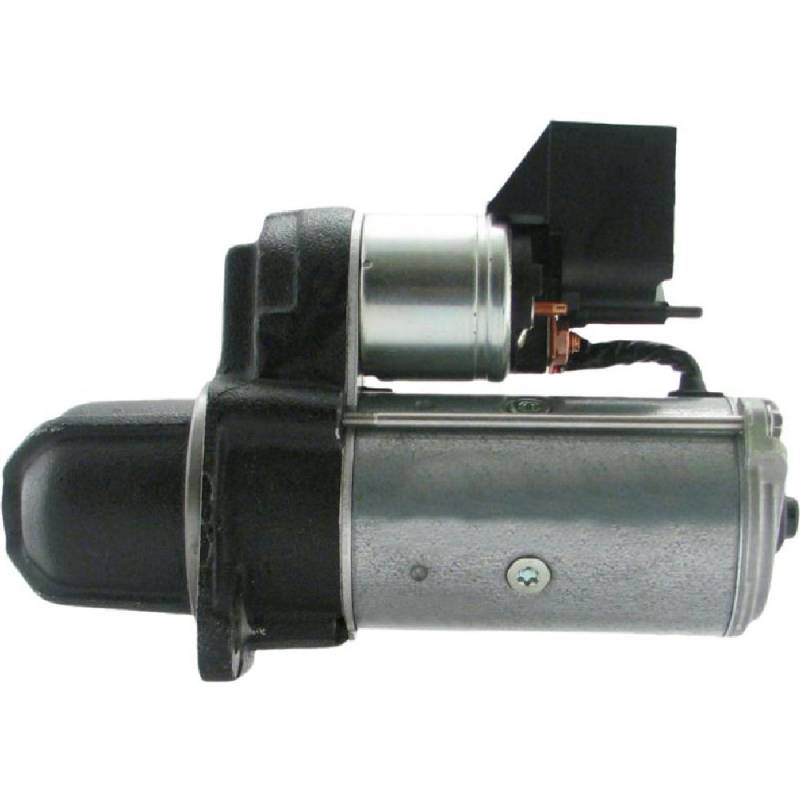

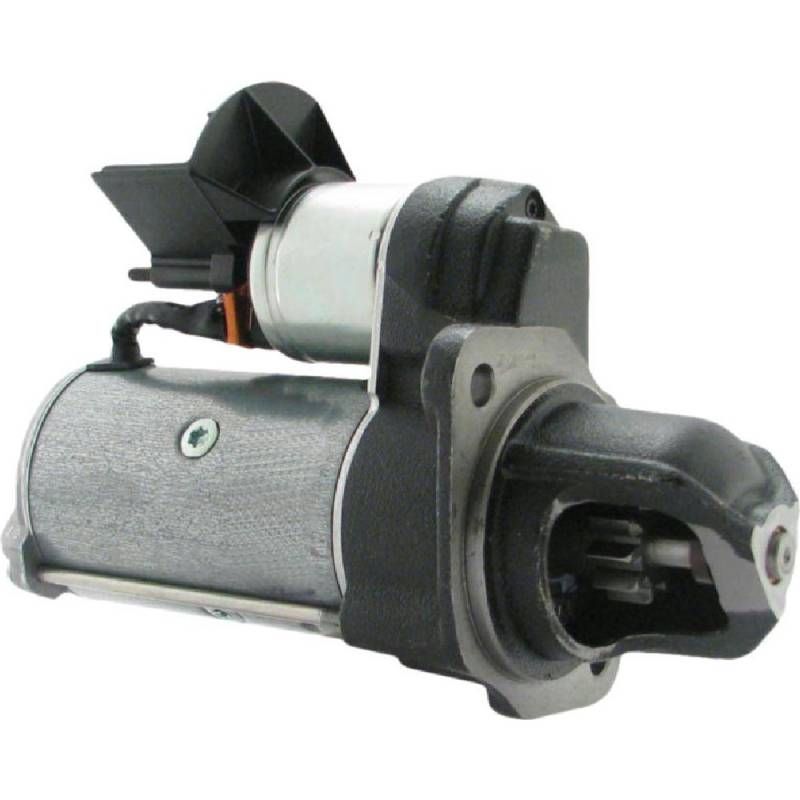

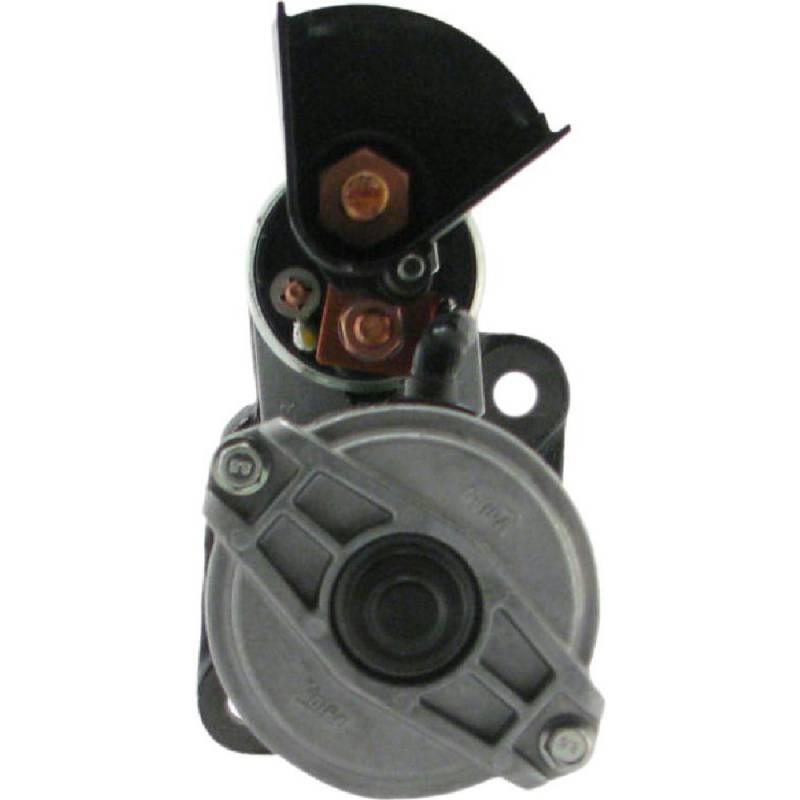

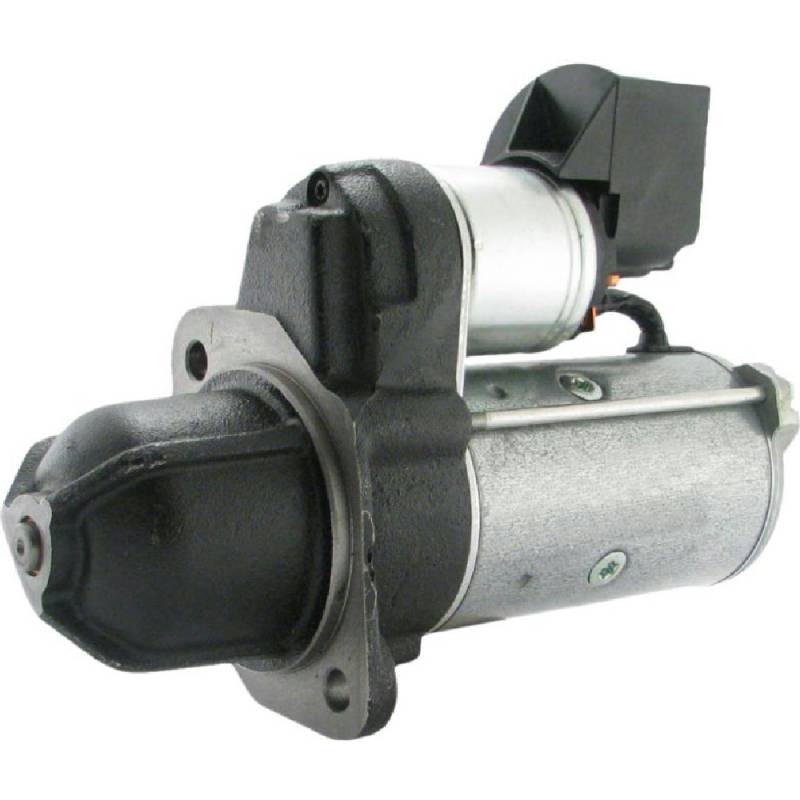

• Type: Starter Motor (PLGR)
• Voltage: 12V
• Power: 2.8 kW
• Rotation: Clockwise (CW)
• Pinion Teeth: 10
• Gear OD: 31.7 mm / 1.248 in
• Design: Mahle (Letrika/Iskra) Service Replacement
• Mounting: M10 x 1.5 thru-bolts, 10.4 mm unthreaded ears
• Weight: 18.8 lbs / 8.54 kg
• Solenoid: Integrated, with cover and plastic nut
JOHN DEERE — UTILITY / FARM / SKID STEER (1991-2005):
• John Deere 5105 Utility Tractor Powertech 2.9L Diesel (1999-2001)
• John Deere 5205 Utility Tractor Powertech 2.9L Diesel (2002-2005)
• John Deere 5210 Utility Tractor Powertech 2.9L Diesel (1998-2001)
• John Deere 5220 Utility Tractor Powertech 2.9L Diesel (2002-2005)
• John Deere 5310 / 5310N Utility Tractor Powertech 2.9L Diesel (1998-2001)
• John Deere 5320 / 5320N Utility Tractor Powertech 2.9L Diesel (2002-2005)
• John Deere 5310 / 5310N Farm Tractor 2.9L Diesel — Valeo System Early (1998-2000)
• John Deere 5410 / 5410N Farm Tractor 4.5L Diesel — Valeo System Early (1998-2000)
• John Deere 240 Skid Steer Loader 3029D 46HP 2.9L Diesel to S/N 196418 (1999-2003)
• John Deere 250 Skid Steer Loader 3029T 61HP 2.9L Diesel to S/N 197301 (1999-2003)
• John Deere 260 Skid Steer Loader 3029T 69HP 2.9L Diesel to S/N 197587 (1999-2003)
• John Deere 8875 Skid Steer Loader 3029 2.9L Diesel — Valeo System (1991-1998)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
