Platinum Top End Rebuild Kit Standard Bore 78Mm Compatible With 1993 Sea-Doo Xp 650 Rotax 657 649Cc

OEM PART NUMBERS:
• BRP/Sea-Doo Piston: 290-888-577 / 290888577
• BRP/Sea-Doo Piston: 420-888-577 / 420888577

SPECIFICATIONS:
• Type: Platinum Top End Rebuild Kit (Standard Bore)
• Standard Bore: 78mm
• Stroke: 68mm
• Displacement: 649cc
• Engine: Rotax 657 (First Gen) 2-Cylinder 2-Stroke
• Induction: Rotary Valve
• Cooling: Liquid-Cooled
• Piston Type: Platinum — Hardened Aluminum, Nonabrasive Coating
• Weight: 5 lbs / Condition: New

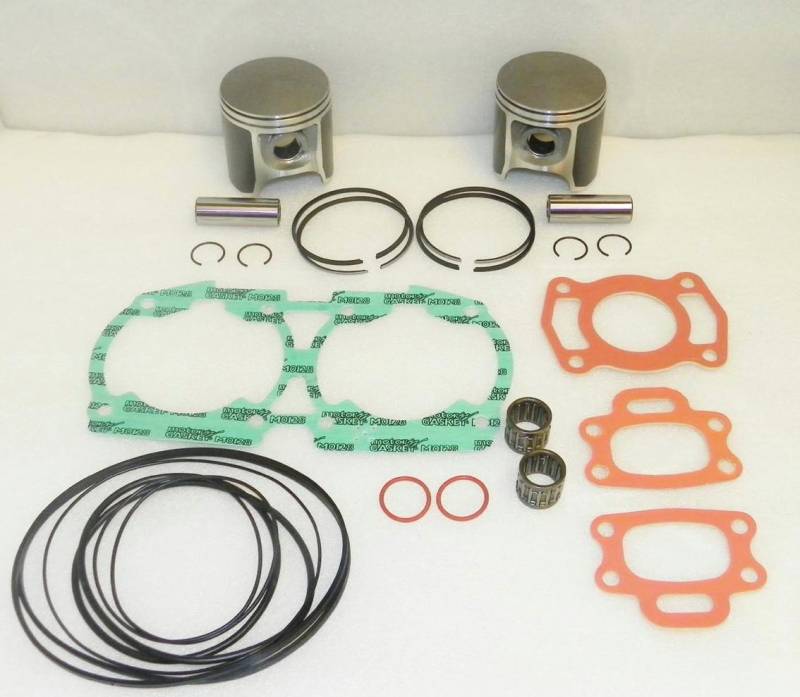

KIT CONTENTS (Complete 2-Cylinder PLATINUM):
• (2) Platinum Pistons — Standard Bore 78mm
• (2) Ring Sets / (2) Wrist Pins / (4) Circlips
• Top End Bearings (Wrist Pin Bearings)
• Head Gaskets / Base Gaskets
• Intake and Exhaust Gaskets
• All Required Top End Gaskets

BORE SIZE CHART (Sea-Doo XP 650 Rotax 657 — 1993):
• Standard: 78mm (010-816-20P) — THIS KIT (Platinum)
• Standard: 78mm (010-816-20) — Non-Platinum

APPLICATIONS:
• Sea-Doo XP 650 Rotax 657 649cc (1993 ONLY)
