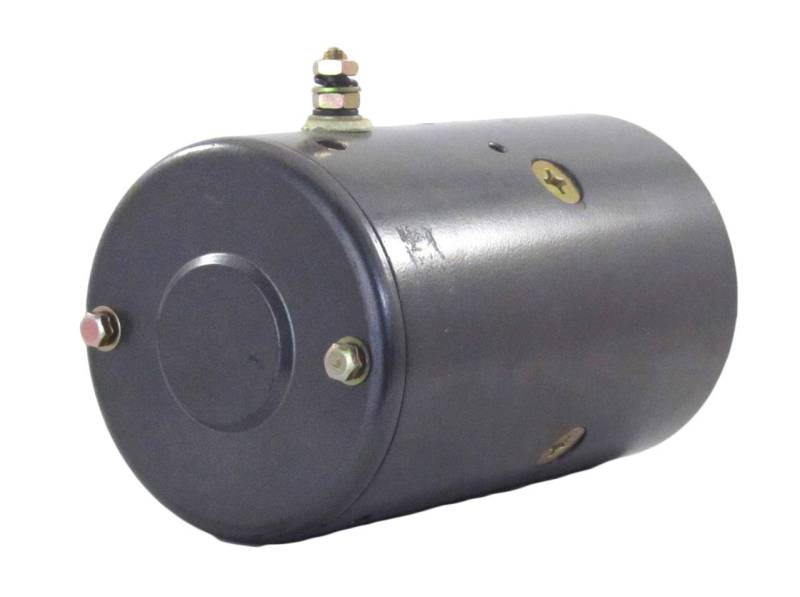

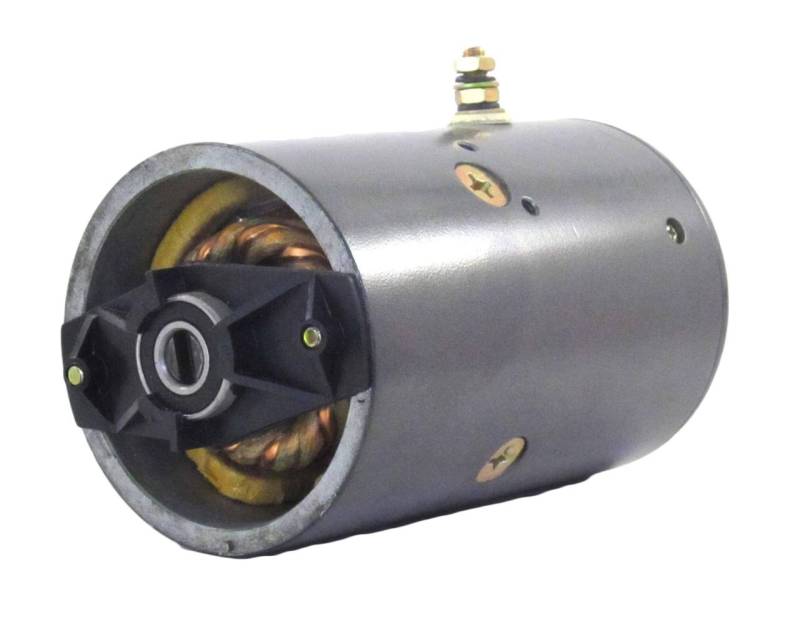

Waltco Lift Gate Motor Compatible With Fenner Stone Js Barnes 12V W-8934 M3200 2200-949 Mmy-4002

10715*3
FENNER STONE OEM PART NUMBERS:
• 19-17110100 (1917110100)
• 19-17110300 (1917110300)
• 19-171103-00
• MI-0399-00 (M1039900)
• MI-0499-92 (M1049992)

JS BARNES OEM PART NUMBERS:
• 2200-794 (2200794)
• 2200-949 (2200949)

MTE HYDRAULICS OEM PART NUMBERS:
• 39200399

PRESTOLITE OEM PART NUMBERS:
• 46-2018, 46-933, 46-992
• 46-2520, 46-3550
• MFX-4001 (MFX4001), MFX-4001S (MFX4001S)
• MFX-4002 (MFX4002), MFX-4002S
• MMY-4002 (MMY4002), MMY-4002S (MMY4002S)
• MMY-6105, MMW-4004

WESTERN MOTOR OEM PART NUMBERS:
• W-8934
• M3200, M-3200HD (M3200HD)

REFERENCE NUMBERS:
• 422888, 50021054, 85456, 960373
• DCM-0006 (DCM0006)
• 9130150039, 9130450039-12
• LPL-0001

SPECIFICATIONS:
• Voltage: 12V DC
• Power: 2.0kW / 2.68HP
• Rotation: Clockwise (CW)
• Shaft OD: 15mm
• Overall Length: 206mm / 8.110 in
• Weight: 18 lbs

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $269.15
Sale: $153.80
Save: 43%
Save: $115.35
Qty:
Free Shipping!

Description

WALTCO APPLICATIONS:
• Waltco Lift Gate Motors
• Waltco Hydraulic Systems

MTE HYDRAULICS APPLICATIONS:
• MTE Hydraulic Power Units
• MTE Pump Motor Systems

FENNER FLUID POWER APPLICATIONS:
• Fenner Stone Hydraulic Units
• Fenner Misc Equipment Pump Motors (1982-1984)
• Fenner Fluid Power Systems

STONE INDUSTRIES APPLICATIONS:
• Stone Industries Misc Equipment Pump Motors (1969-1983)
• Stone Industries Hydraulic Units

JS BARNES / HALDEX-BARNES APPLICATIONS:
• JS Barnes Hydraulic Pump Motors
• Haldex-Barnes Hydraulic Systems

MAXON APPLICATIONS:
• Maxon Lift Gate Motors
• Maxon Hydraulic Lift Systems

ADDITIONAL APPLICATIONS:
• Parker Hannifin Hydraulic Units
• Borg Warner Equipment
• Venco Hydraulic Systems
• Skinmore Corp Hydraulic Pump Motors (1972-1979)

MOTOR SPECIFICATIONS:
• Voltage: 12V DC
• Power: 2.0kW / 2.68HP
• Rotation: Clockwise (CW)
• Shaft Outside Diameter: 15mm (0.591 in)
• Shaft Type: Slotted
• Terminal Size: 5/16-24
• Field Housing OD: 114.5mm / 4.508 in
• Overall Length: 206mm / 8.110 in
• Bearing: Single Ball Bearing
• Field Coils: 4-Field Coil Design
• Weight: 18 lbs

Details

Shipping Information

  • Item Requires Shipping
  • 18.0 lbs.
  • W7.0000” x H7.0000” x L11.0000”
  • Free Shipping!
