Platinum Rebuild Kit 1.00Mm Over 80.90Mm Compatible With 1998-2005 Yamaha Gp 800 Gp800r 2000-2001 Xl

OEM PART NUMBERS:
• Yamaha: 66E-11631-00-A0 / 66E1163100A0
• Yamaha: 66E-11631-01-A0 / 66E1163101A0
• Yamaha: 66E-11631-00-89 / 66E116310089
• Yamaha: 66E-11631-00-90 / 66E116310090

SPECIFICATIONS:
• Type: Platinum Rebuild Kit (1.00mm Oversize Bore)
• Piston Finish: Platinum — Anodized Top, Graphite Coated Skirts
• Standard Bore: 79.90mm / Oversize: 80.90mm (1.00mm Over)
• Maximum Oversize — Resleeving Required Beyond 1.00mm
• Engine: Yamaha 800cc (66E) 2-Cylinder 2-Stroke
• Power Valves: YPVS (Yamaha Power Valve System)
• Cooling: Liquid Cooled / CDI Ignition / Oil Injection
• Weight: 5 lbs / Condition: New

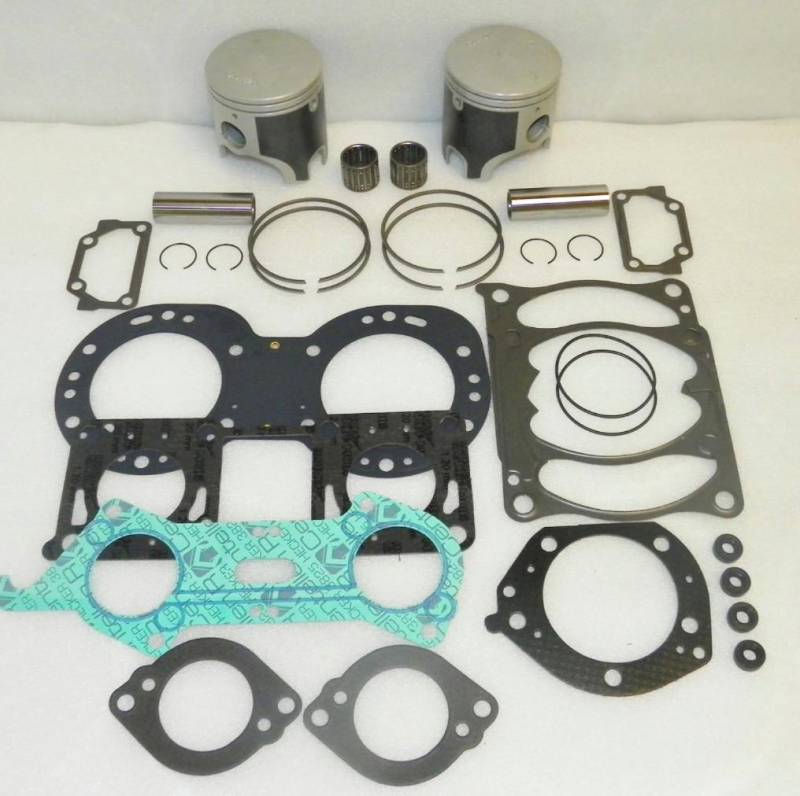

KIT CONTENTS (Complete 2-Cylinder Top End):
• (2) Platinum Cast Pistons — Anodized Top, Graphite Coated
• (2) Ring Sets / (2) Wrist Pins / (2) Bearings / (4) Circlips
• Complete Gasket Set (Head, Base, Exhaust Gaskets, O-Rings)

BORE SIZE CHART — PLATINUM Yamaha 800:
• Standard: 79.90mm
• 0.25mm Over: 80.15mm
• 0.50mm Over: 80.40mm
• 0.75mm Over: 80.65mm
• 1.00mm Over: 80.90mm (010-828-14P) — THIS KIT

APPLICATIONS:
• GP 800 (1998-2000) / GP800R (2001-2005)
• XL 800 (2000-2001) / XLT 800 (2002-2004)

PRODUCT NOTICE:
