OEM PART NUMBERS:
• Prestolite: MBD5112, MBD5112S
• Ohio Motors: D468210XWF02, D468237XWF07A, D468242XWF07, D468247XW07A, D468247XWF07A, D468250XWF07, D468250XWF07A, D468255XWF07A, D482252X7707A
• JS Barnes / Haldex: 2200353, 2200858, 2200980
• JLG: 3160263, 3160264, 7011041
• Western Motor: W-5112, W5112
SPECIFICATIONS:
• Voltage: 24V DC
• Power: 4 HP
• Rotation: CW (Clockwise)
• Field Housing OD: 127mm / 5.000in
• Overall Length: 285mm / 11.220in
• Shaft: Chrysler Amplex Coupler Type
• Terminal 1: 3/8-16
• Terminal 2: 3/8-16
• Bearings: Double Ball Bearing
• Housing: Cast Aluminum Comm. and Drive Ends with Black Field Case
• Weight: 34.5 lbs / 15.68 kg
• Condition: New
APPLICATION:
• JLG 1532E2/1932E2/2032E2/2632E2/2646E2/3246E2 Scissor Lifts (1998-2012)
• Haldex Barnes / Ohio Motors Hydraulic Pump Assemblies

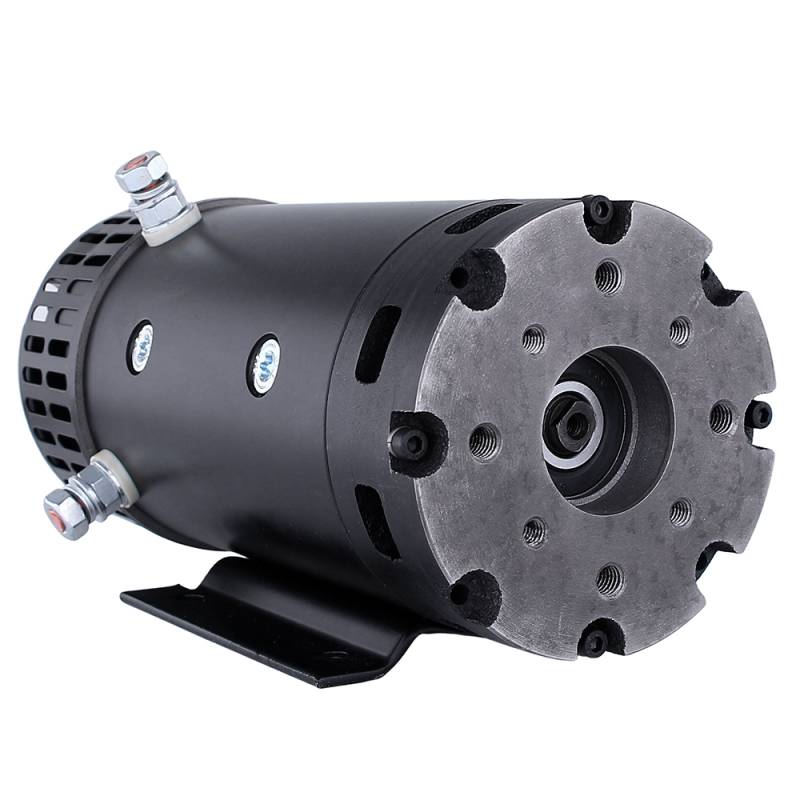

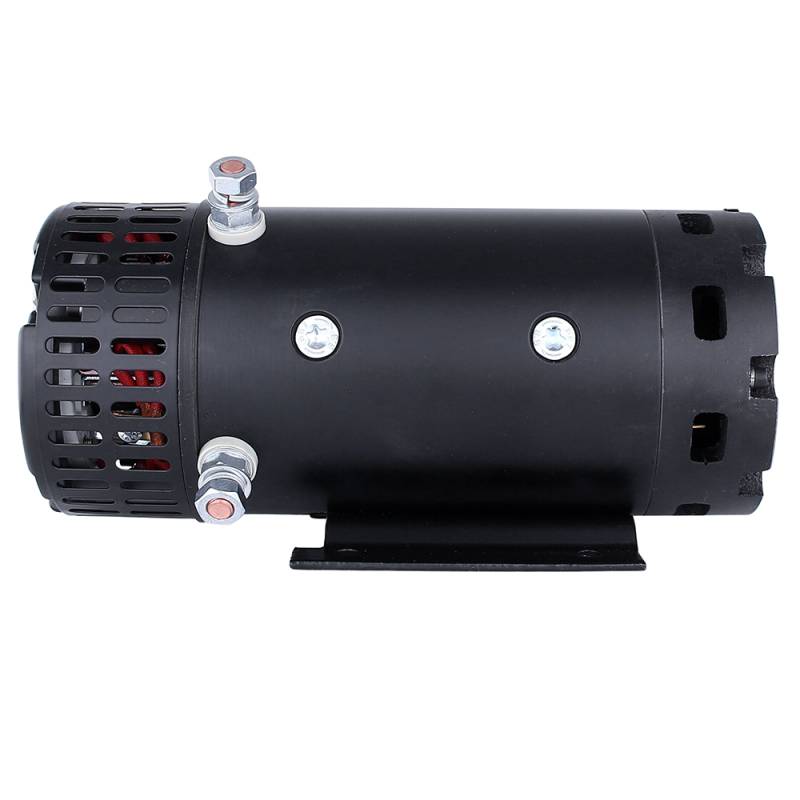

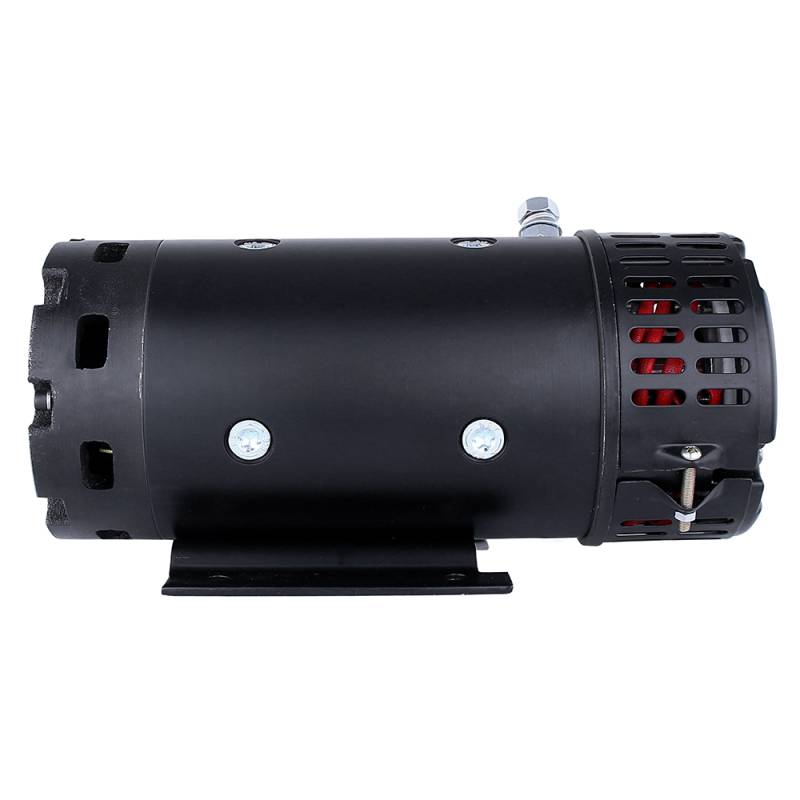

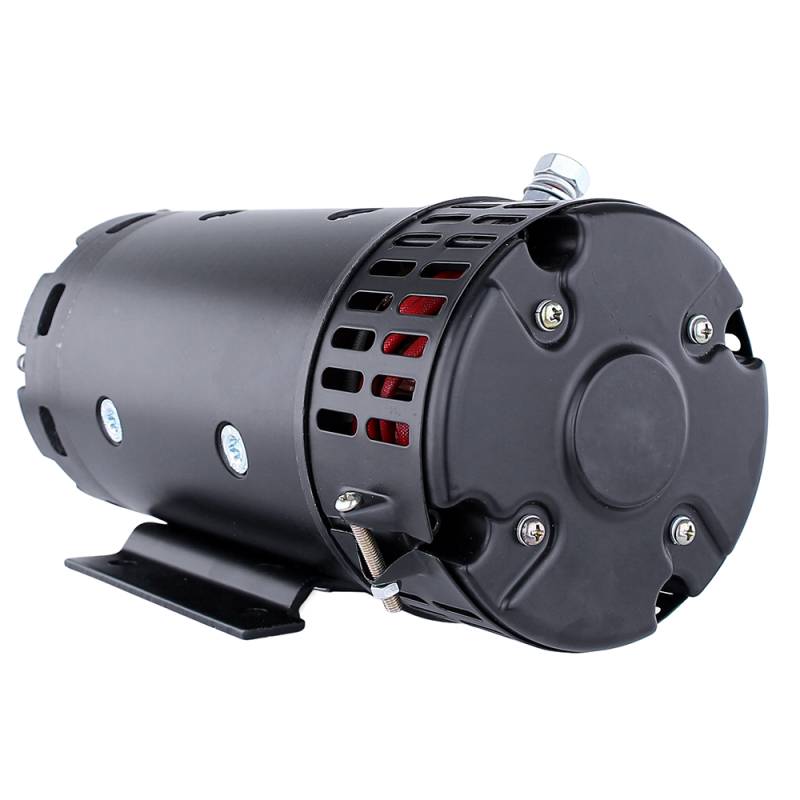

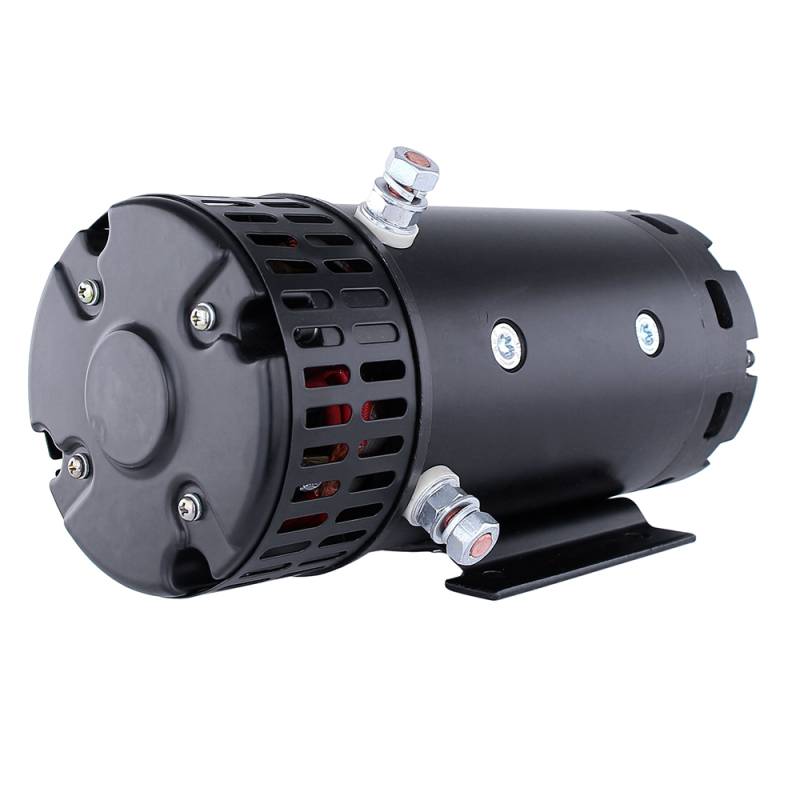

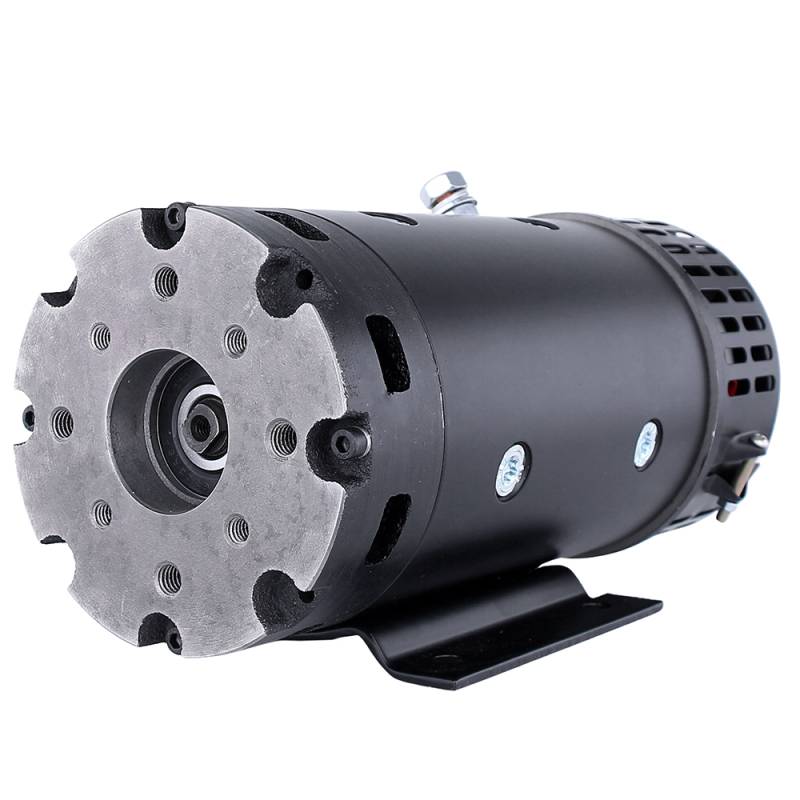

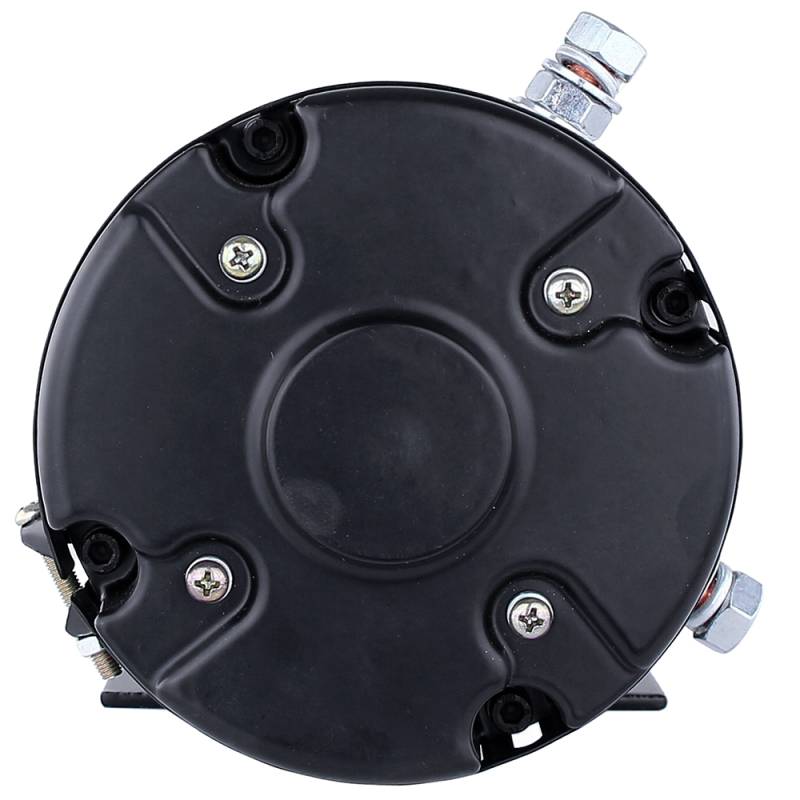

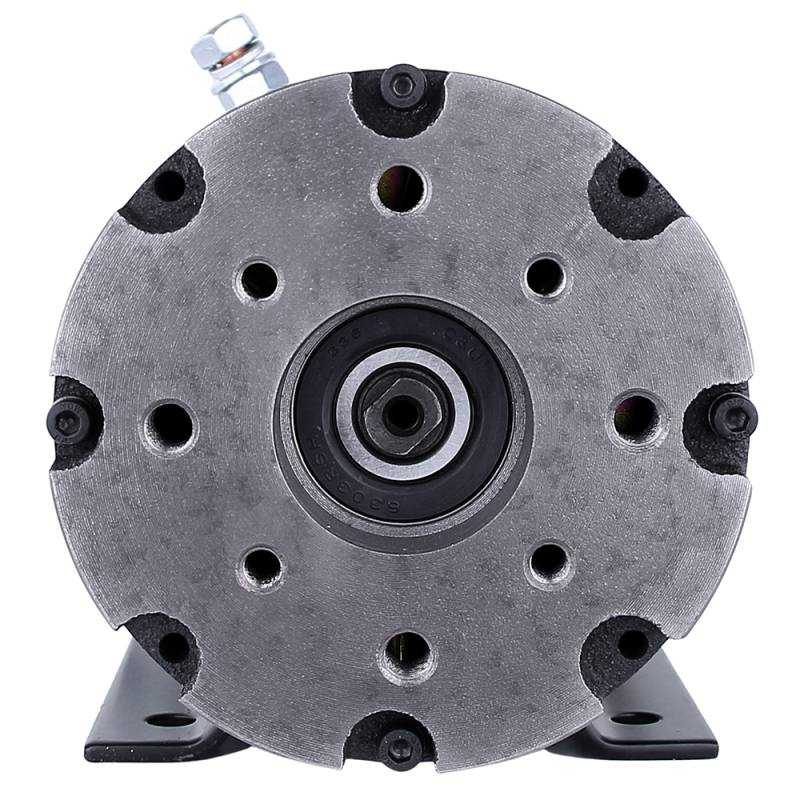

24V Electric Motor for Material Handling Hydraulic Pump Systems
Versatile 24 Volt electric pump motor for hydraulic material handling equipment including JLG E2 series electric scissor lifts and Haldex Barnes hydraulic pump assemblies. This 4 HP clockwise motor delivers strong hydraulic pressure with a Chrysler Amplex coupler type shaft and double ball bearing design. The 127mm diameter cast aluminum housing with black field case is built for continuous duty cycle applications. Replaces Ohio Motors D468210XWF02, D468250XWF07A, Prestolite MBD5112, and Haldex 2200980. Fits JLG 1532E2, 1932E2, 2032E2, 2632E2, 2646E2, and 3246E2 from 1998-2012.
