OEM PART NUMBERS:
• Mercury Marine: 99186 / 991861 / 99186-1 / 99186T
• Mercury Marine: 826729A10 / 99189
• Mercury Marine: 818186A6
• Mercury Marine: 99659 / 99659A
• Mercury Marine: 99659A21 / 99659A22
• Mercury Marine: 99659A40 / 99659A45
AFTERMARKET CROSS REFERENCE:
• API Marine: PT475TN
• Arco Marine: 6278
• 18-6273-1
SPECIFICATIONS:

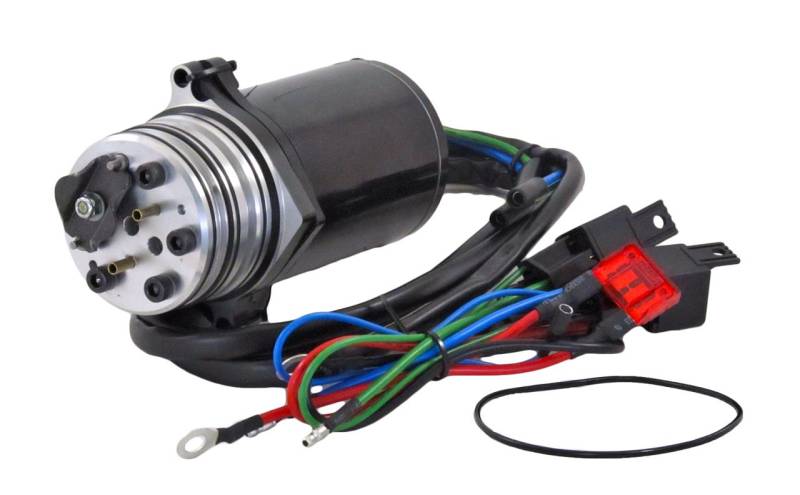

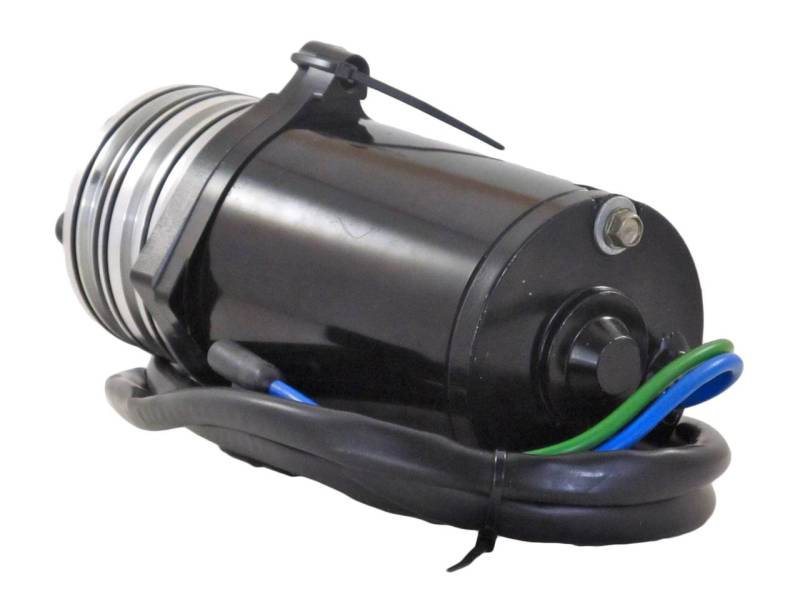

• Type: Tilt Trim Motor & Cartridge Pump Conversion Kit
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 2-Wire (Replaces Older 3-Wire)
• Terminals: Spade (x3)
• Field Housing OD: 78mm / 3.071in
• Overall Length: 172mm / 6.772in
• System: Design I, 3-Ram, Side Fill Integral Trim/Tilt
• Replaces: Square Eaton & Round Style Units

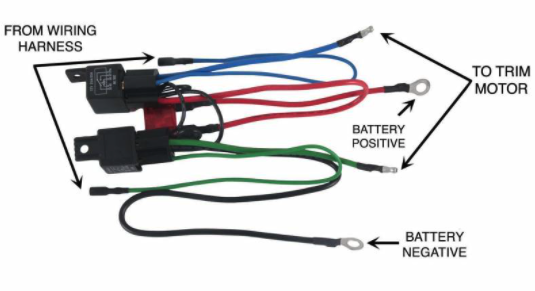

• Includes: Motor, Cartridge Pump, Relay, Wiring Harness, O-Ring
• Weight: 10 lbs
• Condition: New
MERCURY / MARINER APPLICATIONS:
• Mercury/Mariner 35-225HP Outboard (1985-1992)
• All Models with Design I, 3-Ram Trim System
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
