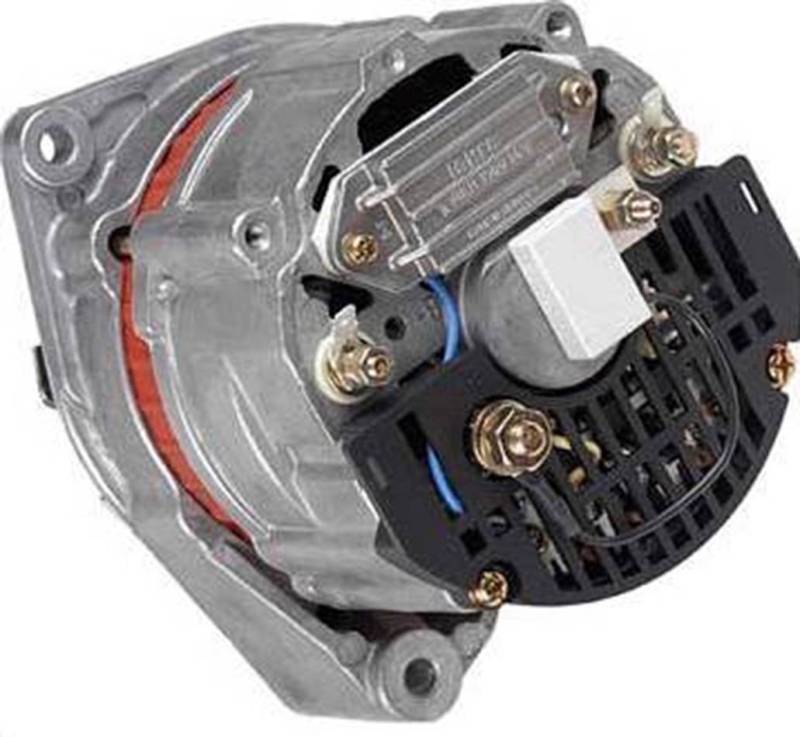

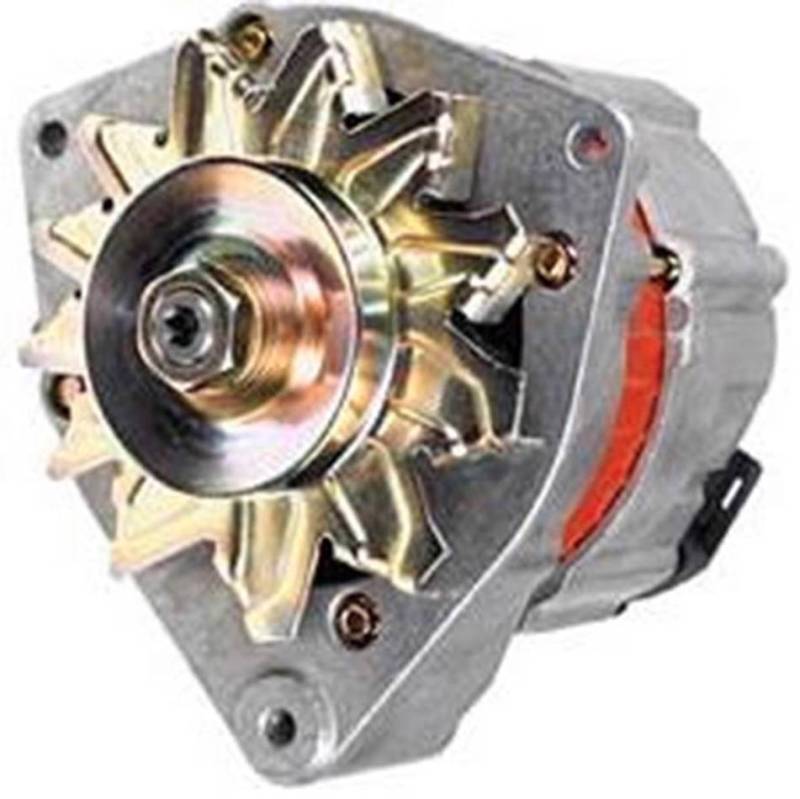

New 12V 60A Alternator Compatible With International Harvester Backhoe Loader 3980 0120400639

14390*1
BOSCH PART NUMBERS:
• 0120400639, 0-120-400-639
• 0120400679, 0-120-400-679
• 0120400680, 0-120-400-680
• 0120400789, 0-120-400-789
• 0120484134, 0-120-484-134
• 0120484233, 0-120-484-233
• 0120488134, 0-120-488-134
• 0120488138, 0-120-488-138
• 0120488233, 0-120-488-233
• 0120489022, 0-120-489-022
• 0120489710, 0-120-489-710
• 0120489711, 0-120-489-711
• 0986031270, 0-986-031-270
• 0986038050, 0-986-038-050
• 0986039800, 0-986-039-800
• 0120400600, 0-120-400-600
• AL911X

CASE IH PART NUMBERS:
• 3218544EX
• 3218544R91
• 1532068C2
• 84535280
• 130100090744

INTERNATIONAL HARVESTER PART NUMBERS:
• 1532068C1
• 3218544EX
• 3218544R91

CLAAS PART NUMBERS:
• 6854980, 685 498 0
• 6005706652

DEUTZ / KHD PART NUMBERS:
• 1163752, 0116 3752, 01163752
• 1163753, 0116 3753, 01163753

DEUTZ-FAHR PART NUMBERS:
• 12911594

FENDT PART NUMBERS:
• G345900011010
• X830060020
• X830060022

HATZ PART NUMBERS:
• 50366500
• 5050440
• 505044010913

HELLA PART NUMBERS:
• 8EL725742-001, 8EL 725 742-001
• 8EL725774-001, 8EL 725 774-001
• 8EL725903-001, 8EL 725 903-001
• 8EL725936-001, 8EL 725 936-001
• 8EL737371-001, 8EL 737 371-001
• 8EL737651-001, 8EL 737 651-001

ISKRA (LETRIKA / MAHLE) PART NUMBERS:
• 11.201.219, 11201219
• 11.201.444, 11201444
• 11.201.499, 11201499
• 11.203.301, 11203301
• 11.203.415, 11203415
• 11.210.499, 11210499
• AAK1182
• AAK1370
• AAK3547
• AAK3574
• AAK4351
• AAK4313
• IA0234
• MG 604, MG604

LIEBHERR PART NUMBERS:
• 6107010, 610 70 10

LUCAS PART NUMBERS:
• LRA617, LRA00617

MAN PART NUMBERS:
• 81261016039, 81.26101-6039

MERCEDES-BENZ PART NUMBERS:
• 61541602, 0061541602, 006 154 16 02

MWM PART NUMBERS:
• 12270186
• 605710100149
• 605710100161

STEYR PART NUMBERS:
• 61000090072

VALEO PART NUMBERS:
• 2522976
• 2940526
• 2950020
• 432869
• 432989
• 433002
• 436135
• 436266
• 436269
• 436414
• NA512
• NG950020

VOLVO PART NUMBERS:
• 6205473

ALSO REPLACES, MERCEDES-BENZ / KOMATSU / KHD GROUP:
• Bosch 0-120-400-634, 0-120-400-709, 9-120-080-031, 9-120-080-083, 0-120-400-788, 0-120-400-798
• Bosch AL916X
• Delco Remy DRA1270, DRA1272
• Iskra IA 0449, IA 0499
• KHD 116-2339, 240-4403, Deutz 01171638
• Lucas LRA02712
• Magneton 9516693, 9515010

SPECIFICATIONS:
• Type: alternator, K1 Type (Bosch design), internal regulator and external fan (IR/EF)
• Voltage: 12 volt
• Output: 60 amp
• Rotation: clockwise (CW)
• Regulator: internal (IR)
• Fan: external (EF)
• Polarity: negative ground
• Mounting: three unthreaded ears, 8.5 mm holes
• B+ terminal: M6-1.0
• Note: capacitor attached to the slip ring end (SRE) housing
• Weight: 11.175 lb (5.08 kg)
• Condition: New aftermarket, not a Bosch branded unit

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $319.80
Sale: $182.74
Save: 43%
Save: $137.06
Qty:
Free Shipping!

Description

CLAAS COMBINES:
• Claas Dominator 48 combine with the Perkins 4.236 3.9L 4-cylinder diesel, 1979-1993
• Claas Dominator 76 combine with the Perkins 6.372 6.1L 6-cylinder diesel, 1979-1993
• Claas Dominator 86 combine with the Mercedes-Benz OM352 5.7L 6-cylinder diesel, 1981-1993
• Claas Dominator 96 combine with the Mercedes-Benz OM352 5.7L 6-cylinder diesel, 1980-1993

DEUTZ-FAHR TRACTORS:
• Deutz-Fahr D6507 tractor with the Deutz F4L912 3.8L 4-cylinder air-cooled diesel, optional internal regulator alternator, 1983-1984
• Deutz-Fahr D7007 tractor with the Deutz F4L912 3.8L 4-cylinder air-cooled diesel, optional internal regulator alternator, 1983-1988
• Deutz-Fahr D7807 tractor with the Deutz F4L913 4.1L 4-cylinder air-cooled diesel, optional internal regulator alternator, 1983-1984

INTERNATIONAL HARVESTER YUMBO EXCAVATORS:
• International Harvester 3964 Yumbo hydraulic excavator (industrial backhoe loader group in the parts catalogs) with the IH D-358 5.9L 6-cylinder diesel, Bosch charging system, 1975-1986
• International Harvester 3965 Yumbo hydraulic excavator (industrial backhoe loader group in the parts catalogs) with the IH D-358 5.9L 6-cylinder diesel, Bosch charging system, 1975-1986
• International Harvester 3980 Yumbo hydraulic excavator (industrial backhoe loader group in the parts catalogs) with the IH D-358 5.9L 6-cylinder diesel, Bosch charging system, 1975-1986

IVECO MAGIRUS TRUCKS:
• Iveco 75.9A truck (Iveco Magirus MK series) with the Deutz F4L913 4.1L 4-cylinder air-cooled diesel, originally equipped with a Bosch alternator
• Iveco 80.9A truck (Iveco Magirus MK series) with the Deutz F4L913 4.1L 4-cylinder air-cooled diesel, originally equipped with a Bosch alternator
• Iveco 90.9A truck (Iveco Magirus MK series) with the Deutz F4L913 4.1L 4-cylinder air-cooled diesel, originally equipped with a Bosch alternator
• Iveco 80.13A truck (Iveco Magirus MK series) with the Deutz F6L913 6-cylinder air-cooled diesel, originally equipped with a Bosch alternator
• Iveco 90.13A truck (Iveco Magirus MK series) with the Deutz F6L913 6-cylinder air-cooled diesel, originally equipped with a Bosch alternator
• Iveco 130.13A truck (Iveco Magirus MK series) with the Deutz F6L913 6-cylinder air-cooled diesel, originally equipped with a Bosch alternator
• Iveco 80.16A truck (Iveco Magirus MK series) with the Deutz BF6L913 6.1L 6-cylinder air-cooled diesel, originally equipped with a Bosch alternator, 1983-1985
• Iveco 110.16A truck (Iveco Magirus MK series) with the Deutz BF6L913 6.1L 6-cylinder air-cooled diesel, originally equipped with a Bosch alternator
• Iveco 130.16A truck (Iveco Magirus MK series) with the Deutz BF6L913 6.1L 6-cylinder air-cooled diesel, originally equipped with a Bosch alternator

KHD TRUCK ENGINES:
• KHD truck with the Deutz BF6L913 6.1L (6128cc) air-cooled diesel engine, 1973-1975, optional alternator
• KHD truck with the Deutz F3L912 2.8L (2820cc) air-cooled diesel engine, 1971-1975, from April 1971
• KHD truck with the Deutz F6L912 5.6L (5640cc) air-cooled diesel engine, 1970-1975, supersedes the 35 amp and 55 amp originals

NEW HOLLAND COMBINES:
• New Holland 8080 combine (8088 in the older listing) with the Mercedes-Benz OM421 11.0L V6 diesel

LAMBORGHINI:
• Lamborghini Jalpa 3.0L, originally equipped with a Bosch alternator, 1982-1987
• Lamborghini Urraco 2.5L, originally equipped with a Bosch alternator, 1972-1980

ALSO FITS MERCEDES-BENZ TRUCKS, KOMATSU AND KHD (DEUTZ) ENGINES:
• Mercedes-Benz trucks L 1113, L 1116, L 1117, L 1317, LA 1117 1979-1985, LK 2218 1993-1996 (Mercedes-Benz OM352 5.7L)
• Komatsu D30E crawler tractor 1978-1984 (Mercedes-Benz OM352 5.7L)
• KHD (Deutz) air-cooled diesel engines F6L312, F8L312, F6L814, F8L814, F10L814, F3L912, F4L912, F5L912, BF6L912, BF6L913, 1965-1975

ENGINES:
• Perkins 4.236 3.9L 4-cylinder diesel: Claas Dominator 48
• Perkins 6.372 6.1L 6-cylinder diesel: Claas Dominator 76
• Mercedes-Benz OM352 5.7L 6-cylinder diesel: Claas Dominator 86, 96
• Mercedes-Benz OM421 11.0L V6 diesel: New Holland 8080
• Deutz F4L912 3.8L air-cooled diesel: Deutz-Fahr D6507, D7007
• Deutz F4L913 4.1L air-cooled diesel: Deutz-Fahr D7807, Iveco 75.9A, 80.9A, 90.9A
• Deutz F6L913 air-cooled diesel: Iveco 80.13A, 90.13A, 130.13A
• Deutz BF6L913 6.1L air-cooled diesel: Iveco 80.16A, 110.16A, 130.16A, KHD trucks
• Deutz F3L912 2.8L and F6L912 5.6L air-cooled diesels: KHD trucks
• IH D-358 5.9L 6-cylinder diesel: International Harvester 3964, 3965, 3980 Yumbo

SPECIFICATIONS:
• Type: alternator, K1 Type (Bosch design), internal regulator and external fan (IR/EF)
• Voltage: 12 volt
• Output: 60 amp
• Rotation: clockwise (CW)
• Regulator: internal (IR)
• Fan: external (EF)
• Polarity: negative ground
• Mounting: three unthreaded ears, 8.5 mm holes
• B+ terminal: M6-1.0
• Note: capacitor attached to the slip ring end (SRE) housing
• Weight: 11.175 lb (5.08 kg)
• Condition: New aftermarket, not a Bosch branded unit
