OEM PART NUMBER:
• Volvo Penta: 3861575
AFTERMARKET CROSS REFERENCE:
• API Marine: PT407NM
• Arco Marine: 6233
• 18-6804
SPECIFICATIONS:

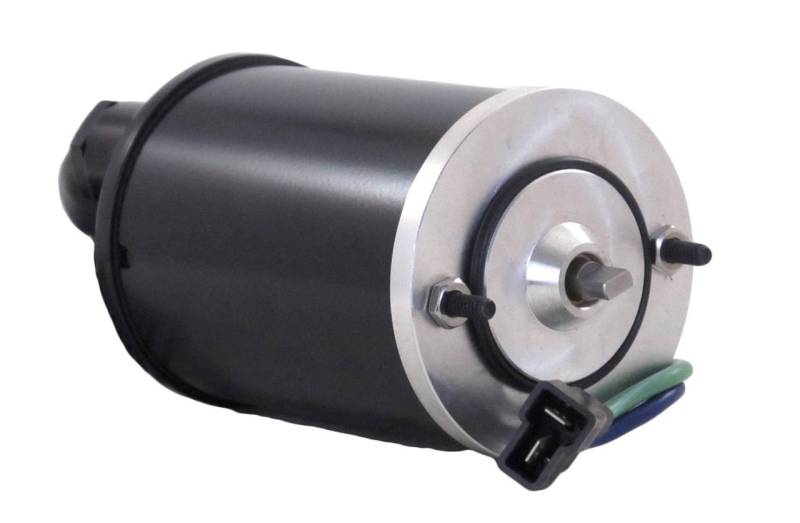

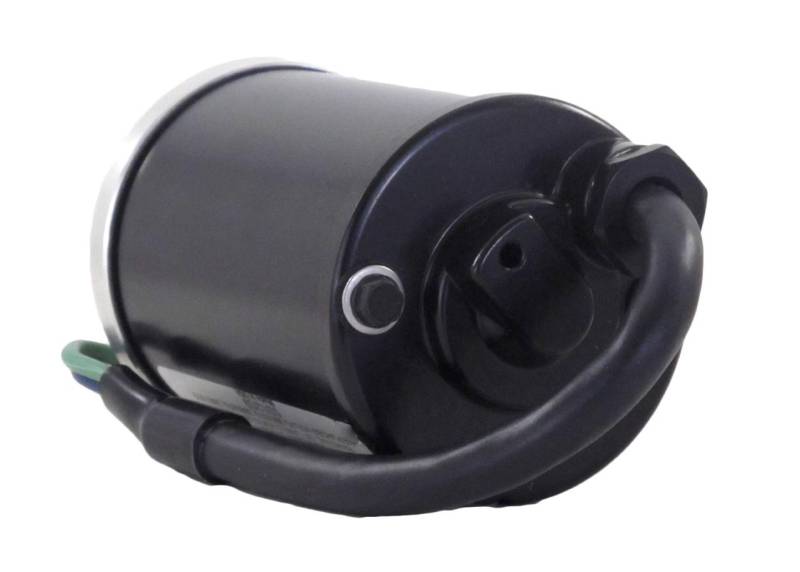

• Type: Tilt Trim Motor (Motor Only — No Pump/Reservoir)
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 2-Wire
• Shaft OD: 8mm / 0.315in
• Shaft: 3.7mm x 8mm Drive Tang
• Field Housing OD: 76.2mm / 3.0in
• Overall Length: 150mm / 5.906in
• Bolt Pattern: 2.3in Centers / 10-24 Coarse Thread
• Services Teleflex-Style Hydraulic Trim Pump
• Weight: 4 lbs
• Condition: New
VOLVO PENTA APPLICATIONS (2001-2009):
• SX: SX-M, SX-MACLT, SX-MBAC, SX-MDA, SX-MDB, SX-MDC, SX-MHP, SX-MLT
• DPH: DPH-A, DPH-B, DPH-C, DPH-D
• DPR: DPR-A, DPR-B, DPR-C, DPR-D
FITS ON PUMP ASSEMBLIES:
• Volvo Penta: 3587079, 3860879
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
