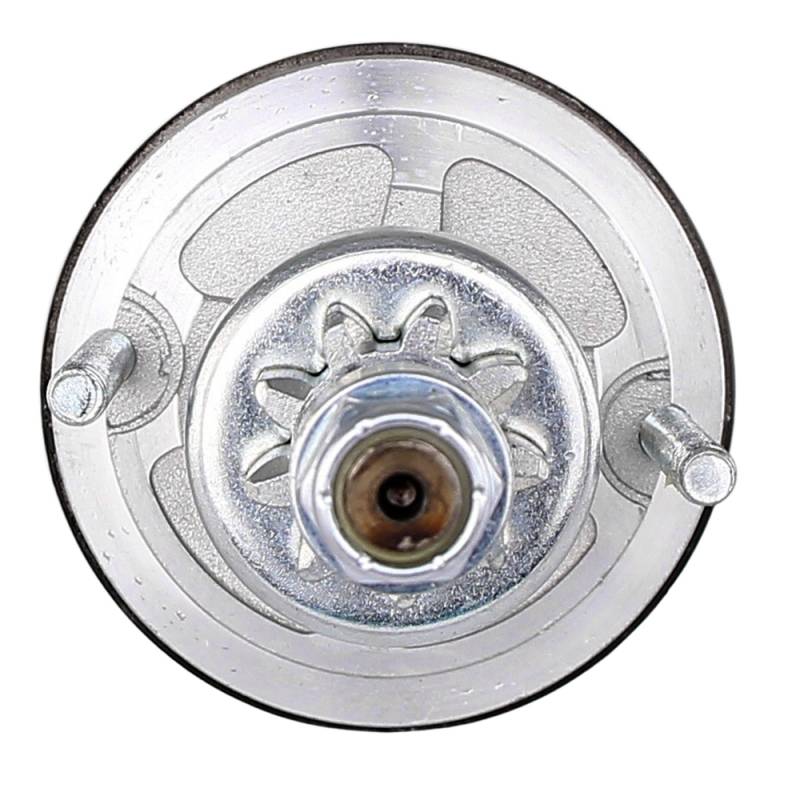

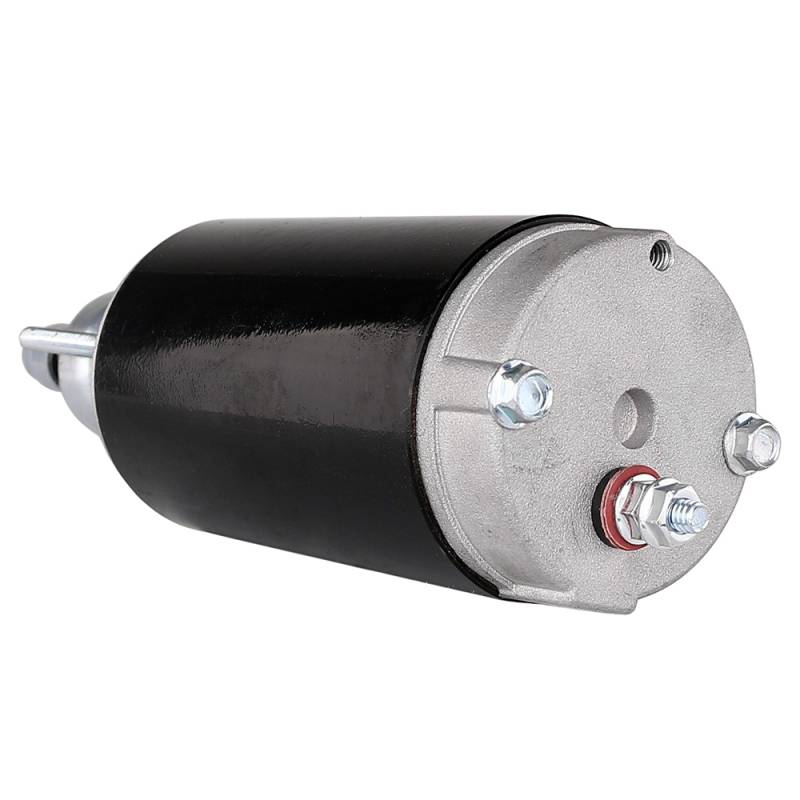

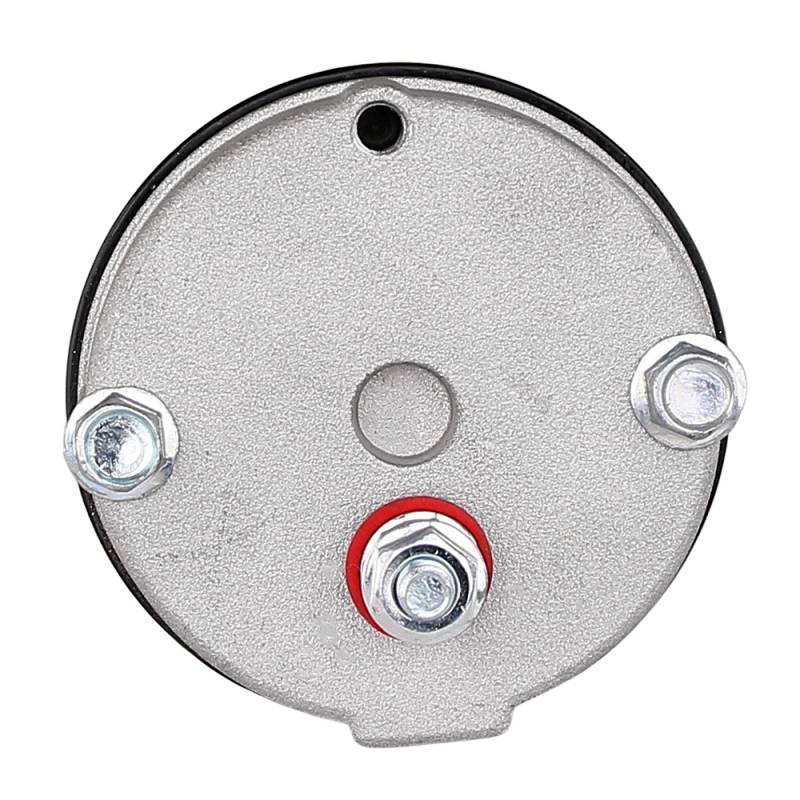

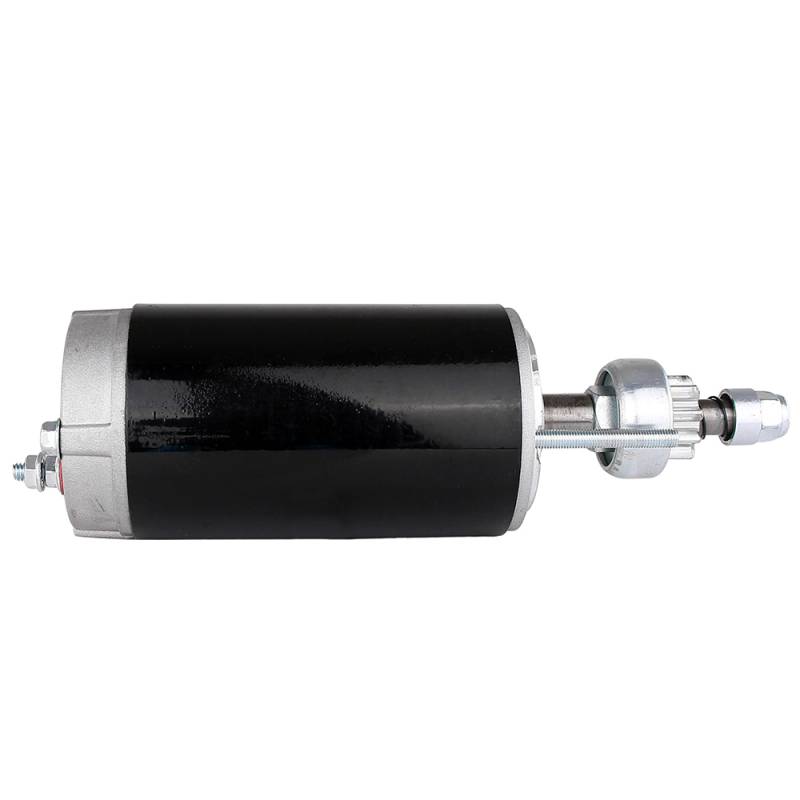

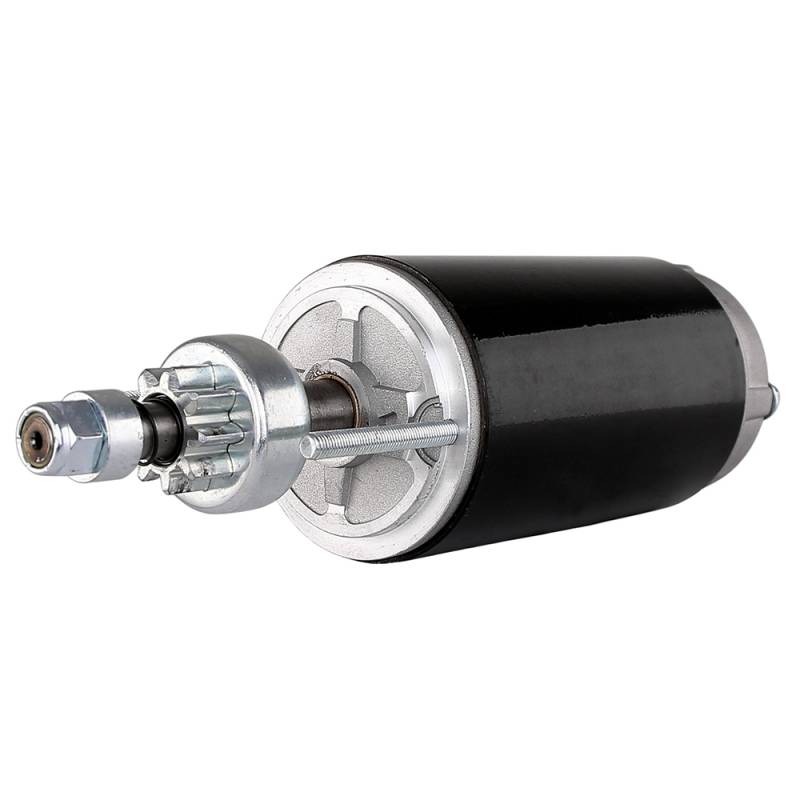

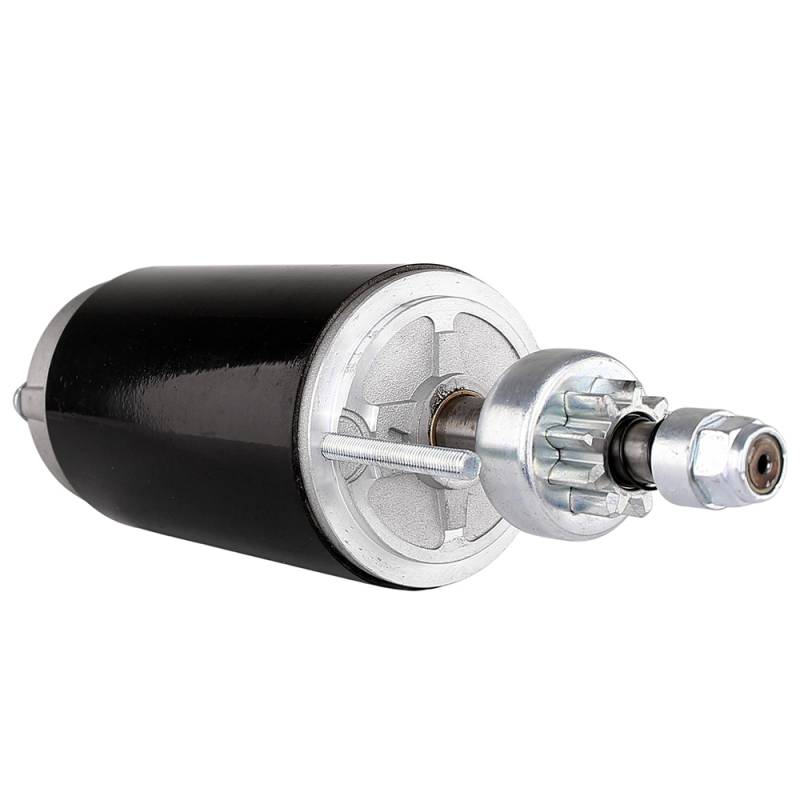

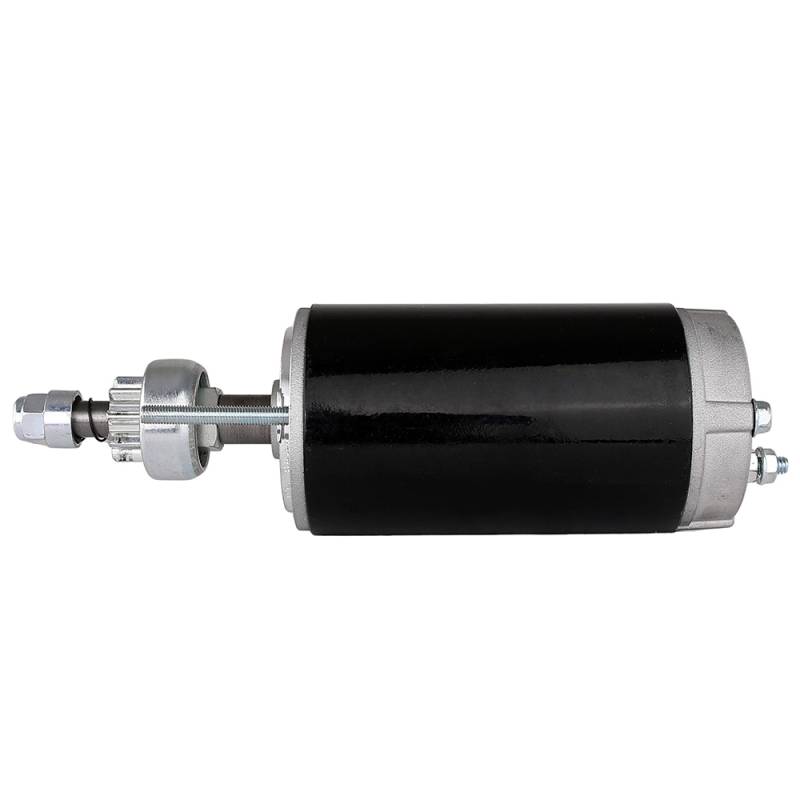

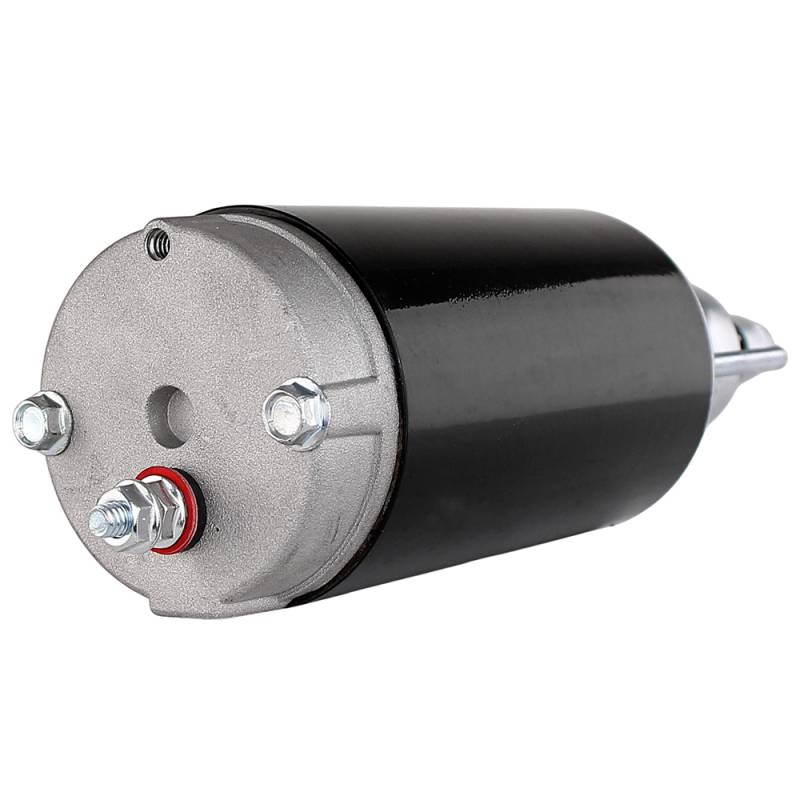

Starter Motor Compatible With 1966-1999 Chrysler Force Mercury Marine Outboard 70-150 Hp Ccw 48-0955

(0) Reviews: Write first review
5739A1
OEM PART NUMBERS:
• Chrysler Marine: 48-0955 / 480955, 48-9955 / 489955, 49-0955 / 490955, 61-6955 / 616955, A85955
• Force / Mercury Marine: 50-583869 / 50583869, 50-583869-T / 50583869T, 50-616955-1, 50-819085 / 50819085, 50-819085-1 / 508190851, 50-819085-T1 / 50819085T1
• Sierra Marine: 18-5613, 18-5644
• Prestolite: 46-2339, 46-776, MGL4002, MGL4002A
• United Technologies: 4412040 / 4412040-M030SM / 4412040MO30SM, SM44120, 5273440 / 5273440-M030SM / 5273440MO30SM, SM52734
• ARCO Marine: 5393

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counterclockwise)
• Tooth Count: 9
• Pinion OD: 29.2mm / 1.150in
• Field Case Length: 122.3mm / 4.81in
• Weight: 7.515 lbs / 3.42 kg
• Mounting: (2) 1/4-28, 2" Long Bolts
• Condition: New

APPLICATION:
• Chrysler Marine Outboard 70-140 HP (1965-1984)
• Force Marine Outboard 70-150 HP (1983-1999)
• U.S. Marine Outboard 70-150 HP (1966-1989)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $130.76
Sale: $74.72
Save: 43%
Save: $56.04
Qty:
Free Shipping!

Description

CHRYSLER MARINE OUTBOARD ENGINES:
• Chrysler Marine Outboard 70 HP (1966-1984)
• Chrysler Marine Outboard 75 HP (1966-1984)
• Chrysler Marine Outboard 80 HP (1965)
• Chrysler Marine Outboard 85 HP (1966-1984)
• Chrysler Marine Outboard 90 HP (1966-1984)
• Chrysler Marine Outboard 100 HP (1979-1984)
• Chrysler Marine Outboard 105 HP (1966-1984)
• Chrysler Marine Outboard 115 HP (1977-1984)
• Chrysler Marine Outboard 120 HP (1973-1984)
• Chrysler Marine Outboard 125 HP (1981-1982)
• Chrysler Marine Outboard 130 HP (1972-1973)
• Chrysler Marine Outboard 135 HP (1969-1977)
• Chrysler Marine Outboard 140 HP (1978-1984)

FORCE MARINE OUTBOARD ENGINES:
• Force 853/854 85 HP (1988-1989)
• Force 856 85 HP (1983-1989)
• Force 858 85 HP (1987-1989)
• Force 85LD9 L-Drive 85 HP (1989)
• Force 903F/906F/908F 90 HP (1990-1992)
• Force 90EL/90ELPT/90EXLPT 90 HP (1993-1994)
• Force 90LD9 L-Drive 90 HP (1990-1991)
• Force 1201/1208 120 HP (1990-1992)
• Force 120LD9 L-Drive 120 HP (1990-1992)
• Force 120ELPT/120EXLPT 120 HP (1993-1997)
• Force 1251/1253/1254/1258 125 HP (1983-1989)
• Force 125LD9 L-Drive 125 HP (1986-1989)
• Force 1501 150 HP (1990-1992)
• Force 1503 150 HP (1989)
• Force 1508 150 HP (1989-1992)
• Force 150ELPT/150EXLPT 150 HP (1993-1994)
• Force 706F/708F 70 HP (1991-1992)
• Force 70EL/70ELPT 70 HP (1993-1995)
• Force 75EL/75ELPT 75 HP (1997-1999)

U.S. MARINE OUTBOARD ENGINES:
• U.S. Marine Outboard 70 HP (1966-1989)
• U.S. Marine Outboard 85 HP (1966-1989)
• U.S. Marine Outboard 125 HP (1966-1989)
• U.S. Marine Outboard 140 HP (1966-1989)
• U.S. Marine Outboard 150 HP (1966-1989)

NOTE: Verify OEM part number from your original unit before ordering.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 8.2 lbs.
  • W7.0000” x H7.0000” x L11.0000”
  • Free Shipping!
