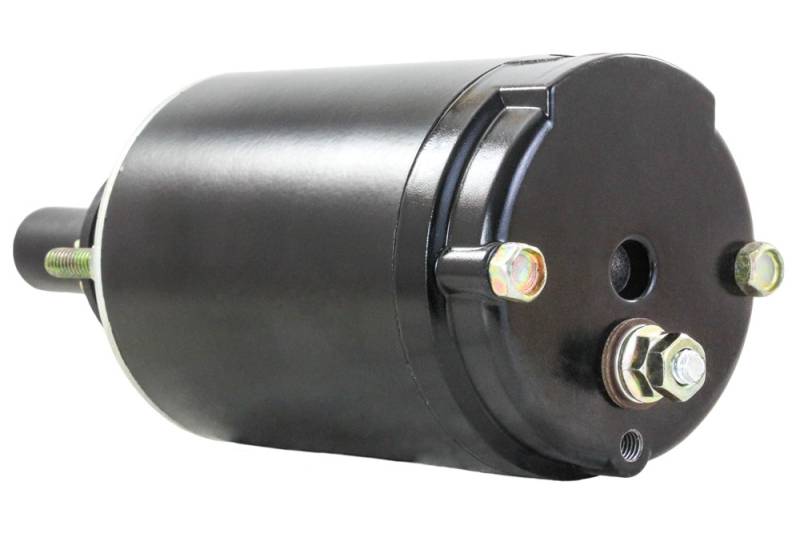

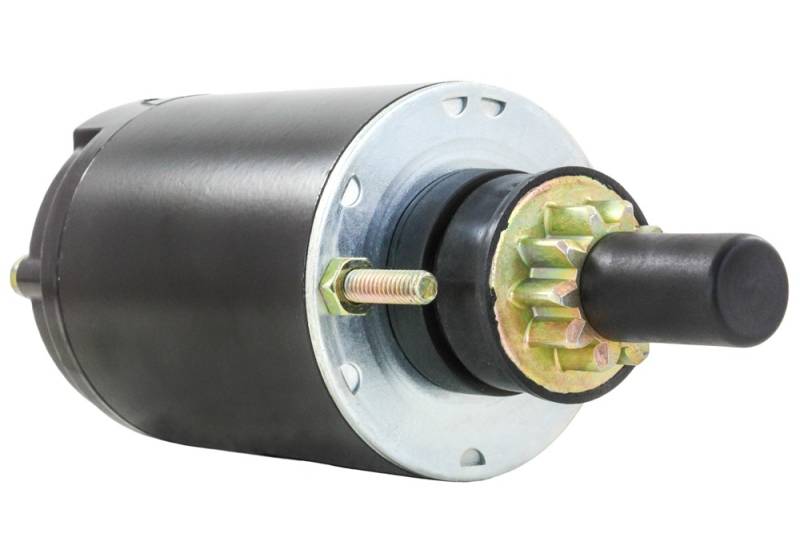

New 12V Ccw Pmdd Starter 10-Tooth Compatible With 1985-1998 Toro 310-8 312-8 314-8 414-8 416-8

(0) Reviews: Write first review
5756*5
OEM CROSS-REFERENCE PART NUMBERS — KOHLER:
• Kohler: 41-098-04 / 4109804
• Kohler: 41-098-06 / 4109806
• Kohler: 41-098-06-S / 4109806S

OEM CROSS-REFERENCE PART NUMBERS — TORO:
• Toro: KH10187
• Toro: 92-7260

OEM CROSS-REFERENCE PART NUMBERS — GRAVELY:
• Gravely: 042404

OEM CROSS-REFERENCE PART NUMBERS — JOHNSON ELECTRIC:
• Johnson Electric: SM47330
• Johnson Electric: SM56666
• Johnson Electric: 5666640

OEM CROSS-REFERENCE PART NUMBERS — UNITED TECHNOLOGIES (UT):
• United Technologies: 4733040-M030SM / 4733040MO30SM
• United Technologies: 5666640-M030SM / 5666640MO30SM

SPECIFICATIONS:
• Product Type: Kohler M-Series Engine Starter Motor (PMDD)
• OEM Manufacturer: Johnson Electric / United Technologies (UT)
• Voltage: 12 Volt
• Rotation: Counterclockwise (CCW)
• Starter Type: PMDD (Permanent Magnet Direct Drive)
• Number of Teeth: 10
• Pinion / Gear OD: 31.8mm / 1.252"
• Field Case Length: 3.46" / 87.8mm
• Thru-Bolt Length: Extends 21.2mm out front of drive cap
• Stud Terminal: Located on back of CE cap
• Weight: 4.97 lbs / 2.26 kg
• Engine: Kohler Magnum M-Series M-8 through M-16 (8-16HP) Air-Cooled Gas
• Application: Cub Cadet 1050/1204/1211 + Massey Ferguson MF-212/214/316/318/320 GTX + Toro 310-8 thru 416-8 + Greensmaster/Reelmaster/Sand Pro (1985-1998)
• Condition: New

APPLICATION SUMMARY — KOHLER M-SERIES EQUIPMENT 1985-1998:
• 1985-1998 Toro Garden Tractors 310-8 / 312-8 / 312-H / 314-8 / 314-H / 414-8 / 416-8 with Kohler M-10 / M-12 / M-14 / M-16 Engines
• 1987-1997 Toro Greensmaster 3000 / Reelmaster 216 / Sand Pro 2000 / 3000 with Kohler Engines
• 1987-1989 Cub Cadet Garden Tractors 1050 / 1204 / 1211 with Kohler M-10 / M-12 Engines
• 1991-1994 Massey Ferguson MF-212/214/316/318/320 GTX Farm Tractors with Kohler Engines

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $126.88
Sale: $72.50
Save: 43%
Save: $54.38
Qty:
Free Shipping!

Description

KOHLER MAGNUM M-SERIES AIR-COOLED ENGINES — 8HP TO 16HP (PRIMARY ENGINE FAMILY):
• Kohler M-8 — 8HP Single-Cylinder Air-Cooled Gasoline Magnum Engine
• Kohler M-10 — 10HP Single-Cylinder Air-Cooled Gasoline Magnum Engine
• Kohler M-12 — 12HP Single-Cylinder Air-Cooled Gasoline Magnum Engine
• Kohler M-14 — 14HP Single-Cylinder Air-Cooled Gasoline Magnum Engine
• Kohler M-16 — 16HP Twin-Cylinder Air-Cooled Gasoline Magnum Engine

CUB CADET GARDEN TRACTORS — KOHLER M-SERIES (1987-1989):
• 1989 Cub Cadet 1050 Garden Tractor with Kohler M-10 10HP Air-Cooled Gas Engine
• 1987-1988 Cub Cadet 1204 Garden Tractor with Kohler M-12 12HP Air-Cooled Gas Engine
• 1987-1989 Cub Cadet 1211 Garden Tractor with Kohler M-12 12HP Air-Cooled Gas Engine

MASSEY FERGUSON GTX SERIES FARM TRACTORS — KOHLER ENGINES (1991-1994):
• 1991-1994 Massey Ferguson MF-212GTX Farm Tractor with Kohler M-12 12HP Engine
• 1991-1994 Massey Ferguson MF-214GTX Farm Tractor with Kohler M-14 14HP Engine
• 1991-1994 Massey Ferguson MF-316GTX Farm Tractor with Kohler M-16 16HP Engine
• 1991-1994 Massey Ferguson MF-318GTX Farm Tractor with Kohler M-18 18HP Engine
• 1991-1994 Massey Ferguson MF-320GTX Farm Tractor with Kohler M-20 20HP Engine

TORO GARDEN TRACTORS — KOHLER M-SERIES (1985-1998):
• 1988-1993 Toro 310-8 Garden Tractor with Kohler M-10 10HP Air-Cooled Gas Engine
• 1988-1996 Toro 312-8 Garden Tractor with Kohler M-12 12HP Air-Cooled Gas Engine
• 1990-1992 Toro 312-H Garden Tractor with Kohler M-12 12HP Air-Cooled Gas Engine
• 1993-1998 Toro 314-8 Garden Tractor with Kohler M-14 14HP Air-Cooled Gas Engine
• 1993-1997 Toro 314-H Garden Tractor with Kohler M-14 14HP Air-Cooled Gas Engine
• 1986-1989 Toro 414-8 Garden Tractor with Kohler M-14 14HP Air-Cooled Gas Engine
• 1985-1988 Toro 416-8 Garden Tractor with Kohler M-16 16HP Air-Cooled Gas Engine

TORO PROFESSIONAL TURF EQUIPMENT — KOHLER ENGINES (1987-1997):
• 1987-1997 Toro Greensmaster 3000 Reel Mower with Kohler Engine
• 1987-1997 Toro Reelmaster 216 Reel Mower with Kohler Engine
• 1992-1996 Toro Sand Pro 2000 Bunker Rake with Kohler M-12 12HP Engine
• 1994-1996 Toro Sand Pro 3000 Bunker Rake with Kohler Engine

FITMENT NOTES — CRITICAL APPLICATION REQUIREMENTS:
• 12 VOLT SYSTEM REQUIRED
• Counterclockwise (CCW) rotation, 10-tooth pinion, 1.252" (31.8mm) gear OD
• PMDD (Permanent Magnet Direct Drive) starter — original UT/JE design
• Field case length: 3.46" / 87.8mm
• Thru-bolts extend 21.2mm out front of drive cap (CRITICAL fitment dimension)
• Stud terminal located on back of CE cap
• Weight: 4.97 lbs (2.26 kg)
• OEM Manufacturer: Johnson Electric / United Technologies
• Engine Family: Kohler Magnum M-Series M-8 through M-16 air-cooled gasoline
• Will NOT fit Kohler Courage SV-Series engines (different starter family — series)
• Will NOT fit Kohler Command CH-Series / CV-Series engines (different starter family)
• Will NOT fit Kohler K-Series K-Twin engines (different starter)
• Will NOT fit Kohler M-18 / M-20 standalone applications NOT on Massey Ferguson MF-318/320 GTX (different starter)
• Will NOT fit later-production Toro 314 / Greensmaster after Kohler engine swaps (verify your OEM number)
• Always verify your OEM part number from the original starter unit before ordering
